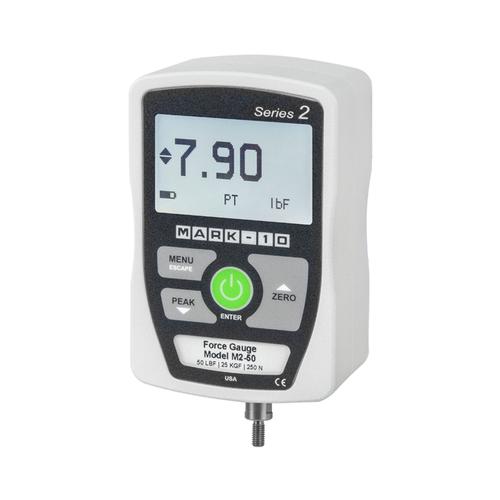

Mark 10 M2-5 Series 2 Economical Digital Force Gauge, 5 x 0.005 lb

Mark-10 - Force and Torque Measurement Products
Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges’ ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading. more ...
Scales > Force Gauge > Digital Gauge
Mark 10  M2-5 Series 2 Economical Digital Force Gauge, 5 x 0.005 lb

Specifications Chart View Full Detail Page



Download PDF
Mark 10 M2-5 Series 2 Economical Digital Force Gauge, 5 x 0.005 lb
FREE Ground Shipping *


Price: $394.25


In Stock - Ships within 24 hours

Optional Accessories
Mark-10 23-1031-2 Attachments Kit for M2-2 and M2-100 Force Gauges Mark-10 23-1031-2 Attachments Kit for M2-2 and M2-100 Force Gauges , $80.75
Mark-10 23-1031-3 Attachments Kit for M2-200 and M2-500 Force Gauges Mark-10 23-1031-3 Attachments Kit for M2-200 and M2-500 Force Gauges , $99.75
Mark 10  12-1049 Carrying case for M2 Series 2 Force Gauges Mark 10 12-1049 Carrying case for M2 Series 2 Force Gauges , $35.00
Mark-10 NIST Certifcate of Calibration with data for M2 Series 2 gauges (ordered with a new gauge) Mark-10 NIST Certifcate of Calibration with data for M2 Series 2 gauges (ordered with a new gauge) , $71.25
Mark-10 G1024 Extension Rod, 200 lb, 5 in Mark-10 G1024 Extension Rod, 200 lb, 5 in , $20.00
Mark-10 AC1030 Replacment AC adapter/charger, 110V US Mark-10 AC1030 Replacment AC adapter/charger, 110V US , $40.00
Mark-10 AC1031 AC adapter/charger, 220V Europe Mark-10 AC1031 AC adapter/charger, 220V Europe , $40.00
Mark-10 AC1032 AC adapter/charger, 220V UK Mark-10 AC1032 AC adapter/charger, 220V UK , $40.00
Mark-10 AC1035 AC adapter/charger, 220V AUS Mark-10 AC1035 AC adapter/charger, 220V AUS , $40.00
Mark-10 G1025 Chisel Point, 200 lb Mark-10 G1025 Chisel Point, 200 lb , $20.00
Mark-10 G1026 Cone Point, 200 lb Mark-10 G1026 Cone Point, 200 lb , $20.00
Mark-10 G1038 Hook, 200 lb Mark-10 G1038 Hook, 200 lb , $15.00
Mark-10 G1039 Thread Adapter, 200 lb Mark-10 G1039 Thread Adapter, 200 lb , $15.00
Mark-10 G1029 Flat Head, 200 lb Mark-10 G1029 Flat Head, 200 lb , $20.00

View Features

Mark 10
SKU: M2-5
UPC: B00B79TG94

Features

Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges’ ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.

The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.

Features

  • Calculates peak tension and compression values
  • 3 selectable units of measurement
  • Ultra-compact ergonomic housing
  • 500 Hz sampling rate
  • Large, backlit graphic display with auto-dimming
  • Powered by 9V battery or available AC adapter
  • Reversible housing for alternate load cell orientation

Weight: 2.00 lb
Other Mark 10 M2 Series 2 Economical Digital Force Gauge

M2-2
Series 2 Economical Digital Force Gauge
2 x 0.002 lb

$394.25

M2-5
Series 2 Economical Digital Force Gauge
5 x 0.005 lb

$394.25

You are viewing this product

M2-10
Series 2 Economical Digital Force Gauge
10 x 0.01 lb

$394.25

M2-20
Series 2 Economical Digital Force Gauge
20 x 0.02 lb

$394.25

M2-50
Series 2 Economical Digital Force Gauge
50 x 0.05 lb

$394.25

M2-100
Series 2 Economical Digital Force Gauge
100 x 0.1 lb

$394.25

M2-500
Series 2 Economical Digital Force Gauge
500 x 0.5 lb

$536.75

M2-200
Series 2 Economical Digital Force Gauge
200 x 0.2 lb

$536.75

Specifications

Model M2-2 M2-5 M2-10 M2-20 M2-50 M2-100
lbF 2 x 0.002 5 x 0.005 10 x 0.01 20 x 0.02 50 x 0.05 100 x 0.1
kgF 1 x 0.001 2.5 x 0.002 5 x 0.05 10 x 0.01 25 x 0.02 50 x 0.05
N 10 x 0.01 25 x 0.02 50 x 0.05 100 x 0.1 250 x 0.2 500 x 0.5
Accuracy ±0.5% of full scale
Sampling 500 Hz
Sampling AC or 9V non-rechargeable battery, with multi-step low battery indicator.
Battery Backlight on / off: up to 24 hours / 92 hours of continuous use
Safe Overload 150% of full scale (display shows “OVER” at 110% and above)
Weight 0.7 lb [0.33 kg]
Included Items 9V battery, quick-start guide, resource CD, certificate of conformance.
Enviromnental Requirements 40 - 100°F, max. 96% humidity, non-condensating
Warranty 3 years (see individual statement for further details)

* within the 48 continental US States


Optional Accessories


Mark-10 23-1031-2 Attachments Kit for M2-2 and M2-100 Force Gauges
more info
Mark-10 23-1031-2 Attachments Kit for M2-2 and M2-100 Force Gauges
more info
Price: $80.75
In Stock
btn buy
This is an accessory kit for Mark 10 M2-2 and M2-100 Force Gauges. This kit includes a hook, flat, cone, chisel, v-groove, and extension rod.
Mark-10 23-1031-3 Attachments Kit for M2-200 and M2-500 Force Gauges
more info
Mark-10 23-1031-3 Attachments Kit for M2-200 and M2-500 Force Gauges
more info
Price: $99.75
In Stock
btn buy
This is an accessory kit for Mark 10 M2-200 and M2-500 Force Gauges. This kit includes a hook, flat, cone, chisel, v-groove, and extension rod.
Mark 10  12-1049 Carrying case for M2 Series 2 Force Gauges
more info
Mark 10 12-1049 Carrying case for M2 Series 2 Force Gauges
more info
Price: $35.00
In Stock
btn buy
Mark 10 12-1049 Carrying case for M2 Series 2 Force Gauges
Mark-10 NIST Certifcate of Calibration with data for M2 Series 2 gauges (ordered with a new gauge)
more info
Mark-10 NIST Certifcate of Calibration with data for M2 Series 2 gauges (ordered with a new gauge)
more info
Price: $71.25
In Stock
btn buy
Mark-10 NIST Certifcate of Calibration with data for M2 Series 2 gauges (ordered with a new gauge)
Mark-10 G1024 Extension Rod, 200 lb, 5 in
more info
Mark-10 G1024 Extension Rod, 200 lb, 5 in
more info
Price: $20.00
In Stock
btn buy

For use between a force gauge and another attachment or grip. Use them with a Mark-10 force gauge and test stand to create a complete compression testing system.

Model Capacity
(lb / N)
Weight
(lb / kg)
A ØB C D
G1024
200 / 1000
0.01 / 0.005
5.0 / 127.0
0.25 / 6.4
#10-32F
#10-32G
G1024-1
0.02 / 0.009
2.0 / 50.8
G1024-2
0.05 / 0.023
1.0 / 25.4
G1031
500 / 2500
0.05 / 0.023
5.0 / 127.0
0.5 / 12.7
5/16-18F
5/16-18F
G1031-1
0.1 / 0.045
2.0 / 50.8
G1031-2
0.25 / 0.113
1.0 / 25.4



Mark-10 AC1030 Replacment AC adapter/charger, 110V US
more info
Mark-10 AC1030 Replacment AC adapter/charger, 110V US
more info
Price: $40.00
In Stock
btn buy
Mark-10 AC1030 Replacment AC adapter/charger, 110V US for Series 5/4/3
Mark-10 AC1031 AC adapter/charger, 220V Europe
more info
Mark-10 AC1031 AC adapter/charger, 220V Europe
more info
Price: $40.00
In Stock
btn buy
Mark-10 AC1031 AC adapter/charger, 220V Europe compatible with any Mark-10 force or torque gauge, except Series MG and MGT gauges manufactured before September 2010.
Mark-10 AC1032 AC adapter/charger, 220V UK
more info
Mark-10 AC1032 AC adapter/charger, 220V UK
more info
Price: $40.00
In Stock
btn buy
Mark-10 AC1032 AC adapter/charger, 220V UK compatible with any Mark-10 force or torque gauge, except Series MG and MGT gauges manufactured before September 2010.
Mark-10 AC1035 AC adapter/charger, 220V AUS
more info
Mark-10 AC1035 AC adapter/charger, 220V AUS
more info
Price: $40.00
In Stock
btn buy
Mark-10 AC1035 AC adapter/charger, 220V AUS compatible with any Mark-10 force or torque gauge, except Series MG and MGT gauges manufactured before September 2010.
Mark-10 G1025 Chisel Point, 200 lb
more info
Mark-10 G1025 Chisel Point, 200 lb
more info
Price: $20.00
In Stock
btn buy

For compressing or puncturing a variety of samples. Use them with a force gauge and a test stand to create a complete testing system.

Model Capacity
(lb / N)
Weight
(lb / kg)
A ØB C
G1025
200 / 1000
0.003 / 0.001
0.5 / 12.7
0.5 / 12.7
#10-32F
G1032
500 / 2500
0.04 / 0.018
1.0 / 25.4
0.5 / 12.7
5/16-18F

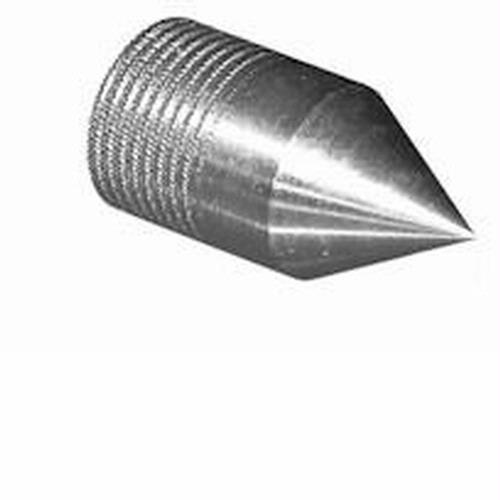

Mark-10 G1026 Cone Point, 200 lb
more info
Mark-10 G1026 Cone Point, 200 lb
more info
Price: $20.00
In Stock
btn buy

For puncturing a variety of samples. Use them with a force gauge and a test stand to create a complete testing system.

Model Capacity
(lb / N)
Weight
(lb / kg)
A ØB C
G1026
200 / 1000
0.003 / 0.001
0.5 / 12.7
0.5 / 12.7
#10-32F
G1033
500 / 2500
0.03 / 0.014
1.0 / 25.4
0.5 / 12.7
5/16-18F

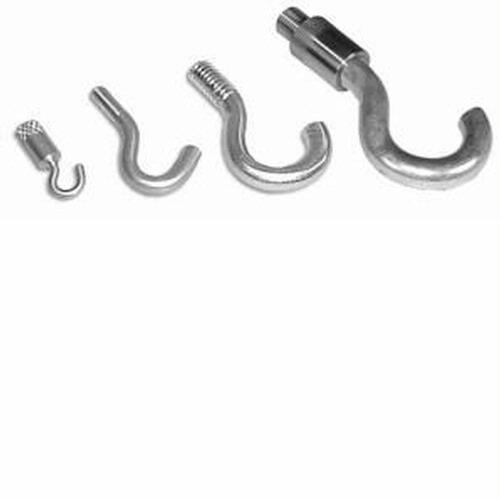

Mark-10 G1038 Hook, 200 lb
more info
Mark-10 G1038 Hook, 200 lb
more info
Price: $15.00
In Stock
btn buy

These hooks are ideal for a variety of tensile tests. Use them with a force gauge and a test stand to create a complete testing system.

Model Capacity (lb / N) Weight (lb / kg) RA B ØC D
G1028
20 / 100
0.01 / 0.005
0.05 / 1.3
1.0 / 25.4
0.1 / 2.5
#10-32F
G1038
200 / 1000
0.02 / 0.009
0.2 / 5.1
1.5 / 38.1
0.19 / 4.8
#10-32M
G1035
500 / 2500
0.5 / 0.023
0.3 / 7.6
1.9 / 48.3
0.28 / 7.1
5/16-18M
G1042
1000 / 4500
0.32 / 0.145
0.5 / 12.7
4.1 / 104.1
0.45 / 11.4
1/2-20M

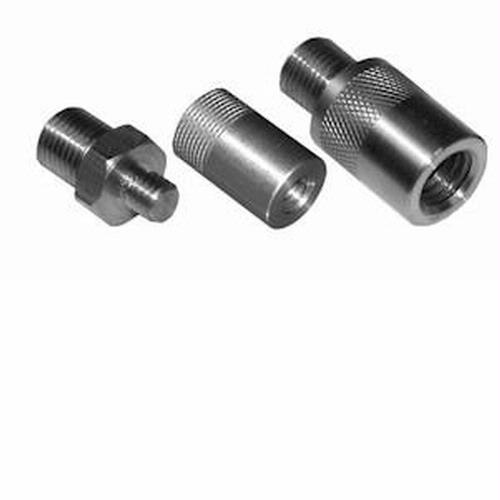

Mark-10 G1039 Thread Adapter, 200 lb
more info
Mark-10 G1039 Thread Adapter, 200 lb
more info
Price: $15.00
In Stock
btn buy

For use between a force gauge and another attachment or grip. Use them with a force gauge and a test stand to create a complete testing system.

Model Capacity (lb / N) A B C
G1050
100 / 500
0.75 / 19.1
#4-40M
#10-32F
G1051
0.6 / 15.2
#4-40M
#10-32M
G1039
200 / 1000
0.75 / 19.1
#10-32F
#10-32F
G1030
0.5 / 12.7
5/16-18M
#10-32F
G1047
0.75 / 19.1
#10-32M
M4F
G1048
0.75 / 19.1
M4M
#10-32F
G1040
500 / 2500
1.0 / 25.4
5/16-18M
5/16-18M
G1037
1.0 / 25.4
5/16-18F
5/16-18F
G1049
1.25 / 31.8
M6M
5/16-18F
G1041
1000 / 5000
or
500 / 2500*
1.0 / 25.4
1/2-20M
5/16-18M

* 1000 / 5000 when used in compression. 500 / 2500 when used in tension

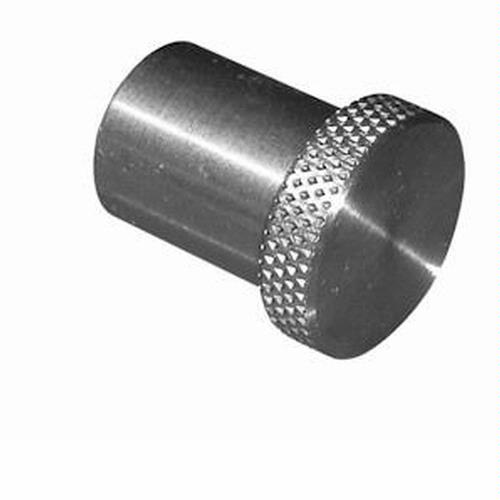

Mark-10 G1029 Flat Head, 200 lb
more info
Mark-10 G1029 Flat Head, 200 lb
more info
Price: $20.00
In Stock
btn buy

These attachments are ideal for compression testing of buttons, membrane switches, etc. Use them with a force gauge and a test stand to create a complete testing system.

Model Capacity (lb / N) Weight (lb / kg) ØA B C
G1029
200 / 1000
0.01 / 0.005
0.5 / 12.7
0.5 / 12.7
#10-32F
G1036
500 / 2500N
0.06 / 0.027
0.75 / 19.1
0.87 / 22.1
5/16-18F
