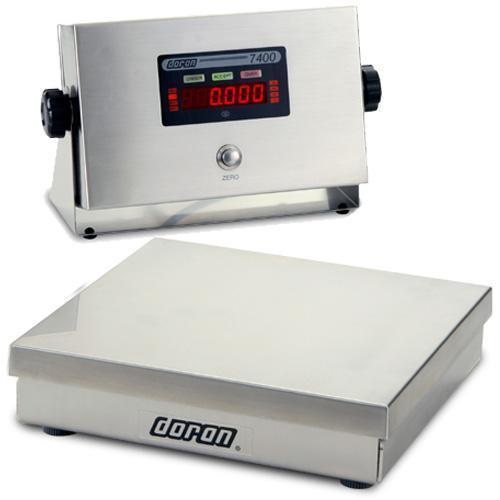

Doran 7410/88 Legal For Trade Washdown 8 x 8 Bench Scale 10 x 0.002 lb
Doran’s Excel Series Model 7400 Scale gives you all this and more! Designed to replace the highly successful Doran 4100XL and 7000 Series Scales, the Doran 7400 has all the features of both scales along with new Excel Series upgrades. The 7400 combines the simplicity of the 7000 with 4100XL checkweigh functions. more ...
Doran’s Excel Series Model 7400 Scale gives you all this and more! Designed to replace the highly successful Doran 4100XL and 7000 Series Scales, the Doran 7400 has all the features of both scales along with new Excel Series upgrades. The 7400 combines the simplicity of the 7000 with 4100XL checkweigh functions.
Washdown Safe Construction
Superior washdown protection has been engineered into the Model 7400 Digital Scale Series. From the heavy guage stainless steel to the innovative gasket design, this scale meets the NEMA4X and IP69K classification for washdown protection.
Single Pushbutton Operation
Simple, one button operation - what could be easier? Press Zero and the bright red LED display shows 0.00.
Big, Bright Checkweigh Indicators
Over-Accept-Under indicators can be used to check to see if the product being weighed meets a target weight.
Rugged and Reliable
Our engineers designed the 7400 to survive the harshest industrial environments with maximum reliability. The gasketed four screw case, the stainless steel Zero button and a watertight LEXAN® lens help achieve that goal.
1000% Overload Base
No...thats not a typo! Our unique "Quad-Spring" design protects the sensitive load cell from shock and overload damage. Protected to a maximum of 10 times the base load rating sets the new industry standard - a feature only available from Doran. Take a "peek under the hood" to see whats inside our DXL scale base.
Powerful Excel Features & Options
Take the 7400 to new levels with the enhanced features made possible with the new Excel Series Design. Choose from a variety of communication options include Wired or Wireless Ethernet. Control a mixing or batching operation by simply adding setpoints and relays.
Excel Series FeaturesCommunication Interfaces
Programmable, Bi-directional RS-232 interface
Optional Interfaces: USB 2.0, RS-485, 4-20mA, Fiber Optic, Washdown Ethernet (wired or Wireless - 802.11b), User definable data output
Optional Setpoints
Up to 8 setpoints are available for use in process control, Accept/Reject, 4 Internal Relays or 8 Digital Outputs
Advanced Features
Grading Scale and Peak & Hold - Standard
Internal Rechargeable Battery Option
Dimension setup and communications Windows software.
Weight:10.00 lb
Other Doran 7400 Stainless Steel Washdown Bench Scales
Doran EXOPT150 Washdown Safe RJ45 Ethernet Connector Field Install Kit Includes one NEMA4X connerctor to mate to the connector on the back of the scale. Installes on customer supplied cable..
Doran EXOPT102 Wireless Ethernet 802.11b - Includes Internal Ethernal interface board and a 3.5 Inch long flexable antenna with a NEMA4X bulkhead mount on the back of the meter.
this option is Factory Installed and must be added with the scale
Doran EXOPT160 USB Interface - Includes Internal USB interface board and a sealed USB Type A connector bulkhead mounted on the back of the meter with a NEMA 4X sealing cap. For scales used in wet environment choose one of the following USB Waterproof cables (IP67 and NEMA 4X Rated)
This Option can be combined with the 4-20mA Analog Output, Digital Output Board and internal Relay Options
this option is Factory Installed and must be added with the scale
Doran EXOPT186 Modbus/TCP - Includes Internal Modbus/TCP Interface board with a sealed RJ45 Connector bulkhead mounted on the back of the meter with a NEMA 4X IP67 sealing cap.
this option is Factory Installed and must be added with the scale
Doran EXOPT150 Washdown Safe RJ45 ModbusTCPConnector Field Install Kit Includes one NEMA4X connerctor to mate to the connector on the back of the scale. Installes on customer supplied cable..
Doran EXOPT103 Fiber Optic Interface - Includes internal fiber optic interface board a special backplate and 50 feet () 15m) of fiber optic cable. This Option can be combined with the digital Outboard Option and Internal Relay Option
this option is Factory Installed and must be added with the scale
Doran EXPOT106 Internal Relay Option - Includes Internal relay board with sockets to accept up to four relays. Also includes an attached six foot long cable with color-coded leads. Relays can be configured as normally open or closed
Note: 1. One or more of the folowing realys must be orderd with this option.
2. The digital output board option (part EXOPT104) is required unless the scale is equipped with wired ethernet, wired Ethernet, wireless Ethernet or RS485
this option is Factory Installed and must be added with the scale
Doran EXPOT107 External Relay Option - Includes 10 x 7 Inch housing with 5 vold power supply and DIN rail to accommodate up to 8 mechanical or solid state relays. Relays can be configured as normally open or closed. One or more of the following external must be ordered with the option
Doran EXOPT118 RS-232 Serial Output - 10 ft cable w Pigtail Ends
Serial data Output default settings are 6900 baud, 8 bits, no parity and one stop bit
RS-323 Options CAN NOT be orderd with the following options
RS485 serial OUTput (ECOPT105)
Ethernet - Wired EXOPT101
Ethernet - Wireless EXOPT102
Fiber Optic Interface EXOPT103
USB Interface EXOPT160
Bluetooth EXOPT205
Doran EXOPT119 RS-232 Serial Output - 10 ft cable 9 PIN FEMALE D connector - Scale to PC
Serial data Output default settings are 6900 baud, 8 bits, no parity and one stop bit
RS-323 Options CAN NOT be orderd with the following options
RS485 serial OUTput (ECOPT105)
Ethernet - Wired EXOPT101
Ethernet - Wireless EXOPT102
Fiber Optic Interface EXOPT103
USB Interface EXOPT160
Bluetooth EXOPT205
Doran EXOPT148 RS-232 Serial Output - 10 ft cable 9 PIN MALE D connector - Scale to Printer
Serial data Output default settings are 6900 baud, 8 bits, no parity and one stop bit
RS-323 Options CAN NOT be orderd with the following options
RS485 serial OUTput (ECOPT105)
Ethernet - Wired EXOPT101
Ethernet - Wireless EXOPT102
Fiber Optic Interface EXOPT103
USB Interface EXOPT160
Bluetooth EXOPT205
Doran EXOPT105 RS-485 Serial Output - 10 ft cable w Pigtail Ends
Serial data Output default settings are 6900 baud, 8 bits, no parity and one stop bit
RS-323 Options CAN NOT be orderd with the following options
RS485 serial OUTput (ECOPT105)
Ethernet - Wired EXOPT101
Ethernet - Wireless EXOPT102
Fiber Optic Interface EXOPT103
USB Interface EXOPT160
Bluetooth EXOPT205
Doran EXOPT147 6-24VDC Power - Incudes 2 pin in-line connector on a 6 Inch length of cable with the mating connector attached to a 21 Inch length of two conductor cable. Connectors have a washdown rating or IP68.
Doran EXOPT151 Internal Audible Alarm Option Accept - Chime - 1, 2, or 3 audible alarms For “Over”, “Accept”, or “Under”, varying tones and volume control - specify beepers at time of order (3 maximum). Alarms are rated NEMA 4X.
Doran EXOPT152 Internal Audible Alarm Option Over - Continous- 1, 2, or 3 audible alarms For “Over”, “Accept”, or “Under”, varying tones and volume control - specify beepers at time of order (3 maximum). Alarms are rated NEMA 4X.
Doran EXOPT152 Internal Audible Alarm Option Under - Warble- 1, 2, or 3 audible alarms For “Over”, “Accept”, or “Under”, varying tones and volume control - specify beepers at time of order (3 maximum). Alarms are rated NEMA 4X.
Doran EXOPT157 External Audible Alarm Option Accept - Chime - 1, 2, or 3 audible alarms For “Over”, “Accept”, or “Under”, varying tones and volume control - specify beepers at time of order (3 maximum). Alarms are rated NEMA 4X and are mouted in a NEMA 4X Rated plastic enclosure (5" w x 4" h x 2" d) with 10 feet of cable..
Doran EXOPT157 External Audible Alarm Option Accept - Chime - 1, 2, or 3 audible alarms For “Over”, “Accept”, or “Under”, varying tones and volume control - specify beepers at time of order (3 maximum). Alarms are rated NEMA 4X and are mouted in a NEMA 4X Rated plastic enclosure (5" w x 4" h x 2" d) with 10 feet of cable..
Doran EXOPT157 External Audible Alarm Option Accept - Chime - 1, 2, or 3 audible alarms For “Over”, “Accept”, or “Under”, varying tones and volume control - specify beepers at time of order (3 maximum). Alarms are rated NEMA 4X and are mouted in a NEMA 4X Rated plastic enclosure (5" w x 4" h x 2" d) with 10 feet of cable..
The Doran LR350 barcode label printer offers outstanding performance, reliability and flexibility to meet the demands of todays fast paced label printing applications. Ideal for all non-washdown applications such as: packaging, production, warehousing, shipping and receiving printing needs.
Direct thermal print technology provides high quality labels time after time. Preloaded Doran label formats provide true plug and play setup for most labeling applications - custom label designs are also available.
Direct Thermal 203 dpi Resolution
68" Maximum Print Length
4.25" Maximum Print Width
Compatible with "Create a Label" for easy label design
Includes one roll of 4" x 5" labels
Label Gap Sensor
USB 2.0 PC Interface (drivers included)
RS-232 Scale Interface
2 MB User Storage
Heavy Duty ABS construction, suitable for Non-washdown applications
Windows PC for label design (Programmable via USB Port)
Optional Label Peeler
Doran Scale to be Used With the Printer:
PC400, PC500, 4300, 7000XL, 7400, 8000XL, 2200, 2200B, 2200CW
Specifications
Model
LR350
Print Speed
2" - 4" IPS
Media
Label roll O.D.: Maximum - 5", Core Diameter: 1" - 1.5"
Interface
DB-9 Serial port and USB 2.0
Memory
Standard: 4 MB / 8 MB SDRAM
Power
100~240VAC, 50/60 Hz
Environment
Operation Temperature: 40° F to 104° F
Printer Dimensions
Length: 8.58" Height: 6.53" Width: 6.61"
Printer Language
EZPL
Resident Fonts
11 resident alphanumeric fonts
Barcode Formats
Code 39, Code 93, Code 128 (subset A,B,C), UCC
128, UCC/EAN-128 K-Mart, UCC/EAN-128, UPC
A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping
Bearer Bars, EAN 8/13 (add on 2&5), Codebar, Post
NET, EAN 128, DUN 14, MaxiCode, HIBC, Plessey,
Random Weight, Telepen, FIM, RPS 128, PDF417 &
Datamatrix Code, QR Code
