Dillon 30441-0061 X-ST Tension Force Gauge with Maximum Hand,5000 x 50 kg

Proven accuracy & ruggedness sets the Dillon X-C compression, X-ST tension, and X-PP push pull mechanical force gauges apart. Highly engineered materials, close machining tolerances and proper heat treatment provide optimum strength/spring characteristics more ...
Scales > Force Gauge > Force Gauge With Tension Calibration
Dillon 30441-0061 X-ST Tension Force Gauge with Maximum Hand,5000 x 50 kg

Specifications Chart View Full Detail Page


Call for more info
Download PDF
Dillon 30441-0061 X-ST Tension Force Gauge with Maximum Hand,5000 x 50 kg
FREE Ground Shipping
(48 US States Only)

We offer Discounts
On All
Dillon X-ST Tension Force Gauges
For a Best Price Please
Call Us (800)832-0055 or Email Us


Price: $3,685.00

Price: $3,685.00


In Stock - Ships within 24 hours

View Features

Dillon
SKU: 30441-0061

Features

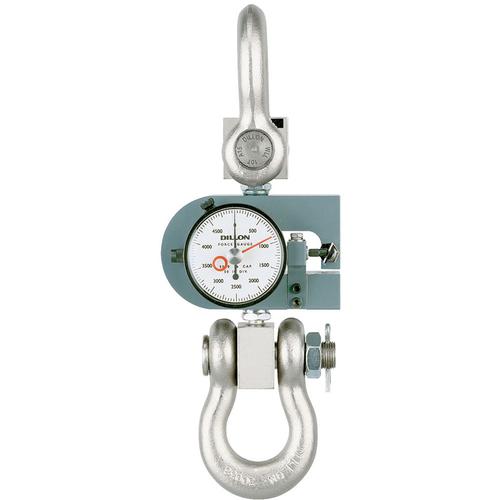

Proven accuracy and ruggedness sets the Dillon X-ST mechanical force gauge apart in the force measurement industry. The “D" shaped deflection beam is the heart of the Force Gauge system. Highly engineered materials with close machining tolerances and proper heat treatment provide optimum strength and spring characteristics.

Ideal for stand alone force applications or often used as the load defining component of a much larger system.

The Dillon X-ST tension calibration force gauge comes in 9 capacities ranging from 25 lb to 10,000 lb or 10 to 5000 kg. Accuracy is ±1% of full range (note: for applications requiring capacities beyond 10,000 lb or 5000 kg in tension, consider the Dillon dynamometers).

Dillon X-ST tension force gauges in capacities through 2000 lb (1000 kg) are supplied with two rod end connectors. 5000 lb, 10000 lb, 2000 kg and 5000 kg capacities are equipped with convenient shackles and pins.

The Dillon X-ST tension gauge comes with force gauge assembly, carrying case and tension hardware.


Weight: 15.00 lb
Other Dillon X-ST Tension with Maximum Hand in Kilograms

30443-0176
X-ST Tension Force Gauge with Maximum Hand
25 x 0.25 kg

$1,335.00

30443-0184
X-ST Tension Force Gauge with Maximum Hand
50 x 0.5 kg

$1,335.00

30445-0182
X-ST Tension Force Gauge with Maximum Hand
100 x 1 kg

$1,335.00

30445-0091
X-ST Tension Force Gauge with Maximum Hand
200 x 2 kg

$1,360.00

30276-0061
X-ST Tension Force Gauge with Maximum Hand
500 x 5 kg

$1,710.00

30440-0062
X-ST Tension Force Gauge with Maximum Hand
1000 x 10 kg

$1,710.00

30441-0061
X-ST Tension Force Gauge with Maximum Hand
5000 x 50 kg

$3,685.00

You are viewing this product

Specifications

Standard Tension Pounds & Kilogram Models

Model 30443-0044 30445-0034 30445-0018 30276-0012 30440-0013   30443-0093 30445-0026
Capacity & Dial Divisions 100 x 1 lb 250 x 2-1/2 lb 500 x 5 lb 1000 x 10 lb 2000 x 20 lb   50 x 1/2 kg 200 x 2 kg

Tension Models with Maximum Hand in Pounds

Model with Maximum Hand 30443-0150 30445-0109 30445-0083 30276-0053 30440-0054 30442-0052 30441-0053
Capacity & Dial Divisions 100 x 1 lb 250 x 2-1/2 lb 500 x 5 lb 1000 x 10 lb 2000 x 20 lb 5000 x 50 lb 10000 x 100 lb

Tension Models with Maximum Hand in Kilograms

Model with Maximum Hand 30443-0176 30443-0184 30445-0182 30445-0091 30276-0061 30440-0062 30441-0061
Capacity & Dial Divisions 25 x 1/4 kg 50 x 1/2 kg 100 x 1 kg 200 x 2 kg 500 x 5 kg 1000 x 10 kg 5000 x 50 kg
