Mark 10 MTT03-12 Series TT03 torque Gauge 12 x 0.01 lb

Mark-10 - Force and Torque Measurement Products
Series TT03 digital torque gauges are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm). A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauges’ rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements. more ...
Scales > Force Gauge > Digital Gauge

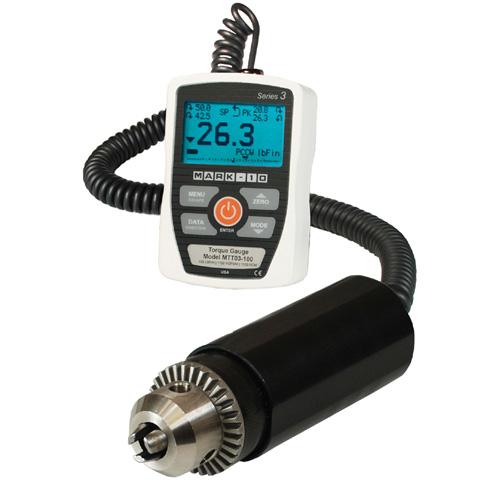

Mark 10  MTT03-12 Series TT03  torque Gauge 12 x 0.01 lb

Specifications Chart View Full Detail Page


Call for more info
Download PDF
Mark 10 MTT03-12 Series TT03 torque Gauge 12 x 0.01 lb
FREE Ground Shipping *


Price: $1,163.75


In Stock - Ships within 24 hours

Optional Accessories

View Features

Mark 10
SKU: MTT03-12

Features

Series TT03 digital torque gauges are designed for clockwise and counter-clockwise torque testing applications in virtually every industry, with capacities from 10 ozFin to 100 lbFin (7 to 1,150 Ncm). A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture. The gauges’ rugged aluminum housing allows for hand-held use or test stand mounting for more sophisticated testing requirements.

Series TT03 features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

The gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates single point data. One-click export to Excel allows for further data manipulation

Features

  • Ergonomic torque sensor with Jacobs chuck
  • Peak torque values saved and displayed
  • High-speed 2,000 Hz sampling rate
  • USB data output
  • Programmable set points with pass/fail indicators
  • Live load bar graphs with set point markers
  • Peak memory for clockwise and counter clockwise readings
  • Set points always displayed
  • Configurable audio alarms and key tones
  • MESURTM Lite data collection software included
  • Battery or AC operation
  • Safe overload: 150% of capacity
  • CE mark

Weight: 2.00 lb
Other Mark 10 Series TT03 torque Gauge

MTT03-12
Series TT03 torque Gauge 12 x 0.01 lb

$1,163.75

You are viewing this product

MTT03-50
Series TT03 torque Gauge 50 x 0.05 lb

$1,163.75

MTT03-100
Series TT03 torque Gauge 100 x 0.1 lb

$1,163.75

MTT03-50Z
Series TT03 torque Gauge 50 x 0.05 ozFin

$1,258.75

MTT03-10Z
Series TT03 torque Gauge 10 x 0.01 ozFin

$1,258.75

MTT03-20Z
Series TT03 torque Gauge 20 x 0.02 ozFin

$1,258.75

MTT03C-50
Series TT03C Cap Torque Gauge 50 x 0.05 lb

$1,353.75

MTT03C-100
Series TT03C Cap Torque Gauge 100 x 0.1 lb

$1,353.75

Specifications

Model MTT03-10Z MTT03-20Z MTT03-50Z MTT03-12 MTT03-50 MTT03-100
ozFin 10 x 0.01 20 x 0.02 50 x 0.05 - - -
lbFin - - - 12 x 0.01 50 x 0.05 100 x 0.1
kgFmm 7 x 0.005 14 x 0.01 36 x 0.05 140 x 0.1 580 x 0.5 1150 x 1
Ncm 7 x 0.005 14 x 0.01 36 x 0.05 135 x 0.1 570 x 0.5 1150 x 1
Accuracy: ±0.5% of full scale ±1 digit
Sampling Rate 2,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units lbFin, ozFin, kgFmm, Ncm (depending on model)
Configurable Settings Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe overload 150% of full scale (display shows “OVER” at 110% and above)
Weight 1.8 lb [0.8 kg]
Included items: Carrying case, universal voltage AC adapter, battery, chuck key, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and users guide), NIST-traceable certificate of calibration (data is available for an additional charge)
Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Warranty 3 years (see individual statement for further details)

* within the 48 continental US States


Optional Accessories


Mark-10 NIST Certifcate of Calibration with data for Mark 10 Series TT03 Digital Torque Gauge (ordered with a new gauge)
more info
Mark-10 NIST Certifcate of Calibration with data for Mark 10 Series TT03 Digital Torque Gauge (ordered with a new gauge)
more info
Price: $71.25
In Stock
btn buy
Mark-10 NIST Certifcate of Calibration with data for Mark 10 Series TT03 Digital Torque Gauge (ordered with a new gauge)
