Series EK3 kits make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, physical therapy, and ergonomic studies. These kits present the ergonomist and other professionals with a simple and economical testing solution. 200 lbF and 500 lbF capacity force gauges are available

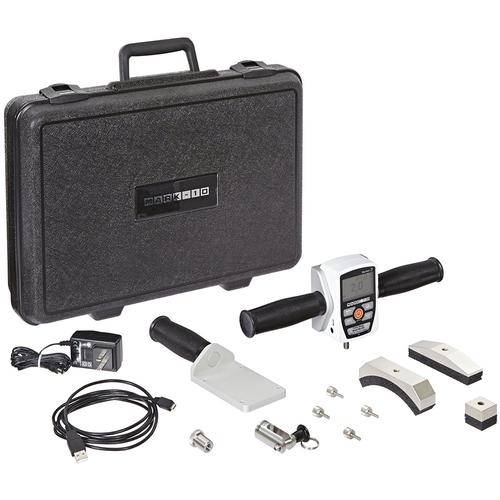

The kits consist of all the items listed below:
- Series 3 digital force gauge
- ±0.3% accuracy
- USB output
- Compact design, easy to hold
- Measures in lbF, kgF, or N
- Peak force capture for push and pull forces
- Durable construction ensures longevity
- Battery or AC operation
- USB output cable and driver
MESURTM Lite software - MESURTM Lite tabulates individual data points from Series 3 gauges. One-click export to Excel easily allows for further data manipulation.
Double- and single-handle cradles - Contain non-slip rubber handles for various applications
Padded attachments - Flat, curved, and square padded attachments mount directly to the force gauge for conducting strength analysis
Clevis Grip - Spring-loaded pin with ball plunger locks into place for added safety in pull tests.
Flat Attachment - Round attachment for compression tests.
Accessories - Cushioned carrying case, AC adapter, battery, user’s manual, and NIST-traceable certificate of calibration.
