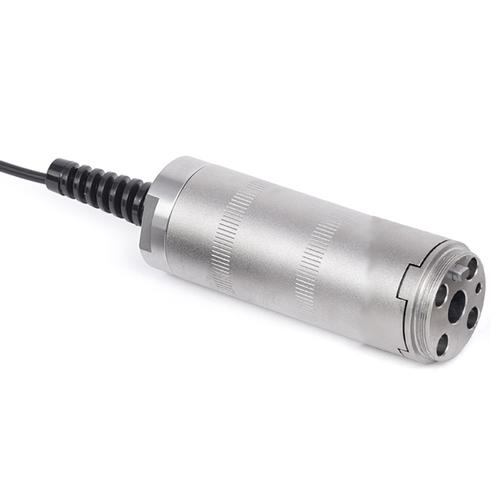

Mark-10 MR51-50 Universal Torque Sensors 50 lb |
|
A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The R51 has superb overload protection and is available in capacities from 10 ozin to 100 lbin. more ... |
Test Equipment >
Force Gauges >
Torque Sensors
|
|
|
|
Features
Series R51 smart sensors measure bi-directional torque for numerous applications across virtually all industries. Interchangeable Jacobs chucks and bit holder add flexibility for a variety of applications. The sensors can be used as hand held devices or mounted to a test stand. Superb overload protection adds peace of mind. Capacities available from 10 ozFin to 100 lbFin [7 to 1150 Ncm]. Compatible with Mark-10 model 5i and 3i indicators (sold separately) through unique Plug & TestTM technology.
- Compatible with the 5i and 3i digital indicators
- Unique Plug & TestTM connector holds all calibration and configuration data
- Outstanding overload protection
- Interchangeable chucks (order separately)
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.20% of full scale ±1 digit + indicatorWeight: From 1.4 lbs (0.6 kg)
- Warranty: 3 years
Weight:
2.00 lb
|
|
Other Mark 10 R51 Universal Torque Sensors
|
Specifications
Model |
Capacity x Resolution (With Model 3i) |
Capacity x Resolution (With Model 5i and 7i) |
MR51-10Z |
10 x 0.01 ozFin 7 x 0.005 kgFmm 7 x 0.005 Ncm |
10 x 0.006 ozFin 7 x 0.005 kgFmm 10 x 0.006 ozFin 700 x 0.5 gFcm 70 x 0.05 Nmm 7 x 0.005 Ncm |
MR51-20Z |
20 x 0.02 ozFin 14 x 0.01 kgFmm 14 x 0.01 Ncm |
20 x 0.01 ozFin 14 x 0.01 kgFmm 20 x 0.01 ozFin 1400 x 1 gFcm 140 x 0.1 Nmm 14 x 0.01 Ncm |
MR51-50Z |
50 x 0.05 ozFin 36 x 0.05 kgFmm 36 x 0.05 Ncm |
50 x 0.02 ozFin 36 x 0.02 kgFmm 50 x 0.02 ozFin 3600 x 2 gFcm 350 x 0.2 Nmm 35 x 0.02 Ncm |
MR51-12 |
12 x 0.01 lbFin 140 x 0.1 kgFmm 135 x 0.1 Ncm |
12 x 0.005 lbFi 140 x 0.1 kgFmm 12 x 0.005 lbFi 320 x 0.2 ozF 1 x 0.0005 lbFf 1.35 x 0.001 Nm |
MR51-50 |
50 x 0.05 lbFi 580 x 0.5 kgFmm 570 x 0.5 Ncm |
50 x 0.02 lbFi 580 x 0.5 kgFmm 50 x 0.02 lbFi 800 x 0.5 ozF 4 x 0.002 lbFft 5.7 x 0.005 Nm |
MR51-100 |
100 x 0.1 lbFi 1150 x 1 kgFmm 1150 x 1 Ncm |
100 x 0.05 lbFi 1150 x 0.5 kgFmm 100 x 0.05 lbFiN 1600 x 1 ozF 8 x 0.005 lbFft 11.5 x 0.005 Nm |
|
|
|
* within the 48 continental US States
|
Optional Accessories
more info
|
Mark-10 G1016-1 STH or R51 Torque Sensor Attachments, 0.028 to 0.25 in dia
These attachments mount directly to Series STH R51 torque sensors for various torque measurement applications. Select a size appropriate for your sample.
G1016-1 |
100 / 11.3 |
026 / 0.12 |
2.9 / 73.7 |
0.188 / 4.7 |
0.028-0.25 / 0.7-6.3 |
G1016-2 |
0.36 / 0.16 |
3.16 / 80.3 |
0.062-0.375 / 1.6-9.5 |
G1016-3 |
0.67 / 0.3 |
3.73 / 94.7 |
0.078-0.5 / 2-12.7 |
G1017 |
0.11 / 0.05 |
2.33 / 59.2 |
1/4 hex |
|
|
more info
|
Mark-10 G1016-2 STH or R51Torque Sensor Attachments, 0.052 to 0.375 in dia
These attachments mount directly to Series STH and R51 torque sensors for various torque measurement applications. Select a size appropriate for your sample.
G1016-1 |
100 / 11.3 |
026 / 0.12 |
2.9 / 73.7 |
0.188 / 4.7 |
0.028-0.25 / 0.7-6.3 |
G1016-2 |
0.36 / 0.16 |
3.16 / 80.3 |
0.062-0.375 / 1.6-9.5 |
G1016-3 |
0.67 / 0.3 |
3.73 / 94.7 |
0.078-0.5 / 2-12.7 |
G1017 |
0.11 / 0.05 |
2.33 / 59.2 |
1/4 hex |
|
|
more info
|
Mark-10 G1016-3 STH or R51 Torque Sensor Attachments, 0.078 to 0.5 in dia
These attachments mount directly to Series STH or R51 torque sensors for various torque measurement applications. Select a size appropriate for your sample.
G1016-1 |
100 / 11.3 |
026 / 0.12 |
2.9 / 73.7 |
0.188 / 4.7 |
0.028-0.25 / 0.7-6.3 |
G1016-2 |
0.36 / 0.16 |
3.16 / 80.3 |
0.062-0.375 / 1.6-9.5 |
G1016-3 |
0.67 / 0.3 |
3.73 / 94.7 |
0.078-0.5 / 2-12.7 |
G1017 |
0.11 / 0.05 |
2.33 / 59.2 |
1/4 hex |
|
|
more info
|
Mark-10 G1017 STH or R51 Bit Holder, 1/4 in hex
These attachments mount directly to Series STH torque sensors for various torque measurement applications. Select a size appropriate for your sample.
G1016-1 |
100 / 11.3 |
026 / 0.12 |
2.9 / 73.7 |
0.188 / 4.7 |
0.028-0.25 / 0.7-6.3 |
G1016-2 |
0.36 / 0.16 |
3.16 / 80.3 |
0.062-0.375 / 1.6-9.5 |
G1016-3 |
0.67 / 0.3 |
3.73 / 94.7 |
0.078-0.5 / 2-12.7 |
G1017 |
0.11 / 0.05 |
2.33 / 59.2 |
1/4 hex |
|
|
|
|
|
|
