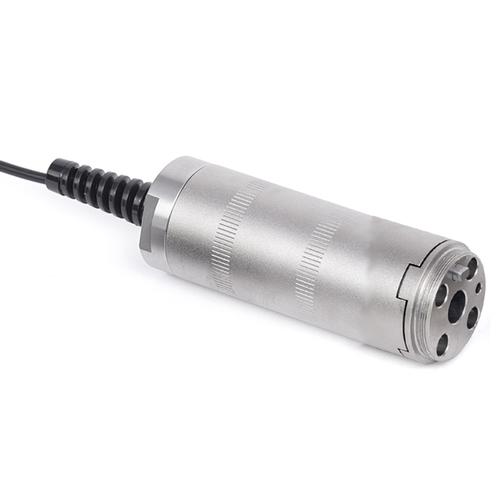

Mark-10 MR51-50Z Universal Torque Sensors 50 oz |
|
| A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The R51 has superb overload protection and is available in capacities from 10 ozin to 100 lbin. more ... |
|
Test Equipment >
Force Gauges >
Torque Sensors
|
|
|
|
|
|
Features
Series R51 smart sensors measure bi-directional torque for numerous applications across virtually all industries. Interchangeable Jacobs chucks and bit holder add flexibility for a variety of applications. The sensors can be used as hand held devices or mounted to a test stand. Superb overload protection adds peace of mind. Capacities available from 10 ozFin to 100 lbFin [7 to 1150 Ncm]. Compatible with Mark-10 model 5i and 3i indicators (sold separately) through unique Plug & TestTM technology.
- Compatible with the 5i and 3i digital indicators
- Unique Plug & TestTM connector holds all calibration and configuration data
- Outstanding overload protection
- Interchangeable chucks (order separately)
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.20% of full scale ±1 digit + indicatorWeight: From 1.4 lbs (0.6 kg)
- Warranty: 3 years
Weight:
2.00 lb
|
|
Other Mark 10 R51 Universal Torque Sensors
|
Specifications
| Model |
Capacity x Resolution
(With Model 3i) |
Capacity x Resolution
(With Model 5i and 7i) |
| MR51-10Z |
10 x 0.01 ozFin
7 x 0.005 kgFmm
7 x 0.005 Ncm |
10 x 0.006 ozFin
7 x 0.005 kgFmm
10 x 0.006 ozFin
700 x 0.5 gFcm
70 x 0.05 Nmm
7 x 0.005 Ncm |
| MR51-20Z |
20 x 0.02 ozFin
14 x 0.01 kgFmm
14 x 0.01 Ncm |
20 x 0.01 ozFin
14 x 0.01 kgFmm
20 x 0.01 ozFin
1400 x 1 gFcm
140 x 0.1 Nmm
14 x 0.01 Ncm |
| MR51-50Z |
50 x 0.05 ozFin
36 x 0.05 kgFmm
36 x 0.05 Ncm |
50 x 0.02 ozFin
36 x 0.02 kgFmm
50 x 0.02 ozFin
3600 x 2 gFcm
350 x 0.2 Nmm
35 x 0.02 Ncm |
| MR51-12 |
12 x 0.01 lbFin
140 x 0.1 kgFmm
135 x 0.1 Ncm |
12 x 0.005 lbFi
140 x 0.1 kgFmm
12 x 0.005 lbFi
320 x 0.2 ozF
1 x 0.0005 lbFf
1.35 x 0.001 Nm
|
| MR51-50 |
50 x 0.05 lbFi
580 x 0.5 kgFmm
570 x 0.5 Ncm |
50 x 0.02 lbFi
580 x 0.5 kgFmm
50 x 0.02 lbFi
800 x 0.5 ozF
4 x 0.002 lbFft
5.7 x 0.005 Nm
|
| MR51-100 |
100 x 0.1 lbFi
1150 x 1 kgFmm
1150 x 1 Ncm |
100 x 0.05 lbFi
1150 x 0.5 kgFmm
100 x 0.05 lbFiN
1600 x 1 ozF
8 x 0.005 lbFft
11.5 x 0.005 Nm
|
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|

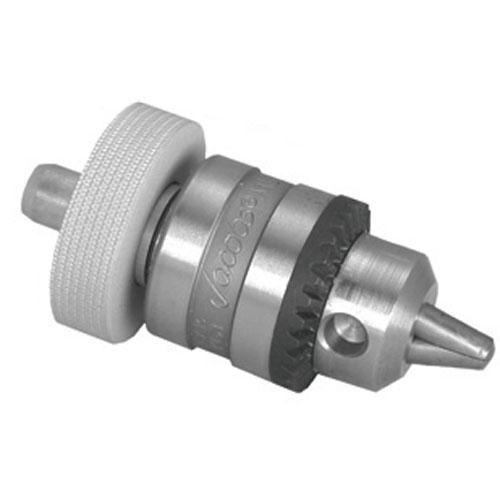

Mark-10 G1016-1 STH or R51 Torque Sensor Attachments, 0.028 to 0.25 in dia
These attachments mount directly to Series STH R51 torque sensors for various torque measurement applications. Select a size appropriate for your sample.
| G1016-1 |
100 / 11.3 |
026 / 0.12 |
2.9 / 73.7 |
0.188 / 4.7 |
0.028-0.25 / 0.7-6.3 |
| G1016-2 |
0.36 / 0.16 |
3.16 / 80.3 |
0.062-0.375 / 1.6-9.5 |
| G1016-3 |
0.67 / 0.3 |
3.73 / 94.7 |
0.078-0.5 / 2-12.7 |
| G1017 |
0.11 / 0.05 |
2.33 / 59.2 |
1/4 hex |
|
|
more info
|

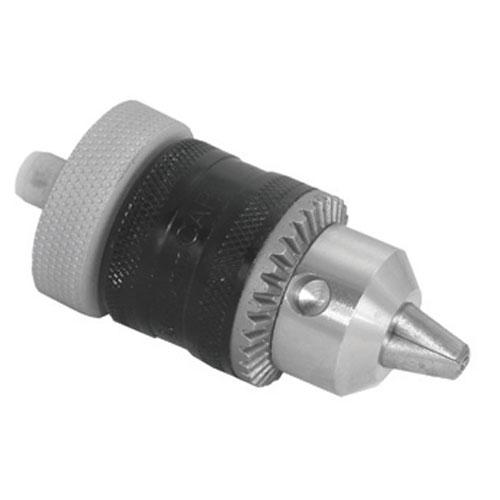

Mark-10 G1016-2 STH or R51Torque Sensor Attachments, 0.052 to 0.375 in dia
These attachments mount directly to Series STH and R51 torque sensors for various torque measurement applications. Select a size appropriate for your sample.
| G1016-1 |
100 / 11.3 |
026 / 0.12 |
2.9 / 73.7 |
0.188 / 4.7 |
0.028-0.25 / 0.7-6.3 |
| G1016-2 |
0.36 / 0.16 |
3.16 / 80.3 |
0.062-0.375 / 1.6-9.5 |
| G1016-3 |
0.67 / 0.3 |
3.73 / 94.7 |
0.078-0.5 / 2-12.7 |
| G1017 |
0.11 / 0.05 |
2.33 / 59.2 |
1/4 hex |
|
|
more info
|

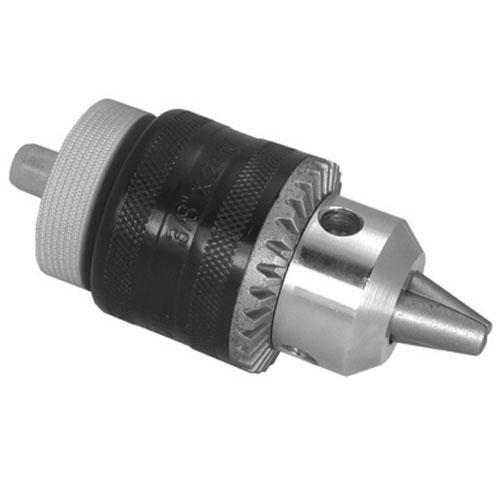

Mark-10 G1016-3 STH or R51 Torque Sensor Attachments, 0.078 to 0.5 in dia
These attachments mount directly to Series STH or R51 torque sensors for various torque measurement applications. Select a size appropriate for your sample.
| G1016-1 |
100 / 11.3 |
026 / 0.12 |
2.9 / 73.7 |
0.188 / 4.7 |
0.028-0.25 / 0.7-6.3 |
| G1016-2 |
0.36 / 0.16 |
3.16 / 80.3 |
0.062-0.375 / 1.6-9.5 |
| G1016-3 |
0.67 / 0.3 |
3.73 / 94.7 |
0.078-0.5 / 2-12.7 |
| G1017 |
0.11 / 0.05 |
2.33 / 59.2 |
1/4 hex |
|
|
more info
|
Mark-10 G1017 STH or R51 Bit Holder, 1/4 in hex
These attachments mount directly to Series STH torque sensors for various torque measurement applications. Select a size appropriate for your sample.
| G1016-1 |
100 / 11.3 |
026 / 0.12 |
2.9 / 73.7 |
0.188 / 4.7 |
0.028-0.25 / 0.7-6.3 |
| G1016-2 |
0.36 / 0.16 |
3.16 / 80.3 |
0.062-0.375 / 1.6-9.5 |
| G1016-3 |
0.67 / 0.3 |
3.73 / 94.7 |
0.078-0.5 / 2-12.7 |
| G1017 |
0.11 / 0.05 |
2.33 / 59.2 |
1/4 hex |
|
|
|
|
|
|
|
|
