Mark-10 MR04-05 Miniature Plug & Test Force Sensor, 0.5lbF Capacity

Mark-10 - Force and Torque Measurement Products
Extremely compact force measurement sensor for tensile and compressive loads in applications with limited space. The Series R04 is available in capacities from 0.25 lb to 100 lb (1 N to 500 N). Every capacity has the same miniature dimensions. The sensors feature outstanding mechanical overload protection and threaded holes on two sides for the mounting of attachments or implements more ...
Scales > Force Gauge > Force Sensor

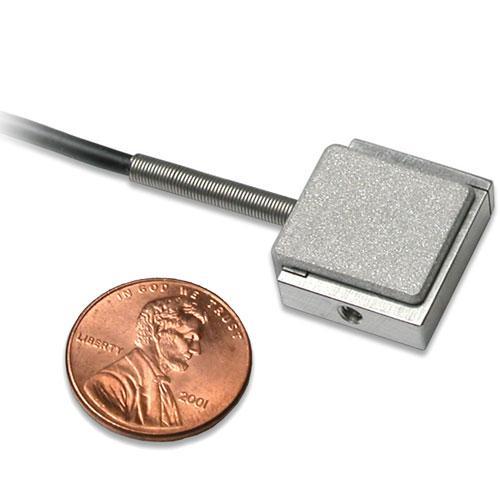

Mark-10 MR04-05  Miniature Plug & Test Force Sensor, 0.5lbF Capacity

Specifications Chart View Full Detail Page


Call for more info
Download PDF
Mark-10 MR04-05 Miniature Plug & Test Force Sensor, 0.5lbF Capacity
FREE Ground Shipping *


Price: $945.25


In Stock - Ships within 24 hours

View Features

Mark 10
SKU: MR04-05

Features

Series R04 smart sensors are designed for tension and compression measurement applications with tight space constraints. These extremely compact force sensors feature threaded holes on two sides, which can accept a variety of hooks and implements. Capacities available from 0.25 to 100 lbF [1 to 500 N]. Compatible with Mark-10 model 5i and 3i indicators (sold separately) through unique Plug & TestTM technology.

  • Compatible with the 5i and 3i digital indicators
  • Unique Plug & TestTM connector holds all calibration and configuration data
  • Ultra-compact size
  • Measures tensile and compressive forces
  • NIST-traceable certificate of calibration included
  • Accuracy: ± 0.2% of full scale ±1 digit + indicatorWeight: 0.015 lbs (0.007 kg)
  • Warranty: 3 years

Weight: 2.00 lb
Other Mark 10 R04 Button Miniature Force Sensors

Mark-10 MR04-025
Miniature Plug & Test Force Sensor
0.25lbF Capacity

$945.25

Mark-10 MR04-05
Miniature Plug & Test Force Sensor
0.5lbF Capacity

$945.25

You are viewing this product

Mark-10 MR04-2
Miniature Plug & Test Force Sensor
2lbF Capacity

$945.25

Mark-10 MR04-5
Miniature Force Sensors 5 lb

$945.25

Mark-10 MR04-10
Miniature Plug & Test Force Sensor
10lbF Capacity

$945.25

Mark-10 MR04-20
Miniature Plug & Test Force Sensor
20lbF Capacity

$945.25

Mark-10 MR04-50
Miniature Plug & Test Force Sensor
50lbF Capacity

$945.25

Mark-10 MR04-100
Miniature Plug & Test Force Sensor
100lbF Capacity

$945.25

Specifications

Model MR04-025 MR04-05 MR04-2 MR04-5 MR04-10 MR04-20 MR04-50 MR04-100
Capacity x Resolution
With Model 3i
lbF 0.25 x 0.0002 0.5 x 0.0005 2 x 0.002 5 x 0.005 10 x 0.01 20 x 0.02 50 x 0.05 100 x 0.1
gF 100 x 0.1 250 x 0.2 - - - - - -
kgF - - 1 x 0.001 2.5 x 0.002 5 x 0.005 10 x 0.01 25 x 0.02 50 x 0.05
N 1 x 0.001 2.5 x 0.002 10 x 0.01 25 x 0.02 50 x 0.05 100 x 0.1 250 x 0.2 500 x 0.5
Capacity x Resolution
With Model 5i
lbF 0.25 x 0.0001 0.5 x 0.0002 2 x 0.001 5 x 0.002 10 x 0.005 20 x 0.01 50 x 0.02 100 x 0.05
ozF 4 x 0.002 8 x 0.005 32 x 0.02 80 x 0.05 160 x 0.1 320 x 0.2 800 x 0.5 1600 x 1
gF 100 x 0.05 250 x 0.1 1000 x 0.5 2500 x 1 5000 x 2 10000 x 5 25000 x 10 50000 x 20
kgF - - 1 x 0.0005 2.5 x 0.001 5 x 0.002 10 x 0.005 25 x 0.01 50 x 0.02
N 1 x 0.0005 2.5 x 0.001 10 x 0.005 25 x 0.01 50 x 0.02 100 x 0.05 250 x 0.1 500 x 0.2
mN 1000 x 0.5 2500 x 1 - - - - - -
