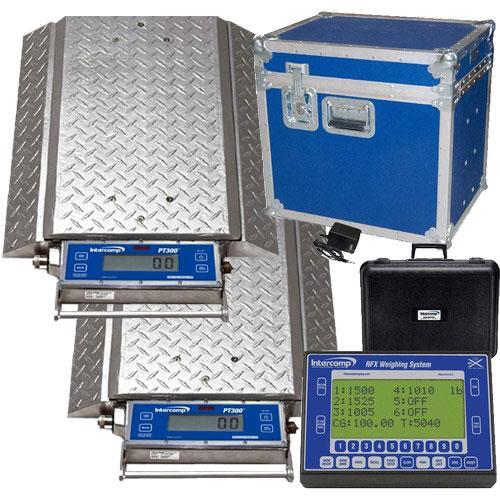

Intercomp PT300 DW, 100102-RFX 2 Scale (Double Wide) Wheel Load Scale System 40,000 x 20lb

PT300 DW Scales are sturdy, portable and compact. Lightweight and accurate, this all-aluminum design is ideal for uneven surfaces and withstands most weather conditions. The PT300 DW is designed to maximize legal payloads with concerns for violations and reduction of maintenance due to overload stress on equipment. PT300 DW Scales are now standard with Fully Integrated RFX™ Wireless Weighing Technology and encryption ensures secure wireless communication. more ...

Wheel Weighing Scales > Wheel Load Systems > 2 Scale Wheel Load System

Intercomp PT300 DW, 100102-RFX 2 Scale (Double Wide) Wheel Load Scale System 40,000 x 20lb

View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

This Item Contains the following items

1 x Intercomp 101225-RFX HH60 Handheld Weighing RFX Indicator

1 x Intercomp Part 100050 2 Scale Carrying Case for PT300DW

2 x Intercomp 181503-RFX - PT300DW (Double Wide) Wheel Load Scales with Solar Panels, 20,000 x 20 lb

1 x Intercomp 101030 Two scales Interconnect/Charge Cable (PT300, PT300DW, LP600)

Intercomp PT300 DW, 100102-RFX 2 Scale (Double Wide) Wheel Load Scale System 40,000 x 20lb

Price: $6,254.10

Available to Ship

Optional Accessories

View Features

Intercomp
SKU: 100102RFX

Features

PT300 DW (Double Wide) Wheel Load Scales

Fully Integrated RFX™ Wireless Weighing Technology!

The PT300 DW scales are designed to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment.

The PT300 DW is a sturdy, all aluminum, fully electronic, self-contained Double Wide wheel load scale that is capable of weighing loads up to 40,000lbs (20,000kg) with an accuracy of +/-1% and is available in double-wide configutations for wider tire configurations.

The scales are fully battery operated and only require infrequent recharging through 12V, 110V, or 220V power sources. Standard AA Batteries last up to 300 Hours in the Scales.

The display can be lit for night use and it is possible to sequentially couple and number PT300 DW scales in the series for the purpose of obtaining a total vehicle weight through the total button as well as link the scales to a computer, indicator, or Intercomps PT20™ Universal CPU.

Fully Electronic Design Uses Patented Shear Beam Load Cells

Push Button Controls Include On/Off, Local/Total, Zero & Print/Accum

Accuracy of ±1% of Reading
5,000 lb (2,500 kg) to 40,000 lb (20,000 kg) Pad Capacities
Large, Easy-to-Read, LCD Display
Standard AA Rechargeable Batteries Last up to 300 Hours in Scales
View PDF

Fully Integrated RFX Wireless Weighing Technology

Accuracy of ±1% of Reading
Available in 2, 4 or 6 Scale Configurations
10,000 lb (5,000 kg) to 120,000 lb (60,000 kg) System Capacities
Handheld RFX™ Wireless Weighing Indicator Fully Controls Scale Functions of up to 6 Scales Simultaneously
Large, Easy-to-Read, LCD Displays on Scales and Indicator
Standard AA Rechargeable Batteries Last up to 300 Hours in Scales & 40 Hours in Indicator

Systems Include:

RFX Wireless Scales
Handheld RFX™ Wireless Weighing Indicator with Rechargeable Batteries, Battery Charger & Case
Totalizing Cable
Scale Charger
Storage Case

PT300 DW Wireless Double Wide Wheel Load Scale with RFX Wireless Weighing Indicator With Two Scales
Models	100105-RFX	100102-RFX	100103-RFX	100104-RFX
Capacity X Graduation	2-5k-10,000 x 5lb	2-20k-40,000 x 20lb	2-20k-40,000 x 10lb	2-10k-20,000 x 5lb
Capacity X Graduation	5,000 x 2kg	10,000 x 10kg	20,000 x 5kg	10,000 x 2kg
Weight	170 lb
PT300 DW Wireless Double Wide Wheel Load Scale with RFX Wireless Weighing Indicator With Four Scales
Models	100111-RFX	100108-RFX	100109-RFX	100110-RFX
Capacity X Graduation	4-5k-20,000 x 5lb	4-20k-80,000 x 20lb	4-20k-80,000 x 10lb	4-10k-40,000 x 5lb
Capacity X Graduation	10,000 x 2kg	40,000 x 10kg	40,000 x 5kg	20,000 x 2kg
Weight	310 lb
PT300 DW Wireless Double Wide Wheel Load Scale with RFX Wireless Weighing Indicator With Six Scales
Models	100117-RFX	100114-RFX	100115-RFX	100116-RFX
Capacity X Graduation	6-5k-30,000 x 5lb	6-20k-120,000 x 20lb	6-20k-120,000 x 10lb	6-10k-60,000 x 5lb
Capacity X Graduation	15,000 x 2kg	60,000 x 10kg	60,000 x 5kg	30,000 x 2kg
Weight	460 lb
Scale Size	3½ x 26½ x 20½ (76 x 660 x 508mm)
Platform Size	22½ x 14½ (559 x 356mm)

Other Intercomp PT300DW (Double Wide) Wheel Load Scales Systems with RFX Indicator

PT300 DW 100105-RFX 2 Scale (Double Wide) Wheel Load Scale System 10 000 x 5lb $6,169.50	PT300 DW 100102-RFX 2 Scale (Double Wide) Wheel Load Scale System 40 000 x 20lb $6,254.10 You are viewing this product	PT300 DW 100104-RFX 2 Scale (Double Wide) Wheel Load Scale System 20 000 x 5lb $6,424.50	PT300 DW 100103-RFX 2 Scale (Double Wide) Wheel Load Scale System 40 000 x 10lb $6,509.10	PT300 DW 100111-RFX 4 Scale (Double Wide) Wheel Load Scale System 20 000 x 5lb $10,911.60
PT300 DW 100108-RFX 4 Scale (Double Wide) Wheel Load Scale System 80 000 x 20lb $10,911.60	PT300 DW 100109-RFX 4 Scale (Double Wide) Wheel Load Scale System 80 000 x 10lb $11,421.60	PT300 DW 100110-RFX 4 Scale (Double Wide) Wheel Load Scale System 40 000 x 5lb $11,421.60	PT300 DW 100117-RFX 6 Scale (Double Wide) Wheel Load Scale System 30 000 x 5lb $15,448.50	PT300 DW 100114-RFX 6 Scale (Double Wide) Wheel Load Scale System 120 000 x 20lb $15,839.10
PT300 DW 100115-RFX 6 Scale (Double Wide) Wheel Load Scale System 120 000 x 10lb $16,604.10	PT300 DW 100116-RFX 6 Scale (Double Wide) Wheel Load Scale System 60 000 x 5lb $16,604.10

Optional Accessories

more info

Intercomp 140759 IntercompWeigh™ Software

$895.50

Manage the Weighing Process and Create Comprehensive Reports

IntercompWeigh™ Software communicates directly with Intercomp’s Digital Wheel Load Scales, Crane, & Tension Link Scales, Pallet Truck Scales and Indicators. Users can manage any weighing process, view scale data, customize layouts and generate reports in one, easy-to-use program.

Set up any scale configuration for use in any weighing operation to keep track of item inventories, create procedures to maintain processes or generate customized, detailed records for future analysis. Combine with Intercomp’s wireless node to communicate directly with scales without cables.

32 Scales & 15 Dynamic Weighing Fields in Real Time
Variety of Display Options, Including Peak Values per Scale, NET/Tare Values & Accumulative Modes
Import/Export any Single Record via .xlm, Excel or Text File
Control Scale Functions Including On/Off & Zero
Intuitive & User-Friendly
Multiple Search Options to Easily Find Data

Build Custom Scale Layouts

Create Custom Layouts for Any Weighing Application
Design Mode Offers Users the Ability to Create Unlimited Scale Configurations Based on a Multitude of Applications

Intuitive Notifications

Set Weight Limits/Set Points for a Visual & Audible Warning When Limits are Reached
Motion Detection for Better Weight Readings

Powerful & Easy Reporting

Includes Default & Custom Reports
Reweigh Any Record
Export Specific Position Values or Export All
Print Detailed Reports & Create Tickets

more info

Intercomp Part 3402014 Wireless Thermal Printer with RFX™ Communication Module

$715.50

Intercomp Part 340105-RFX Wireless Thermal Printer with RFX™ Communication Module

High-Quality, Compact Thermal Printer
Available in Bluetooth™ or Serial Interfaces
Includes Communication Module for Direct Communication with Scales

more info

Intercomp 100015 RFX™ Wireless S400™ Indoor Numeric Remote Display

$1,790.00

Model	100015 S400	100016 S400HI	100017	100018	100015-RFX S400	100016-RFX S400HI
Input Type	Cabled	Cabled	Cabled	Cabled	RFX™ Wireless	RFX™ Wireless
Use	Indoor	Outdoor	Indoor	Outdoor	Indoor	Outdoor
Display Configuration	Numeric	Numeric	Alphanumeric	Alphanumeric	Numeric	Numeric
Digit size	4.5 inch height (113 mm)
Number of digits	Six (6)-digit by 7 segment		Six (6)-digits x 12 segments		Six (6)-digit by 7 segment
Display Format	Floating decimal point may be placed between any digit. Fixed decimal points selectable between ones, tens and hundreds positions (123.4.5.6). Pad read- out with one or two fixed zeros, switch selectable or sent from host. On alphanumeric models, any position may show a number, letter or common punctuation symbol.
Operating Temperature	-50 to 120°F (-45 to 50°C)
Input Serial	RS-232 or 20mA current loop (active or passive) at all standard baud rates from 50 to 9600. Interface cable: 4-wire x 25 feet (7.5 meters). Lengths to 1500 feet (455 meters) with Current loop, 50 feet (15 meters) with RS-232				RFX Wireless
Input Parallel	TL BCD 199999 Range-Minus Line, Motion/Over-capacity Line, “Print” (Strobe) Line. Interface cable: 24-wire x 25 feet (7.5 meters). Lengths to 50 feet (15 meters) with BCD.				RFX Wireless
Display size	32.5 x 11.5 x 3.5 inches (820 x 290 x 90 mm)
Power	Standard-UL, CSA listed plug-in wall transformer,110 volts AC, 60 Hz @ 1 amp, Power cable included, 3-wire x 25 feet (7.6 meters), 220 volts available

more info

Intercomp 189012 RFX™ USB Node for PC

$445.50

Intercomp 189012 RFX™ USB Node for PC (Required for Direct Communication to Scales)

more info

Intercomp 101221-RFX PT20 CPU RFX Indicator with Built-in-Printer

$2,695.50

intercomp’s Next Generation of RFX ™ Wireless Weighing Indicators!

RFX™ Wireless Weighing Indicators are available in two convenient options for use with any Intercomp RFX™ Wireless Scale System. Both provide the ability to easily process weight related data for monitoring and controlling loads. USB/RS232 output ensures weight records can be stored and downloaded in a variety of ways and indicators can communicate with a variety of devices, including PC’s and displays, wirelessly, saving time and improving safety.

The PT20™ CPU is self-enclosed with a thermal printer in a rugged, all-weather case for use in even the most remote locations and the Handheld Wireless Weighing Indicator offers a light-weight handheld alternative with much of the same functionality as the PT20™CPU. Both systems free you of cables and enhance performance
