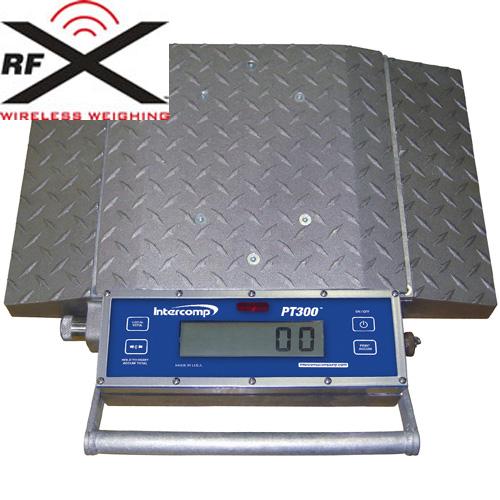

Intercomp 100129-RFX Wireless PT300 Wheel Load Scale 10,000 x 5 lb

PT300™ Scales are sturdy, portable and compact. Lightweight and accurate, this all-aluminum design is ideal for uneven surfaces and withstands most weather conditions. The PT300 is designed to maximize legal payloads with concerns for violations and reduction of maintenance due to overload stress on equipment. PT300 Scales are now standard with Fully Integrated RFX™ Wireless Weighing Technology and encryption ensures secure wireless communication. more ...

Wheel Weighing Scales > Wheel Load Scales > Wheel Load Scales

Intercomp 100129-RFX Wireless PT300 Wheel Load Scale 10,000 x 5 lb

Specifications Chart View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

This Item Contains the following items

1 x Intercomp 181005-RFX - PT300 Wireless Wheel Load Scale, with Solar Panels 10,000 x 5 lb

Intercomp 100129-RFX Wireless PT300 Wheel Load Scale 10,000 x 5 lb

Price: $1,568.25

Available to Ship

Optional Accessories

View Features

Intercomp
SKU: 100129RFX

Features

PT300™ scales feature Fully Integrated RFX™ Wireless Weighing Technology and are designed to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment. The PT300™ is a sturdy, all aluminum, fully electronic, self-contained wheel load scale that is capable of weighing loads up to 25,000lbs (12,500kg) with an accuracy of ±1%.

The scales are fully battery operated and only require infrequent recharging through 12V, 110V, or 220V power sources. Standard Rechargeable AA Batteries last up to 300 Hours in the Scales.

Fully Integrated RFX™ Wireless Weighing Technology, using no antennas and makes it possible to sequentially couple and number PT300™ scales in the series for the purpose of obtaining a total vehicle weight through the total button or by linking the scales to a computer, display, or Intercomp’s complete line of weighing indicators. For customers whose local regulations prevent the use of any wireless radio communication, radios can be disabled or you can select from hardwired alternatives

5,000lb (2,500kg) to 25,000lb (12,500kg) Pad Capacities
Accuracy of ±1% of Reading
Large, Easy-to-Read, LCD Display
NTEP Approved Models Available
Standard AA Rechargeable Batteries Last up to 300 Hours in Scales

PT300 ™ Scales are sturdy, portable and compact. Lightweight and accurate, this all-aluminum design is ideal for uneven surfaces and withstands most weather conditions.

The PT300 ™ is designed to maximize legal payloads with concerns for violations and reduction of maintenance due to overload stress on equipment.

PT300 ™ Scales are now standard with Fully Integrated RFX ™ Wireless Weighing Technology and encryption ensures secure wireless communication. Cabled models are also available when wireless is not an option. Batteries last up to 300 hours in scales

Other Intercomp PT300 Wheel Load Scales

100130-RFX Wireless PT300 Wheel Load Scale 5 000 x 5 lb $1,398.25	181006-RFX - PT300 Wireless Wheel Load Scale with Solar Panels 5 000 x 5 lb $1,398.25	100127-RFX - PT300 Wireless Wheel Load Scale 20 000 x 20 lb $1,440.75	181003-RFX - PT300 Wireless Wheel Load Scale with Solar Panels 20 000 x 20 lb $1,440.75	181008-RFX - PT300 Wireless Wheel Load Scale with Solar Panels Legal for Trade 20 000 x 50 lb $1,440.75
181007-RFX - PT300 Wireless Wheel Load Scale with Solar Panels 20 000 x 20 lb $1,440.75	181012 - PT300 Digital Wheel Load Scale with Solar Panels Legal For Trade 20000 x 50 lb $1,525.50	100129-RFX Wireless PT300 Wheel Load Scale 10 000 x 5 lb $1,568.25 You are viewing this product	181005-RFX - PT300 Wireless Wheel Load Scale with Solar Panels 10 000 x 5 lb $1,568.25	100128 RFX™ Wireless PT300 Wheel Load Scale 20 000 x 10 lb $1,644.75
181002 - PT300 Digital Wheel Load Scale with Solar Panels (20mA) 20000 x 10 lb $1,644.75	181004-RFX - PT300 Wireless Wheel Load Scale with Solar Panels 20 000 x 10 lb $1,644.75	PT300 100128 Digital Wheel Load Scale 20000 x 10 lb $1,651.50	181013-RFX - PT300 Wireless Wheel Load Scale with Solar Panels 25 000 x 20 lb $1,695.75	181004 - PT300 Digital Wheel Load Scale with Solar Panels 20000 x 10 lb $1,741.50

Specifications

Model	100124 PT300	100126 PT300	100128 PT300	100127-RFX PT300	100128-RFX PT300	100129-RFX PT300	100130-RFX PT300	100123-RFX PT300
Connection Type	-	Wired	Wired	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless	RFX™ Wireless
Capacity	20,000 lb	20,000 x 50 lb	20,000 x 10 lb	20,000 x 20 lb	20,000 x 10 lb	10,000 x 5 lb	5,000 x 5 lb	25,000 x 20 lb
Capacity	10,000	10,000 x 20 kg	10,000 x 5 kg	10,000 x 10 kg	10,000 x 5 kg	5,000 x 2 kg	2,500 x 2 kg	12,000 x 10 kg
Legal for Trade	-	NTEP #90-106PA2	-	-	-	-	-	-
Accuracy	±1% of Reading
Display	Large, Easy-to-Read, 1 ? (25mm) LCD Display with Backlight
Push Button Controls	On/Off, Local/Total, Zero & Print/Accum
Power	Standard AA Rechargeable Batteries Provide up to 300 Hours of Continuous Use & Display Shows Battery Life
Platform Size	22 " x 14 " (559 x 356mm)

Optional Accessories

more info

Intercomp 100015 RFX™ Wireless S400™ Indoor Numeric Remote Display

$1,790.00

Model	100015 S400	100016 S400HI	100017	100018	100015-RFX S400	100016-RFX S400HI
Input Type	Cabled	Cabled	Cabled	Cabled	RFX™ Wireless	RFX™ Wireless
Use	Indoor	Outdoor	Indoor	Outdoor	Indoor	Outdoor
Display Configuration	Numeric	Numeric	Alphanumeric	Alphanumeric	Numeric	Numeric
Digit size	4.5 inch height (113 mm)
Number of digits	Six (6)-digit by 7 segment		Six (6)-digits x 12 segments		Six (6)-digit by 7 segment
Display Format	Floating decimal point may be placed between any digit. Fixed decimal points selectable between ones, tens and hundreds positions (123.4.5.6). Pad read- out with one or two fixed zeros, switch selectable or sent from host. On alphanumeric models, any position may show a number, letter or common punctuation symbol.
Operating Temperature	-50 to 120°F (-45 to 50°C)
Input Serial	RS-232 or 20mA current loop (active or passive) at all standard baud rates from 50 to 9600. Interface cable: 4-wire x 25 feet (7.5 meters). Lengths to 1500 feet (455 meters) with Current loop, 50 feet (15 meters) with RS-232				RFX Wireless
Input Parallel	TL BCD 199999 Range-Minus Line, Motion/Over-capacity Line, “Print” (Strobe) Line. Interface cable: 24-wire x 25 feet (7.5 meters). Lengths to 50 feet (15 meters) with BCD.				RFX Wireless
Display size	32.5 x 11.5 x 3.5 inches (820 x 290 x 90 mm)
Power	Standard-UL, CSA listed plug-in wall transformer,110 volts AC, 60 Hz @ 1 amp, Power cable included, 3-wire x 25 feet (7.6 meters), 220 volts available

more info

Intercomp 189012 RFX™ USB Node for PC

$445.50

Intercomp 189012 RFX™ USB Node for PC (Required for Direct Communication to Scales)

more info

Intercomp 140759 IntercompWeigh™ Software

$895.50

Manage the Weighing Process and Create Comprehensive Reports

IntercompWeigh™ Software communicates directly with Intercomp’s Digital Wheel Load Scales, Crane, & Tension Link Scales, Pallet Truck Scales and Indicators. Users can manage any weighing process, view scale data, customize layouts and generate reports in one, easy-to-use program.

Set up any scale configuration for use in any weighing operation to keep track of item inventories, create procedures to maintain processes or generate customized, detailed records for future analysis. Combine with Intercomp’s wireless node to communicate directly with scales without cables.

32 Scales & 15 Dynamic Weighing Fields in Real Time
Variety of Display Options, Including Peak Values per Scale, NET/Tare Values & Accumulative Modes
Import/Export any Single Record via .xlm, Excel or Text File
Control Scale Functions Including On/Off & Zero
Intuitive & User-Friendly
Multiple Search Options to Easily Find Data

Build Custom Scale Layouts

Create Custom Layouts for Any Weighing Application
Design Mode Offers Users the Ability to Create Unlimited Scale Configurations Based on a Multitude of Applications

Intuitive Notifications

Set Weight Limits/Set Points for a Visual & Audible Warning When Limits are Reached
Motion Detection for Better Weight Readings

Powerful & Easy Reporting

Includes Default & Custom Reports
Reweigh Any Record
Export Specific Position Values or Export All
Print Detailed Reports & Create Tickets

more info

Intercomp 101221-RFX PT20 CPU RFX Indicator with Built-in-Printer

$2,695.50

intercomp’s Next Generation of RFX ™ Wireless Weighing Indicators!

RFX™ Wireless Weighing Indicators are available in two convenient options for use with any Intercomp RFX™ Wireless Scale System. Both provide the ability to easily process weight related data for monitoring and controlling loads. USB/RS232 output ensures weight records can be stored and downloaded in a variety of ways and indicators can communicate with a variety of devices, including PC’s and displays, wirelessly, saving time and improving safety.

The PT20™ CPU is self-enclosed with a thermal printer in a rugged, all-weather case for use in even the most remote locations and the Handheld Wireless Weighing Indicator offers a light-weight handheld alternative with much of the same functionality as the PT20™CPU. Both systems free you of cables and enhance performance
