Name: Intercomp CW250 100171-RFX 15x15x4 In Legal for Trade Platform Scale 1500 x 0.5 lb
Brand: Intercomp
SKU: 27058
Price: 1660.50 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturers

Other Products

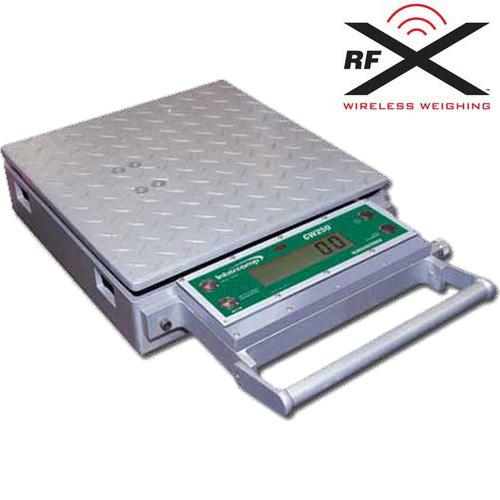

Intercomp CW250 100171-RFX 15x15x4 In Legal for Trade Platform Scale 1500 x 0.5 lb
Integrated RFX™ Wireless Weighing Technology makes the CW250™ Scale is ideal for weighing 55 gallon drums, chlorine cylinders, propane bottles, freon/puron tanks, hazardous medical waste and other liquid or gaseous containers. Wireless weighing improves safety and scale can be controlled from the optional Handheld RFX™ Wireless Weighing Indicator. NTEP Approved Models Available* more ...

Industrial Scales > Bench Scales > Low Profile Bench Scales

Intercomp CW250 100171-RFX 15x15x4 In Legal for Trade Platform Scale 1500 x 0.5 lb

View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

Intercomp CW250 100171-RFX 15x15x4 In Legal for Trade Platform Scale 1500 x 0.5 lb

Price: $1,660.50

Available to Ship

Optional Accessories

	Intercomp Part 340105 Thermal Printer, Roll, Battery or AC Operation for Intercomp CS750, CS1500 & CS3000, TL6000 & CW250 & PT600 (Need 101165 cable) , $535.50

	Intercomp Part 100449 Ramp (Cast aluminum) 15 x 15 inches , $233.10

	Intercomp Part 100183 Transport Wheels (two per platform) for Intercomp CW250 , $157.50

	Intercomp Part 100480 Universal Charger for Intercomp CW250, PT300 (Must Order W Scale) , $160.00

	Intercomp Part 101165, Cable for 340105 Printer , 15 ft. , $175.50

	Intercomp Part 101234, Serial Output USB cable for CW250, CW250 RFX, 15 ft. , $130.50

View Features

Intercomp
SKU: 100171RFX

Features

RFX Wireless CW250 Platform Scale

NTEP Approved Models Available (Marked with *)

Integrated RFX™ Wireless Weighing Technology makes the CW250™ Scale is ideal for weighing 55 gallon drums, chlorine cylinders, propane bottles, freon/puron tanks, hazardous medical waste and other liquid or gaseous containers. Wireless weighing improves safety and scale can be controlled from the optional Handheld RFX™ Wireless Weighing Indicator.

Capacities available from 150 to 3,000lbs/75 to 1,500kg and has an accuracy of +/- 0.1% of applied load.

Platforms are available in 15" (381mm) and 24" (610mm) squared sizes with a 4" Profile.

Fully battery operated, this scale requires infrequent recharging from any 12V, 120V or 220V power source, with the charging adapter and cable provided. Standard AA Batteries last up to 300 Hours in Scales!

Accuracy of ±0.1% of Reading
Fully Integrated RFX™ Wireless Weighing Technology
Choose from Two Platform Sizes 15½ x 15½ x 4½ (381 x 381 x 100mm) & 24½ x 24½ x 4½ (610 x 610 x 100mm)
Available with Built-In Indicator or Without
Handheld RFX™ Wireless Weighing Indicator Standard with CW250™ Less Indicator, Optional for Model with Built-In Indicator
150 lb (75 kg) to 3,000 lb (1,000 kg) Capacities
NTEP Approved Models Available (Marked with *)
Large, Easy-to-Read, LCD Display
Standard AA Rechargeable Batteries Last up to 300 Hours in Scales
RS232 Output to Printer or Display

Handheld RFX Wireless Indicator

Rfx Wireless Indicator Eliminates the Use of Cables.

Wireless Weighing Saves Time & Increases the Efficiency & Safety of Weighing Operations
Control Scale Functions Directly from the Indicator, Including On & Off!
Easy to Use Indicator Allows Users to Show the Weights in Cumulative Total, Individual Weights Per Pad or Scale, and/or Center of Balance, has the Ability to Store & Recall Up to Ten Arm Records & Offers Continuous & On Demand Print Outputs for Up to Six Scales
The Indicator also Offers a ‘Read-Only’ Selection for Use with Pc Software
Standard AA Batteries Last up to 40 Hours
View PDF

Models W/Attached Indicator	100161-RFX	100167-RFX *	100168-RFX *	100169-RFX *	100170-RFX *	100171-RFX *	100172-RFX *	101058-RFX	100162-RFX *	100173-RFX *	100174-RFX *	100175-RFX *	100176-RFX *	100177-RFX *	100178-RFX *
Capacity X Graduation	150 x .05 lb	300 X .1 lb	500 x .5 lb	500 x .2 lb	1000 x .5 lb	1500 x .5 lb	2000 x 1 lb	3000 x 1 lb	150 x .05 lb	300 x .1 lb	500 x .5 lb	500 x .2 lb	1000 x .5 lb	1500 x .5 lb	2000 x 1 lb
Capacity X Graduation	75 x 0.02 kg	150 X 0.05 kg	250 x 0.2 kg	250 x 0.1 kg	500 x 0.2 kg	750 x 0.2 kg	1000 x 0.5 kg	1500 x 0.5 kg	75 x 0.02 kg	150 x 0.05 kg	250 x 0.2 kg	250 x 0.1 kg	500 x 0.2 kg	750 x 0.2 kg	1000 x 0.5 kg
Weight	39 lb/18 kg	39 lb/18 kg	39 lb/18 kg	39 lb/18 kg	39 lb/18 kg	39 lb/18 kg	39 lb/18 kg	45 lb/20 kg	87 lb/40 kg	87 lb/40 kg	87 lb/40 kg	87 lb/40 kg	87 lb/40 kg	87 lb/40 kg	87 lb/40 kg
Performance
Accuracy:	+/- 0.1%
Controls
General:	Push-Button On/Off, Zero, Print/Accumulate, and lb/kg
Display:	1" (20mm) LCD on Scale, .5" (12mm) on Indicator
Environmental
Temperature:	-4 to 140°F (-20 to 60°C)
Electrical
Battery:	Standard Alkaline or Rechargeable AA
Battery Life:	300 Hours

Other Intercomp CW250-RFX Platform Scales

CW250 100168-RFX 15x15x4 In Legal for Trade Platform Scale 500 x 0.5 lb $1,291.50	CW250 100161-RFX 15x15x4 In Platform Scale 150 x 0.05 lb $1,660.50	CW250 100167-RFX 15x15x4 In Legal for Trade Platform Scale 300 X 0.1 lb $1,660.50	CW250 100170-RFX 15x15x4 In Legal for Trade Platform Scale 1000 x 0.5 lb $1,660.50	CW250 100169-RFX 15x15x4 In Legal for Trade Platform Scale 500 x 0.2 lb $1,660.50
CW250 100171-RFX 15x15x4 In Legal for Trade Platform Scale 1500 x 0.5 lb $1,660.50 You are viewing this product	CW250 100172-RFX 15x15x4 In Legal for Trade Platform Scale 2000 x 1 lb $1,660.50	CW250 100162-RFX 24x24x4 In Platform Scale 150 x 0.05 lb $1,480.50	CW250 100174-RFX 24x24x4 In Legal for Trade Platform Scale 500 x 0.5 lb $1,525.50	CW250 100175-RFX 24x24x4 In Legal for Trade Platform Scale 500 x 0.2 lb $1,525.50
CW250 100176-RFX 24x24x4 In Legal for Trade Platform Scale 1000 x 0.5 lb $1,525.50	CW250 100177-RFX 24x24x4 In Legal for Trade Platform Scale 1500 x 0.5 lb $1,525.50	CW250 100178-RFX 24x24x4 In Platform Scale 2000 x 1 lb $1,525.50	CW250 101058-RFX 15x15x4 In Platform Scale 3000 x 1 lb $2,416.50

Optional Accessories

more info

Intercomp Part 340105 Thermal Printer, Roll, Battery or AC Operation for Intercomp CS750, CS1500 & CS3000, TL6000 & CW250 & PT600 (Need 101165 cable)

$535.50

This compact, fully featured, portable thermal printer is the perfect printer for your weighing system application.

The small, lightweight design ensures this printer can be used on the go, and its high speed, low noise mechanism is perfect for any environment.

This printer features a long life print head with high reliability, easy paper handling, a large capacity Lithium-ion rechargeable battery, and your choice of paper diameters up to 40mm.

GENERAL SPECIFICATIONS

Interface
- Serial Interface
Printing System
- Direct Thermal Printing
Printing Speed
- 50mm/Sec
Character matrix
- ASCII Code, Alphanumeric Characters, International Characters, Windows Code Page
Characters Per Line
- 32 - 42 Characters per Line, Two Font Size Choices
Paper Width
- 58 +/-0.5mm
Recommended Paper
- TF50-KS-E2D (Nippon Paper)
External dimensions
- 4.5"x4"x2.5"/116W x 104L x 63Hmm
- 5°C - 40°C, 41°F - 104°F
Weight
- Less Than 1lb

Printer Includes:

Printer
1 Sample Roll of Paper
AC Adapter
Battery
Serial Cable

Fully compatable with Intercomps CS750 Crane Scale, CS1500 Crane Scale, CS3000 Crane Scales, CS5000 Crane Scales, TL6000 Tension Link Scales, CW250 Cargo Scales, TB830 Twin Beam Scales, US840 U-Beam Scales, PT300 Wheel Load Scales, LP600 Low-Profile Wheel Load Scales, GP1000 Indicator, GP1200 Indicator, GP2000 Indicator, GP2000EM Indicator and the MS450 Mining Scale Systems.
