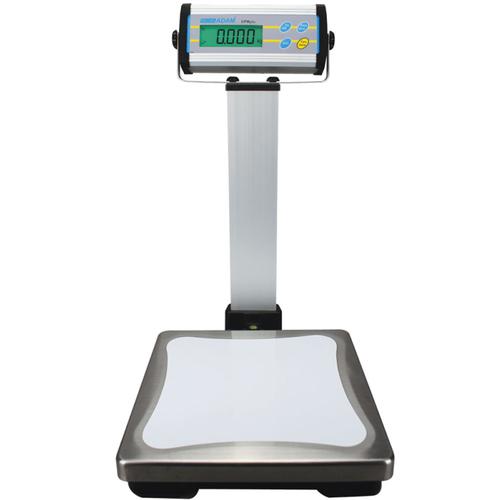

Adam Equipment CPWplus-200P Industrial Scale W Column, 440 x 0.1 lb |
|
| The Adam Equipment CPW-plus models are multi-purpose industrial scales created for easy use. Featuring different options for units of measurement, portability, and an easy to read backlit indicator, the CPW-plus scales are durable and dependable for your every weighing need. more ... |
|
Scales >
Industrial Scales >
Shipping Scale
|
|
|
|
|
|
Features
The CPWplus series of scales offers an extensive range of models and configurations to accommodate a variety of applications. Choose the basic CPWplus for compact portability, the CPWplus-P version with pillar mounted display, the CPWplus-M or CPWplus-L for large platforms, or the CPWplus-W with handlebars and wheels. Simple operation, a selection of platform sizes, battery and AC operation, and rugged construction all combine to make the CPWplus truly a great value in this industrial range.
- All CPWplus scales utilize the same versatile indicator which features 4 weighing modes (lb, kg, oz, lb:oz), a crisp backlit display, color coded buttons with positive click feel, and simple, quick operation. The indicator can be mounted where you need it: on the scale, on a wall, or seated on a desk giving total flexibility for the best viewing position.
- A bi-directional RS-232 interface allows connection to printers or computers. Using standard commands users can request gross, net and tare weights be sent automatically.
- The optional Adam data collection software collects scale data and can produce charts and statistics, or export raw data to Microsoft® Excel or Word for further analysis.
Features
- 4 Weighing units (lb, kg, oz, lb:oz)
- Simple 4 button operation
- Hold function
- Full range tare
- Zero Tracking
- Large backlit LCD display
- Wall mount bracket
- Large stainless steel pan
- Modern low profile design
- Splashproof to protect from accidental spills
- Precision load cell technology
- Color coded, sealed keypad
- RS-232 bi-directional interface
- Low battery indication
- Auto sleep / power down function to save battery life
- Battery power (6 x AA Batteries)
- AC Adapter
Applications
- Weighing
- Animal / dynamic weighing
Weight:
18.00 lb
|
|
Other Adam Equipment CPWplus-P Industrial Scale With Column
|
Specifications
| Model |
CPWplus-6P |
CPWplus-15P |
CPWplus-35P |
CPWplus-75P |
CPWplus-150P |
CPWplus-200P |
| Capacity x Readability |
13 x 0.005 lb |
33 x 0.01 lb |
75 x 0.02 lb |
165 x 0.05 lb |
330 x 0.1 lb |
440 x 0.1 lb |
| 6000 x 0.002 kg |
15 kg x 0.00 5kg |
35 kg x 0.01 kg |
75 kg x 0.02 kg |
150 kg x 0.05 kg |
200 kg x 0.05 kg |
| Repeatability (S.D.) |
0.005 lb
0.002 kg |
0.01 lb
0.005 kg |
0.02 lb
0.01 kg |
0.05 lb
0.02 kg |
0.1 lb
0.05 kg |
0.1 lb
0.05 kg |
| Linearity (+/-) |
0.01 lb
0.004 kg |
0.02 lb
0.01 kg |
0.04 lb
0.02 kg |
0.1 lb
0.04 kg |
0.2 lb
0.1 kg |
0.2 lb
0.1 kg |
| Pan Size |
11.8×11.8" / 300×300mm |
| Tare |
Full |
| Weighing Units |
Kilogram (kg), Pound (lb), Pound-Ounce (lb-oz) |
Kilogram (kg), Pound (lb), Ounce (Oz), Pound-Ounce (lb-oz) |
| Applications |
Weighing, Animal / dynamic weighing |
| Stabilization Time |
2 Sec |
| Column |
Yes |
| Interface |
RS-232 bi-directional Interface |
| Calibration |
Automatic External with user selectable calibration mass |
| Display |
LCD with minimum 25mm digits with weight legends for kg, lb, oz and low battery, stable, zero, net weight and hold symbols, as well as ability to display lb and oz together |
| Power supply |
6 AA size non-rechargeable batteries in a compartment located in the base or 12VAC 150mA from external adapter |
| Operating temperature |
32°F - 104°F |
| Housing |
Indicator- Aluminium, Platform- Mild Steel base and stainless steel platform |
| Overall dimensions (wxdxh) |
11.8×11.8×2" / 300×300×50mm |
| Dimensions notes |
Indicator: 220 x 95 x 43mm (w x d x h) |
|
|
|
|
|
|
|
Optional Accessories
more info
|
Adam Equipment 3074010266 RS-232 Cable (Null Modem Type)
RS-232 Cable
Null Modem Type
|
|
more info
|
Adam Equipment 600002028 AdamDU - Data Collection Program
AdamDU - Data Collection Program
Practical Functionality – Smart Features
Statistics and Graphing
Easy Data Management
Quick Setup and Installation
|
|
more info
|
Adam Equipment 3074010507 RS-232 to USB Interface Cable
9066 RS-232 to USB Interface Cable
|
|
more info
|
Adam Equipment - ATP Thermal Printer (1120011156)
Adam Equipment ATP Thermal Printer (1120011156)
Simple-to-use features combined with quick set-up makes for a truly versatile printer. A single positive push-button feed key and three easy-to-read LED indicators make operation simple.
- Thermal printer
- Dimensions: 114 mm x 184 mm x 90 mm
- Print size 24 x 24 dot
- Column size 384 dots per line
- 57.5mm paper width
|
|
more info
|
Adam Equipment - 1120014641 AIP dot matrix printer
The AIP is a compact, high-speed dot matrix printer that is both versatile and sturdy. Simple to use, AIP operates with only an on/off switch and a paper feed button. For efficient communication, the printer connects with any scale or balance having RS-232 or USB interface, and automatically detects the devices settings. AIP is powered by adapter or rechargeable battery, so it works even when electricity is unavailable. AIPs supports a variety of languages, and its software is compatible with Windows operating systems.
Features
- Printer method: 8 pin shuttle impact dot matrix Supplied with RS-232 interface and USB port which allows for connection between printer, computer and weighing device to update firmware and set parameters Auto-setting detection: Communication parameters can be automatically identified and set for quick configuration with devices Fast 1.7 lines/sec (approx) printing speed Printer digits: 24 digits / line or 40 digits / line, 5 x 7 dot matrix Printer paper size: 57mm width, 50mm in diameter
- AC adapter included
- Rechargeable battery included for operation almost anywhere
|
|
more info
|
Adam Equipment 700660290 Calibration Certificate
The Calibration Certificate can only be ordered with the Scale.
It provides information about the machines performance and accuracy.
Generally, its a requirement of any company with ISO Quality systems in place where a record of the scales calibration needs to be kept by the user.
Please note: Adam Equipment can not issue calibration certificates to scales previously supplied that did not include a certificate in the order.
These certificates do not make the scale or balance Trade Approved. These certificates are done by Adam Equipment in a Adam Equipment warehouse and may not be valid once shipped to a different location. they also are non-refunable.
|
|
|
|
|
|
|
|
|
