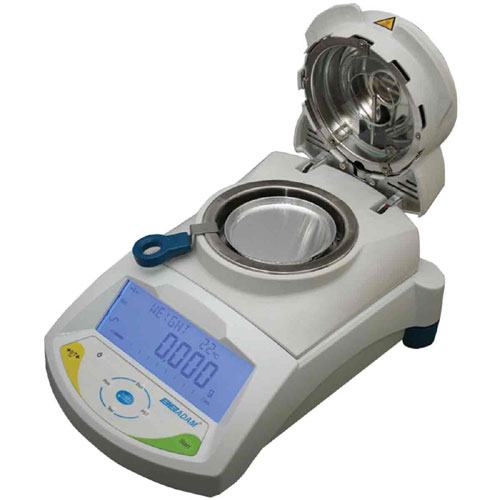

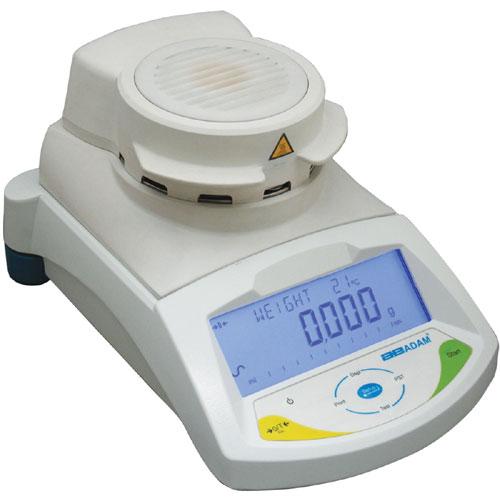

Adam Equipment PMB-53 Moisture Analyzer, 50 x 0.001g |
|
| The PMB’s fast response time and easy-to-use functionality make it the ideal moisture analyser for a range of different applications. The automatic test setting function lets you quickly run multiple tests without additional user input and the built-in memories lets you store that data for future reference. The PMB offers smart features that have been developed to give you the ultimate performance for moisture analysis. more ... |
|
Laboratory Equipment >
Moisture Analyzers >
Moisture Analyzers
|
|
|
|
|
|
Features
Built-in memories for storing products and settings
3 settings for heating sample fast ramp up, step and standard
Automatic test start setting for when the lid is closed
Date and time
Full range tare
Zero Tracking
Quick and easy to configure through the keypad
Multilingual display
Large backlit display with dual text prompts
Capacity tracker
Non-slip adjustable levelling feet
Colour coded, sealed keypad
Large stainless steel pan
Lock down mounting slot for Kensington™ type lock and cable
Overload protection
Splashproof to protect from accidental spills
Spirit Level
Single Halogen Lamp 400W
RS-232 and USB interface
GLP print outs
Calibration facilities for temperature and weight
Power Cord
Pan lifter to easily remove samples
Soft close door to protect heating element
The PMB takes the hassle out of moisture analysis
for fast and accurate results.
Adam Equipment’s PMB moisture balances set a new standard for data communication making recording results faster and easier. Use the USB interface and connect a memory stick to download the results as they are taken and store them for future analysis, no need for additional software to take readings from the balance giving the user total freedom to collect data on a production floor or in the field.
The PMB’s fast response time and easy-to-use functionality make it the ideal moisture analyzer for a range of different applications. The automatic test setting function lets you quickly run multiple tests without additional user input and the built-in memories let you store that data future reference. The PMB offers smart features that have been developed to give you the ultimate performance for moisture analysis.
With over 35 years of experience in the production of weighing instruments you can trust Adam for quality products that offer a range of features designed for a variety of applications.
Navigating
The built in applications is easy
with the intuitively designed keypad. Access
to the main functions is quick and a special
lock out feature allows the supervisor to set
up access to all or certain functions so users
do not inadvertently change the settings. The
color coded keypad highlights the tare and
start keys for easy recognition.
Multiple communications options
Let you pick
the right interface for your needs. USB and
RS-232 both included as standard. Supports
USB flash drive with automatic record keeping
function to save each test result.
Store a range of procedures
The different
products that can be recalled at a touch of a
button, to make setup and changing from one
product to another simple.
Weight:
18.00 lb
|
|
Other Adam Equipment PMB Moisture Analyzer
|
Specifications
| Model |
PMB-53 |
PMB-163 |
PMB-202 |
| Capacity |
50g |
160g |
200g |
| Readability |
0.001g / 0.01% |
0.001g / 0.01% |
0.01g / 0.05% |
| Repeatability (S.D.)* |
0.005g / 0.05% (10g sample) |
0.005g / 0.05% (10g sample) |
0.02g / 0.2% (10g sample) |
| Pan Size |
90mm ø / 3.5” ø |
| Temperature Range |
50°C to 160°C in 1°C intervals |
| Analysis Time |
Max 99 minutes |
| Program Timing |
Manual shut off, Timed, Auto, Timed/Auto |
| Weighing Units |
g (grams), % M (percent moisture), % S (percent
solids), ATRO % M (percent moisture / dry bases)
ATRO % S (percent solids / dry bases) |
| Languages |
English, German, French, Spanish |
| Stabilization Time |
2-3 secs |
| Interface |
USB Host, USB I/O, RS-232 |
| Internal Memory |
Up to 99 test results
49 Programmable user settings for configuration |
| External Memory |
External memory available with USB drive for
additional configurations and to store test results |
| Calibration |
External |
| Heating Element>
| Single 400W halogen heater |
| Heating Options |
Standard (one step) Step - up to 3 temp setting Ramp |
| Display |
Backlit LCD display with dual digits and capacity tracker, 1” / 24mm high digits |
| Power Supply |
Power cord, factory set for 110v or 220v 50/60hz |
| Operating Temperature |
32° -104°F / 0° - 40°C |
| Overall Dimensions |
14” x 9.8” x 7.3” / 360 x 250 x 185mm (LxWxH) |
| Net Weight |
13lb / 6kg |
|
|
|
|
|
|
Optional Accessories
more info
|
Adam Equipment 3070013622 PMB glass fiber pads (pack of 200)
Glass fiber pads are used to hold liquid samples in moisture analyzers. They help equalize heat distribution to the sample and prevent bubbling.
90mm wide glass fiber pads
Borosilicate glass micro fiber with a density of 80g/M2
Binder free with a constant tare weight
Prevents skin from forming on the sample surface
|
|
more info
|
Adam Equipment 700660290 Calibration Certificate
The Calibration Certificate can only be ordered with the Scale.
It provides information about the machines performance and accuracy.
Generally, its a requirement of any company with ISO Quality systems in place where a record of the scales calibration needs to be kept by the user.
Please note: Adam Equipment can not issue calibration certificates to scales previously supplied that did not include a certificate in the order.
These certificates do not make the scale or balance Trade Approved. These certificates are done by Adam Equipment in a Adam Equipment warehouse and may not be valid once shipped to a different location. they also are non-refunable.
|
|
more info
|
Adam Equipment - 1120014641 AIP dot matrix printer
The AIP is a compact, high-speed dot matrix printer that is both versatile and sturdy. Simple to use, AIP operates with only an on/off switch and a paper feed button. For efficient communication, the printer connects with any scale or balance having RS-232 or USB interface, and automatically detects the devices settings. AIP is powered by adapter or rechargeable battery, so it works even when electricity is unavailable. AIPs supports a variety of languages, and its software is compatible with Windows operating systems.
Features
- Printer method: 8 pin shuttle impact dot matrix Supplied with RS-232 interface and USB port which allows for connection between printer, computer and weighing device to update firmware and set parameters Auto-setting detection: Communication parameters can be automatically identified and set for quick configuration with devices Fast 1.7 lines/sec (approx) printing speed Printer digits: 24 digits / line or 40 digits / line, 5 x 7 dot matrix Printer paper size: 57mm width, 50mm in diameter
- AC adapter included
- Rechargeable battery included for operation almost anywhere
|
|
more info
|
Adam Equipment 3074010267 - USB Cable for Precision Balances
USB Cable for Precision Balances
|
|
more info
|
Adam Equipment - ATP Thermal Printer (1120011156)
Adam Equipment ATP Thermal Printer (1120011156)
Simple-to-use features combined with quick set-up makes for a truly versatile printer. A single positive push-button feed key and three easy-to-read LED indicators make operation simple.
- Thermal printer
- Dimensions: 114 mm x 184 mm x 90 mm
- Print size 24 x 24 dot
- Column size 384 dots per line
- 57.5mm paper width
|
|
more info
|
Adam Equipment 307140001 Disposable Aluminum Sample Pans (Pack of 250)
Disposable Aluminum Sample Pans (Pack of 250)
|
|
more info
|
Adam Equipment 301208188 In-use Cover
301208188 In-use Cover
|
|
more info
|
Adam Equipment 600002028 AdamDU - Data Collection Program
AdamDU - Data Collection Program
Practical Functionality – Smart Features
Statistics and Graphing
Easy Data Management
Quick Setup and Installation
|
|
more info
|
Adam Equipment 3074010266 RS-232 Cable (Null Modem Type)
RS-232 Cable
Null Modem Type
|
|
more info
|
Adam Equipment 700100046 Kensington-type lock and cable
The security lock and cable enables users to secure their equipment in place. Simple to use, the combination lock can be set to a memorable number. Easy-to-use with one hand the lock is designed to be tamper resistant. With a loop on the other end, it can be anchored to a desk, table or any fixed structure.
|
|
more info
|
Adam Equipment 1070010636 Temperature calibration kit
Moisture Analyzers should be calibrated frequently, just like balances. Calibrate the temperature sensor of your PMB Moisture Analyzer with this Temperature Calibration Kit, which comes with a case and a device to hold the sensor in the optimum position.
Supplied with cushioned carry case
Simple to use with special grip to position temperature sensor in the right place
Large display of temperature reading
|
|
|
|
|
|
|
|
|
