Mark-10 STA12 Torque Tool Tester, 12 x 0.01 lbFin

Mark-10 - Force and Torque Measurement Products
A simple yet accurate solution for testing torque screwdrivers, wrenches, and other tools. Applications exist in manufacturing facilities in virtually every industry. more ...
Scales > Force Gauge > Torque Gauge
Mark-10 STA12 Torque Tool Tester, 12 x 0.01 lbFin

View Full Detail Page


Call for more info
Download PDF
Mark-10 STA12 Torque Tool Tester, 12 x 0.01 lbFin
FREE Ground Shipping *


Price: $1,135.25


In Stock - Ships within 24 hours

Optional Accessories

View More Pictures
View Features

Mark 10
SKU: STA12

Features

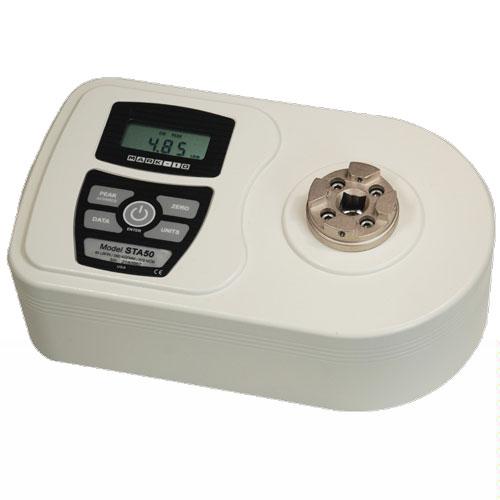

Series STA Torque Tool Testers present a simple, yet accurate solution for testing hand operated torque screwdrivers, wrenches, and other tools. Applications exist in manufacturing facilities in virtually every industry. The STA features a solid aluminum housing, making it rugged enough for many years of service in production or laboratory use, while a universal receptacle accepts common bits and attachments. The STA captures peak torque in both clockwise and counterclockwise directions. Note: The STA cannot be used with power, impact or air tools.

    Features

  • Outstanding value
  • Accepts many types of torque tools
  • Selectable units of measurement
  • Peak memory for clockwise and counterclockwise readings
  • RS-232 and Mitutoyo (Digimatic) outputs
  • Optional bench mounting brackets
  • Solid aluminum housing
  • 3 capacities available: 12 lbin (135 Ncm), 50 lbin (570 Ncm), 100 lbin (1150 Ncm)
  • Battery or AC operation
  • Mounting holes for bench mounting
  • Accuracy: ±0.5% of full scale ±1 digit
  • Safe overload: 150% of capacity
  • Battery: 9V (non-rechargeable), 30 hours of continuous operation
  • Weight: 4.8 lb (2.2 kg)
  • Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
  • Warranty: 3 years
  • CE mark
  • Universal receptacle Accepts many types of torque tools and fixtures
    Peak memory For clockwise and counterclockwise torque
    Selectable units of measurement Measure in lbFin, kgFmm, or Ncm
    Data outputs RS-232 and Mitutoyo (Digimatic)
    Push-button calibration Simple and quick calibration procedure

Specifications

Model STA12 STA50 STA100
Capacity x Resolution 12 x 0.01 lbFin 50 x 0.05 lbFin 100 x 0.1 lbFin
140 x 0.1 kgFmm 580 x 0.5 kgFmm 1150 x 1 kgFmm
135 x 0.1 Ncm 570 x 0.5 Ncm 1150 x 1 Ncm
Accuracy ±0.5% of full scale ±1 digit
Power AC or non-rechargeable 9V battery, with Intelligent Power Management System (IPM). IPM warns the user via a “LO BAT” indicator and then will power off the gauge
Battery Life 30 hours of continuous use
Selectable units of measurement lbFin, kgFmm, Ncm
Outputs RS-232 - Fully configurable up to 9600 baud
Mitutoyo (Digimatic) - Serial BCD suitable for all Mitutoyo SPC-compatible devices
Safe overload 150% of full scale (display shows “----” at 110% and above)
Weight 4.8 lb [2.2 kg
Environmental Requirements 40° F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Thermal effects: Zero: 0.03% of full scale/°C, Span: 0.01% of full scale/°C
Housing construction Aluminum
Warranty 3 years (see individual statement for further details)

Weight: 10.00 lb
Other Mark 10 STA Torque Tool Testers

Mark-10 STA12
Torque Tool Tester
12 x 0.01 lbFin

$1,135.25

You are viewing this product

Mark-10 STA50
Torque Tool Tester
50 x 0.05 lbFin

$1,135.25

Mark-10 STA100
Torque Tool Tester
100 x 0.1 lbFin

$1,135.25

* within the 48 continental US States


Optional Accessories


Mark-10 09-1047 Mitutoyo Cable
more info
Mark-10 09-1047 Mitutoyo Cable
more info
Price: $75.00
In Stock
btn buy
Cable, BG/CG/EG/BGI to Mitutoyo SPC
Mark-10 09-1048A RS-232, 9-pin Cable
more info
Mark-10 09-1048A RS-232, 9-pin Cable
more info
Price: $71.25
In Stock
btn buy
Cable, BG/CG/EG/BGI to RS-232, 9-pin
Mark-10 ST001 Mounting Bracket
more info
Mark-10 ST001 Mounting Bracket
more info
Price: $142.50
In Stock
btn buy
Mounting bracket for Mark-10 ST series torque tool tester
Mark-10 15-1004 MESURGauge Data Collection Software
more info
Mark-10 15-1004 MESURGauge Data Collection Software
more info
Price: $470.25
In Stock
btn buy
We are pleased to introduce Mark-10 MESURgauge software, a measuring and analysis program designed to expand the functionality of Mark-10 force and torque measuring instruments.
  • Ability to display both load and travel data
    The ability of MESURgauge to display load and travel data sets it apart from other basic force measurement programs. If the customer wishes to plot a graph of load vs. travel, common for such applications as tensile testing and spring testing, MESURgauge is a compelling alternative to more expensive and complex material testing programs.
  • Compatibility with competitors gauges
    Any force or torque gauge with RS-232 data output is compatible with Mark-10 MESURgauge software. Simply enter in the appropriate communication protocols of the gauge into the program.
  • Simulated data makes evaluation a breeze
    Built-in simulated data allows the customer to evaluate the program with data which can be graphed, analyzed, and manipulated just like real test data. A gauge and cable are not necessary.

Mark-10 MESURgauge is a measuring and analysis program designed to expand the functionality of force and torque measuring instruments. Mark-10 MESURgauge Software captures readings from any force or torque gauge with RS-232 output and displays data in tabular and graphical formats. Load data can be graphed versus time or distance, particularly useful for such applications as spring testing and tensile testing.

Mark-10 MESURgauge Software includes a set of tools to analyze test results, including statistical calculations, quick data export to Microsoft Excel, customizable reports, pass/fail indicators, and many others. Test setups and sequences are customizable and can be saved and recalled. The user can program test start and stop conditions, including load, time, distance, and sample break.

Additional features in Mark-10 MESURgauge Software include a large display screen for real time load and travel data and a utility to configure Mark-10 gauges from a PC. Built-in simulated data generation allows Mark-10 MESURgauge Software to be evaluated without a gauge.

Additional Features:

  • Inputs data from a force or torque gauge and travel display to a PC for further analysis
  • Real time tabular and graphical data displaying load vs. time or load vs. distance
  • Configurable start and stop test triggers (time, load, number of samples, or distance)
  • Statistical calculations (minimum, maximum, average, area under curve)
  • Graph manipulation tools, including zooming, scaling, panning, titles, and more
  • One-button export to Excel
  • Create customizable reports and report templates
  • Compatible with all Mark-10 and other force and torque measuring instruments
  • Save and recall test setups and test data
  • Configure Mark-10 instruments easily through a simple interface
  • View real time data on a large simulated instrument display

Computer Requirements

  • Windows 2000 or later operating system
  • At least 150 MB of free hard disk space
  • Minimum display resolution of 1024 x 768
Mark 10 RSU100 Communication adapter, RS-232 to USB
more info
Mark 10 RSU100 Communication adapter, RS-232 to USB
more info
Price: $118.75
In Stock
btn buy
The RSU100 is a communication adapter used to convert RS-232 data from a Mark-10 device to USB format for PC use.:
:
:
INCLUDED ITEMS:
1 RSU100 Communication Adapter:
1 USB cable, 6’:
1 Installation CD:
1 User’s guide :
:
:
User’s guide :
:
Mark 10 ST002 Carrying case for Torque Tool Testers
more info
Mark 10 ST002 Carrying case for Torque Tool Testers
more info
Price: $166.25
In Stock
btn buy
Hard plastic carrying case with custom molded inserts allows for safe storage and easy transportation Provides storage space for the STA tester, ST001 mounting bracket, AC adapter, and accessories
