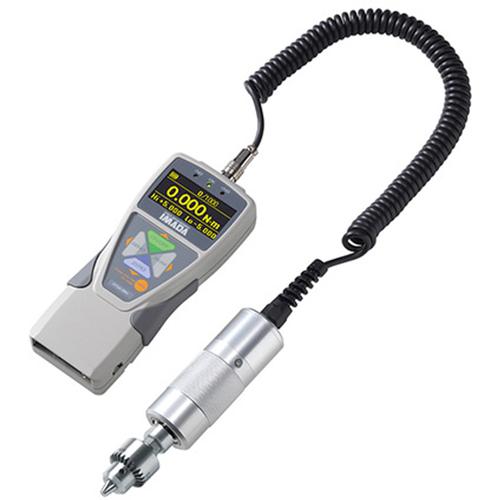

Imada HTG2-40L Digital Torque Gauge, 40 lb 13mm Chuck |
|
| Imada HTG digital torque gauge offers programmable high/low setpoints for go/no-go testing. Store up to 960 values in memory, which can be transmitted using serial output more ... |
|
Test Equipment >
Force Gauges >
Force Gauges w Torque Sensors
|
|
|
|
|
|
Features
- Programmable high/low setpoints with color-coded LED indicators and output signal for quick go/no go testing
- 960 Data memory for computer download
- lbf-in, kgf-cm, and N-cm units are selectable
- RS-232C, Digimatic and Analog outputs
- Runs on internal NiCad batteries or AC adapter
- Ergonomic design with non-slip rubber grip, heavy duty metal construction
- Both clockwise and counterclockwise operation
- Overload capacity 200% of F.S.
- Real time and peak mode (selectable)
- Tare function
- Overload alarm and output signal
- Low battery indicator
- 6.5mm Jacobs Chuck (optional 13mm Jacobs Chuck available)
Model HTG2 digital torque gauge offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for torque measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.
Store up to 960 values in memory, which can be transmitted using serial output. Use the real time mode to display torque transients, or the peak mode to capture the peak torque achieved during a test. Selectable measuring units of lbf-in, kgf-cm, or N-cm.
HTG2 torque gauges are sold in kits which include the torque gauge, sensor, six foot cable, and AC adapter/charger. Built-in NiCad rechargeable batteries. A calibration kit is also available.
| Model |
Capacity (Resolution) |
|
lbf-in |
kgf-cm |
N-cm |
Chuck Size |
| HTG2-4 |
70 oz (0.01 ozf-in) |
5 kg-cm (0.001 kg-cm) |
50 N-cm (0.01 N-cm) |
4 mm |
| HTG2-15 |
15 lbf-in (0.01 lbf-in) |
20 kg-cm (0.01 kgf-cm) |
200 N-cm (0.1 N-cm) |
6.5 mm |
| HTG2-15L |
15 lbf-in (0.01 lbf-in) |
20 kg-cm (0.01 kgf-cm) |
200 N-cm (0.1 N-cm) |
13 mm |
| HTG2-40 |
40 lbf-in (0.01 lbf-in) |
50 kg-cm (0.01 kgf-cm) |
500 N-cm (0.1 N-cm) |
13 mm |
| HTG2-40L |
40 lbf-in (0.01 lbf-in) |
50 kg-cm (0.01 kgf-cm) |
500 N-cm (0.1 N-cm) |
13 mm |
| HTG2-85 |
85 lbf-in (0.1 lbf-in) |
100 kg-cm (0.1 kgf-cm) |
1000 N-cm (1 N-cm) |
6.5 mm |
| HTG2-85L |
85 lbf-in (0.1 lbf-in) |
100 kg-cm (0.1 kgf-cm) |
1000 N-cm (1 N-cm) |
13 mm |
Weight:
10.00 lb
|
|
