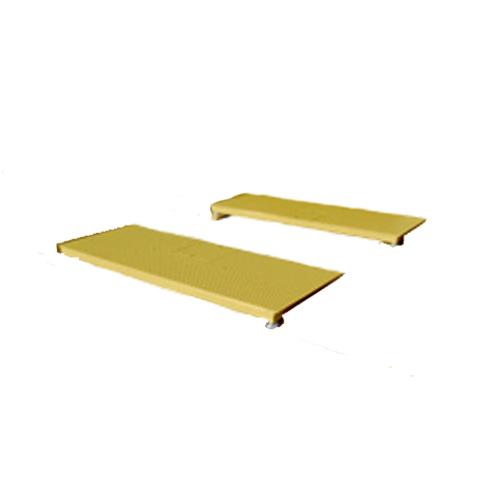

CAS RW-X2L Set of 2 Portable Axle Weighers, 32 x 120 x 6, 60K |
|
| The RW-X Series Portable Axle Weigher is an economical alternative to full size truck scales. Use on paved or gravel type surfaces. Ideal for weighing tractor trailers, dump trucks, tri/quad axle trucks, concentrated loads, and more. more ... |
|
Wheel Weighing Scales >
Wheel Load Scales >
Axle Load Scales
|
|
|
|
|
|
Features
The RW-X Series Portable Axle Weigher is an economical alternative to full size truck scales. Use on paved or gravel type surfaces. Ideal for weighing tractor trailers, dump trucks, tri/quad axle trucks, concentrated loads, and more.
- 60K & 70K lb capacities available
- Ramps sold separately
- Top quality - CAS BSA 10K Load Cells for 60K Sets
- Stainless Steel NEMA 4X Junction box
- 1/4” Diamond Tread Deck Plate
- Up to 150% (RW-X1) & 200% (RW-X2/X3) overload protection
- Top Access Leveling & Top Access Junction Box
- RW-X1 - 3” Tubular Steel Construction
Standard Leveling Feet
- RW-X2/X3 - 4” Tubular Steel Construction
Captive Ball Leveling Feet
| Model |
RW-X1S |
RW-X1L |
RW-X2S |
RW-X2L |
RW-X3S |
RW-X3L |
| Size (inches) |
32 x 32 x 4 |
32 x 84 x 4 |
32 x 84 x 6 |
32 x 120 x 6 |
32 x 84 x 6 |
32 x 120 x 6 |
| Capacity (lbs) |
30K (60K per set) |
30K (60K per set) |
30K (60K per set) |
30K (60K per set) |
35K (70K per set) |
35K (70K per set) |
| Ship Weight |
230 lbs |
575 lbs |
665 lbs |
865 lbs |
665 lbs |
865 lbs |
|
|
Other CAS RW-X Series Portable Axle Weighers
|
|
| |
|
|
|
|
|
Optional Accessories
more info
|
CAS RW-2601P Indicator for Wheel Weighing Scales
Indicator for CAS RW-P series Wheel Weighing Scales
|
|
more info
|
CAS CI-2001AS Stainless Steel Indicator with Bright LED Display, Legal for Trade
The CI-2001AS Indicator, with stainless steel enclosure. Use in a variety of applications - floor scales, livestock scales, platform scales, pallet scales, and much more. With its bright red display, the CI-2001AS Indicator is easy to read. Legal for trade.
- Compact & Simple Indicator
- Stainless Steel
- Power : AC Adapter
- Single Pass Automatic Span Calibration
- RFI/EMI Screened / Watch - Dog Function
- Wall/Panel Mounting Type
- kg/lb Switchable
- Gross/Net/Tare
- IP 65/NEMA4X Indicator enclosure(CI-2001AS/BS)
- NTEP Approval number :98-103
| Model |
CI -2001A |
CI- 2001B |
CI-2001AS |
CI-2001BS |
| Input Sensitivity |
2 V/D(H- 44, OIML)
0.5 V/D(Non H - 44, OIML) |
| Zero Adjust Range |
0.05~5mV |
| Load Cell Excitation |
DC 5V, Up to 4 350 Load Cells |
| A/D Conversion Speed |
10 times/sec |
| A/D Display Resolution |
5,000dd(H- 44, OIML)
30,000dd(Non H - 44, OIML) |
| A/D Internal Resolution |
Approximately 200,000 Counts |
| Weight Display |
6 Digit LED
(H=0.55 ) |
6 Digit LCD
(H=1) |
6 Digit LED
(H=1) |
6 Digit LCD
(H=1) |
| Operating Temperature |
-10 C~+40 C |
| Dimensions(inch) |
7.32(W) 2.28(D) 3.34(H) 7.87(W) 5.11(D) 2.08(H) |
| Product Weight(lb/kg) |
Approximately 1.10/0.5 Approximately 3.30/1.5 |
|
|
more info
|
CAS CI-2001BS Stainless Steel Indicator with LCD Display and Backlight, Legal for Trade
The CI-2001BS Indicator, with stainless steel enclosure. Use in a variety of applications - floor scales, livestock scales, platform scales, pallet scales, and much more. With its bright LCD display, the CI-2001BS Indicator is easy to read. Legal for trade.
- Compact & Simple Indicator
- Stainless Steel
- Power : AC Adapter
- Single Pass Automatic Span Calibration
- RFI/EMI Screened / Watch - Dog Function
- Wall/Panel Mounting Type
- kg/lb Switchable
- Gross/Net/Tare
- IP 65/NEMA4X Indicator enclosure(CI-2001AS/BS)
- NTEP Approval number :98-103
| Model |
CI -2001A |
CI- 2001B |
CI-2001AS |
CI-2001BS |
| Input Sensitivity |
2 V/D(H- 44, OIML)
0.5 V/D(Non H - 44, OIML) |
| Zero Adjust Range |
0.05~5mV |
| Load Cell Excitation |
DC 5V, Up to 4 350 Load Cells |
| A/D Conversion Speed |
10 times/sec |
| A/D Display Resolution |
5,000dd(H- 44, OIML)
30,000dd(Non H - 44, OIML) |
| A/D Internal Resolution |
Approximately 200,000 Counts |
| Weight Display |
6 Digit LED
(H=0.55 ) |
6 Digit LCD
(H=1) |
6 Digit LED
(H=1) |
6 Digit LCD
(H=1) |
| Operating Temperature |
-10 C~+40 C |
| Dimensions(inch) |
7.32(W) 2.28(D) 3.34(H) 7.87(W) 5.11(D) 2.08(H) |
| Product Weight(lb/kg) |
Approximately 1.10/0.5 Approximately 3.30/1.5 |
|
|
more info
|
CAS RW-X1RA Asphalt Ramp, 32 x 36 x 4
CAS RW-X1RA Asphalt Ramp, 32 x 36 x 4
|
|
more info
|
CAS RW-X1HP Hard Pack Ramp, 32 x 36 x 4
CAS RW-X1HP Hard Pack Ramp, 32 x 36 x 4
|
|
more info
|
CAS RW-X2RA Asphalt Ramp, 32 x 36 x 6
CAS RW-X2RA Asphalt Ramp, 32 x 36 x 6
|
|
more info
|
CAS RW-X2HP Hard Pack Ramp, 32 x 36 x 6
CAS RW-X2HP Hard Pack Ramp, 32 x 36 x 6
|
|
more info
|
CAS RW-X3RA Asphalt Ramp, 32 x 36 x 6
CAS RW-X3RA Asphalt Ramp, 32 x 36 x 6
|
|
more info
|
CAS RW-X3HP Hard Pack Ramp, 32 x 36 x 6
CAS RW-X3HP Hard Pack Ramp, 32 x 36 x 6
|
|
more info
|
CAS RW-PF Pit Frame
CAS RW-PF Pit Frame
|
|
|
|
|
|
|
|
|
