Features
CAS ER Jr Price Computing Scale is a 30 lb dual range scale with 3 Direct PLUs AC or Battery operated and Legal for Trade Ideal for Candy stores, Delicatessens and Farmers markets
- 30 lb capacity - dual range
- 3 direct PLUs
- Dual range technology for better accuracy
- AC or battery operated
- Soft touch tactile switch
- LCD display with backlight
- Lb/kg switchable
- Rechargeable battery
- Legal for trade - COC #10-090
Applications
- Candy stores
- Delicatessens
- Farmers markets

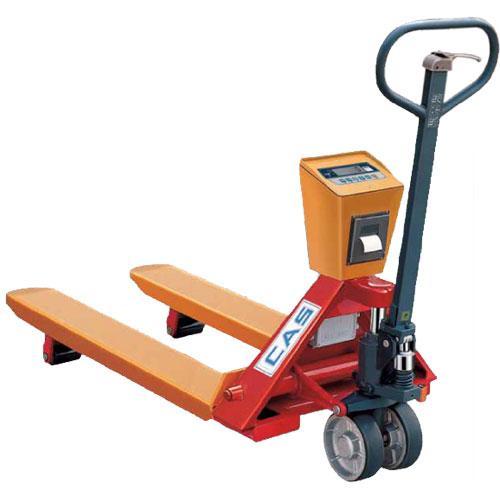

CPS Series has five models Commercially approved pallet jack scales to single sensor estimators & checkweighers allow you the versatility to choose the right capability for your application!
- Heavy Duty Construction - Designed and Built to Last
- Small and Compact Electronics - designed specifically for mobile weighing
- Battery Operation - long lasting battery options make the CPS Series simple and easy to use
- Easy to read - high intensity display
- Battery options
- Lb/kg switchable
- Auto tare
- Programmable SLEEP mode
- Summation of weights with sequence number for totalizing capabilities
- Tapered forks for smooth entry into pallets
- Printer included - CPS-1 & CPS-2/2N Models
| Model |
CPS-1N |
CPS-2 |
CPS-2N |
CPS-3 |
CPS-4 |
| CPS-1N |
CPS-1AN |
CPS-1BN |
CPS-2 |
CPS-2A |
CPS-2B |
CPS-2N |
CPS-2AN |
CPS-2BN |
| Capacity x Readability |
3,000 x 1 lb
1,000 x 0.5 kg |
5,000 x 1 lb
2,000 x 0.5 kg |
5,000 x 2 lb
2,000 x 1 kg |
5,000 x 2 lb
2,000 x 1 kg |
5,500 x 10 lbs
2,500 x 5 kg |
| Legal for Trade |
NTEP # 09-003 |
- |
NTEP # 09-003 |
- |
| Dimensions (W)x(D)x(H) inch |
Type C |
Type A |
Type B |
Type C |
Type A |
Type B |
Type C |
Type A |
Type B |
- |
- |
Standerd
27.8(W)
47.2(D)
45.5(H) |
Special*
21.3(W)
42.5(D)
45.5(H) |
Special*
24.4(W)
42.5(D)
45.5(H) |
Standerd
27.8(W)
47.2(D)
45.5(H) |
Special*
21.3(W)
42.5(D)
45.5(H) |
Special*
24.4(W)
42.5(D)
45.5(H) |
Standerd
27.8(W)
47.2(D)
45.5(H) |
Special*
21.3(W)
42.5(D)
45.5(H) |
Special*
24.4(W)
42.5(D)
45.5(H) |
Standerd
27.2(W)
45.3(D)
48.0(H) |
Standerd
27.0(W)
48.0(D)
48.0(H) |
| Built-in Printer |
YES |
YES |
YES |
NO |
| Accuracy |
0.1% - 0~5,000 lbs |
0.1% - 0~4,000 lbs
0.5% - 4,000~5,000 lbs |
0.9% - 0~4,400 lbs
1% - 4,400~5,500 lbs |
| Display Digit |
5 Digit LCD (1 Inch) |
5 Digit LCD (1 Inch) |
5 Digit LCD (1 Inch) |
5 Digit LCD (1 Inch) |
5 Digit LCD (.75 Inch) |
| Keys |
Zero, Tare, Gross/Net, Kg/Lb, Print, Power |
Summation, Zero, Unit/Power |
| Power Source |
Rechargeable Battery, 6V (Charger Included) |
4 - "AA" Batteries (may use rechargeable) |
| Operating Time |
24 to 48 hours depending upon option use and confi guration settings |
Avg 1 Yr w/Auto Shutoff Feature - 10 weighings per day |
| Operating Temp |
-10°C ~ 40°C / 14°F ~ 104°F |
Product Weight |
305 lbs / 138 kg |
305 lbs / 138 kg |
305 lbs / 138 kg |
275 lbs / 125 kg |
203 lbs / 92 kg |
| Warranty |
Two year |
One year |
* special order

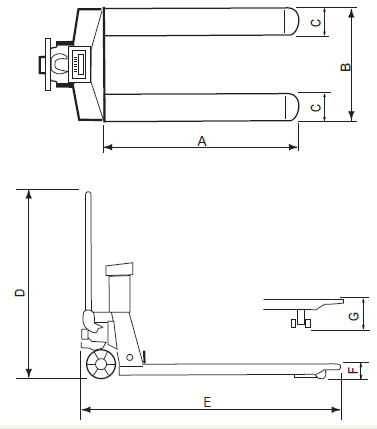

DIMENSIONS
| Model |
Dimensions (Inches) |
 |
| A |
B |
C |
D |
E |
F |
G |
| CPS-1/2 Type A |
42.5 |
21.3 |
6.7 |
45.5 |
53.1 |
3.3 |
7.2 |
| CPS-1/2 Type B |
42.5 |
24.4 |
6.7 |
45.5 |
53.1 |
3.3 |
7.2 |
| CPS-1/2 Type C |
47.2 |
27.8 |
6.7 |
45.5 |
57.8 |
3.3 |
7.2 |
| CPS-3 |
45.3 |
27.2 |
7.1 |
48 |
61.5 |
3.3 |
8.1 |
| CPS-4 |
48 |
27 |
6.3 |
48 |
63.75 |
2.95 |
7.7 |
|
Other CAS CPS-Series Pallet Scales
|
Specifications
| Model |
CPS-1N |
CPS-2N |
CPS Plus |
| Capacity x Readability |
3,000 x 1 lb
1,000 x 0.5 kg |
5,000 x 2 lb
2,000 x 1 kg
| 5,000 x 1 lb
2,000 x 0.5 kg |
| Approvals |
NTEP COC # 09-003 |
NTEP COC # 09-003 |
- |
| Accuracy |
0.1% - 0 ~ Full Capacity |
| Display Digit |
5 Digit 0.984" inch LCD |
5 Digit 1" inch LCD |
| Keys |
6 Button Keypad Zero, Tare, Gross/Net, Kg/Lb, Print, Power |
10 Numeric Keys 2 Function Keys, Clear, Enter, Power |
| Power Source |
Rechargeable Battery, 6V (Charger Included) |
Rechargeable 6V/10A PB Battery (AC 110V/220V Charger) |
| Operating Time |
24 to 48 hours depending upon option use and configuration settings |
Up to 100 hours continuous usage - adjustable |
| Operating Temp |
-10°C ~ 40°C / 14°F ~ 104°F Product Weight |
| Product Weight |
315 lbs / 143 kg |
315 lbs / 143 kg |
307 lbs / 139 kg |
| Model |
CPS-1N |
CPS-2N |
CPS Plus |
| Lb/kg Switchable |
YES |
YES |
YES |
| Gross/Net |
YES |
YES |
YES |
| Counting |
- |
- |
YES |
| Accumulation |
YES |
YES |
YES |
| Time & Date |
YES |
YES |
- |
| Weight Back Up |
YES |
YES |
YES |
| On-board Printer |
YES |
YES |
- |
| Rechargeable Battery w/Charger |
YES |
YES |
YES |
| 4 Load Cell Contstruction |
YES |
YES |
YES |
| Digital Filtering (Adjustable) |
YES |
YES |
YES |
| NTEP Legal for Trade - COC # 09-003 |
YES |
YES |
- |
| Model |
CPS-1N |
CPS-2N |
CPS Plus |
| A |
45 |
45 |
| B |
27.8 |
27.8 |
| C |
6.7 |
6.7 |
| D |
47.2 |
47.2 |
| E |
61 |
61 |
| F |
3.1 |
3.1 |
| G |
7.5 |
7.5 |
|
|
|
|
* within the 48 continental US States
|
| |
|
|
|
|
|
