Detecto EB-60-210 EB-210 Series Stainless Steel Bench Scales,60 lb x .02 lb |
|
Simplicity of design and rugged construction are the key features of the EB-210 Series which come in a variety of capacities and platform sizes listed below. At home around food and water, the simple frame and bridge design with lift-off platform simplifies cleanup by providing direct access to all of the components. more ... |
Scales >
Industrial Scales >
Bench Scales
|
|
|
|
Features

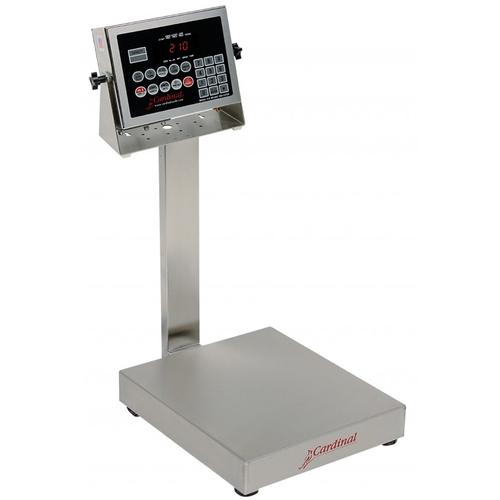

Cardinal’s American-made EB-210 series bench scale is equipped with a 210 Storm indicator that features a stainless steel enclosure, easy-to-read 0.6 inch (15 mm) high bright-red LED display, push-button Gross, Tare, Net conversion, programmable print format, selectable weight units, a numeric keypad, tare, piece count, checkweighing, time and date, and three preset weight comparators (PWCs). Dual bi-directional RS232 serial ports provide easy connectivity to a remote display, label or ticket printer, or PC. NTEP legal-for-trade certified. One 2XX option card slot available. Available in 15, 30, 60, 150 and 300 lb capacities.
Simplicity of design and rugged construction are the key features of the EB-210 Series which come in a variety of capacities and platform sizes listed below. At home around food and water, the simple frame and bridge design with lift-off platform simplifies cleanup by providing direct access to all of the components.
The LED display of the 210 indicator is perfect for indoor use and it combines all of the features of the 204 and 205 indicators, plus it has a numeric keypad, piece count, and over/under checkweighing. The NEMA 4X/IP66 stainless steel enclosure of the 210 indicator makes this scale useful in washdown situations. Push button tare, auto shutoff, AC or battery power, large LCD display, flexible print formats, pounds/kilograms conversion, RS232 output, and stainless steel construction make this powerful bench scale ready for top performance and long-term accuracy.
Numeric keypad
Over/Under Checkweighing
Piece Count
Stailness steel construction
Large display
Push button tare
Flexible print formats
Pounds / Kilograms conversion
Cross, Tare, Net Conversion
Auto Shutoff
Dimensions X:
29.00
Y:
17.00
Z:
11.00
|
|
Other Detecto EB-210 Series
|
Specifications
Model
| EB-15-210
| EB-30-210
| EB-60-210
| EB-150-210
| EB-300-210
|
Capacity X Readability |
15 x 0.005 lb |
30 x 0.01 lb |
60 x 0.02 lb |
150 x 0.05 lb |
300 x 0.1 lb |
6 x 0.002 kg |
15 x 0.005 kg |
30 x 0.01 kg |
60 x 0.02 kg |
150 x 0.05 kg |
Legal for Trade |
CC# 03-031 |
Measurement Canada Approval No. AM-5526 |
Pan Size |
10" x 12" 250 x 300 mm |
10" x 12" 250 x 300 mm |
14” x 16” 350 x 400 mm |
14” x 16” 350 x 400 mm |
24” x 20" 600 x 500 mm |
Display: |
6-digit, 7-segment LED, 14mm/0.6” high |
Annunciators: |
Zero, gross, tare, net, low battery, stable, lb, oz, kg, g, t, T, PWC-1/under, PWC-2/accept, PWC-3/over |
Enclosure:: |
NEMA 4X/IP66 - 9”W x 7”H x 2 3/4”D 229mm x 178mm x 70mm |
Keyboard: |
Color coded membrane - 22 keys |
Units: |
Pounds, kilograms, ounces, grams, or pounds/kilograms |
Sample Rate: |
1 - 50 samples per second, selectable |
Auto Zero Range |
0.5 or 1 to 9 graduations |
Resolution |
1 part in 100,000 displayed 1 part in 1,000,000 internal |
Power: |
90 to 260 VAC, 50 or 60 Hz |
Temperature Range |
-10¢ªC to 40¢ªC/14¢ªF to 104¢ªF |
Computer Interface |
1 bidirectional RS232 (20mA) 1 output only RS232 (20mA) |
|
|
|
|
|
|
|
|
