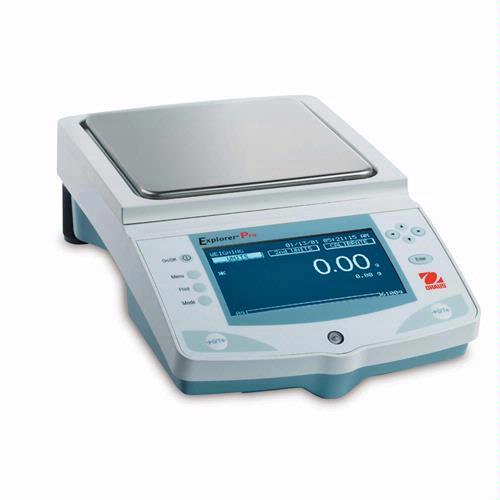

Ohaus EP6102CN Explorer Pro NTEP Certified Precision Balance, 6100 g x 0.01 g With AutoCal |
|
Full featured precision weighing scale with a range of features. 7 Built-in application modes plus below balance weighing: animal weighing, parts counting, percent weighing, check weighing, filling and gross/net/tare more ... |
Laboratory Equipment >
Analytical Balances >
Precision - 0.01 g
|
|
|
|
Features
Ohaus Explorer lab scales have multiple weighing modes, auto zero tracking, RS232, GLP, auto tare. Custom LCD with 7 characters, four user-friendly applications and more. Capacity x precision: 610 g x 0.01 g
The Explorer Pro Series of standard level balances was designed for simplicity and includes the industry’s easiest user interface for easy setup and operation; no training is required. The Explorer Pro offers all the features and durability found in high-end laboratory balances plus the traditional Ohaus quality and support for years of trouble free use!
- Simple 2 key menu operation and navigation
- Ready to weigh without complicated setup
- Innovative man-machine interface and user promps make Explorer Pros advanced applications easy to follow and easy to use
- Three soft keys are application specific allowing direct access to items such as calibration, units, new sample, sample size, new reference weight, reference weight, new target and/or target
- Flexibility to display either simple weighing results or more advanced results including piece count, average piece weight, sample size, tare weight, weight, under and over indicators
- Selectable operating languages including English, Spanish, Italian, French and German
- 7 Built-in application modes plus below balance weighing: animal weighing, parts counting, percent weighing, check weighing, filling and gross/net/tare
- Only Explorer Pros applications and dot matrix display allow for simultaneous viewing of reference information including piece count, percent, under/over/accept and actual weight
- Perform animal weighing procedures in either manual, semi-auto or automatic modes
- Parts counting also includes parts counting check and parts counting fill functions
- Percent weighing with targets defined either as a percent or weight
- Check weighing with primary results displayed either as a weight or a message (under, accept, over)
- Filling application with fill guide displaying the relationship between the total load on the platform and a target
- Gross/net/tare applications displays G/N/T values simultaneously
- Brilliant backlit high resolution dot matrix display
- Enhances viewing in any environment
- Simplifies menu navigation and balance set up
- Display additional results and reference information in each application screen view
- Capacity guide provides a visual aid by displaying the relationship between the total platform load and the full balance capacity
- Fill guide provides a visual aid by displaying the relationship between the total platform load and a user difined target
- Standard RS232 port for easy communication with computer or printer
- GLP compliant with user selectable outputs - complete GLP/GMP capabilities including date, time, balance ID, user name, project name and reference information
- Protective in-use cover and security bracket included
- Standard auxiliary port - flexibility for use in legal applications requiring secondary display
- Standard in-use cover - spill protection at no additional cost
- Below balance weighing with integral weigh-below hook
- Integral security bracket permits locking balance with cable
- Industry leading warranty and support
- NTEP Legal For Trade approved models available
Models Without AutoCal: |
EP213N |
EP413N |
EP413DN |
|
EP612N |
EP2102N |
EP4102N |
EP4102DN |
EP6102N |
EP4101N |
EP6101N |
EP8101N |
Models With AutoCal: |
EP213CN |
EP413CN |
EP413DCN |
EP613CN |
EP612CN |
EP2102CN |
EP4102CN |
EP4102DCN |
EP6102CN |
EP4101CN |
EP6101CN |
EP8101CN |
Capacity (*draft shield included) |
*210 g |
*410 g |
*100/410 g |
*610 |
610 g |
2100 g |
4100 g |
1000/4100g |
6100 |
4100 g |
6100 g |
8100 g |
Readability (g) |
0.001 |
0.001/0.01 |
0.001 |
0.01 |
0.01 |
0.01 |
0.01/0.1 |
0.01 g |
0.1 |
Repeatability (std dev) (g) |
0.0005 |
0.0005 / 0.005 |
0.0005 |
0.01/0.05 |
0.005 |
0.05 |
Linearity (g) |
± 0.002 g |
± 0.002 / 0.005 |
±0.002 |
±0.02 |
±0.02 / 0.05 |
±0.04 |
±0.1 |
Readability NTEP Certified |
0.01 g |
0.1 g |
Weighing Modes |
gram, kilogram, pound, ounce, troy ounce, carat, pennyweight, Hong Kong Tael, Singapore Tael, Taiwan Tael, mommes, grain, tical, Newton, custom |
Application Modes |
weighing, parts counting, animal/dynamic weighing, checkweighing, percent weighing, filling, gross/net/tare weighing |
Features |
RS232 port, auxiliary display port, GLP protocol, selectable language display text, selectable displayed information settings, selectable environmental filters, selectable auto-print settings, integral weigh below hook, contrast & brightness control, protective in-use cover |
Tare Range |
full capacity by subtraction |
Stabilization Time |
3 seconds |
Operating Temperature |
50° to 86°F / 10° to 30° C without internal calibration / 50° to 104°F / 10° to 40° C with internal calibration |
Calibration |
External / Internal |
Display |
High Resolution LCD Dot Matrix with back light |
Power Requirements |
100-120 V ac, 220-240 V ac, 50/60 Hz |
Pan Size (in/cm) |
4.7" (12 cm) diameter |
6.8" x 6.8" (17.2 x 17.2 cm) with windshield |
8" x 8" (20.3 x 20.3 cm) |
Dimensions (W x H x D) |
8.3" x 13.8" x 13.8" (21 x 35 x 35 cm) |
8.5" x 4" x 13.8" (21.5 x 10.3 x 35 cm) |
Net Weight |
13.2 lb (6 kg) |
11 lb (5 kg) |
Type |
NTEP Certified Explorer Pro Precision |
Weight:
30.00 lb
|
2 Year Manufacture Warranty
|
Other Ohaus Explorer Pro NTEP Precision Balances w/ AutoCal
EP612CN Explorer Pro NTEP Certified Precision Balance 610 g x 0.01 g With AutoCal
$2,805.56
|
EP213CN Explorer Pro NTEP Certified Precision Balance 210 g x 0.001 g With AutoCal and Draftshield
$2,833.33
|
EP2102CN Explorer Pro NTEP Certified Precision Balance 2100 g x 0.01 g With AutoCal
$2,833.33
|
EP4101CN Explorer Pro NTEP Certified Precision Balance 4100 g x 0.1 g With AutoCal
$2,833.33
|
EP413CN Explorer Pro NTEP Certified Precision Balance 410 g x 0.001 g With AutoCal and Draftshield
$2,888.89
|
EP4102CN Explorer Pro NTEP Certified Precision Balance 4100 g x 0.01 g With AutoCal
$2,888.89
|
EP6101CN Explorer Pro NTEP Certified Precision Balance 6100 g x 0.1 g With AutoCal
$2,888.89
|
EP613CN Explorer Pro NTEP Certified Precision Balance 610 g x 0.001 g With AutoCal and Draftshield
$3,722.22
|
EP6102CN Explorer Pro NTEP Certified Precision Balance 6100 g x 0.01 g With AutoCal
$3,722.22
You are viewing this product
|
EP8101CN Explorer Pro NTEP Certified Precision Balance 8100 g x 0.1 g With AutoCal
$3,777.78
|
|
| |
|
