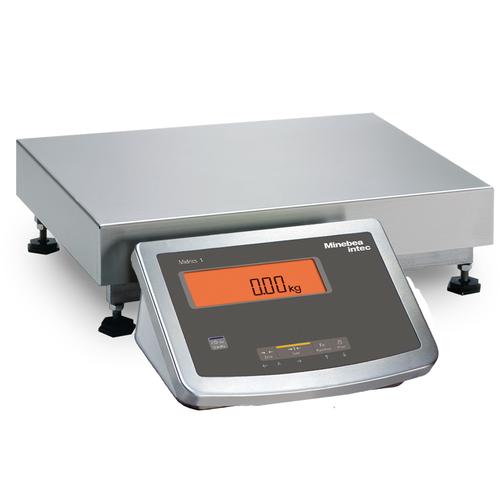

Minebea MW1P1U-15DC-L Midrics Industrial Scale With Galvanized/Painted frame 30 x 0.002 lb

Minebea Intec
There are hundreds of possible applications for an industrial scale, and not everyone needs a standard "off-the-rack" solution. Whatever, wherever, and however the Midrics® industrial scale can do it all more ...
Scales > Industrial Scales > Bench Scales
Minebea MW1P1U-15DC-L  Midrics Industrial Scale With Galvanized/Painted frame 30 x 0.002 lb

Specifications Chart View Full Detail Page


Call for more info
Download PDF
Minebea MW1P1U-15DC-L Midrics Industrial Scale With Galvanized/Painted frame 30 x 0.002 lb
FREE Ground Shipping
(48 US States Only)

Price: $1,226.70


In Stock - Ships within 24 hours

View Features

Minebea Intec
SKU: MW1P1U-15DC-L

Features

”Power on, weigh; job finished.“ An industrial scale has to be that simple to operate, and at the same time totally reliable and easy to clean. A lot of manufactures can offer one feature or another, but the new Midrics from Sartorius has it all – and offers it all in a complete range of platform sizes, resolutions and weighing capacities. The Midrics series has the right scale for every application, from incoming inspection and shipping to production, warehouse management and packaging.

There are hundreds of possible applications for an industrial scale, and not everyone needs a standard "off-the-rack" solution. Whatever, wherever, and however the Midrics® industrial scale can do it all: From 0.2 g to 3 t, verified or non-verified, with or without EX protection, Zone 2 and 22.


  • Painted versions have an IP65 protection rating for industrial use
  • Stainless steel versions have IP67|IP68 protection ratings and are therefore suited for industrial use in wet environments (stainless steel 1.4301/AISI 304)
  • Rugged construction
  • 4 x adjustable feet, level indicator on LCE and NCE
  • Class III resolution for legal metrology (1 x 3000 e, 2 x 3000 e) or standard resolution (15000 d)
  • 2 display and indicator units
  • 10 weighing ranges from 3 kg to 3 t
  • 13 platform dimensions


  • Dimensions
    X:
    12.60   Y: 3.40   Z: 9.50
    Other Minebea Intec Midrics Painted Steel Bench Scales - MW1 - Level 1

    Minebea MW1P1U-6DC-LU Midrics Industrial Scale With Galvanized/Painted frame 12.5 x 9.5
    10lb x 0.002lb

    $1,116.00

    Minebea MW1PU3DCLU
    Midrics Industrial Scale With Galvanized/Painted frame 12.5 x 9.5
    5lb x 0.001lb

    $1,116.00

    Minebea MW1P1U30EDL
    Midrics Industrial Scale With Galvanized/Painted frame 15.75 x 11.8
    50lb x 0.01lb

    $1,183.50

    Minebea MW1P1U60EDL
    Midrics Industrial Scale With Galvanized/Painted frame 15.75 x 11.8
    100lb x 0.02lb

    $1,183.50

    Minebea MW1P1U15DCL
    Midrics Industrial Scale With Galvanized/Painted frame 12.5 x 9.5
    25lb x 0.005lb

    $1,226.70

    Minebea MW1P1U-6DC-L
    Midrics Industrial Scale With Galvanized/Painted frame 15 x 0.001 lb

    $1,226.70

    Minebea MW1P1U-3DC-LU Midrics Industrial Scale With Galvanized/Painted frame 6 x 0.0005 lb

    $1,226.70

    Minebea MW1P1U-15DC-L
    Midrics Industrial Scale With Galvanized/Painted frame 30 x 0.002 lb

    $1,226.70

    You are viewing this product

    Minebea MW1P1U-60ED-L
    Midrics Industrial Scale With Galvanized/Painted frame 120 x 0.01 lb

    $1,296.90

    Minebea MW1P1U-30ED-L
    Midrics Industrial Scale With Galvanized/Painted frame 60 x 0.005 lb

    $1,296.90

    Minebea MW1P1U60FELU Midrics Complete Bench Scales Painted Scales 19.5 x 15.75
    100lb x 0.02lb

    $1,300.50

    Minebea MW1P1U150FELU Midrics Complete Bench Scales Painted Scales 19.5 x 15.75
    250lb x 0.05lb

    $1,300.50

    Minebea MW1P1U-30FE-L
    Midrics Industrial Scale 19.5 x 15.75 With Galvanized/Painted frame 60 x 0.005 lb

    $1,493.10

    Minebea MW1P1U-150FE-L
    Midrics Industrial Scale With Galvanized/Painted frame 300 x 0.02 lb

    $1,493.10

    Minebea MW1P1U-60FE-L
    Midrics Industrial Scale With Galvanized/Painted frame 120 x 0.01 lb

    $1,493.10

    Specifications

    Models with
    Painted Steel
    MW1P1U-3DC-L MW1P1U-6DC-L MW1P1U-15DC-L MW1P1U-30ED-L MW1P1U-60ED-L MW1P1U-30FE-L MW1P1U-60FE-L MW1P1U-150FE-L
    Models with
    Stainless Steel
    MW1S1U-3DC-L MW1S1U-6DC-L MW1S1U-15DC-L MW1S1U-30ED-L MW1S1U-60ED-L MW1S1U-30FE-L MW1S1U-60FE-L MW1S1U-150FE-L
    Capacity x Readability 6 x 0.0005 lb
    3 x 0.0002 kg
    15 x 0.001 lb
    6 x 0.0005 kg
    30 x 0.002 lb
    15 x 0.001 kg
    60 x 0.005 lb
    30 x 0.002 kg
    120 x 0.01 lb
    60 x 0.005 kg
    60 x 0.005 lb
    30 x 0.002 kg
    120 x 0.01 lb
    60 x 0.005 kg
    300 x 0.02 lb
    150 x 0.01 kg
    Pan Size 12.6 in x 9.4 in 15.7 in x 11.8 in 19.7 in x 15.7 in
    Platform (mm) 320 x 240 x 85-100 400 x 300 x 96-111 500 x 400 x 110-125
    Legal for Trade YES
    Protection rating IP65
    Adjustable Leveling Feets YES
    Temperature range -10°C ... +40°C
    Display 20 mm LCD with backlit
    Battery operation Optional via internal or external rechargeable battery pack
