Mark-10 TSFM500H-DC Horizontal Motorized Test Stand

View Full Detail Page


Call for more info
Download PDF
Mark-10 TSFM500H-DC Horizontal Motorized Test Stand
FREE Ground Shipping *


Price: $3,942.50


In Stock - Ships within 24 hours

Optional Accessories

View More Pictures
View Features

Mark 10
SKU: TSFM500H-DC

Features

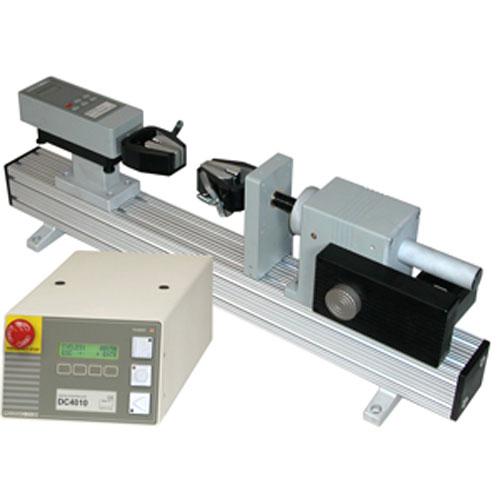

The TSMFM500H-DC is an advanced motorized test stand offering all the mechanical specifications of the TSFM500. The test stand is designed for compression and tension testing of springs, packaging metals, fabrics, and other items requiring up to 500 lbF of force. Generous clearance and throat depth accomodate a broad range of sample shapes and sizes. The TSFM 500-DC's durable and rigid column features include a manual fine adjustment knob and a stepper motor that prevents the speed variation with load, making testing precise and repeatable. The TSFM500H-DC's controller adds a significant amount of sophistication, including an extended speed range, PC control capability, programmable cycling, auto return, overload protection, and other features.


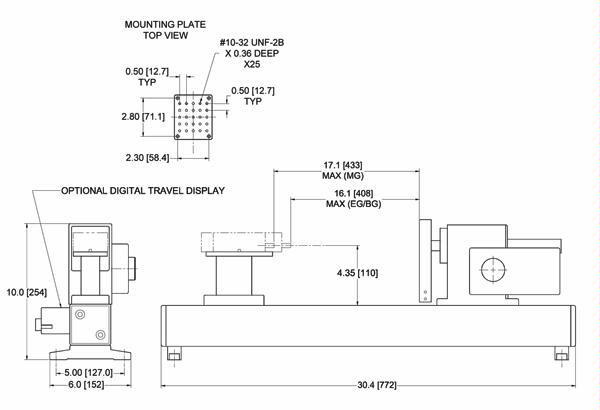

Features/Specifications
  • Maximum force: 500 lb [2200 N]
  • Maximum travel: 4" [102 mm]
  • Speed range: 0.01 - 6 in/min [0.2 - 150 mm/min]
  • Speed accuracy: ±0.2% of setting, ±0% variation with load
  • Loading table with 25 #10-32 UNF holes for fixture mounting
  • Universal power supply: 80-250 VAC
  • Manual travel knob
  • Mounting holes for bench mounting
  • Base may be removed for alternative mounting
  • Compatible with all Mark-10 force gauges, accessories and grips
  • CE mark

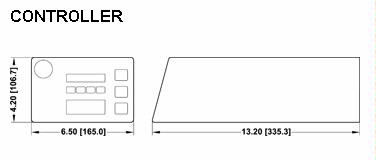

  • Controller/ Specifications
      Computer Control An RS-232 port is provided to interface with a PC. The test stand accepts a number of commands pertaining to test stand motion and force gauge functions*. The following additional items are required for PC control:
    • Series BG force gauge (more info) or Series CG force gauge (more info)
    • 09-1056 serial cable (see Optional Equipment)
    • 09-1143 multi-function cable (see Optional Equipment)
      Overload Protection Protects a force gauge against overload (requires a Series BG or CG force gauge and 09-1143 multi-function cable). The user programs the desired percentage of full scale of the gauge. Adjustable analog output voltage setting allows the test stand to interface with virtually any force gauge with analog output.
      Auto-return
    • The crosshead moves to a limit switch or force set point (requires a Series BG or CG force gauge), stops, and reverses direction at maximum speed to the other limit switch or set point.
      Cycling / Dwell Time The crosshead moves up and down between limit switches or force set points (requires a Series BG or CG force gauge). Configurable up to 99,999 cycles. Dwell time allows the operator to program the amount of time, up to 9,999.9 seconds, in 0.1 second intervals, for which the crosshead pauses at limits.
      Programmable UP / DOWN Button Functions UP and DOWN button operation can be configured in three user-configurable modes: Maintained: a short push produces continuous motion until STOP is pressed, Momentary: crosshead moves only while the button is pressed, and Auto: short push produces maintained motion, while holding down the button will produce momentary motion.
  • Independent Up and Down Speeds
  • Programmable independent speeds for up and down directions
  • Selectable speed units of measurement (in/min & mm/min)
  • Password protection
  • Prevents unauthorized changes to test parameters
  • * Contains no integrated travel measurement. Travel information available only through the external TSF001 digital travel display, requiring an additional serial port on the PC. For an integrated solution with full PC control, including travel distance, see test stand model ESM301.
    Optional Equipment
  • A wide range of force gauges and gripping fixtures
  • Digital travel display
  • 6" [152 mm] travel, 0.0005" [0.01 mm] resolution, SPC output for automated data collection. For output of travel data to a PC, the following items are required: 09-1066 cable and MRS100A communication adapter.
  • Limit switch kit
  • Set of upper and lower adjustable solid state limit switches. Repeatable to within 0.001" [0.03 mm].
  • Multi-function cable, gauge to controller
  • Connects a Series BG or CG force gauge to the controller. This single cable is used to transmit set points, overload signals, and force data.
  • Serial cable, controller to PC
  • Bi-directional communication with a PC for computer control. Also sends force data from the controller to a PC.
  • RS-232 to USB adapter
  • Converts RS-232 to USB output. Includes USB cable and installation CD.
  • Serial cable, gauge to PC
  • Connects a Series BG or CG force gauge with a PC. Bypasses the controller.
  • Column extension
  • Column can be extended to custom lengths (see Ordering Information).
