Mark-10 TSTM-DC Motorized Vertical 110 V Torque Test Stand

View Full Detail Page


Call for more info
Download PDF
Mark-10 TSTM-DC Motorized Vertical 110 V Torque Test Stand
FREE Ground Shipping *


Price: $7,077.50


In Stock - Ships within 24 hours

Optional Accessories

View More Pictures
View Features

Mark 10
SKU: TSTM-DC

Features

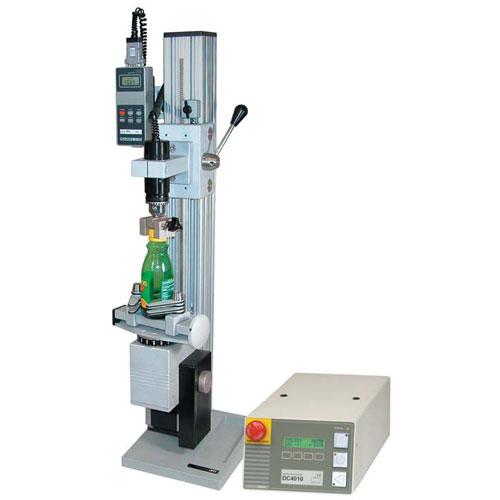

The TSTM-DC is an advanced motorized torque test stand offering all the mechanical specifications of the TSTM. The test stand is designed for a wide variety of applications requiring up to 100 lbFin of torque, including closure torque testing, fasteneer torque testing, and more. Modular design allows the stand to be configured for a variety of torque sensors and gripping fixtures while a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and fixture mounting. Stepper motor design eliminate speed variation with load. The TSTM-DC's controller adds a significant amount of sophistication, including integrated angle display and output, programmable angle travel limits, an extended speed range, PC control capability, programmable cycling, auto return, overload protection, and other features.


Features/Specifications
  • Maximum torque:100 lbFin [11.3 Nm]
  • Speed range:0.01-15 RPM [0.05-90°/s]
  • Speed accuracy: ±0.2% of setting, ±0% variation with load
  • Digital display of angle
  • Programmable angle limits
  • Rotational travel accuracy: ±0.7° / 0.002 rev.
  • Rotational travel repeatability: 0.1° / 0.01 rev.
  • Rotational travel resolution: 0.1° / 0.01 rev.
  • Throat: 4.10" (104 mm)
  • Manual adjustment: 12°/knob rev
  • Angle dial with 2° resolution
  • Maximum slider travel: 15.5" (394 mm)
  • Slider travel rate: 1.047" (26.6 mm) / lever rev
  • Universal power supply: 80-250 VAC
  • CE mark

  • Optional Hardware
  • Model BGI force/torque gauge Universal indicator for Mark-10 force and torque remote sensors. Mounts directly to the test stand.
  • Series STJ torque sensor Mounts directly to the test stand. Capacities available from 10 ozFin to 100 lbFin
  • Multi-function cable, BGI Gauge to controller Connects a Model BGIgauge to the controller. This single cable is used to transmit set points, overload signals, and force data.
  • Serial cable, controller to PC For communicating with a PC for computer control. Also used to send torque and angle data to a PC.
  • Serial cable, gauge to PC Connects a Model BGI gauge with a PC. Bypasses the controller.

  • Controller Features
      Computer Control A bi-directional RS-232 port is provided to interface with a PC. A command set is provided to allow for full control from a PC. The following are required with PC control:
    • Model BGI force/torque gauge
    • 09-1056 serial cable (see Optional Equipment)
    • 09-1143 multi-function cable (see Optional Equipment)
      • Digital Angle Indication Rotational travel is indicated in degrees or revolutions, wtih RS-232 output of angle data.
        Programmable Angle Limits The TSTM-DC can stop at or cycle between programmable upper and lower angle limits. Programmable in degrees or revolutions
    • Overload Protection Protects the torque sensor against overlaod (requires a Model BGI force/torque gauge and 09-1143 multi-function cable). The user programs the desired percentage fo full scale of the sensor.
    • Auto-return The Torque table rotates to an angle limit or torque set point (requires a Model BGI force/torque gauge and 09-1143 cable), stops, and reverses direction at full speed to the other angle limit or torque set point.
    • Cycling/Dwell Time Same as Auto-return, but with the ability to program the number of cycles up to 99,999 cycles. Dwell time allows the operator to program the length of time, up to 9,999.9 seconds, in 0.1 second intervals, for which the torque table pauses between cycles. Independent CW and CCW speeds may be programmed.
    • Programmable CW/CCW Button Functions CW and CCW button operation can be configured in three user-configurable modes: Maintained: a short push produces continuous motion until STOP is pressed, Momentary: crosshead moves only while the button is pressed, and Auto: short push produces maintained motion, while holding down the button will produce momentary motion.
    • Independent CW and CCW Speeds Programmable independent speeds for clockwise and counterclockwise directions
    • Selectable Speed Units of Measurement (RPM and deg/s)
    • Password Protection Prevents unauthorized changes to test parameters
