OHAUS Defender 7000 Low Profile Square and Rectangular Scales

Have Questions? or email Us Our Staff will be glad to help Legal For Trade Canada Measurement Legal Rectangular Low-Profile Chart Square Low-Profile Chart Dimensions Chart

Advanced Smart Functionality, Durability, OHAUS Quality and Value

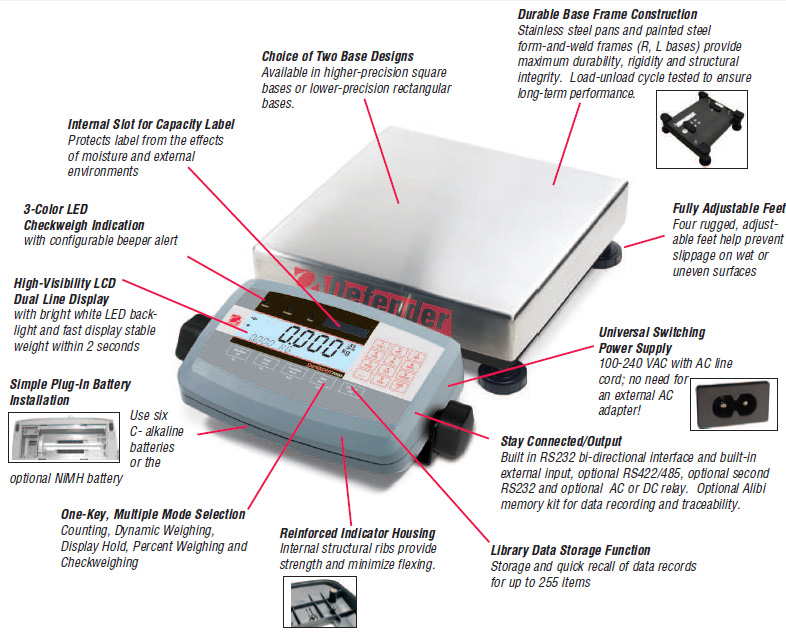

The OHAUS DefenderTM 7000 Series is a feature-rich line of bench scales, combining an ABS plastic T71P indicator with painted steel bases and mounting brackets. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations.

Standard Features Include:

• Painted steel bases with ABS indicator
• 10,000-12,500d default resolution for square bases, 5,000-7,500d default resolution for rectangular bases
• 1:5,000 certified resolution for square bases; up to 1:3,000 for rectangular bases
• Quick display of results using large dual line LCD with high-contrast white backlight
• Temporary display of 10x readability in weighing mode using quick key press
• Easy to operate with positive feedback 5-function key and alpha-numeric membrane keypad
• Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
• Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, Display Hold, and Accumulation
• 255 item Library data storage function
• Internal power supply with universal line cord or 6 “C” batteries (80 hour battery life) – optional NiMH internal rechargeable power pack available
• Includes RS232 interface with GMP/GLP data output including date and time, and external analog base input for dual-base counting
• Base and indicator connected using quick connect plug
• Options include DC relay control kit, AC relay control kit, RS485/422 and 2nd RS232 interfaces, Alibi memory module

The Defender 7000 Offers Multiple Features and Easy Configuration:

• Counting mode for packaging and inventory control, enabling counting into a container or out of a container for bulk operations. Supports a maximum counting resolution to 1:500,000 (minimum APW equal to 0.1d), selectable autooptimization of average piece weight (APW). APW data can be displayed at any time using a quick key press.
• Percent Weighing mode for formulation and mixing applications, with display of reference weight with quick key press.
• Dynamic/Animal Weighing with selectable averaging times from 0-60 seconds.
• Checkweighing function for count and weight checking, with display of results using LCD display and red/yellow/green LEDs. Audible beeper can be configured to prompt when weight is within range, under, over, or under or over range. Target values can be displayed at any time using a quick key press.
• Display Hold mode for weighing large packages, holds last stable weight on display until cleared manually or automatically
• The Defender 7000 weighs in one or more user-selectable units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
• Supports GMP/GLP data output with date, time user ID, project ID and scale ID. The Defender 7000 features selectable print options for data and print format

• To limit operator access to functions, the Defender 7000 offers both software lockouts for menu items as well as individual key functions.
• Library storage for up to 255 memory records that may contain data from a combination of different modes. These reference data can be quickly and conveniently recalled for use with the active mode.
• Multi-language feature allows the user to display operation and menu text in the language of their choice: English, Spanish, French, German, Italian. This allows for convenience and ease of training and operation of the Defender 7000.
• Accumulation mode with statistics feature allows totalizing weight and count values manually or automatically. The total accumulated value is displayed in real-time. With the press of the “Info” key, the number of weighments, average, standard deviation, minimum, maximum and difference are displayed. These statistical values can also be printed.
• Dual scale connections are built-in for 2-scale counting configuration. Connect two bases, a higher resolution base to optimize average piece weight, in conjunction with a large capacity base to weigh/count in bulk.
• Store, view and print over 262,000 date and time-stamped weighing results with the optional Alibi memory kit.

T71P: ABS plastic housing with internal rib reinforcements, reversible rear cover, backlit LCD weight display, checkweighing indication (green, yellow, red), membrane keypad with raised tactile keys, built-in bi-directional RS232 with manual/continuous/interval printing, external tare input, hardware configuration lockout switch, internal switching power supply with line cord and battery power using 6 “C” cell batteries.

Zero point calibration, calibration test, span or linear calibration, selectable auto-zero tracking range, selectable stability range, selectable averaging level, selectable LCD backlight, selectable auto shutoff, retain zero weight data after power-off, Geo gravity adjustment, selectable key beep, key function lock, menu lock, selectable power-on and calibration unit, battery status display, display of gross/net weight, indication of stability, center of zero, over- and underweight, overload and underload conditions. Configuration menus for PRINT1, PRINT2, COM1, COM2, and I/O.

• Legal for Trade (Made from Certified/Approved weighing components): NTEP (CC No. 09-102 for indicator; 01-048A1 for square bases; 99-203A3 for rectangular bases) / Measurement Canada (Approval No. AM-5762 for Indicator; AM-5719 for square bases; AM-5675 for rectangular bases)
• Safety and EMC: cULus 2005/95/EC low voltage directive: EN60950-1:2001, FCC Part 15 Class A 2004/108/EC Compliant to Directive 202/96/EC on waste electrical and electronic equipment (WEEE)
• Quality: OHAUS quality management system registered to ISO 9001:2008

Low-Profile Rectangular Scales

Model Number	D71P15HR5	D71P30HR5	D71P60HR5	D71P60HL5	D71P100HL5	D71P150HX5	D71P300HX5
Price	$1,139.56 Add to Cart	$1,139.56 Add to Cart	$1,139.56 Add to Cart	$1,317.33 Add to Cart	$1,317.33 Add to Cart	$1,384.89 Add to Cart	$1,544.89 Add to Cart
Capacity x Readability	30lb x 0.005lb	60lb x 0.01lb	150lb x 0.02lb		250lb x 0.05lb	300lb x 0.05lb	600lb x 0.1lb
	480oz x 0.1oz	960oz x 0.2oz	2400oz x 0.5oz		4000oz x 1oz	4800oz x 1oz	9600oz x 2oz
	30lb : 0.1oz	60lb x 0.2oz	150lb : 0.5oz		250lb : 1oz	300lb : 1oz	600lb : 2oz
	15kg x 0.002kg	30kg x 0.005kg	60kg x 0.01kg		100kg x 0.02kg	150kg x 0.02kg	300kg x 0.05kg
	15000g x 2g	30000g x 5g	60000g x 10g		100000g x 20g	150000g x 20g	300000g x 50g
Maximum Displayed Resolution	1:7500	1:6000	1:7500		1:5000	1:7500	1:6000
Capacity x Certified/Approved Readability	30 lb x 0.01 lb 15 kg x 0.005 kg	60 lb x 0.02 lb 30 kg x 0.01 kg	150 lb x 0.05 lb 60 kg x 0.02 kg		250 lb x 0.1 lb 100 kg x 0.05 kg	300 lb x 0.1 lb 150 kg x 0.05 kg	600 lb x 0.2 lb 300 kg x 0.1 kg
Maximum Certified Resolution	1:3,000	1:3,000	1:3,000		1:2,500	1:3,000	1:3,000
Legal for Trade	NTEP (CC No. 09-102 for indicator; 99-203A3 for rectangular bases) Measurement Canada (Approval No. AM-5762 for Indicator; AM-5675 for rectangular bases
Pan Size	12 x 14 in 305 x 355 mm			15.7 x 19.7 in 400 x 500 mm		16.5 x 4.9 x 21.7 x 30.5 in 420 x 125 x 550 x 775 mm
Scale Dimensions (W x H1 x D1 x D2)	12 x 3.7 x 14 x 22.8 in 305 x 95 x 355 x 580 mm			15.7 x 4.1 x 19.7 x 28.5 in 400 x 105 x 500 x 725 mm		16.5 x 4.9 x 21.7 x 30.5 in 420 x 125 x 550 x 775 mm
Shipping Dimensions (L x W x H)	19.3 x 16.1 x 17.3 in 490 x 410 x 440 mm			29.1 x 27.2 x 9.1 in 740 x 690 x 230 mm		29.5 x 30 x 9.1 in 750 x 710 x 230 mm
Net Weight	123.6 lb / 10.7 kg			46.3 lb / 21.0 kg		58.2 lb / 26.4 kg
Shipping Weight	35.9 lb / 12.7 kg			53.6 lb / 24.3 kg		64.8 lb / 29.4 kg
Indicator Model	T71P
Housing	ABS plastic indicator, stainless steel removable weighing platform, painted steel column and base construction, aluminum load cell, painted steel mounting bracket and base construction
Safe Overload Capacity	150% of maximum capacity
Weighing Units	lb, oz, lb:oz, kg, g, custom unit
Modes/Features	Static Weighting (single ordual range), Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display hold, Accumulation, Library
Display	6-digit, 7-segment LCD, 25mm/1 inch high primary digits, dual line, with high-contrast white LED backlight
Keyboard	Positive feedback membrane keys, 5 function keys and alpha-numeric keypad
Stabilization Time	Within 2 seconds
Auto-zero Tracking	Off, 0.5, 1 or 3 d
Zeroing Range	2% or 100% of capacity
Calibration	Span: 1 kg or 1 lb to 100% of capacity / 3-point linearity (0 - 50% - 100% fixed)
Power	100-240 VAC / 50-60Hz internal universal power supply, 6 'C' Cell batteries (not supplied) with 80 hour life
Interface	RS232 and external input
Operating Temperature Range	14ºF to 104ºF / -10ºC to 40ºC
