| Legal For Trade |
Specifications
|

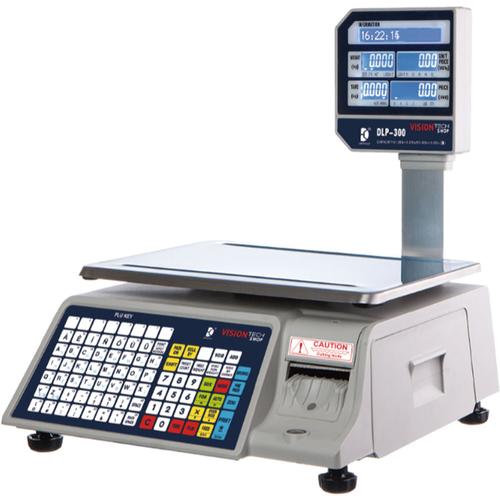

The DLP-300 Label Printing Scale has features and functions designed for ease of operation and customer satisfaction, 20,000 PLUs, easy to set up and user friendly, Includes XDB-Manager software package, Use in supermarkets, specialty stores, delis and more!
DISPLAY - The Dot-matrix LCD with backlight display is used to display Tare, Weight, Unit Price and Total Price, PLU names and so on.
PLU KEYS - The Triple Click Call feature allows the operator to recall PLU s by Triple-clicking the speed key The Pole Type comes equipped with a total of 168 Speed Keys.
PRINTER & LABEL CARTRIDGE - Achieve print speeds up to 100 mm/sec and printing resolution of 202 dpi for clear labels. The removable label cartridge makes user easy to quickly reload labels. Designed for simplicity
LABEL FORMATS - The DLP-300 comes with 32 preset common label formats stored in memory. Up to 67 more custom label formats can be added using the label editing function of the XDB-Manager software program. Various die cut or continuous label sizes up to 150mm in length can be used
XDB-MANAGER - PC SOFTWARE -
The XDB-Manager software program allows you to create and edit PLUs, program store information, design custom labels and unique keyboard layouts and much, much more Compatible with Microsoft Windows
- PLU Editor - Easy PLU Manage ment control for all scales. PLU’s can be imported and exported easily
- Label Editor - Create and edit custom label formats. Easily download your custom labels to the scales.
- Keypad Editor - Setup and download custom keyboard designs
- 30/60lb Capacity Dual Interval
- Stores up to 20,000 PLUs Include Ingredients
- 45 Standard Label Formats & 67 Customer Labels
- 168 Speed Keys(56keys x 3)
- Ethernet, Wireless Networking, USB, RS-232C Built-in
- Auto-Prepack Feature
- English, Korean, Chinese, or Spanish Characters
- Multiple Barcode Formats
- Commodity Name: Up To 56 Characters per PLU
- Flash ROM for Easy Firmware Upgrades by USB or Ethernet
- Windows Software(XDB Manager) Pkg Included
- Legal for Trade - # 17-054
| Model |
DLP-300 |
| Price |
| Capacity & Readability |
30 x 0.01 lb
60 x 0.02 lb |
| Legal for Trade |
NTEP # 17-054 |
| PLU |
20,000 |
| Resolution |
1/3,000(Dual Interval) |
| Display type |
LCD, Dot Matrix LCD with Back light |
| Printing speed (mm/sec) |
95 |
| Label size (mm) |
Width: 40 - 60, Length: 30 - 120 |
| Operating temperature (F/C) |
4 - 104 / -10 - +40 |
| Power |
AC 120V, 50/60Hz |
| Label Formats |
45 Standard Label Formats & 67 Customer Labels |
| Software |
XDB Manager Included |
| Connectivity |
Ethernet, Wireless Networking, USB, RS-232C |
| Platter size (in/mm) (W x D) |
14.3 x 11.1/364 x 281 |

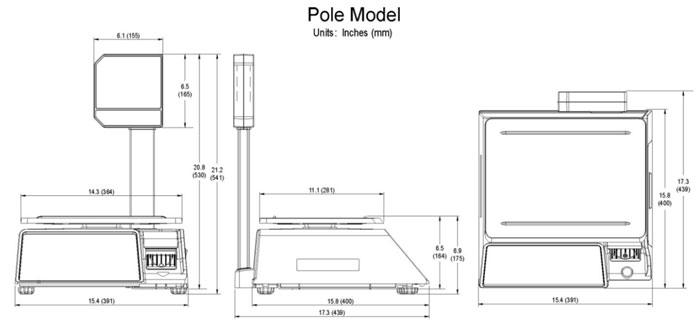

| Dimensions (in/mm) (W x D x H) |
15.4 x 17.3 x 21.2/391 x 439 x 541 |
| Product Weight (lbs/kg) |
25.5/11.5 |
| Ship Weight (lbs/kg) |
28.5/12.9 |
| Warranty |
One year |
|
|
