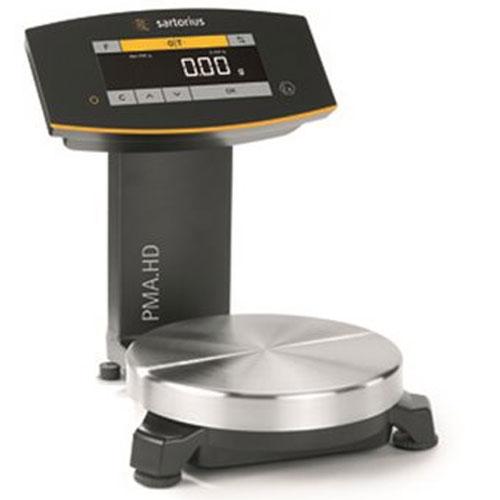

Increase your paint-mixing efficiency while reducing your total cost of ownership: Benefit from the precise, reliable and fast weighing results of the new Sartorius PMA.HD.
The PMA.HD paint-mixing scales feature a truly innovative design.
They make your daily work easy with their display surface made of tempered glass that is so simple to wipe clean. These scales enable you to experience HD at its best. Their next-generation user interface with a rich-in-contrast display and sensor touch technology are designed for convenient operation – you’ll almost forget you’re working. high-contrast “white on black” backlit display is easy to see – even from odd angles and at a distance.
Additional features, such as PMA.Management software, a variety of built-in apps and the integrated mix module, let you define your multi-step workflows to maximize efficiency – and your comfort zone. Enjoy paint scales with build quality that’s “Made in Germany.” PMA.HD is amazingly fast to install. Thanks to its new installation concept, one cable is all you need to power the scale and transfer data. The PMA.HD.series covers scales for use in hazardous areas and those verifiable as legal for trade.
- High-contrast display with outstanding readouts and an intuitive user interface for fast and easy paint mixing
- Innovative, fast and simple installation using just one USB cable for data transfer and power supply
- USB driver Microsoft® certified for “plug & play” installation
- Integrated paint-mixing module for PC-independent weighing of one formula
Increase your paint mixing efficiency while reducing your total cost of ownership: Benefit from the precise, reliable and fast results of the new PMA.HD. Its superior readability - both from an angle and from a distance - make it a practical and time-saving tool to work with. With a variety of accessories you can enhance the functionality and usability of this high-quality Made-in-Germany product.
- Internal Mixing Module
- Amazingly Fast Installation
- New High-contrast Display
- Clean Work Environment
| Model |
LAB1X2N1 |
| Price |
$3,610.50
|
| Capacity x Readability |
2200 x 0.01 g |
| Explosion-proof |
Explosion-proof Class I, Div. 1 |
| Connection Cable |
30 ft. |
| Power |
USB Power Supply |
| Power plug |
EU / UK / US |
| Ex approval/zone |
Ex zone 1 |
| Display |
High contrast B & W |
| Dimensions |
8.3 x 11.6 x 10.3 inch |
| Temperature range |
+5 – +40 oC |
| Readability |
0.01 g |
| Dust / water protection according to IEC 529 |
IP 40 |
| Canada (CSA) |
IS CL I, DIV 1, GP CD, T4; CL I, Zone 1, Ex ib IIB T4 |
| Europe (ATEX) |
II 2G Ex ib IIB T4 Gb |
| USA (FM) |
IS CL I, DIV 1, GP CD, T4; CL I, Zone 1, AEx ib IIB T4 |
| Interface port |
USB | Type B |
| Calculation by factor function (to mix fractional amounts) |
0.25 - 6.0 |
| AC power source, power requirements |
100 — 240 V~, -10 % / +10 % |
| Power consumption |
2.0 W |
| Pan size |
180 mm |
| Net weight, approx. |
2.1 kgg |
| Calibration weight |
1, 2 kg (class F1 or better) |
|
