Sartorius LMA200PM-000US Moisture Analyzer with built-in Printer 70 g x 0.1 mg

Have Questions? or email Us Our Staff will be glad to help LMA110-SET-P Specifications Chart LMA200PM-000US Specifications Chart

Sartorius Moisture Analyzers with FREE UPS Ground Shipping (within the 48 continental US States) Select LMA110-SET-P $14,999.00 LMA200PM-000US $15,676.80

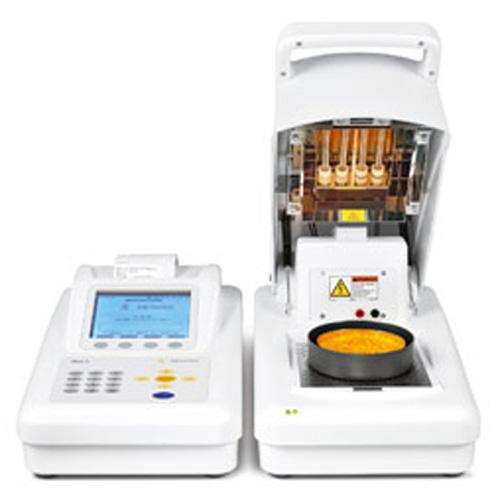

Mark 3 is a flexible moisture analyzer system for labs and production facilities. Its optional modular add-ons provide the best solution for every measuring task.

Its high-resolution weighing system also makes the Mark 3 HP suitable for precisely analyzing the moisture and water content of very dry samples. This feature makes it a genuine alternative to Karl-Fisher titration.

With its resolution of 0.01%, the Mark 3 LTE has been optimized to achieve good reproducibility in routine measurements.

Areas of Application:
• Foodstuffs
• Chemical products
• Biomass & water purification
• Building materials
• Paper, pulp and composites
• Cosmetics
• Paint and coating
• Agricultural products

Economical and reliable alternative to the drying oven
• Intuitive operation – With a learning curve of a few minutes
• The user starts the measurement by pressing just one button
• Robust and fast, optimal for routine operation
• Multi-module operation enables parallel measurements of up to 2 different samples on one single device
• Sartorius weighing technology meets the highest demands in the lab or in-process

Equipment Supplied
• Inter-module cable
• Power module cable
• Power cord
• Tweezers
• Sample pans
• Operating instructions manual

Addition for Mark 3 LTE with printer:
• Roll of paper

Model	LMA110-SET-P
Price	$14,999.00 Add to Cart
Capacity x Readability	40 x 0.001 g
Reproducibility	1 mg
Calibration	External
Display of results	0.01%
Reproducibility of the measurement	Starting at an initial sample weight of approx. 1 g: + 0.2% Starting at an initial sample weight of approx. 5 g: + 0.05%
Method of measurement	Loss on Drying
Recommended moisture range	1.00–99.90%
Heat source	Four parallel infrared quartz cylinders
Modular configuration	Optional up to 4 heater modules connectable
Internal printer	Optional internal thermal printer, 40 character graphic
Temperature range and adjustment	30–210oC in one-degree increments
Temperature steps	Programmable, one or two
Standby temperature	Standby temperature selectable from 30–160oC
Temperature display	Display of target temperature and actual temperature during the measurement and in standby mode
Measured value display	Weight loss in mg % moisture % dry weight % volatiles % moisture/dry weight
Modes of operation	Standard Test or Concentration mode
Endpoint determination	Timer mode, value falls below a defined weight loss per time unit (%/min), trend shutoff
Program storage	60 programs, fail-safe storable
Data storage	Storage 999 results with statistics: average, SD, RSD, high and low
Temperature adjustment	Optional fixture for internal electronic two-point-adjustment
Adjustment of the weighing system	External manual
Ideal initial weight	Audio and visual display for programmable target sample weight addition
Initial sample weight lock	Lockable initial sample weight for optimal repeatability
Pass-Fail-function	Programmable target value including limiting values, pass-fail-information after the measurement
Sample-ID	Numeric, numeric incrementing, alphanumeric or turned off
User management	20 users password protected storable
Password protection	Password protection against undesired adjustment of parameters
Languages	English, Spanish, German, French, Italian, Portuguese
Date and time settings	dd|mm| yy, mm|dd| yy, 12 h- or 24 h-format
Saving mode	Integrated clock timer to switch on and turn off the analyzer Programmable sleeping mode after a longer period of non-use
Display	Illuminated VGA-display
Parameter and data input	Sealed membrane witht audible tactile feedback
Real-time curves	Real-time curves of the loss in weight (% or gram) as well of the temperature pattern during and after the measurement
Acoustical signals	Key stroke, ideal weight met and end of test, selectable on or off
System status indicator lights	Two tri-color LEDs (balance & heater) on front of heater module
Data input|output	Serial and Ethernet
Printout of the protocol	Internal thermal printer, 40 character graphic
Printout format	Configurable printout: selectable header (3 lines), analyzer info, operator, Sample ID, calibration info, program name, program parameters, interval print, weight info, result and signature line
Weighing system	Monolithic weighing system for high-precision results
Balance spill protection	Reservoir under draft shield to collect liquids, powders or pellets
Operating conditions	15–40oC (59–104oF) | 10–85% rel. humidity, no condensation
Power requirements	90-250 VAC 50|60 Hz self-adjusting power supply
Housing dimensions (W+D+H)	41.3 x 49.5 x23.5 cm (164 x 191 x 94 in) modules combined
Weight	10 kg (22 lbs.) modules combined
Warranty	2 years

Built-in analytical weighing system
The moist and dry weight of the sample required for calculating the loss of moisture is measured by a built-in analytical weighing system featuring 0.1 mg resolution. Thanks to its monolithic design (the cell is robotically etched from a single block), this system is particularly suitable for use in a moisture analyzer, because it considerably reduces zero point drift during heat exposure compared with classic weighing systems.

Intelligent endpoint determination
A moisture sensor integrated in the exhaust system of the sample chamber monitors the progress of drying. When the measurement begins, the moisture of the air inside the sample chamber continuously increases as water evaporates from the sample. Once the sample has dried and no longer releases water, the air moisture content drops back to its original level – a clear indication of the end point. At the same time, the built-in weighing system monitors the weight progression and confirms when the sample reaches a constant weight. This dual monitoring system ensures optimal moisture analysis results.

High speed

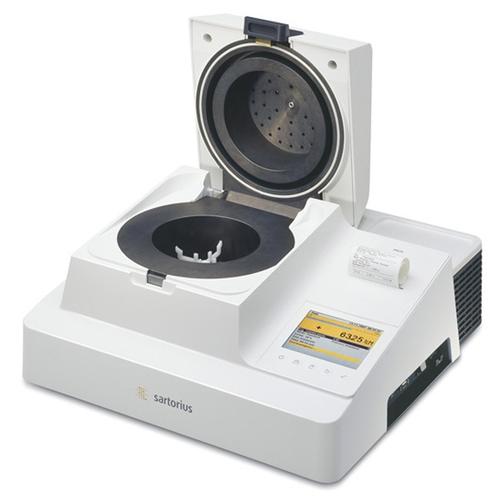

Two factors play a major role for ultra-fast measurements. First, the sample must absorb microwave energy within the shortest time possible and transform this into heat energy. For this purpose, the LMA200PM has a cylindrically shaped sample chamber that optimally focuses the microwave radiation on the sample. Second, the resulting water vapor must be transported away from the sample as fast as possible to obtain fast analysis results. To accomplish this, a sample is applied to a glass fiber pad that allows water vapor to evaporate not only from top of the pad and upward through the sample, but also from the bottom of the pad. An exhaust system draws water vapor out of the sample chamber, thus preventing the effects of condensation.

• Can be used for liquid and pasty samples with a moisture content of approx. 8 -100%
• Analysis time takes just 40 -120 seconds (depends on sample and moisture content)
• Easy two-key operation in the routine mode
• • Endpoint determination
  • Fully automatic; sensors for mass and moisture
  • User-defined as a loss of weight/time
  • Timer mode
• Built-in analytical weighing system with 70 g capacity and 0.1 mg resolution

Model	LMA200PM-000US
Price	$15,676.80 Add to Cart
Weighing capacity	70 g
Measuring accuracy of the weighing system (g)	0.0001 g
Reproducibility on average for initial sample weight starting at approx. 1 g (%)	+ 0.05
Sample carriers	90 mm d (31“) glass fiber pads
Display modes	% moisture, ppm moisture, % volatile components, % dry weight (solids), ppm dry weight, g dry weight, mg loss on drying, % RATIO
Measuring range	Approx. 8–100% moisture
Sample heating	Microwave generator with 1,000 W input power
Power control for heating	2–100%, adjustable in 1% increments
Endpoint determination	Fully automatic, by means of sensors for mass and moisture User-defined as loss of weight/time: 1–50 mg/1–99 sec. 0.1–9.9 %/1–99 sec. Timer mode: 0.1–99.9 min.
Analysis time (in seconds)	Approx. 40–120 (depends on sample and moisture)
Programs	320 saved to non-volatile memory
Data printer	Thermal printer, built-in
Moisture analysis report	User-configured GLP record The report can be printed on non-fading paper by the built-in thermal printer.
Operator guidance	Menu-driven, alphanumeric dialogue text (English, French, German, Italian and Spanish selectable) 5 pre-programmed function keys
Data interfaces	RS-232 port for PC Ethernet port
Housing dimensions W x D x H	510 x 535 x 304 mm 20 x 21 x 12 inch
Weight, approx. (kg | lb)	22 kg | 48.5 lb
Power source	120 V, 60 Hz, 1,200 VA (LMA200PM-000US)
Power consumption (VA)	1,200 max.
Accessories
6906940	80 glass fiber pads
YAT01MA	500 disposable pipettes
69MA30100	5 rolls of printer paper, each with 20 m (65 ft.)
