The New Generation of Modular Premium Laboratory Balances
For scientists in R&D and analytical laboratories needing the most reliable lab weighing results, the Cubis® II from Sartorius is a completely configurable, high performance portfolio of balance hardware and software that will align with your unique demands and compliance requirements to maximize operational efficiency and experimental outcomes.
All modules of the Cubis® II balance were designed for an intuitive operation, further aided by intelligent diagnostic systems. These design elements guarantee a higher degree of repeatability for different workflows while lowering the probability of human error during measurement.
Trusted Results The Cubis® II balance offers several advantages over other lab balances:
- Leading Performance: the Cubis® II balance offers best-in-class performance, including high-capacity and high readability, regardless of sample type
- Error-free Operations: Ensure a high level of trust and transparency by using Cubis® II’s functionality to assess relevant factors during data acquisition.
- Full End-to-End Data Integrity: Ensure your data is reliable and cannot be manipulated with Cubis® II’s user management function and LIMS connectivity.
- Reliable Support: Our lab weighing team provides expert support to help ensure your success, even when making very specific and/or unique requests.
The modular weighing system Cubis® II can be individually configured from different components. The combinability of the display unit, weighing module, draft shield, software packages for various applications and functions and a comprehensive range of accessories allows the individual adaptation of the Cubis® II balance to all weighing tasks. The Cubis® II range of premium laboratory balances with a maximum load between 2.1 g and 70 kg and a readability between 0.1 ìg to 1 g provide the ideal model for every application.
Cubis® II Display and Control Units

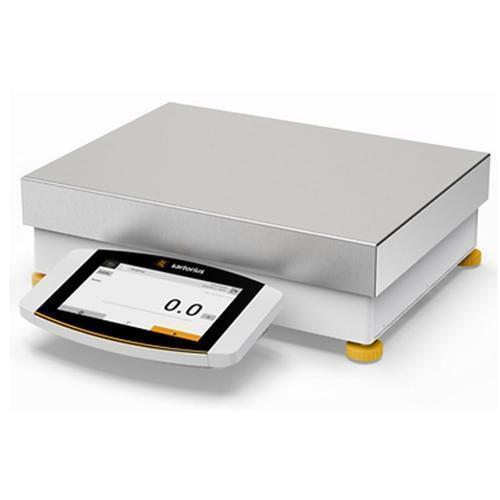

Advances User Interface MCA
Large 7“ color touch display including touch, scroll, swipe functionality with factory installed essential weighing applications and diverse QApp Packages for optional software extension.
Features:
- High-performance touch screen with high resolution and brilliant colors
- Modern user guidance with outstanding ease of use, even in complex lab situations
|

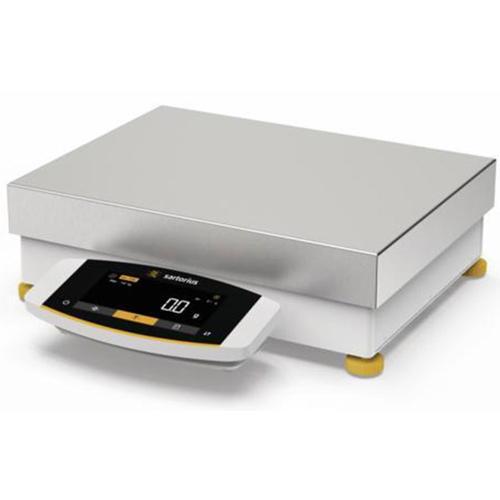

Essential User Interface MCE
Large, high-contrast touch display with factory-installed essential weighing applications for easy operation of highest weighing performance.
Features:
- For users who do not have complex applications but need to weigh with the highest level of accuracy
- High-contrast touch display with clearly structured functionality
- Easy-to-use essential weighing applications included
|
Sartorius Cubis II Percision Balances 0.1 g Specs:
| Model |
MCA5201S-2S00-0 |
MCE5201S-2S00-0 |
MCA8201S0-S00 |
MCA8201S-2S00-0 |
MCE8201S-2S00-0 |
MCA12201S0-S00 |
MCA12201S-2S00-0 |
MCE12201S-2S00-0 |
| Price |
$4,173.50
|
$3,366.00
|
$7,675.50
|
$5,372.00
|
$4,564.50
|
$8,168.50
|
$5,865.00
|
$5,057.50
|
| Preconfigured Model |
- |
- |
- |
- |
MCE8201S0-S00 |
- |
- |
MCE12201S0-S00 |
| Preconfigured Price |
- |
- |
- |
- |
$4,564.50
|
- |
- |
$5,057.50
|
| Capacity x Readability |
5200 x 0.1 g |
5200 x 0.1 g |
8200 x 0.1 g |
8200 x 0.1 g |
8200 x 0.1 g |
12.2 kg x 0.1 g |
12.2 kg x 0.1 g |
12.2 kg x 0.1 g |
| Draft Shield Type |
Draft Shield 0
Flat Stainless Steel Pan |
| Software |
Standerd Package |
All Inclusive Package QP99 |
Standerd Package |
All Inclusive Package QP99 |
Standerd Package |
| Software |
MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting
MCE Factory installed basic set of essential weighing applications |
| Display |
MCA Advanced User Interface |
MCE Essential User Interface |
MCA Advanced User Interface |
MCE Essential User Interface |
MCA Advanced User Interface |
MCE Essential User Interface |
Repeatability at 5 % load
Standard deviation of the load values, tolerance |
50 mg |
Repeatability at 5 % load
Standard deviation of the load values, typical value |
20 mg |
Repeatability near Max
Standard deviation of the load values, tolerance |
50 mg |
Repeatability near Max
Standard deviation of the load values, typical value |
20 mg |
| Linearity Deviation |
Tolerance 100 mg
Typical value 20 mg |
Tolerance 100 mg
Typical value 30 mg |
| Interfaces |
USB A, B, C, RS232, and Ethernet |
|
Deviation at eccentric loading, positions according to OIML R76 |
| Test weight |
2000 g |
2000 g |
5000 g |
| Tolerance |
200 mg |
| Typical value |
100 mg |
| Sensitivity drift between +10 oC and +30 oC |
4 ppm/K |
|
Tare maximum capacity: Less than 100 % of maximum capacity |
| Accuracy class according to Directive 2014/31/EU |
II |
| Verification scale interval (e) according to Directive 2014/31/EU |
1000 mg |
| Minimum load (Min) according to Directive 2014/31/EU |
5000 mg |
|
Minimum weight according to USP (United States Pharmacopeia), Chap. 41 |
| Optimum minimum weight |
82 g |
| Typical minimum weight |
82 g |
| Typical stabilization time |
0.8 s |
| Typical measurement time |
1 s |
| Recommended calibration weight |
5 kg F1 |
8 kg F1 |
12 kg F1 |
|
Dimensions |
| MCE/MCA Weighing module (L x W x H)* |
425 x 240 x 95 |
| Electronics module (L x W x H) |
MCA 355 x 260 x 61 mm
MCE 315 x 240 x 61 mm |
| Weighing pan size |
206 x 206 mm |
| Weight, approx.* |
5.4 kg* |
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany
| Model |
MCA11201S-2S00-0 |
MCE11201S-2S00-0 |
MCA20201S0-S00 |
MCA20201S-2S00-0 |
MCE20201S-2S00-0 |
MCA32202P0-S00 |
MCA32202P-2S00-0 |
MCE32202P-2S00-0 |
| Price |
$7,208.00
|
$6,400.50
|
$9,749.50
|
$7,446.00
|
$6,638.50
|
$16,736.50
|
$14,433.00
|
$13,625.50
|
| Preconfigured Model |
- |
- |
- |
- |
MCE20201S0-S00 |
- |
- |
MCE32202P0-S00 |
| Preconfigured Price |
- |
- |
- |
- |
$6,638.50
|
- |
- |
$13,625.50
|
| Capacity x Readability |
11.2 kg x 0.1 g |
11.2 kg x 0.1 g |
20.2 kg x 0.1 g |
20.2 kg x 0.1 g |
20.2 kg x 0.1 g |
4200 x 0.01 g
32.2 kg x 0.1g |
4200 x 0.01 g
32.2 kg x 0.1g |
4200 x 0.01 g
32.2 kg x 0.1g |
| Draft Shield Type |
Draft Shield 0
Flat Stainless Steel Pan |
| Software |
Standerd Package |
All Inclusive Package QP99 |
Standerd Package |
All Inclusive Package QP99 |
Standerd Package |
| Software |
MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting
MCE Factory installed basic set of essential weighing applications |
| Display |
MCA Advanced User Interface |
MCE Essential User Interface |
MCA Advanced User Interface |
MCE Essential User Interface |
MCA Advanced User Interface |
MCE Essential User Interface |
Repeatability at 5 % load
Standard deviation of the load values, tolerance |
100 mg |
Repeatability at 5 % load
Standard deviation of the load values, typical value |
20 mg |
Repeatability near Max
Standard deviation of the load values, tolerance |
100 mg |
Repeatability near Max
Standard deviation of the load values, typical value |
20 mg |
| Linearity Deviation |
Tolerance 200 mg
Typical value 60 mg |
| Interfaces |
USB A, B, C, RS232, and Ethernet |
|
Deviation at eccentric loading, positions according to OIML R76 |
| Test weight |
5000 g |
5000 g |
5000 g |
| Tolerance |
300 mg |
| Typical value |
200 mg |
| Sensitivity drift between +10 oC and +30 oC |
2 ppm/K |
|
Tare maximum capacity: Less than 100 % of maximum capacity |
| Accuracy class according to Directive 2014/31/EU |
II |
| Verification scale interval (e) according to Directive 2014/31/EU |
1000 mg |
| Minimum load (Min) according to Directive 2014/31/EU |
5000 mg |
|
Minimum weight according to USP (United States Pharmacopeia), Chap. 41 |
| Optimum minimum weight |
82 g |
| Typical minimum weight |
82 g |
| Typical stabilization time |
1.5 s |
| Typical measurement time |
2 s |
| Recommended calibration weight |
10 kg F1 |
20 kg F1 |
12 kg F1 |
|
Dimensions |
| MCE/MCA Weighing module (L x W x H)* |
412 x 400 x 126/159 |
| Electronics module (L x W x H) |
MCA 355 x 260 x 61 mm
MCE 315 x 240 x 61 mm |
| Weighing pan size |
400 x 300 /Ø 233 |
| Weight, approx.* |
15.8/17.1 |
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany
| Model |
- |
MCA36201S-2S00-0 |
MCA36201P-2S00-0 |
MCE36201P-2S00-0 |
MCE36201S-2S00-0 |
MCA50201S-2S00-0 |
MCE50201S-2S00-0 |
- |
MCA70201S-2S00-0 |
MCE70201S-2S00-0 |
| Price |
|
$9,324.50
|
$7,879.50
|
$7,072.00
|
$8,517.00
|
$11,067.00
|
$10,259.50
|
|
$14,518.00
|
$13,710.50
|
| Preconfigured Model |
MCA36201S0-S00 |
- |
- |
- |
MCE36201S0-S00 |
- |
- |
MCA70201S0-S00 |
- |
- |
| Preconfigured Price |
$11,628.00
|
- |
- |
- |
$8,517.00
|
- |
- |
$16,821.50
|
- |
- |
| Capacity x Readability |
36.2 kg x 0.1 g |
36.2 kg x 0.1 g |
10.2 kg x 0.1 g
36.2 kg x 1 g |
10.2 kg x 0.1 g
36.2 kg x 1 g |
36.2 kg x 0.1 g |
50.2 kg x 0.1 g |
50.2 kg x 0.1 g |
70.2 kg x 0.1 g |
70.2 kg x 0.1 g |
70.2 kg x 0.1 g |
| Draft Shield Type |
Draft Shield 0
Flat Stainless Steel Pan |
| Software |
All Inclusive Package QP99 |
Standerd Package |
All Inclusive Package QP99
(MCE36201S0-S00) |
Standerd Package |
All Inclusive Package QP99 |
Standerd Package |
| Software |
MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting
MCE Factory installed basic set of essential weighing applications |
| Display |
MCA Advanced User Interface |
MCE Essential User Interface |
MCA Advanced User Interface |
MCE Essential User Interface |
MCA Advanced User Interface |
MCE Essential User Interface |
Repeatability at 5 % load
Standard deviation of the load values, tolerance |
100 mg |
Repeatability at 5 % load
Standard deviation of the load values, typical value |
20 mg |
Repeatability near Max
Standard deviation of the load values, tolerance |
100 mg |
Repeatability near Max
Standard deviation of the load values, typical value |
50 mg |
40 mg |
| Linearity Deviation |
Tolerance 200 mg
Typical value 100 mg |
Tolerance 200 mg
Typical value 150 mg |
| Interfaces |
USB A, B, C, RS232, and Ethernet |
|
Deviation at eccentric loading, positions according to OIML R76 |
| Test weight |
10000 g |
20000 g |
20000 g |
| Tolerance |
300 mg |
500 mg |
| Typical value |
200 mg |
150 mg |
| Sensitivity drift between +10 oC and +30 oC |
4 ppm/K |
|
Tare maximum capacity: Less than 100 % of maximum capacity |
| Accuracy class according to Directive 2014/31/EU |
II |
| Verification scale interval (e) according to Directive 2014/31/EU |
1000 mg |
| Minimum load (Min) according to Directive 2014/31/EU |
5000 mg |
|
Minimum weight according to USP (United States Pharmacopeia), Chap. 41 |
| Optimum minimum weight |
82 g |
| Typical minimum weight |
82 g |
| Typical stabilization time |
1.5 s |
| Typical measurement time |
2 s |
1.5 s |
| Recommended calibration weight |
30 kg F1 |
50 kg F1 |
70 kg F1 |
|
Dimensions |
| MCE/MCA Weighing module (L x W x H)* |
412 x 400 x 126/159 |
| Electronics module (L x W x H) |
MCA 355 x 260 x 61 mm
MCE 315 x 240 x 61 mm |
| Weighing pan size |
400 x 300 /Ø 233 |
| Weight, approx.* |
15.8/17.1 |
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany
| Model |
MCA36200S-2S00-0 |
MCE36200S0-S00 |
MCA70200S-2S00-0 |
MCE70200S-2S00-0 |
| Price |
$6,570.50
|
$5,763.00
|
$10,778.00
|
$9,970.50
|
| Capacity x Readability |
36.2 kg x 1 g |
36.2 kg x 1 g |
70.2 kg x 1 g |
70.2 kg x 1 g |
| Draft Shield Type |
Draft Shield 0
Flat Stainless Steel Pan |
| Software |
Standerd Package |
Standerd Package |
| Software |
MCA Included in every Cubis® balance: Mixing, Statistics, Totalization, Solids density, Percentage weighing, Multiplication, Averaging, Checkweighing, Highest peak value, Counting
MCE Factory installed basic set of essential weighing applications |
| Display |
MCA Advanced User Interface |
MCE Essential User Interface |
MCA Advanced User Interface |
MCE Essential User Interface |
Repeatability at 5 % load
Standard deviation of the load values, tolerance |
500 mg |
Repeatability at 5 % load
Standard deviation of the load values, typical value |
20 mg |
Repeatability near Max
Standard deviation of the load values, tolerance |
500 mg |
Repeatability near Max
Standard deviation of the load values, typical value |
20 mg |
| Linearity Deviation |
Tolerance 1000 mg
Typical value 200 mg |
| Interfaces |
USB A, B, C, RS232, and Ethernet |
|
Deviation at eccentric loading, positions according to OIML R76 |
| Test weight |
10000 g |
20000 g |
| Tolerance |
1000 mg |
| Typical value |
500 mg |
600 mg |
| Sensitivity drift between +10 oC and +30 oC |
3 ppm/K |
|
Tare maximum capacity: Less than 100 % of maximum capacity |
| Accuracy class according to Directive 2014/31/EU |
II |
| Verification scale interval (e) according to Directive 2014/31/EU |
10000 mg |
| Minimum load (Min) according to Directive 2014/31/EU |
50000 mg |
|
Minimum weight according to USP (United States Pharmacopeia), Chap. 41 |
| Optimum minimum weight |
820 g |
| Typical minimum weight |
820 g |
| Typical stabilization time |
1 s |
| Typical measurement time |
1.2 s |
| Recommended calibration weight |
30 kg F1 |
70 kg F1 |
|
Dimensions |
| MCE/MCA Weighing module (L x W x H)* |
412 x 400 x 126/159 |
| Electronics module (L x W x H) |
MCA 355 x 260 x 61 mm
MCE 315 x 240 x 61 mm |
| Weighing pan size |
400 x 300 /Ø 233 |
| Weight, approx.* |
15.8/17.1 |
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany
|
