Cubis® is the new benchmark, setting the standards for all others to follow. The Cubis® modular equipment series, consisting of display and control units, weighing modules and draft shields, interface modules .
The New Generation of Modular Premium Laboratory Balances
For scientists in R&D and analytical laboratories needing the most reliable lab weighing results, the Cubis® II from Sartorius is a completely configurable, high performance portfolio of balance hardware and software that will align with your unique demands and compliance requirements to maximize operational efficiency and experimental outcomes.
All modules of the Cubis® II balance were designed for an intuitive operation, further aided by intelligent diagnostic systems. These design elements guarantee a higher degree of repeatability for different workflows while lowering the probability of human error during measurement.
Trusted Results The Cubis® II balance offers several advantages over other lab balances:
Leading Performance: the Cubis® II balance offers best-in-class performance, including high-capacity and high readability, regardless of sample type
Error-free Operations: Ensure a high level of trust and transparency by using Cubis® II’s functionality to assess relevant factors during data acquisition.
Full End-to-End Data Integrity: Ensure your data is reliable and cannot be manipulated with Cubis® II’s user management function and LIMS connectivity.
Reliable Support: Our lab weighing team provides expert support to help ensure your success, even when making very specific and/or unique requests.
The modular weighing system Cubis® II can be individually configured from different components. The combinability of the display unit, weighing module, draft shield, software packages for various applications and functions and a comprehensive range of accessories allows the individual adaptation of the Cubis® II balance to all weighing tasks. The Cubis® II range of premium laboratory balances with a maximum load between 2.1 g and 70 kg and a readability between 0.1 ìg to 1 g provide the ideal model for every application.
Cubis® II Display and Control Units
Advances User Interface MCA
Large 7“ color touch display including touch, scroll, swipe functionality with factory installed essential weighing applications and diverse QApp Packages for optional software extension.
Features:
High-performance touch screen with high resolution and brilliant colors
Modern user guidance with outstanding ease of use, even in complex lab situations
Essential User Interface MCE
Large, high-contrast touch display with factory-installed essential weighing applications for easy operation of highest weighing performance.
Features:
For users who do not have complex applications but need to weigh with the highest level of accuracy
High-contrast touch display with clearly structured functionality
Easy-to-use essential weighing applications included
Sartorius Cubis II Micro Balance 0.001 mg Specs:
Draft Shield M Model
MCA3.6P-2S00-M
MCA3.6PM-S00
MCA6.6S-2S00-M
MCA6.6SM-S00
MCA10.6S-2S00-M
MCA10.6SM-S00
MCE3.6P-2S00-M
MCE6.6S-2S00-M
MCE10.6S-2S00-M
Price
$24,750.00
$27,189.00
$32,103.00
$34,542.00
$39,339.00
$41,778.00
$23,895.00
$31,248.00
$38,484.00
Preconfigured Model
-
-
-
-
-
-
MCE3.6PM-S00
-
-
Preconfigured Price
-
-
-
-
-
-
$23,895.00
-
-
Draft Shield Type

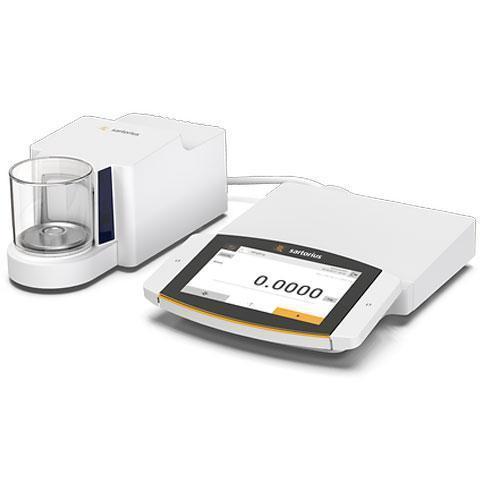

Draft Shield M Automatic draft shield for ultra-micro and micro balances with learning function; for models with 0.001 mg or 0.0001 mg readability
Draft Shield F Model
MCA3.6P-2S00-F
-
MCA6.6S-2S00-F
MCA6.6SF-S00
MCA10.6S-2S00-F
-
MCE3.6P-2S00-F
MCE6.6S-2S00-F
MCE10.6S-2S00-F
Price
$25,839.00
-
$33,192.00
$35,631.00
$40,428.00
-
$24,984.00
$32,337.00
$39,573.00
Draft Shield Type

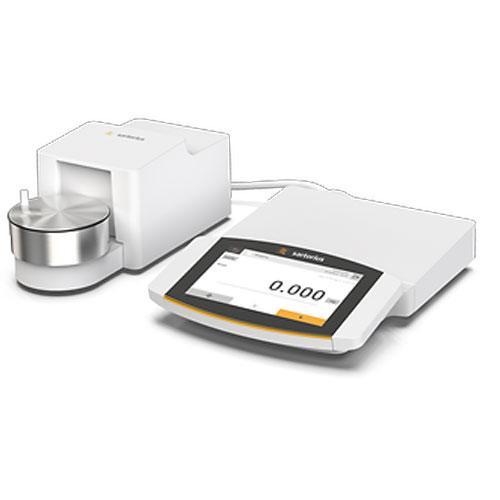

Draft Shield F Manual stainless steel draft shield specially designed for highly-accurate weighing of filters; for balances with 0.001 mg or 0.0001 mg readability
Capacity x Readability
1.1 g x 0.001 mg 2.1 g x 0.002 mg 3.1 g x 0.005 mg
1.1 g x 0.001 mg 2.1 g x 0.002 mg 3.1 g x 0.005 mg
6.1 g x 0.001 mg
6.1 g x 0.001 mg
10.1 g x 0.001 mg
10.1 g x 0.001 mg
1.1 g x 0.001 mg 2.1 g x 0.002 mg 3.1 g x 0.005 mg
6.1 g x 0.001 mg
10.1 g x 0.001 mg
Display
MCA Advanced User Interface
MCE Essential User Interface
Added Software
QP99
QP99
QP99
Repeatability at 5 % load Standard deviation of the load values, tolerance
0.003 mg
0.001 mg
0.003 mg
0.001 mg
Repeatability at 5 % load Standard deviation of the load values, typical value
0.0005 mg
Repeatability near Max Standard deviation of the load values, tolerance
0.005 mg
0.001 mg
0.005 mg
0.001 mg
Repeatability near Max Standard deviation of the load values, typical value
0.0006 mg
Linearity Deviation
Tolerance 0.004 mg Typical value 0.003 mg
Interfaces
USB A, B, C, RS232, and Ethernet
Deviation at eccentric loading, positions according to OIML R76
Test weight
1 g
1 g
2 g
2 g
5 g
5 g
1 g
2 g
5 g
Tolerance
0.005 mg
0.004
0.005 mg
0.004
Typical value
0.003
Sensitivity drift between +10 oC and +30 oC
1 ppm/K
Tare maximum capacity: Less than 100 % of maximum capacity
Accuracy class according to Directive 2014/31/EU
I
I
I
I
I
I
I
I
I
Verification scale interval (e) according to Directive 2014/31/EU
1 mg
1 mg
1 mg
1 mg
1 mg
1 mg
1 mg
1 mg
1 mg
Minimum load (Min) according to Directive 2014/31/EU
0.1 mg
0.1 mg
0.1 mg
0.1 mg
0.1 mg
0.1 mg
0.1 mg
0.1 mg
0.1 mg
Minimum weight according to USP (United States Pharmacopeia), Chap. 41
Optimum minimum weight
0.82 mg
Typical minimum weight
0.82 mg
Typical stabilization time
5 s
Typical measurement time
8 s
Recommended calibration weight
3g (E2)
3g (E2)
5g (E2)
5g (E2)
10g (E2)
10g (E2)
3g (E2)
5g (E2)
10g (E2)
Dimensions
MCE/MCA Weighing module (L x W x H)*
340 x 139 x 129 mm
Electronics module (L x W x H)
MCA 355 x 260 x 61 mm
MCE 315 x 240 x 61 mm
Filter weighing pan
Ø 50
Weighing pan size
Ø 30
Weight, approx.*
6.4 kg /7.1 kg
* depending upon weighing pan size, filter weighing pan and draft shield
Country of origin Germany
