Rice Lake TS-Series Tuning Fork Stainless Steel Washdown Balance |
 |
| The sleek looking stainless steel housing of Rice Lake’s TS Series is more than just attractive. This mirror finish is a barrier against potentially destructive elements. For work environments where anything can happen, trust in a balance that delivers performance inside and out. |
| Rice Lake Scales > Lab Scales |
TS-620
|
TS-6200,TS-8200
|
Specifications Chart
|
|
The sleek looking stainless steel housing of Rice Lake’s TS Series is more than just attractive. This mirror finish is a barrier against potentially destructive elements. For work environments where anything can happen, trust in a balance that delivers performance inside and out.
IP65 Design The polished finish of the TS Series’ stainless steel housing offers exceptional durability. An IP65 rating means this balance protects against the ingress of dust and liquids into electronic components that can happen from normal spills and splashes. The smooth, continuous lines of the TS design make cleanup effortless.
Rapid Response Unique tuning fork technology provides a high-speed response time, with stable and reliable results. No more waiting for stabilization or warm up, simply plug in and go.
RS-232 Interface The TS Series offers incredibly fast output compared to similar models. The ability to interface with a PC and other equipment is invaluable for creating compliance records and data storage.
- Stainless steel, IP65 top housing
- Large, 18 mm, Liquid Crystal Display (LCD) with backlight
- Selectable modes
- 13 units of measurement

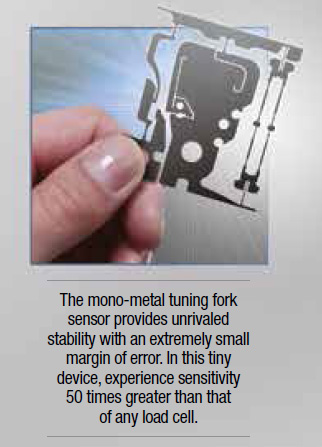

- Mono-Metal Tuning Fork Sensor (MMTS) provides quick response and stability
- IP65
- 115 VAC adaptor included (230 VAC optional)
- Semi-automatic calibration, external weight
- RS-232 bidirectional
Options and Accessories
- Under-weigh hook
- Waterproof RS-232 cable
- Battery
| Model |
108156
TS-620 |
108157
TS-6200 |
112182
TS-8200 |
$1,181.70
|
$1,271.40
|
$1,335.36
|
Capacity
Readability |
620 x 0.01 g |
6200 x 0.1 g |
8200 x 0.1 g |
| Operating Modes |
Counting, Percentage, Limit Function (Checkweighing), Weighing multiplied by coefficient, specific gravity, animal weighing, adding multiple measurements |
| Repeatability |
1 division |
| Linearity |
1 division |
| Operating Temperature |
0o C to 40o C 80% RH or less |
| Pan Size |
Ø 140 mm (5.51 in) |
190 x 190 mm (7.48 X 7.48 in) |
| RS-232 Specifications |
Baud rate - 1200/2400/4800/9600/19200, Data bits 8/7; Connector - 9-Pin D-Sub M (not IP65 unless using PN 109238 cable) |
| Dimensions |
12.2 x 8.2 x 3.4 in (310 x 208 x 87 mm) |
| Weight (Approx.) |
10 lb (4.5 kg) |
| Calibration Weight* |
600 g |
6000 g |
8000 g |
| Power |
120 V AC adapter |
| Battery Option |
Field installable, uses 4 AA dry cell batteries |
| Warranty |
Five-year limited warranty |
| Decimal Ounce |
21 x 0.0005 oz |
210 x 0.005 oz |
280 x 0.005 oz |
| Decimal Pound |
1.3 x 0.00005 lb |
13 x 0.0005 lb |
18 x 0.0005 lb |
| Troy Ounce |
19 x 0.0005 ozt |
190 x 0.005 ozt |
260 x 0.005 ozt |
| Pennyweight |
390 x 0.01 dwt |
3900 x 0.1 dwt |
5200 x 0.1 dwt |
| Carat |
3100 x 0.05 ct |
31000 x 0.5 ct |
41000 x 0.5 ct |
| Momme |
160 x 0.005 mom |
1600 x 0.05 mom |
2100 x 0.05 mom |
| Grain Unit |
9500 x 0.2 GN |
95000 x 2 GN |
120000 x 2 GN |
* Calibration of balance does not require weight of full capacity (adjustable)
|
