Rice Lake Roughdeck SD Polyethylene Deck Floor Scales

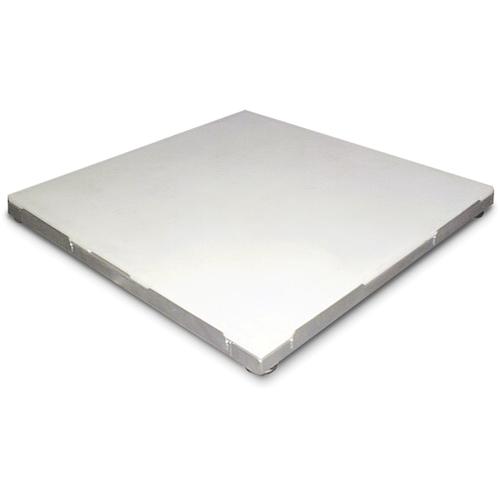

The RoughDeck SD floor scale offers a removable polyethylene deck for sanitization requirements, in addition to top performing RoughDeck features like all stainless steel channel frames, protected load cells and adjustable SUREFOOT? support feet. Side brackets assure deck stability during washdown
Rice Lake Scales > Industrial Scales > Floor Scales

Rice Lake RoughDeck SD 50385 Polyethylene Deck 2.5 ft x 2.5 ft Sanitary Deck Floor Scale Base Only 2000 lb

Base Only Indicator Sold Separately


Legal For Trade

Specifications Chart Please Call (800)832-0055
or Email Us for help
Ordering this Scale

Factory Installed Options Must be added with scale
Rice Lake Floor anchor plates, Stainless Steel (set of 2) , Add $42.50
Rice Lake Stainless steel deck with RL35082 hermetically sealed IP69K stainless steel (FM approved) load cells and hardware , Add $270.00

Indicator Column\Stand
	Rice Lake 28740 Indicator Floor Stand Stainless Steel 36.3 inch, add $268.60

Rice Lake Roughdeck SD Polyethylene Deck Floor Scales
Price From: $3565.10

Select Indicator (Must be added with scale)
	Rice Lake 381 Synergy 215695 LCD Digital Weight Legal for trade IP54 AA Alkaline Battery, add $256.75
	Rice Lake 381 Synergy 215696 LCD Digital Weight Legal for trade IP66 NiMH Battery, add $375.25
	Rice Lake 120 131923 LED Digital Weight Legal for Trade Indicator, add $359.45
	Rice Lake 120 Plus 103632 LCD Digital Weight Legal for trade Indicator, add $470.05
	Rice Lake 65137 IQ Plus 210 Stainless Steel LED Digital Weight Indicator 115 V, add $572.75
	Rice Lake 480 LED Legend Series Digital Weight Indicator, add $691.25
	Rice Lake 482 LCD Legend Series Digital Weight Indicator, add $791.70
	Rice Lake 882IS Intrinsically-Safe 195091 Digital Weight Indicator with Tilt Stand - Power Sold Separate, add $1,189.50
For a full list of Rice Lake Indicators Click Here

The RoughDeck SD floor scale offers a removable polyethylene deck for sanitization requirements, in addition to top performing RoughDeck features like all stainless steel channel frames, protected load cells and adjustable SUREFOOT? support feet. Side brackets assure deck stability during washdown.

Rugged washdown design
304 stainless steel construction
Rigid stainless steel tube frame
4 stainless steel, welded seal, shear-beam load cells
Load cells protected on all four sides
20 ft (6 m) of SURVIVOr EL147HE hostile environment load cell cable
Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
4 adjustable stainless steel SUREFOOT? support feet
Removable polyethylene deck (deck weight: 80 lb (36.6 kg) on 4 ft x 4 ft size)
Side brackets to hold deck during washdown

Models	50385	50386	50386	50388	50389	50390	50391	50392	50393	50394	50395
Models	$3,565.10	$3,665.20	$3,846.15	$3,846.15	$4,038.65	$4,223.45	$4,223.45	$4,408.25	$4,604.60	$4,604.60	$5,000.80
Size (W x L)	2.5 ft x 2.5 ft	3 ft x 3 ft	4 ft x 4 ft	4 ft x 4 ft	4 ft x 4 ft	4 ft x 5 ft	4 ft x 5 ft	4 ft x 5 ft	4 ft x 6 ft	4 ft x 6 ft	4 ft x 6 ft
Capacity x Readability	2000 x 0.5 lb	2000 x 0.5 lb	2000 x 0.5 lb	5000 x 1 lb	10000 x 2 lb	2000 x 0.5 lb	5000 x 1 lb	10000 x 2 lb	2000 x 0.5 lb	5000 x 1 lb	10000 x 2 lb
Height	4.4 in	4.4 in	4.4 in	4.4 in	5.4 in	4.4 in	5.4 in	5.4 in	5.4 in	5.4 in	6.4 in
Legal For Trade	NTEP CC 92-001, Class III 5000 d
End Load Capacity	100% full scale at 2,000 lb and 5,000 lb 80% full scale at 10,000 lb
Junction Box	Stainless steel enclosure can be located up to 10 ft away from scale
Deck	Removable polyethylene deck
Cable	20 ft (6.1 m) (for connecting junction box to indicator)
Warranty	RoughDeck SD weldment and load cells two years, all other components one year
Approvals	NTEP CC 92-001, Class III 5000 d

Models	50396	50397	50398	50399	50400	50401
Models	$4,604.60	$4,604.60	$5,000.80	$6,292.80	$6,292.80	$7,121.20
Size (W x L)	5 ft x 5 ft	5 ft x 5 ft	5 ft x 5 ft	5 ft x 7 ft	5 ft x 7 ft	5 ft x 7 ft
Capacity x Readability	2000 x 0.5 lb	5000 x 1 lb	10000 x 2 lb	2000 x 0.5 lb	5000 x 1 lb	10000 x 2 lb
Height	5.4 in	5.4 in	5.4 in	6.4 in	6.4 in	6.4 in
Legal For Trade	NTEP CC 92-001, Class III 5000 d
End Load Capacity	100% full scale at 2,000 lb and 5,000 lb 80% full scale at 10,000 lb
Deck	Constructed of two pieces of polyethylene to make up the top deck.
Junction Box	Stainless steel enclosure can be located up to 10 ft away from scale
Cable	20 ft (6.1 m) (for connecting junction box to indicator)
Warranty	RoughDeck SD weldment and load cells two years, all other components one year
Approvals	NTEP CC 92-001, Class III 5000 d
