Rice Lake AutoLift HE Pit-type, Hostile Environment Stainless Steel Lift Floor Scale

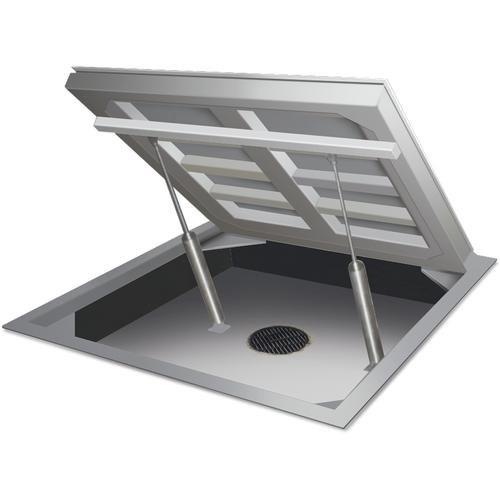

With its own pneumatic lifting arm, the low-profile AutoLift HE floor scale takes efficiency and safety further by providing hands-free access for washdown demands. The remote TuffSeal? JB4SS stainless steel NEMA Type 4X junction box can be remotely mounted up to ten feet from the scale, keeping sensitive electronics far from damaging chemicals and moisture.
With its own pneumatic lifting arm, the low-profile AutoLift HE floor scale takes efficiency and safety further by providing hands-free access for washdown demands. The remote TuffSeal? JB4SS stainless steel NEMA Type 4X junction box can be remotely mounted up to ten feet from the scale, keeping sensitive electronics far from damaging chemicals and moisture.
Includes scale, pit frame, pit coping and pneumatic control box
20 ft of SURVIVOr hostile environment load cell cable
Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
Smooth stainless steel deck
4 adjustable stainless steel SUREFOOT? support feet
Requires 85-100 psi air pressure, opens 43 degrees
Hands-free Hygiene
TuffSeal® Junction Box Protects Circuitry - Included with all models, the rugged, stainless steel TuffSeal junction box is specifically designed with a unique closure to prevent moisture ingress and protect sensitive circuitry. A Gore? breather vent helps equalize pressure inside the enclosure that can be caused by sudden temperature or environmental changes.

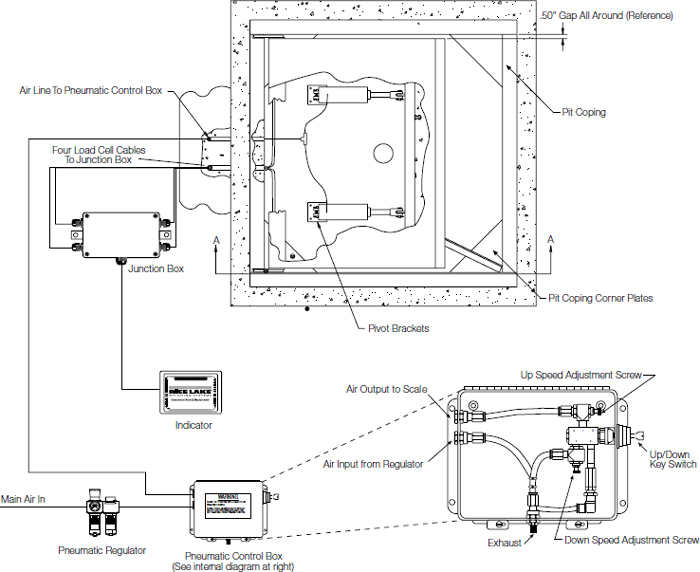

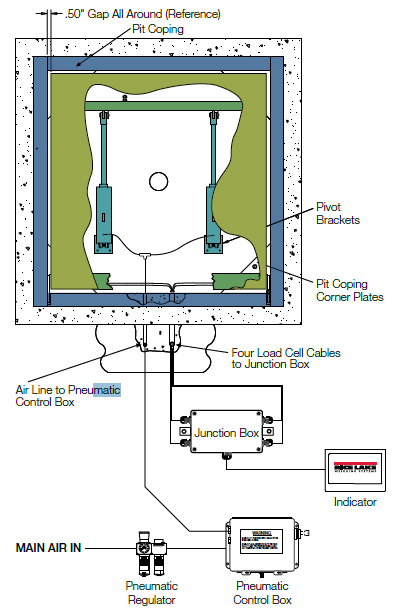

The AutoLift HE floor scale is engineered with a pneumatic scale-lifting
system that permits ultimate access for cleaning in washdown environments
Rugged enough for excellent performance in harsh, corrosive environments, the Autolift HE design includes four IP67 welded seal load cells to maintain remarkable accuracy and durability. Its TuffSeal JB4SS stainless steel NEMA Type 4X junction box is UL approved for watertight protection and corrosion resistance.

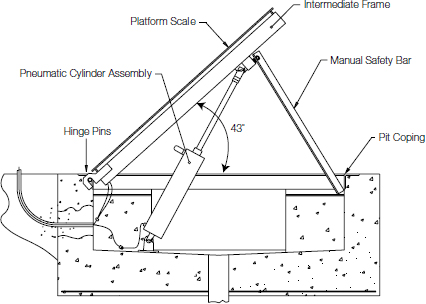

Powerful, pneumatic lifting arms promote efficiency and safety by permitting automatic hands-free access to the scale?s undersurface for complete sanitation throughout the cavity. With automatic lifting arms and manually placed safety bars, the scale?s pit cavity is exposed securely for the duration of cleaning, minimizing hand contact with caustic industrial chemicals. Because of the AutoLift HE?s 304 stainless steel surface top and underside, it is ideal for extreme industry sanitation practices.
Available in a variety of sizes and load capacities from 2,000 to 10,000 pounds, the Autolift HE floor scale is the perfect solution for a wide range of washdown applications and facility sizes.
Load Cell Mounting Plate - Localized deflection of the load cell is minimized by welding the mounting plate to the channel frame rather than the deck plate
SUREFOOT ? for Accuracy - SUREFOOT decreases extraneous forces on the load cell, resulting in superior accuracy and repeatability. A stainless steel cup sits on the sub-frame and bonds a pliable neoprene cushion to a stainless steel top plate with attached threaded stem, allowing the stem and top plate to move laterally and tilt independently of the bottom stainless steel cup.
Superior Structural Design - The AutoLift HE floor scale is a part of Rice Lakes line of RoughDeck® floor scales. RoughDeck floor scales are renowned for their durability and superior structural design, which is why the AutoLift HE floor scale carries a full five-year warranty on the deck structure.

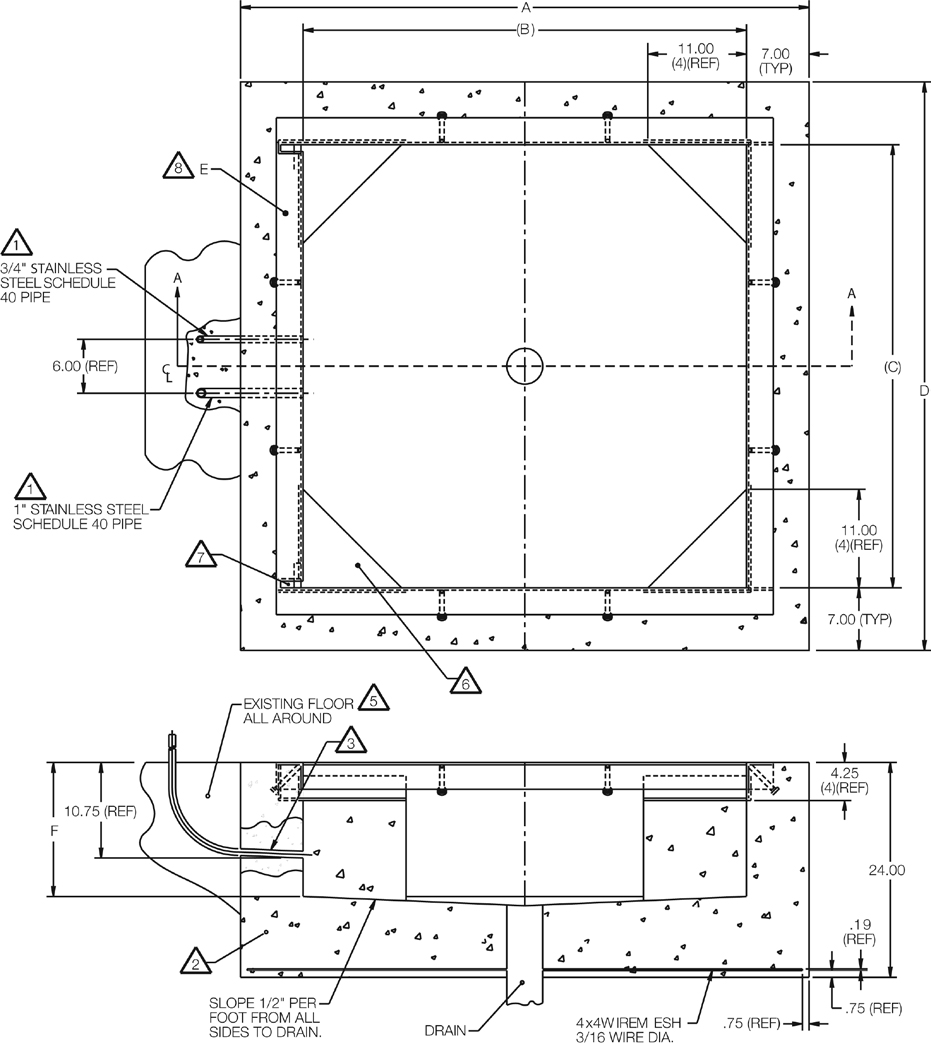

Efficiency from the Ground Up - The Autolift HE floor scale features a pit mount design for a flush, floor-level weighing platform that is easy to load and unload. The junction box can be remotely mounted up to 10 feet from the scale, further isolating electronics from the damaging effects of cleaning the scale.
Models
42207
42208
42209
42211
42212
42213
$13,786.40
$13,786.40
$14,238.60
$17,537.00
$17,537.00
$17,825.80
Capacity x Readability
2000 x 0.5 lb
5000 x 1 lb
10000 x 2 lb
2000 x 0.5 lb
5000 x 1 lb
10000 x 2 lb
Size (W x L)
4 ft x 4 ft
4 ft x 4 ft
4 ft x 4 ft
5 ft x 5 ft
5 ft x 5 ft
5 ft x 5 ft
End Load Capacity
100% full scale at 2,000 lb, 5,000 lb 80% full scale at 10,000 lb
Remote Junction Box
Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
Deck
Smooth stainless steel deck
Load cells
Four stainless steel, welded seal, shear beam load cells, protected on all four sides
Threaded Eyebolt
Hole (1/2-20 NF) located in center of deck for easy lifting
Welding
Stitch, consult factory if continuous is required
Cable
20 ft of SURVIVOr hostile environment load cell cable
Warranty
AutoLift HE weldment five years, load cells two years, all other components one year
