Rice Lake Load Ranger S-Series 2.4Ghz - Wireless Wheel Weighing Scales
Load Ranger wheel weigh pads are vehicle weighing scales ideal for mobile and temporary applications. Load Ranger wireless wheel pads offer an adaptable solution for vehicle weighing. With unmatched accuracy, Load Ranger wireless wheel pads capture wheel or axle weights, either individually or in sets of up to 14 pads. The built-in weight indicator is equipped with industrial Bluetooth® and 2.4 GHz wireless communication. For easy, onsite positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces. Load Ranger can be completely wireless with six individual weigh pads with integrated weight displays and an optional remote weight indicator, or systems can include up to 14 weigh pads joined via cable with wireless capability to an optional remote indicator. Load Ranger is adaptable for many applications and provides quick axle and weight readouts.
Rice Lake Scales > Wheel Weighing Scales

Legal For Trade
(212835 - 22,000 x 10 lb
Model Only)

Have Questions?

email Us

Our Staff will be glad to help

Load Ranger wheel weigh pads are vehicle weighing scales ideal for mobile and temporary applications. Load Ranger wireless wheel pads offer an adaptable solution for vehicle weighing. With unmatched accuracy, Load Ranger wireless wheel pads capture wheel or axle weights, either individually or in sets of up to 14 pads. The built-in weight indicator is equipped with industrial Bluetooth® and 2.4 GHz wireless communication. For easy, onsite positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces. Load Ranger can be completely wireless with six individual weigh pads with integrated weight displays and an optional remote weight indicator, or systems can include up to 14 weigh pads joined via cable with wireless capability to an optional remote indicator. Load Ranger is adaptable for many applications and provides quick axle and weight readouts.

Load Ranger wireless wheel pads offer an adaptable, high accuracy solution for vehicle weighing, with unmatched performance. For easy, onsite positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces. The built-in weight display is equipped with a 2.4Ghz RF industrial radio communication for transmitting data wirelessly to the optional remote touchscreen indicator up to 160 ft away.

Law Enforcement Approved

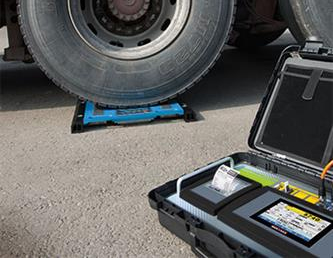

Load Ranger Wheel Pad Scale Rice Lake Weighing Systems offers a portable scale option made to help law enforcement protect the roads from overload damage and unsafe conditions. Load Ranger wheel weigh pads are vehicle weighing scales ideal for mobile and temporary applications. Load Ranger gives on-the-spot verification for direct enforcement of vehicle weight limitations.

Load Ranger has NTEP Class IIII approval to write legal tickets based on weight in authorized locations. This saves your department time and money by not having to drive to an offsite certified truck scale.

Why chose Load Ranger?

The built-in weight indicator of each Load Ranger wheel pad is equipped with an industrial Bluetooth with 2.4GHz wireless communication. To simplify operation, the Load Ranger wheel pads can be paired with an optional digital weight indicator with color touch screen and thermal printer fitted in an ABS plastic transport case. The optional digital weight indicator features axle weighing software that sums axle weights to eliminate human error and prints off a totalized ticket in real time for the officer’s records.

Higher approved weight capacity and finer resolution of 22,000 x 20 lb
Integrated ramps fitted with non-slip rubber base
Internal rechargeable battery with 40 hours of battery life
Ergonomic transport handle

Load Ranger Cart: For larger jobs, the Load Ranger cart can hold up to six Load Ranger wheel pads and one Load Ranger remote indicator.

Rice Lake Load Ranger S-Series 2.4Ghzs
Wireless Wheel Weighing Scales

Model

	Rice Lake 212108 Load Ranger Remote Indicator 2G4 with Integrated Printer in Carrying Case, add $1,826.00
	Rice Lake 182053 Paper Roll,57mm x30m AI-1 12mm Core 51mm OD, RPT57C, for Load Ranger printer, RL-HPJ Pallet Jack Scale Sold by the Roll, add $2.85
	Rice Lake 192591 Power Adapter,Load Ranger Indicator External 110-230 VAC IN, 12 VDC Out, add $85.50
	Rice Lake 181881 Load Range Aluminum Ramp for Load Ranger MD (22 in x 20 in) Models , add $238.00
	Rice Lake 185064 Power Supply, 0.35A 100-240VAC input, 5.0-14.4VDC, Max 1.0A Output Load Ranger Wireless Wheel Pads, Battery Charger for NiMH/NiCd Batteries, UL Approved, add $103.40
	Rice Lake 190916 CABLE, Load Ranger RS485 10M, RS485 to connect between wheel weighing pads M12 connectors, add $165.75
	Rice Lake 188744 CABLE, RS485 Load Ranger 10M, RS485 to connect between a wheel pad and a RL-AI indicator M12 connectors, 1 male and 1 female Vendor PN 14CAVO485, add $165.75

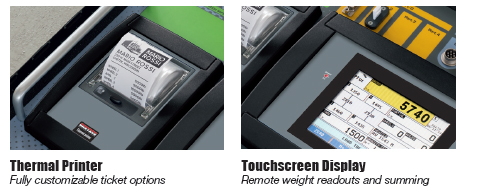

Touchscreen Indicator To simplify operation, Load Ranger wheel weigh pads can be paired with a touchscreen digital weight indicator and thermal printer fitted in an ABS plastic transport case. This all-in-one solution allows remote weight summing of wheel pads to capture wheel or axle weights, either individually or in sets of up to 14 pads

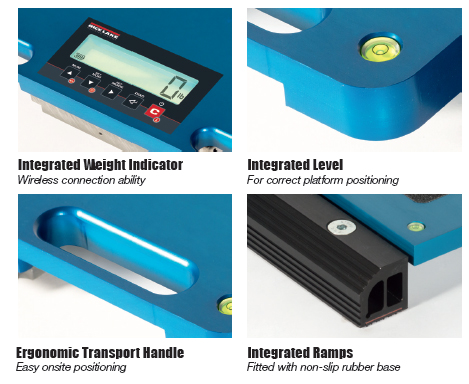

Integrated weight display with protective cover: Wireless connection ability
Integrated Level: For correct platform positioning
Ergonomic Transport Handle: Easy on-site positioning
Integrated Ramps: Fitted with non-slip rubber base
Standard Features

Up to 6 individual pads (3 sets) per system, completely wireless
Up to 14 individual pads (7 sets) maximum per system, pairs must be joined with Y-cables and communicate wirelessly to the indicator
Industrial RF radio module to communicate with indicator
Integrated wheels and nonslip rubber under platform
Internal rechargeable battery with 40 hours of battery life
Built-in indicator on each scale with 1 in character display
IP67 rating
Cover plate protects built-in indicator

Optional remote indicator with integrated printer in carrying case:

Carrying case: 1 ft x 1 ft 6 in x 7 in
Backlit graphic display with touchscreen technology
Internal battery with 10 hours of battery life
Real-time clock
Permanent data storage
24-bit A/D converter, up to 2,300 conversions per second
One RS-232 serial port
Thermal printer
ABS transport case

Wheel weighing software:

Multi-scale function mode weighs with up to 14 individual pads (seven sets)
Static axle weighing function, up to two channels
Calculation of center of gravity
Semi-automatic and preset tare
Selection of displayed data on LCD touchscreen
1,000 field database
Print and display list of last 3,500 vehicles

Options/Accessories

Leveling modules
Aluminum ramps
NTEP Class IIII Certified Versions (Select sizes and capacities only, consult factory for more info)

Specifications Chart

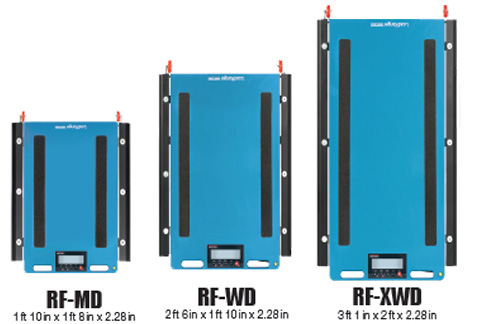

Model	Load Ranger 2G4-MD					Load Ranger 2G4-WD				Load Ranger 2G4-XWD
	212096	212097	212098	212099	212100	212101	212102	212103	212835	212104	212105	212106	212107
	$1,904.85	$1,904.85	$1,904.85	$2,070.85	$2,070.85	$2,386.25	$2,386.25	$2,386.25	$2,886.40	$2,886.40	$2,886.40	$2,886.40	$2,886.40
Capacity x Readability	3,300 x 1 lb	6,600 x 2 lb	13,200 x 5 lb	22,000 x 10 lb	33,000 x 10 lb	13,200 x 5 lb	22,000 x 10 lb	33,000 x 10 lb	22,000 x 10 lb	13,200 x 5 lb	22,000 x 10 lb	33,000 x 10 lb	44,000 x 20 lb
Size W x L	22 in x 20 in H 2.28 in (564 mm x 511 mm x 58 mm)					30 in x 22 in H 2.28 in (750 mm x 561 mm x 58 mm)				37 in x 24 in H 2.28 in (950 mm x 611 mm x 59 mm)
Legal For Trade	-					-			YES NTEP Class IIII	-
Construction	Aluminum alloy
Display	1 in character display on each scale
System Accuracy	0.05% of rated capacity
Power Supply	Rechargeable battery Approximately 40 hours of battery life Includes uL approved AC wall adaptor
Operating Temperature	14^oF to 104^oF (-10^oC to 40^oC)
Storage Temperature	-4^oF to 140^oF (-20^oC to 60^oC)
Rating	IP67
Warranty	2 year limited warranty

Set of 2 Load Ranger RF with 212108 Remote Touchscreen Indicator

Model	Load Ranger 2G4-MD					Load Ranger 2G4-WD				Load Ranger 2G4-XWD
	212096-X2	212097-X2	212098-X2	212099-X2	212100-X2	212101-X2	212102-X2	212103-X2	212835-X2	212104-X2	212105-X2	212106-X2	212107-X2
	$5,635.70	$5,635.70	$5,635.70	$5,967.70	$5,967.70	$6,598.50	$6,598.50	$6,598.50	$7,598.80	$7,598.80	$7,598.80	$7,598.80	$7,598.80
Included	2 x 212096 1 x 212108	2 x 212097 1 x 212108	2 x 212098 1 x 212108	2 x 212099 1 x 212108	2 x 212100 1 x 212108	2 x 212101 1 x 212108	2 x 212102 1 x 212108	2 x 212103 1 x 212108	2 x 212835 1 x 212108	2 x 212104 1 x 212108	2 x 212105 1 x 212108	2 x 212106 1 x 212108	2 x 212107 1 x 212108
Capacity x Readability	set of Two 3,300 x 1 lb ea	set of Two 6,600 x 2 lb ea	set of Two 13,200 x 5 lb ea	set of Two 22,000 x 10 lb ea	set of Two 33,000 x 10 lb ea	set of Two 13,200 x 5 lb ea	set of Two 22,000 x 10 lb ea	set of Two 33,000 x 10 lb ea	set of Two 22,000 x 10 lb ea	set of Two 13,200 x 5 lb ea	set of Two 22,000 x 10 lb ea	set of Two 33,000 x 10 lb ea	set of Two 44,000 x 20 lb ea
Total Capacity x Readability	6,600 x 1 lb	13,200 x 2 lb	26,400 x 5 lb	44,000 x 10 lb	66,000 x 10 lb	26,400 x 5 lb	44,000 x 10 lb	66,000 x 10 lb	44,000 x 10 lb	26,400 x 5 lb	44,000 x 10 lb	66,000 x 10 lb	88,000 x 20 lb
Size W x L	22 in x 20 in H 2.28 in (564 mm x 511 mm x 58 mm)					30 in x 22 in H 2.28 in (750 mm x 561 mm x 58 mm)				37 in x 24 in H 2.28 in (950 mm x 611 mm x 59 mm)
Legal For Trade	-					-			YES NTEP Class IIII	-
Construction	Aluminum alloy
Display	1 in character display on each scale
System Accuracy	0.05% of rated capacity
Power Supply	Rechargeable battery Approximately 40 hours of battery life Includes uL approved AC wall adaptor
Operating Temperature	14^oF to 104^oF (-10^oC to 40^oC)
Storage Temperature	-4^oF to 140^oF (-20^oC to 60^oC)
Rating	IP67
Warranty	2 year limited warranty

Set of 4 Load Ranger RF with 212108 Remote Touchscreen Indicator

Model	Load Ranger 2G4-MD					Load Ranger 2G4-WD				Load Ranger 2G4-XWD
	212096-X4	212097-X4	212098-X4	212099-X4	212100-X4	212101-X4	212102-X4	212103-X4	212835-X4	212104-X4	212105-X4	212106-X4	212107-X4
	$9,445.40	$9,445.40	$9,445.40	$10,109.40	$10,109.40	$11,371.00	$11,371.00	$11,371.00	$13,371.60	$13,371.60	$13,371.60	$13,371.60	$13,371.60
Included	4 x 212096 1 x 212108	4 x 212097 1 x 212108	4 x 212098 1 x 212108	4 x 212099 1 x 212108	4 x 212100 1 x 212108	4 x 212101 1 x 212108	4 x 212102 1 x 212108	4 x 212103 1 x 212108	4 x 212835 1 x 212108	4 x 212104 1 x 212108	4 x 212105 1 x 212108	4 x 212106 1 x 212108	4 x 212107 1 x 212108
Capacity x Readability	set of Four 3,300 x 1 lb ea	set of Four 6,600 x 2 lb ea	set of Four 13,200 x 5 lb ea	set of Four 22,000 x 10 lb ea	set of Four 33,000 x 10 lb ea	set of Four 13,200 x 5 lb ea	set of Four 22,000 x 10 lb ea	set of Four 33,000 x 10 lb ea	set of Four 22,000 x 10 lb ea	set of Four 13,200 x 5 lb ea	set of Four 22,000 x 10 lb ea	set of Four 33,000 x 10 lb ea	set of Four 44,000 x 20 lb ea
Total Capacity x Readability	13,200 x 1 lb	26,400 x 2 lb	52,800 x 5 lb	88,000 x 10 lb	132,000 x 10 lb	52,800 x 5 lb	88,000 x 10 lb	132,000 x 10 lb	88,000 x 10 lb	52,800 x 5 lb	88,000 x 10 lb	132,000 x 10 lb	176,000 x 20 lb
Size W x L	22 in x 20 in H 2.28 in (564 mm x 511 mm x 58 mm)					30 in x 22 in H 2.28 in (750 mm x 561 mm x 58 mm)				37 in x 24 in H 2.28 in (950 mm x 611 mm x 59 mm)
Legal For Trade	-					-			YES NTEP Class IIII	-
Construction	Aluminum alloy
Display	1 in character display on each scale
System Accuracy	0.05% of rated capacity
Power Supply	Rechargeable battery Approximately 40 hours of battery life Includes uL approved AC wall adaptor
Operating Temperature	14^oF to 104^oF (-10^oC to 40^oC)
Storage Temperature	-4^oF to 140^oF (-20^oC to 60^oC)
Rating	IP67
Warranty	2 year limited warranty

Set of 6 Load Ranger RF with 212108 Remote Touchscreen Indicator

Model	Load Ranger 2G4-MD					Load Ranger 2G4-WD				Load Ranger 2G4-XWD
	212096-X6	212097-X6	212098-X6	212099-X6	212100-X6	212101-X6	212102-X6	212103-X6	212835-X6	212104-X6	212105-X6	212106-X6	212107-X6
	$13,255.10	$13,255.10	$13,255.10	$14,251.10	$14,251.10	$16,143.50	$16,143.50	$16,143.50	$19,144.40	$19,144.40	$19,144.40	$19,144.40	$19,144.40
Included	6 x 212096 1 x 212108	6 x 212097 1 x 212108	6 x 212098 1 x 212108	6 x 212099 1 x 212108	6 x 212100 1 x 212108	6 x 212101 1 x 212108	6 x 212102 1 x 212108	6 x 212103 1 x 212108	6 x 212835 1 x 212108	6 x 212104 1 x 212108	6 x 212105 1 x 212108	6 x 212106 1 x 212108	6 x 212107 1 x 212108
Capacity x Readability	set of Six 3,300 x 1 lb ea	set of Six 6,600 x 2 lb ea	set of Six 13,200 x 5 lb ea	set of Six 22,000 x 10 lb ea	set of Six 33,000 x 10 lb ea	set of Six 13,200 x 5 lb ea	set of Six 22,000 x 10 lb ea	set of Six 33,000 x 10 lb ea	set of Six 22,000 x 10 lb ea	set of Six 13,200 x 5 lb ea	set of Six 22,000 x 10 lb ea	set of Six 33,000 x 10 lb ea	set of Six 44,000 x 20 lb ea
Total Capacity x Readability	19,800 x 1 lb	39,600 x 2 lb	79,200 x 5 lb	132,000 x 10 lb	198,000 x 10 lb	79,200 x 5 lb	132,000 x 10 lb	198,000 x 10 lb	132,000 x 10 lb	79,200 x 5 lb	132,000 x 10 lb	198,000 x 10 lb	264,000 x 20 lb
Size W x L	22 in x 20 in H 2.28 in (564 mm x 511 mm x 58 mm)					30 in x 22 in H 2.28 in (750 mm x 561 mm x 58 mm)				37 in x 24 in H 2.28 in (950 mm x 611 mm x 59 mm)
Legal For Trade	-					-			YES NTEP Class IIII	-
Construction	Aluminum alloy
Display	1 in character display on each scale
System Accuracy	0.05% of rated capacity
Power Supply	Rechargeable battery Approximately 40 hours of battery life Includes uL approved AC wall adaptor
Operating Temperature	14^oF to 104^oF (-10^oC to 40^oC)
Storage Temperature	-4^oF to 140^oF (-20^oC to 60^oC)
Rating	IP67
Warranty	2 year limited warranty
