Specifications Chart
|

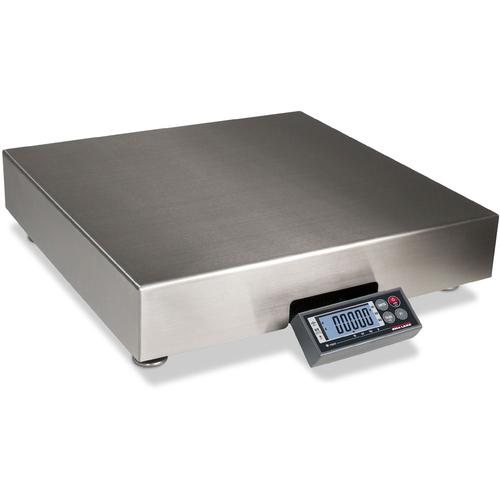

The BenchPro Series family of digital bench scales is ideal for many diverse industries and markets around the world. As a general purpose scale, the BenchPro offers many benefits, including the ability to tare containers and battery operation. Because of these extra features not typically found in traditional shipping, point of sale and postal scales, the BenchPro may be used for additional applications including retail, restaurant and deli, manufacturing, inventory control and more.
Standard Features
- Simple operation, easy to set-up, configure and calibrate
- Large product offering to suite many stand alone and PC Interface applications
- Large six-digit backlight LCD display with 1in (29mm) characters

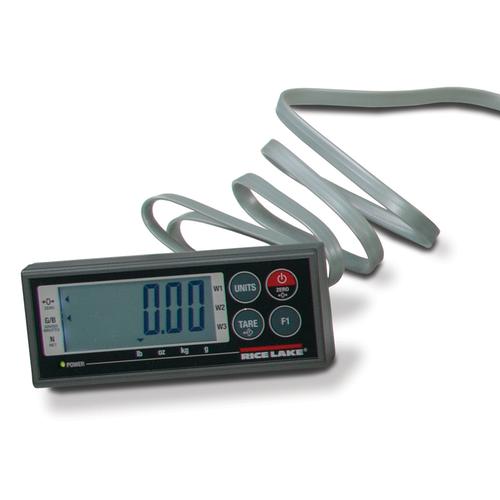

- Operator Display-Four button touch key panel with Units, Tare, On/Off, F1 selection. Designed with heavy duty tempered glass keypad which provides increased protection against scratches & drops, repels water, dust and oil
- Customer Display-optional display with no keyboard
- Alternate Calibration Points – Perform calibration using weights less than full capacity
- Units of Measure – Model/Capacity dependent provides selectable alternate modes of measurement in lb, kg, oz, grams or lb:oz (for use as postal scale only)
- Powered USB HID Point of Sale Interface – Plug and Play USB Interface, provides power and communications to iDimension Series and popular shipping software programs like FedEx Ship Manager and UPS Worldship
- Nine pin RS-232 Interface for legacy software program
- Interface protocols include USB HID POS, SMA, NCI, 3835, ECR, 8213 and EH. Other Protocols may be available Please Call/Email (800-832-0055/[email protected]) us to check any other Protocol
- Four AA alkaline battery operation for portability, BP 1214 Series only
- Display Mounting – Front base mount as standard with optional desktop pole mount and column base mount (BP 1214 Series Only)
- Gravitational compensation allows for adjustment of factory calibration to meet your local gravity setting, non-approved
|
|
|
|
|
174879 |
182993
BP-1216-75S |
182391
BP-1818-50S |
182378
BP-1818-75S |
182382
BP-1818-150S |
182395
BP-2020-150S |
182399
BP-2424-150S |
| Price |
$493.75
|
$885.30
|
$1,162.20
|
$1,162.20
|
$1,162.20
|
$1,302.60
|
$1,435.20
|
| Capacity x Readability |
150 x 0.05 lb |
150 x 0.05 lb |
100 x 0.02 lb |
150 x 0.05 lb |
300 x 0.1 lb |
300 x 0.1 lb |
300 x 0.1 lb |
| 75 x 0.02 kg |
75 x 0.02 kg |
50 x 0.01 kg |
75 x 0.02 kg |
150 x 0.05 kg |
150 x 0.05 kg |
150 x 0.05 kg |
| Pan Size |
12 x 14 in |
12 x 16 in |
18 x 18 in |
18 x 18 in |
18 x 18 in |
20 x 20 in |
24 x 24 in |
| Legal for Trade |
NTEP COC # 17-002
Canada Weights and Measures: AM - 6050 |
| Dynamic Response |
Response time for stable weight: 0 - 1,000d, 1,000 ms, maximum mean average - 1,000d +, 1,500 ms, maximum mean average |
| Internal Resolution |
500,000 internal count minimum |
| Overload Protection |
Corner & center overload protection |
| Power |
In-line Power Supply (included)
Input: 100-240 VAC, +10% -15%, 3-wire w/ground
Standard terminated with USA 3-prong plug
Output: 12V at .1 Amps DC minimum
Frequency: 50/60 Hz +/-3 Hz, standard
Approvals: UL, CE, EN, CUL |
| Battery Power |
Four AA alkaline batteries, 6 V, with low battery indication at 4.3 volts (not included)
Battery Life: 50-250 hrs |
- |
| USB HID |
USB 2.0 full speed; Vendor ID: 1C19; Product ID: 0002 |
| Construction |
Die-cast aluminum load bridge and base housing with stainless steel weight platter |
Powder coat painted mild steel base plate and load bridge with stainless steel weight platter |
| Display |
Minimum key press life of 500,000 cycles,
ABS plastic housing
6 annunciators to indicate Zero, Gross/Brutto, Net, W1/W2/W3 multi-range
4 buttons: Units, Tare, On/Off, F1 |
| RS-232 Cable |
Included , 10 ft DB 9-pin male to female, straight pass through |
| USB Cable |
Included , 46 in (1168.4 mm) A/B type USB cable |
| Warranty |
Two-year limited warranty |
|
