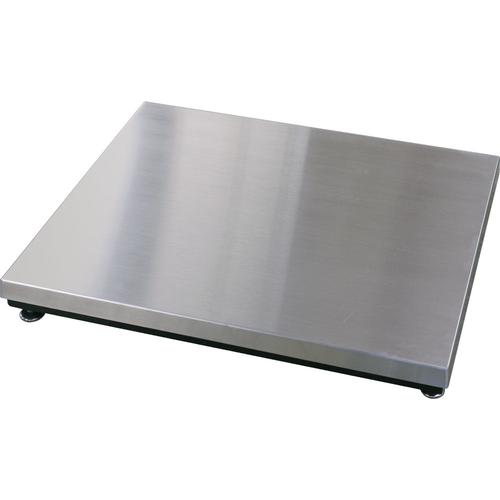

Rice Lake 381-Synergy Low-Profile BenchMark Bench Scale

The BenchMark LP low-profile bench scale offers an overall height of just two-to-three inches. The more subtle presence of the LP is an attractive option for commercial situations, or other areas in need of a less obtrusive platform. Gain the same accuracy and performance as our standard benchmark models in a more refined and inconspicuous package.

Indicator:
381-Synergy
Legal For Trade* Canada Measurement*
Have Questions?
Call USoremail Us
Our Staff will be glad to help

Specifications Chart

Specifications Chart
Base Only
Rice Lake 381-Synergy Low-Profile BenchMark Bench Scale

Model

The BenchMark LP low-profile bench scale offers an overall height of just two-to-three inches. The more subtle presence of the LP is an attractive option for commercial situations, or other areas in need of a less obtrusive platform. Gain the same accuracy and performance as our standard benchmark models in a more refined and inconspicuous package.
    RoughDeck® low-profile, bench Scale System with 381-Synergy Indicator
  • Package includes: BenchMark HP LP low-profile bench scale, 20 ft of EL147 load cell cable, Two-year limited warranty
  • Package is factory-calibrated for 5,000 divisions
    Scale
  • Mild steel base construction
  • 304 stainless steel cover
  • ABS junction box
  • Four planar beam load cells
  • Adjustable leveling feet
  • 20 ft of EL147 load cell cable
  • Holes in lower frame for mounting scale without adjustable leveling feet
    381 Synergy Indicator
  • LCD display
  • Battery powered
  • Push-button and keyed tare
  • Two communication ports
  • Five tactile buttons
  • Configurable print formats
  • ABS enclosure


Performance Meets Economy The 381 Synergy Series digital weight indicator is designed to provide reliable operation of straightforward weighing systems, including material handling and warehouse scales. The LCD weight display is clearly visible to operators, allowing the 381 Synergy to be mounted almost anywhere. A five-button keypad simplifies operation, and RS-232 and USB ports provide connection to peripheral equipment.

Reliable Battery-backed Performance
The 381 Synergy has an ABS plastic enclosure with two different battery options, enabling you to create the ideal portable weighing solution for your operations. The AA battery-operated model provides up to 40 hours of operation and has an IP54 rating. The Nickel Metal Hydride (NiMH) battery-operated model provides up to 80 hours of operation with an IP66 rating. Both battery versions have an optional external power adapter.

    Indicator
  • LCD display
  • Battery powered
  • Push-button and keyed tare
  • Two communication ports
  • Five tactile buttons
  • Configurable print formats
  • ABS enclosure



Model 97662-381 97663-381 97664-381 97665-381 97666-381 97667-381
Rice Lake 97662-381 LP Be
$1,337.05
Rice Lake 97663-381 LP Be
$1,360.45
Rice Lake 97664-381 LP Be
$1,387.75
Rice Lake 97665-381 LP Be
$1,547.65
Rice Lake 97666-381 LP Be
$1,567.15
Rice Lake 97667-381 LP Be
$1,594.45
Capacity X Readability 100 x 0.02 lb
50 x 0.01 kg
250 x 0.05 lb
125 x 0.02 kg
500 x 0.1 lb
250 x 0.05 kg
100 x 0.02 lb
50 x 0.01 kg
250 x 0.05 lb
125 x 0.02 kg
500 x 0.1 lb
250 x 0.05 kg
Pan Size 18 x 18 inch 18 x 18 inch 18 x 18 inch 24 x 24 inch 24 x 24 inch 24 x 24 inch
Legal For Trade YES YES YES YES YES YES
Legal For Trade Base: NTEP CC 08-017, Class III 5,000 d - Measurement Canada AM 5660
Indicator: NTEP CC 21-051 Class III/IIIL, 10,000 d - Measurement Canada AM-6184
Power AA Alkaline (40 hours)
Load Cell Base: IP65 aluminum, Indicator: IP54 ABS
End Load Capacity 60% of full scale capacity
Cable Length 20 ft (6.1 m) for connecting junction box to indicator
Scale Frame Mild steel powder coated black
Scale Cover AISI304L, straight line finish, Ra=45 +/- 10
Load Cell, Rated Output IP65 aluminum, 1.0 mV/V ±10%
Dimensions L x W x H1 (H2) 18 x 18 × 2.63 in (1.67 in*) 18 x 18 × 2.50 in (1.74 in*) 18 x 18 × 2.69 in (1.93 in*) 24 × 24 × 2.66 in (1.69 in*) 24 × 24 × 2.83 in (2.07 in* 24 × 24 × 3.02 in (2.26 in*)
Indicator Model 381 Synergy (215695)
A/D Sample Rate 5, 6, 10, 12, 20, 25, 40, 50, 80, 100Hz, software selectable
Communication Ports One RS-232 (three-wire)
One USB 2.0
Annunciators g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net
Display Operating Temp. 32° to 100°F (0° to 40°C)
Keys/Buttons 5 tactile buttons
Dimensions (L × W × H) 8.50 × 3.17 × 5.06 in
(215.8 × 80.5 × 128.5 mm)
Keys/Buttons 5 tactile buttons
Temperature Range Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)
Warranty Two-year limited
*Height without adjustable leveling feet


Model 97668-381 97669-381 97670-381 97671-381
Rice Lake 97668-381 LP Be
$1,797.25
Rice Lake 97669-381 LP Be
$1,847.95
Rice Lake 97670-381 LP Be
$2,276.95
Rice Lake 97671-381 LP Be
$2,323.75
Capacity 500 x 0.1 lb
250 x 0.05 kg
1000 x 0.2 lb
500 x 0.1 kg
500 x 0.1 lb
250 x 0.05 kg
1000 x 0.2 lb
500 x 0.1 kg
Pan Size 30 x 30 inch 30 x 30 inch 36 x 36 inch 36 x 36 inch
Legal For Trade YES NO YES NO
Legal For Trade Base: NTEP CC 08-017, Class III 5,000 d - Measurement Canada AM 5660
Indicator: NTEP CC 21-051 Class III/IIIL, 10,000 d - Measurement Canada AM-6184
Power AA Alkaline (40 hours)
Load Cell Base: IP65 aluminum, Indicator: IP54 ABS
End Load Capacity 60% of full scale capacity
Cable Length 20 ft (6.1 m) for connecting junction box to indicator
Scale Frame Mild steel powder coated black
Scale Cover AISI304L, straight line finish, Ra=45 +/- 10
Load Cell, Rated Output IP65 aluminum, 1.0 mV/V ±10%
Dimensions L x W x H1 (H2) 30 × 30 × 3.02 in (2.26 in*) 30 × 30 × 3.47 in (2.70 in*) 36 × 36 × 3.02 in (2.26 in*) 36 × 36 × 3.47 in (2.70 in*)
Indicator Model 381 Synergy (215695)
A/D Sample Rate 5, 6, 10, 12, 20, 25, 40, 50, 80, 100Hz, software selectable
Communication Ports One RS-232 (three-wire)
One USB 2.0
Annunciators g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net
Display Operating Temp. 32° to 100°F (0° to 40°C)
Keys/Buttons 5 tactile buttons
Dimensions (L × W × H) 8.50 × 3.17 × 5.06 in
(215.8 × 80.5 × 128.5 mm)
Keys/Buttons 5 tactile buttons
Temperature Range Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)
Warranty Two-year limited
*Height without adjustable leveling feet








Rice Lake Low-Profile BenchMark Bench Scale Base

The BenchMark LP low-profile bench scale offers an overall height of just two-to-three inches. The more subtle presence of the LP is an attractive option for commercial situations, or other areas in need of a less obtrusive platform. Gain the same accuracy and performance as our standard benchmark models in a more refined and inconspicuous package.
Rice Lake Low-Profile BenchMark Bench Scale Base
Base Only Indicator Sold Separately
Call (800)832-0055 for Help
Have Questions?
Call USoremail Us
Our Staff will be glad to help
Legal For Trade Canada Measurement
Specifications Chart
Please Call (800)832-0055
or Email Us for help
Ordering this Scale
Indicator Column\Stand
Rice Lake 19352 Indicator Floor Stand  Steel Painted 36.3in
Rice Lake 19352 Indicator Floor Stand Steel Painted 36.3in, add $200.00
Rice Lake 126384 Indicator Floor Stand  Steel Painted 48 inch
Rice Lake 126384 Indicator Floor Stand Steel Painted 48 inch, add $220.00
Rice Lake BenchMark LP
Low-Profile Bench Scale Base
Price From:


Select Indicator (Must be added with scale)
Rice Lake 381 Synergy 215695 LCD Digital Weight Legal for trade IP54 AA Alkaline Battery
Rice Lake 381 Synergy 215695 LCD Digital Weight Legal for trade IP54 AA Alkaline Battery, add $256.75
Rice Lake 381 Synergy 215696 LCD Digital Weight Legal for trade IP66 NiMH Battery
Rice Lake 381 Synergy 215696 LCD Digital Weight Legal for trade IP66 NiMH Battery, add $375.25
Rice Lake 120 131923 LED Digital Weight Legal for Trade Indicator
Rice Lake 120 131923 LED Digital Weight Legal for Trade Indicator, add $359.45
 Rice Lake 120 Plus 103632 LCD Digital Weight Legal for trade Indicator
Rice Lake 120 Plus 103632 LCD Digital Weight Legal for trade Indicator, add $470.05
 Rice Lake 65137 IQ Plus 210 Stainless Steel LED Digital Weight Indicator 115 V
Rice Lake 65137 IQ Plus 210 Stainless Steel LED Digital Weight Indicator 115 V, add $572.75
 Rice Lake 480 LED Legend Series Digital Weight Indicator
Rice Lake 480 LED Legend Series Digital Weight Indicator, add $691.25
 Rice Lake 482 LCD Legend Series Digital Weight Indicator
Rice Lake 482 LCD Legend Series Digital Weight Indicator, add $791.70
Rice Lake 882IS Intrinsically-Safe 195091 Digital Weight Indicator with Tilt Stand - Power Sold Separate
Rice Lake 882IS Intrinsically-Safe 195091 Digital Weight Indicator with Tilt Stand - Power Sold Separate, add $1,189.50

For a full list of Rice Lake Indicators Click Here

The BenchMark LP low-profile bench scale offers an overall height of just two-to-three inches. The more subtle presence of the LP is an attractive option for commercial situations, or other areas in need of a less obtrusive platform. Gain the same accuracy and performance as our standard benchmark models in a more refined and inconspicuous package.
    RoughDeck® low-profile, bench Scale System with 381-Synergy Indicator
  • Package includes: BenchMark HP LP low-profile bench scale, 20 ft of EL147 load cell cable, Two-year limited warranty
  • Package is factory-calibrated for 5,000 divisions
    Scale
  • Mild steel base construction
  • 304 stainless steel cover
  • ABS junction box
  • Four planar beam load cells
  • Adjustable leveling feet
  • 20 ft of EL147 load cell cable
  • Holes in lower frame for mounting scale without adjustable leveling feet
Model 97662 97663 97664 97665 97666 97667 97668 97669 97670 97671
Price Rice Lake 97662 LP Benchm
$1,080.30
Rice Lake 97663 LP Benchm
$1,103.70
Rice Lake 97664 LP Benchm
$1,131.00
Rice Lake 97665 LP Benchm
$1,290.90
Rice Lake 97666 LP Benchm
$1,310.40
Rice Lake 97667 LP Benchm
$1,337.70
Rice Lake 97668 LP Benchm
$1,540.50
Rice Lake 97669 LP Benchm
$1,591.20
Rice Lake 97670 LP Benchm
$2,020.20
Rice Lake 97671 LP Benchm
$2,067.00
Capacity 100 lb (50 kg) 250 lb (125 kg) 500 lb (250 kg) 100 lb (50 kg) 250 lb (125 kg) 500 lb (250 kg) 500 lb (250 kg) 1,000 lb (500 kg) 500 lb (250 kg) 1,000 lb (500 kg)
Pan Size 18 x 18 inch 18 x 18 inch 18 x 18 inch 24 x 24 inch 24 x 24 inch 24 x 24 inch 30 x 30 inch 30 x 30 inch 36 x 36 inch 36 x 36 inch
Legal For Trade YES YES YES YES YES YES YES NO YES NO
Legal For Trade NTEP CC 08-017, Class III 5,000 d
Measurement Canada AM 5660
Load Cell, Rated Output IP65 aluminum, 1.0 mV/V ±10%
End Load Capacity 60% of full scale capacity
Cable Length 20 ft (6.1 m) for connecting junction box to indicator
Scale Frame Mild steel powder coated black
Scale Cover AISI304L, straight line finish, Ra=45 +/- 10
Warranty Two-year limited
Load Cell, Rated Output IP65 aluminum, 1.0 mV/V ±10%
Dimensions L x W x H1 (H2) 18 x 18 × 2.63 in (1.67 in*) 18 x 18 × 2.50 in (1.74 in*) 18 x 18 × 2.69 in (1.93 in*) 24 × 24 × 2.66 in (1.69 in*) 24 × 24 × 2.83 in (2.07 in* 24 × 24 × 3.02 in (2.26 in*) 30 × 30 × 3.02 in (2.26 in*) 30 × 30 × 3.47 in (2.70 in*) 36 × 36 × 3.02 in (2.26 in*) 36 × 36 × 3.47 in (2.70 in*)
*Height without adjustable leveling feet
