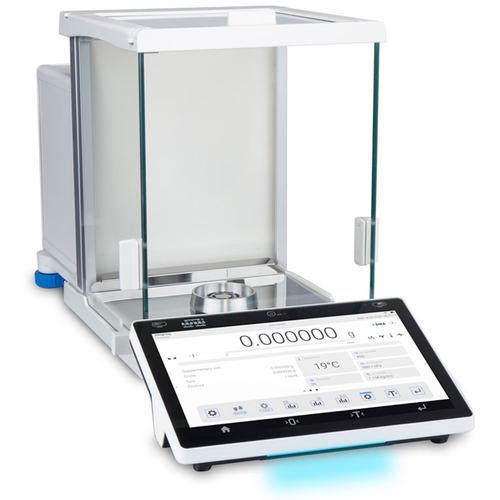

RADWAG XA 5Y.M Micro Balances	Authorized Dealer
New generation of microbalances XA 5Y is designed to meet the highest requirements for determination of mass. Its built-in system of automatic internal adjustment/calibration maintains excellent measurement reliability and accuracy and a semi-automatic - LevelSENSING Leveling system
Lab Balances

	Microbalances with adapter for pipettes calibration
	Stent Microbalance

Have Questions?

email Us

Our Staff will be glad to help

Specifications

Pipettes Calibration

Old MYA 4Y Models info

RADWAG XA-5Y Analytical Balances

	RADWAG SAL/STONE/C Granite Anti-Vibration Table 1000 x 650 x 815 mm Powder Coated Steel, add $2,303.50
	RADWAG SAL/STONE/H Granite Anti-Vibration Table 1000 x 650 x 815 mm Stainless Steel, add $2,840.70
	RADWAG PA-04/H PA-04/H Automatic Feeder for RADWAG 5Y scales, add $8,118.35
For XA 6.5Y.M.S Only
	RADWAG XA 6.5Y.M.A.S Stent Micro Balance 6 g x 0.001 mg, add $15,878.85

New generation of microbalances XA 5Y is designed to meet the highest requirements for determination of mass. Its built-in system of automatic internal adjustment/calibration maintains excellent measurement reliability and accuracy and a semi-automatic - LevelSENSING Leveling system

Safety First

5Y Series Ellipsis Laboratory Balances

Safety First

Audited login methods Fast and secure logout Compliance confirmation:

CFR part 11
GMP
Qualifications
Validations
Quality system

Password
Fingerprint
Face recognition
RFID

Hotspot

No space in your fume cupboard or access to the weighing terminal? Or maybe you want to operate the balance remotely?

Thanks to the hotspot, you can operate the balance on any device previously connected to it. This can be a smartphone, tablet, or computer

Connecting ELLIPSIS
ELLIPSIS will connect you directly to:

smartphone or a tablet (hotspot)
spreadsheet (USB-C, Free Link)
printer (Ethernet, Wi-Fi®, USB-A)
computer (Ethernet, Wi-Fi®, USB-A)
barcode scanner (USB-A)
any large screen (HDMI)
your PC software (Radwag communication protocol)
keyboard and mouse

Ambient Light – one look and everything’s clear

Innovative way of user – balance communication.
It couldn’t be easier: the backlight colour informs you about status, process results, procedures, or alerts.

statuses
process results
procedures
alerts

Working Modes

Looking for more than just weighing?

Weighing - Basic working mode that displays the mass of a sample
Parts counting - Quick counting of samples of similar mass
Checkweighing - Control of sample mass in the set min/ max thresholds
Dosing - Weighing to a target value
Percent weighing - Percent mass control
Density - Determining the density of solids and liquids
Animal weighing - Control of mass change over a set period of time
Formulations - Weighing of predefined ingredients, according to the order described in the formulation
Statistics - Real-time statistics determined from carried out weighings
Pipette calibration - Checking piston pipettes according to customer-specific requirements or ISO 8655
Differential weighing - Analysing the change in mass of a single sample over time
SQC - Statistical mass control with set thresholds
Peak hold - Control of the maximum mass on the pan
Mass control - Statistical control of samples of similar mass
Comparator - Control of mass standards
PGC - Statistical mass measurement in accordance with Packaged Goods Control

RFID

Always the correct choice of a product or ingredient for a formulation.

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. It can also be used to identify a user
* RFID ISO/IEC 14443 Type A, 13.56 MHz

Widgets

Always at hand, grouped so that the essentials never slip away.
Up-to-date information on ambient conditions
Real-time statistics from a series of measurements

Note down your conclusions

One of ELLIPSIS’ innovative features is the ability to add a voice or text note to a series of measurements or a procedure report.
Have you ever wondered if your balance is ready for work?
The Digital Weighing Auditor makes sure it is.
DWA – Digital Weighing Auditor
DWA is a system that monitors:

ambient conditions (temperature, humidity, pressure, and vibration),
balance levelling,
adjustment,
USP compliance,
ionizer operation.

ELLIPSIS signals the results of the digital audit via Ambient Light, pictograms on the home screen, or a speaker.

Such a large chamber, yet still very accurate balance

Work with different labware in a chamber space of 199 x 157 x 218 mm.

Tool-free disassembly of the weighing chamber
Contaminated weighing chamber? You don’t need any tools to disassemble and clean the ELLIPSIS weighing chamber.

Don’t take our word for it

With ELLIPSIS, you can get:

Declaration of conformity
Calibration certificate
IQ, OQ, PQ documents
21 CFR Part 11 qualification
USP compliance qualification
Compliance with the latest version of the Pharmacopoeia

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?
We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

Full data security
Electronic signatures
Validations
Electronic records
Audit trails

Databases

Have you ever failed to record the weighing result?

Operators
Profiles
Products
Weighing records
Alibi
Customers
Formulations
Formulations reports
Density reports
Control reports
SQC statistics
Pipettes
Pipette calibration reports
Series
Minimum weight
Ambient conditions
Warehouses
Printouts
Universal variables
E-signed documents (21 CFR Part 11)
Average tares
Comparison reports
Weight adjustment reports
Mass controls

Handy Library

What was the value of the previous measurement?
ELLIPSIS always displays the history of the last 20 measurements on the slide-out panel. It is also here where the measurement series ready for e-signature, in accordance with 21 CFR Part 11, can be found.

Accessories If you use labware, weigh stents or filters, or want to check your pipette, use the ELLIPSIS accessories available Please call us for more info

Q & A

Do I need additional computer software to make the 5Y series fully compliant with 21 CFR Part 11/ EU GMP Annex 11?
RADWAG advanced-class products, including 5Y series balances, do not require any PC software to meet the requirements of 21 CFR Part 11/ EU GMP Annex 11. The balances are equipped with a built-in 21 CFR module, which has been repeatedly validated in the pharmaceutical industry as fully compliant with the aforementioned regulations.

On the new ELLIPSIS 5Y series balances, can I create a text/printout with any content describing my weighing process?
Yes, this is very easy with the 5Y series. Simply create a non-standard printout and fill it with content that describes your weighing process. You can also use over 400 variables to expand your printout with information from the weighing process (for example, date, sample name, net weight, sd value from a series of measurements, etc.).

Will ELLIPSIS allow me to send the measurement directly to a spreadsheet, such as MS Excel, or other word processor?
Yes, every 5Y series balance gives you the option, when connected to your computer with a USB-C cable, to use the Free Link functionality. Free Link is responsible for sending properly formatted data from the balance directly to the currently open spreadsheet.

Functions

Autotest
Dosing
Percent Weighing
Parts counting
Peak hold
Formulation
Statistics
Checkweighing
IR sensors
GLP Procedures
Animal weighing
Pipettes Calibration
Air density correction
Density determination
Differential weighing
Ambient conditions monitoring
Statistical Quality Control
Packaged Goods Control
ALIBI Memory
Wi-Fi®

Model	XA 6/21.5Y.M WL-109-1006	XA 6.5Y.M WL-109-0019	XA 21/52.5Y.M WL-109-1007	XA 21.5Y.M WL-109-0020	XA 52.5Y.M WL-109-0021	XA 53.5Y.M WL-109-0022
with semi-automatic - LevelSENSING Leveling system	$13,373.90	$10,473.70	$16,595.40	$15,487.85	$14,342.90	$19,359.60
with automatic - Reflex Level System Leveling system	XA 6/21.5Y.M.A WL-109-1003	XA 6.5Y.M.A WL-109-0013	XA 21/52.5Y.M.A WL-109-1007	XA 21.5Y.M.A WL-109-0015	XA 52.5Y.M.A WL-109-0017	XA 53.5Y.M.A WL-109-0018
with automatic - Reflex Level System Leveling system	$15,158.90	$12,258.70	$18,380.40	$17,272.85	$16,127.90	$21,144.60
Capacity x Readability	6 g x 1 µg 21 g x 2 µg	6 g x 1 µg	21 g x 1 µg 52 g x 5 µg	21 g x 1 µg	52 g x 5 µg	53 g x 1 µg
Minimum load	0.1 mg	0.1 mg	0.1 mg	0.1 mg	0.5 mg	0.1 mg
Verification scale interval [e]	1 mg	1 mg	1 mg	1 mg	1 mg	1 mg
Tare range	-21 g	-6.1 g	-52 g	-21 g	-52 g	-53 g
Standard repeatability [5% Max]	1.3 µg	0.8 µg	1.5 µg	1.3 µg	2.2 µg	1.5 µg
Standard repeatability [Max]	3.5 µg	2.5 µg	6 µg	3.5 µg	6 µg	6 µg
Standard minimum weight (USP)	2.6 mg	1.6 mg	3 mg	2.6 mg	4.4 mg	3 mg
Standard minimum weight (U=1%, k=2)	0.26 mg	0.16 mg	0.3 mg	0.26 mg	0.44 mg	0.3 mg
Permissible repeatability [5% Max]	2 µg	1.5 µg	2.4 µg	2 µg	3.4 µg	2.4 µg
Permissible repeatability [Max]	5 µg	3 µg	8 µg	5 µg	8 µg	8 µg
Linearity	+9 µg	+7 µ	+20 µg	+9 µg	+20 µ	+20 µg
Eccentric load deviation	15 µg	7 µg	20 µg	15 µg	20 µg	20 µg
Sensitivity time drift	1x10^-6/YearxRt
Stabilization time	max 3.5 s
Adjustment	internal (automatic)
OIML Class	I
Display	10 in touchscreen
Weighing chamber dimensions	168x160x228 mm
Weighing pan dimensions	ø30 mm
Packaging dimensions	435 x 885 x 540 mm
Net weight	9.8 kg
Gross weight	14.3 kg
Communication interface	USB-A x2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
Power supply	Adapter: 100 or 240V AC 50/60Hz 1A; 15V DC 2,4A Balance: 12 – 15V DC 1,4A max*
Operating temperature	+10 — +40 ^oC
Operating temperature change rate	+0.3^oC/1h (+1^oC/8h)
Relative humidity	40% — 80%
Relative humidity change rate	+1%/h (+4%/8h)

* The power supply can be connected to the socket on the back of the balance housing or to the terminal.

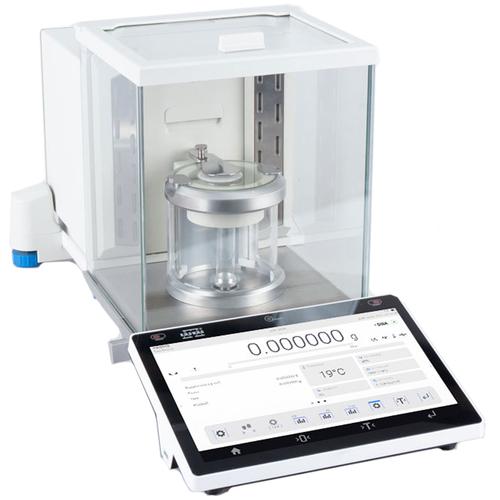

Microbalances with automatic adapter for pipettes calibration

Model	XA 6/21.5Y.M.A.P WL-112-1000	XA 21/52.5Y.M.A.P WL-112-1001	XA 21.5Y.M.A.P WL-112-0001	XA 52.5Y.M.A.P WL-112-0002	XA 53.5Y.M.A.P WL-112-0003
Price	$17,788.80	$21,009.45	$19,897.65	$18,756.95	$25,685.30
Capacity x Readability	6 g x 1 µg 21 g x 2 µg	21 g x 1 µg 52 g x 5 µg	21 g x 1 µg	52 g x 5 µg	53 g x 1 µg
Minimum load	0.1 mg	0.1 mg	0.1 mg	0.5 mg	0.1 mg
Verification scale interval [e]	1 mg	1 mg	1 mg	1 mg	1 mg
Tare range	-21 g	-52 g	-21 g	-52 g	-53 g
Standard repeatability [5% Max]	1.3 µg	1.5 µg	1.3 µg	2.2 µg	1.5 µg
Standard repeatability [Max]	3.5 µg	6 µg	3.5 µg	6 µg	6 µg
Standard minimum weight (USP)	2.6 mg	3 mg	2.6 mg	4.4 mg	3 mg
Standard minimum weight (U=1%, k=2)	0.26 mg	0.3 mg	0.26 mg	0.44 mg	0.3 mg
Permissible repeatability [5% Max]	2 µg	2.4 µg	2 µg	3.4 µg	2.4 µg
Permissible repeatability [Max]	5 µg	8 µg	5 µg	8 µg	8 µg
Linearity	+9 µg	+20 µg	+9 µg	+20 µ	+20 µg
Eccentric load deviation	15 µg	20 µg	15 µg	20 µg	20 µg
Sensitivity time drift	1x10^-6/YearxRt
Stabilization time	max 3.5 s
Adjustment	internal (automatic)
OIML Class	I
Leveling system	automatic - Reflex Level System
Display	10 in touchscreen
Weighing chamber dimensions	199x170x217 mm
Weighing pan dimensions	ø26 mm
Packaging dimensions	765x515x545 mm
Net weight	14.5 kg
Gross weight	18.9 kg
Communication interface	USB-A x2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
Power supply	Adapter: 100 or 240V AC 50/60Hz 1A; 15V DC 2,4A Balance: 12 – 15V DC 1,4A max*
Operating temperature	+10 — +40 ^oC
Operating temperature change rate	+0.3^oC/1h (+1^oC/8h)
Relative humidity	40% — 80%
Relative humidity change rate	+1%/h (+4%/8h)

* The power supply can be connected to the socket on the back of the balance housing or to the terminal.

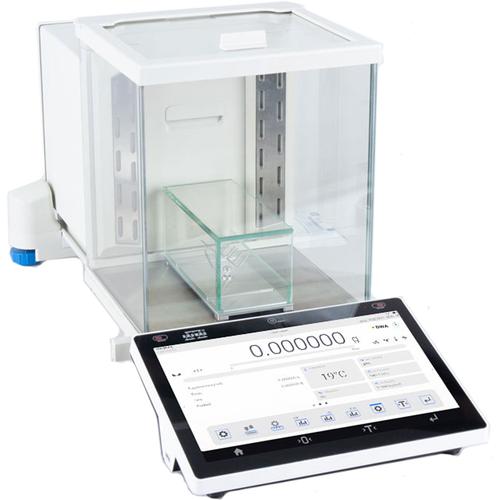

Stent Microbalance

Model	XA 6.5Y.M.A.S WL-109-0026
Price	$15,878.85
Capacity x Readability	6 g x 1 µg
Minimum load	0.1 mg
Verification scale interval [e]	1 mg
Tare range	-6.1 g
Standard repeatability [5% Max]	1.3 µg
Standard repeatability [Max]	3.5 µg
Standard minimum weight (USP)	2.6 mg
Standard minimum weight (U=1%, k=2)	0.26 mg
Permissible repeatability [5% Max]	2 µg
Permissible repeatability [Max]	5 µg
Linearity	+9 µg
Eccentric load deviation	7 µg
Sensitivity time drift	1x10^-6/YearxRt
Stabilization time	max 3.5 s
Adjustment	internal (automatic)
OIML Class	I
Leveling system	automatic - Reflex Level System
Display	10 in touchscreen
Weighing chamber dimensions	199x170x217 mm
Packaging dimensions	765x515x545 mm
Net weight	14.5 kg
Gross weight	18.9 kg
Communication interface	USB-A x2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
Power supply	Adapter: 100 or 240V AC 50/60Hz 1A; 15V DC 2,4A Balance: 12 – 15V DC 1,4A max*
Operating temperature	+10 — +40 ^oC
Operating temperature change rate	+0.3^oC/1h (+1^oC/8h)
Relative humidity	40% — 80%
Relative humidity change rate	+1%/h (+4%/8h)

* The power supply can be connected to the socket on the back of the balance housing or to the terminal.

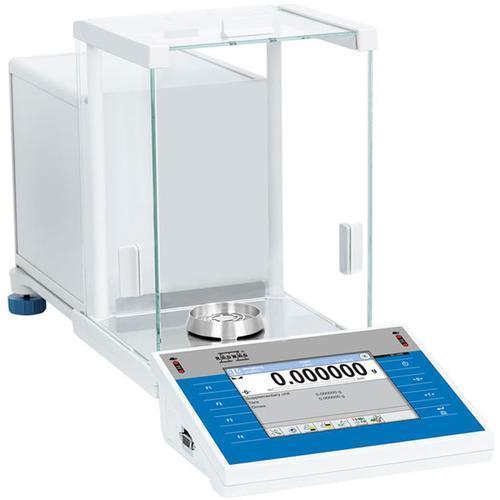

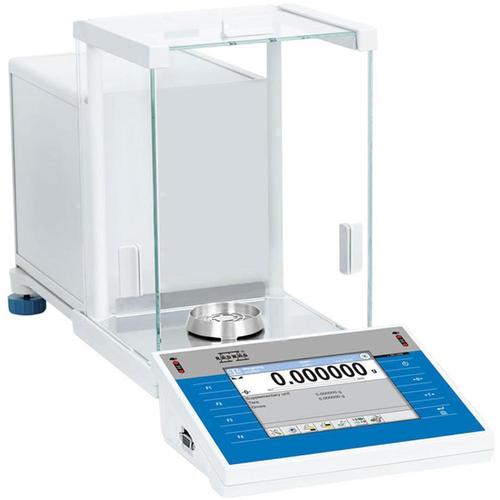

Old MYA 4Y Models

Model w & Auto Level	XA 6.4Y.M PLUS (WL-101-0215)	XA 6/21.4Y.M PLUS (WL-101-1063)	XA 21.4Y.M PLUS (WL-101-0214)	XA 21/52.4Y.M PLUS (WL-101-1064)	XA 52.4Y.M PLUS (WL-101-0216)	XA 53.4Y.M PLUS (WL-101-0226)
Model w & Auto Level
Model w Wireless Terminal & Auto Level	XA 6.4Y.M.B PLUS (WL-101-0217)	XA 6/21.4Y.M.B PLUS (WL-101-1065)	XA 21.4Y.M.B PLUS (WL-101-0218)	XA 21/52.4Y.M.B PLUS (WL-101-1066)	XA 52.4Y.M.B PLUS (WL-101-0219)	XA 53.4Y.M.B PLUS (WL-101-0270)
Model w Wireless Terminal & Auto Level
Automatic Door Model with Auto Level	XA 6.4Y.M.A PLUS (WL-101-0412)	XA 6/21.4Y.M.A PLUS (WL-101-1052)	XA 21.4Y.M.A PLUS (WL-101-0193)	XA 21/52.4Y.M.A PLUS (WL-101-1053)	XA 52.4Y.M.A PLUS (WL-101-0194)	XA 53.4Y.M.A PLUS (WL-101-0225)
Automatic Door Model with Auto Level
Automatic Door Model with Auto Level & Wireless Terminal	XA 6.4Y.M.A PLUS.B (WL-101-0195)	XA 6/21.4Y.M.A PLUS.B (WL-101-1054)	XA 21.4Y.M.A PLUS.B (WL-101-0196)	XA 21/52.4Y.M.A PLUS.B (WL-101-1055)	XA 52.4Y.M.A PLUS.B (WL-101-0197)	XA 53.4Y.M.A PLUS.B (WL-101-0225)
Automatic Door Model with Auto Level & Wireless Terminal
Capacity x Readability	6.1 g x 1 µg	6.1 g x 1 µg 21 g x 2 µg	21 g x 1 µg	21 g x 1 µg 52 g x 5 µg	52 g x 5 µg	53 g x 1 µg
Tare range	-6.1 g	-21 g	-21 g	-52 g	-52 g	-53 g
Minimum load	0.1 mg	0.1 mg	0.1 mg	0.1 mg	0.5 mg	0.1 mg
Standard repeatability [5% Max]	1 µg	1.2 µg	1.2 µg	1.8 µg	2.4 µg	1.5 µg
Standard repeatability [Max]	2.5 µg	4 µg	4 µg	6 µg	6 µg	6 µg
Permissible repeatability [5% Max]	1.4 µg	1.6 µg	1.6 µg	2.4 µg	3.4 µg	2.4 µg
Permissible repeatability [Max]	3 µg	5 µg	5 µg	8 µg	8 µg	8 µg
Linearity	+7 µg	+9 µg	+9 µg	+20 µg	+20 µg	+20 µg
Standard minimum weight (U=1%, k=2)	0.2 mg	0.24 mg	0.24 mg	0.36 mg	0.48 mg	0.3 mg
Standard minimum weight (USP)	2 mg	2.4 mg	2.4 mg	3.6 mg	4.8 mg	3 mg
Stabilization time	3.5 sec	3.5 sec	3.5 sec	3.5 sec	3.5 sec	3.5 sec
Level	Auto Level
Adjustment	internal (automatic)
OIML Class	OIML Class I
Display	5.7" resistive colour touchscreen
Communication interface	2 x RS232, 2 x USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®
Power supply	100 ÷ 240 V AC 50 / 60 Hz
Power consumption max.	700 mA (wireless terminal - 1A)
Operating temperature	+10 ÷ +40 ^oC
Relative humidity	40% ÷ 80%
Weighing chamber dimensions	168x163x228 mm
Weighing pan dimensions	ø30 mm
Packaging dimensions	720x385x485 mm
Net weight/th>	9.8 kg
Gross weight	14.3 kg
