New generation of microbalances XA 5Y is designed to meet the highest requirements for determination of mass. Its built-in system of automatic internal adjustment/calibration maintains excellent measurement reliability and accuracy and a semi-automatic - LevelSENSING Leveling system
New generation of microbalances XA 5Y is designed to meet the highest requirements for determination of mass. Its built-in system of automatic internal adjustment/calibration maintains excellent measurement reliability and accuracy and a semi-automatic - LevelSENSING Leveling system
Safety First
5Y Series Ellipsis Laboratory Balances
Safety First
Audited login methods Fast and secure logout Compliance confirmation:
CFR part 11
GMP
Qualifications
Validations
Quality system
Password
Fingerprint
Face recognition
RFID
Hotspot
No space in your fume cupboard or access to the weighing terminal? Or maybe you want to operate the balance remotely?
Thanks to the hotspot, you can operate the balance on any device previously connected to it. This can be a smartphone, tablet, or computer
Connecting ELLIPSIS
ELLIPSIS will connect you directly to:
smartphone or a tablet (hotspot)
spreadsheet (USB-C, Free Link)
printer (Ethernet, Wi-Fi®, USB-A)
computer (Ethernet, Wi-Fi®, USB-A)
barcode scanner (USB-A)
any large screen (HDMI)
your PC software (Radwag communication protocol)
keyboard and mouse
Ambient Light – one look and everything’s clear
Innovative way of user – balance communication.
It couldn’t be easier: the backlight colour informs you about status, process results, procedures, or alerts.
statuses
process results
procedures
alerts
Working Modes
Looking for more than just weighing?
Weighing - Basic working mode that displays the mass of a sample
Parts counting - Quick counting of samples of similar mass
Checkweighing - Control of sample mass in the set min/ max thresholds
Dosing - Weighing to a target value
Percent weighing - Percent mass control
Density - Determining the density of solids and liquids
Animal weighing - Control of mass change over a set period of time
Formulations - Weighing of predefined ingredients, according to the order described in the formulation
Statistics - Real-time statistics determined from carried out weighings
Pipette calibration - Checking piston pipettes according to customer-specific requirements or ISO 8655
Differential weighing - Analysing the change in mass of a single sample over time
SQC - Statistical mass control with set thresholds
Peak hold - Control of the maximum mass on the pan
Mass control - Statistical control of samples of similar mass
Comparator - Control of mass standards
PGC - Statistical mass measurement in accordance with Packaged Goods Control
RFID
Always the correct choice of a product or ingredient for a formulation.
ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. It can also be used to identify a user
* RFID ISO/IEC 14443 Type A, 13.56 MHz
Widgets
Always at hand, grouped so that the essentials never slip away.
Up-to-date information on ambient conditions
Real-time statistics from a series of measurements
Note down your conclusions
One of ELLIPSIS’ innovative features is the ability to add a voice or text note to a series of measurements or a procedure report. Have you ever wondered if your balance is ready for work?
The Digital Weighing Auditor makes sure it is.
DWA – Digital Weighing Auditor DWA is a system that monitors:
ambient conditions (temperature, humidity, pressure, and vibration),
balance levelling,
adjustment,
USP compliance,
ionizer operation.
ELLIPSIS signals the results of the digital audit via Ambient Light, pictograms on the home screen, or a speaker.
Such a large chamber, yet still very accurate balance
Work with different labware in a chamber space of 199 x 157 x 218 mm.
Tool-free disassembly of the weighing chamber
Contaminated weighing chamber? You don’t need any tools to disassemble and clean the ELLIPSIS weighing chamber.
Don’t take our word for it
With ELLIPSIS, you can get:
Declaration of conformity
Calibration certificate
IQ, OQ, PQ documents
21 CFR Part 11 qualification
USP compliance qualification
Compliance with the latest version of the Pharmacopoeia
21 CFR Part 11
Do you work in the pharmaceutical industry? Do you need a digital signature?
We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.
Full data security
Electronic signatures
Validations
Electronic records
Audit trails
Databases
Have you ever failed to record the weighing result?
Operators
Profiles
Products
Weighing records
Alibi
Customers
Formulations
Formulations reports
Density reports
Control reports
SQC statistics
Pipettes
Pipette calibration reports
Series
Minimum weight
Ambient conditions
Warehouses
Printouts
Universal variables
E-signed documents (21 CFR Part 11)
Average tares
Comparison reports
Weight adjustment reports
Mass controls
Handy Library
What was the value of the previous measurement?
ELLIPSIS always displays the history of the last 20 measurements on the slide-out panel. It is also here where the measurement series ready for e-signature, in accordance with 21 CFR Part 11, can be found.
Accessories
If you use labware, weigh stents or filters, or want to check your pipette, use the ELLIPSIS accessories available Please call us for more info
Q & A
Do I need additional computer software to make the 5Y series fully compliant with 21 CFR Part 11/ EU GMP Annex 11?
RADWAG advanced-class products, including 5Y series balances, do not require any PC software to meet the requirements of 21 CFR Part 11/ EU GMP Annex 11. The balances are equipped with a built-in 21 CFR module, which has been repeatedly validated in the pharmaceutical industry as fully compliant with the aforementioned regulations.
On the new ELLIPSIS 5Y series balances, can I create a text/printout with any content describing my weighing process?
Yes, this is very easy with the 5Y series. Simply create a non-standard printout and fill it with content that describes your weighing process. You can also use over 400 variables to expand your printout with information from the weighing process (for example, date, sample name, net weight, sd value from a series of measurements, etc.).
Will ELLIPSIS allow me to send the measurement directly to a spreadsheet, such as MS Excel, or other word processor?
Yes, every 5Y series balance gives you the option, when connected to your computer with a USB-C cable, to use the Free Link functionality. Free Link is responsible for sending properly formatted data from the balance directly to the currently open spreadsheet.
Functions
Autotest
Dosing
Percent Weighing
Parts counting
Peak hold
Formulation
Statistics
Checkweighing
IR sensors
GLP Procedures
Animal weighing
Pipettes Calibration
Air density correction
Density determination
Differential weighing
Ambient conditions monitoring
Statistical Quality Control
Packaged Goods Control
ALIBI Memory
Wi-Fi®
Model with semi-automatic - LevelSENSING
XA 52.5Y WL-110-0009
XA 82/220.5Y WL-110-1001
XA 110.5Y WL-110-0010
XA 120/250.5Y WL-110-1002
XA 210.5Y WL-110-0011
XA 220.5Y WL-110-0012
XA 310.5Y WL-110-0013
XA 520.5Y WL-110-0014
$8,921.60
$9,519.15
$9,220.80
$11,006.65
$11,006.65
$9,220.80
$9,519.15
$10,628.40
Model with automatic - Reflex Level System, automatic Weighing chamber and automatic chamber doors
XA 52.5Y.A WL-110-0001
XA 82/220.5Y.A WL-110-0004
XA 110.5Y.A WL-110-0002
XA 120/250.5Y.A WL-110-1000
XA 210.5Y.A WL-110-0003
XA 220.5Y.A WL-110-0006
XA 310.5Y.A WL-110-0007
XA 520.5Y.A WL-110-0008
$10,706.60
$11,304.15
$11,005.80
$12,791.65
$12,791.65
$11,005.80
$11,304.15
$12,413.40
Capacity x Readability
52 g x 0.01 mg
82 g x 0.01 mg 220 g x 0.1 mg
110 g x 0.01 mg
120 g x 0.01 mg 250 g x 0.1 mg
210 g x 0.01 mg
220 g x 0.1 mg
210 g x 0.1 mg
520 g x 0.1 mg
Minimum load
1 mg
1 mg
1 mg
1 mg
0.5 mg
0.1 mg
0.5 mg
0.1 mg
Verification scale interval [e]
1 mg
1 mg
1 mg
1 mg
1 mg
1 mg
1 mg
1 mg
Tare range
-52 g
-220 g
-110 g
-250 g
-210 g
-220 g
-310 g
-520 g
Standard repeatability [5% Max]
0.005 mg
0.005 mg
0.005 mg
0.005 mg
0.005 mg
0.05 mg
0.05 mg
0.07 mg
Standard repeatability [Max]
0.01 mg
0.06 mg
0.02 mg
0.06 mg
0.025 mg
0.08 mg
0.1 mg
0.18 mg
Standard minimum weight (USP)
10 mg
10 mg
10 mg
10 mg
10 mg
100 mg
100 mg
140 mg
Standard minimum weight (U=1%, k=2)
1 mg
1 mg
1 mg
1 mg
1 mg
10 mg
10 mg
14 mg
Permissible repeatability [5% Max]
0.012 mg
0.012 mg
0.012 mg
0.012 mg
0.012 mg
0.07 mg
0.07 mg
0.12 mg
Permissible repeatability [Max]
0.02 mg
0.08 mg
0.03 mg
0.1 mg
0.035 mg
0.1 mg
0.15 mg
0.12 mg
Linearity
+0.03 mg
+0.06 mg +0.2
+0.06 mg
+0.06 mg +0.2
+0.1 mg
+0.6 mg
+0.3 mg
+0.5 mg
Eccentric load deviation
0.03 mg
0.02 mg
0.06 mg
0.2 mg
0.1 mg
0.2 mg
0.3 mg
0.4 mg
Sensitivity time drift
1x10-6/YearxRt
Stabilization time
max 4 s
Adjustment
internal (automatic)
OIML Class
I
Leveling system
semi-automatic - LevelSENSING
Display
10 in touchscreen
Weighing chamber dimensions
170x200x220 mm
Weighing pan dimensions
ø90 + ø85 (option) mm
ø100 mm
Packaging dimensions
435 x 885 x 540 mm
Net weight
14.7 kg
Gross weight
19.1 kg
Communication interface
USB-A x2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot
Power supply
Adapter: 100 or 240V AC 50/60Hz 1A; 15V DC 2,4A Balance: 12 – 15V DC 1,4A max*
Operating temperature
+10 — +40 oC
Operating temperature change rate
+0.3oC/1h (+1oC/8h)
Relative humidity
20% — 80%
Relative humidity change rate
+1%/h (+4%/8h)
* The power supply can be connected to the socket on the back of the balance housing or to the terminal.

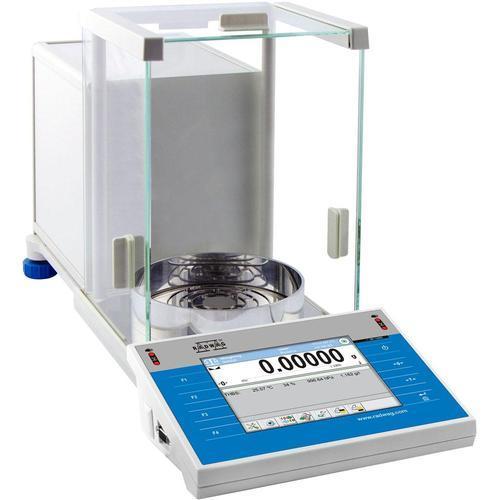

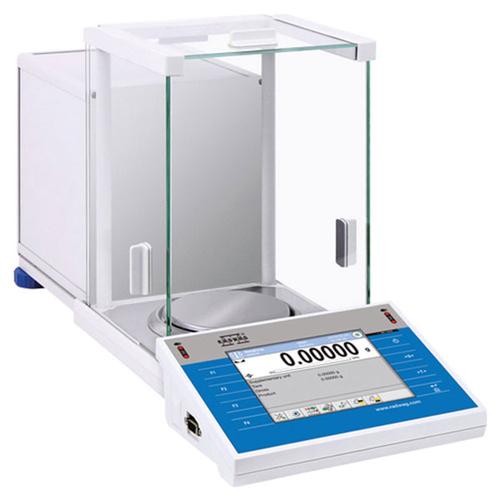

Old MYA 4Y Models
Model with Auto Level
XA 52.4Y PLUS (WL-107-0162)
XA 82/220.4Y PLUS (WL-107-1029)
XA 120/250.4Y PLUS (WL-107-1034)
XA 110.4Y PLUS (WL-107-0163)
XA 210.4Y PLUS (WL-107-0161)
XA 220.4Y PLUS (WL-107-0164)
XA 310.4Y PLUS (WL-107-0165)
XA 520.4Y PLUS (WL-107-0166)
Model with Wireless Terminal & Auto Level
XA 52.4Y.B PLUS (WL-107-0167)
XA 82/220.4Y PLUS.B (WL-107-1035)
XA 120/250.4Y PLUS.B (WL-107-1036)
XA 110.4Y PLUS.B (WL-107-0168)
XA 210.4Y PLUS.B (WL-107-0169)
XA 220.4Y PLUS.B (WL-107-0170)
XA 310.4Y PLUS. (WL-107-0171)
XA 520.4Y PLUS. (WL-107-0172)
Model With Automatic Door & Auto Level
XA 52.4Y.A PLUS (WL-107-0142)
XA 82/220.4Y.A PLUS (WL-107-1030)
XA 120/250.4Y.A PLUS (WL-107-1031)
XA 110.4Y.A PLUS (WL-107-0143)
XA 210.4Y.A PLUS (WL-107-0144)
XA 220.4Y.A PLUS (WL-107-0140)
XA 310.4Y.A PLUS (WL-107-0145)
XA 520.4Y.A PLUS (WL-107-0155)
Model With Automatic Door & Auto Level & Wireless Terminal
