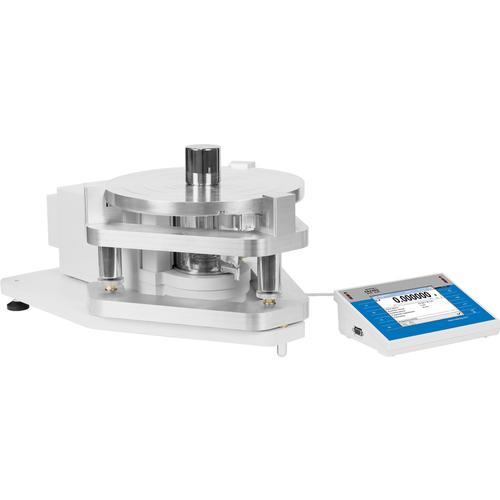

RADWAG-manufactured susceptometer enables carrying out measurements of magnetic susceptibility and magnetization of weights of E1 and lower classes in accordance with OIML R111. Modular design, upon disassembling respective module, enables using the susceptometer as a mass comparator or a balance. Compared to the previous model, the new one features option of internal adjustment and higher readability: [d] 0.1 µg for loads ranging from 2 g to 50 kg.
- Effective and Excellent Measurement The SM susceptometer measures susceptibility and permanent magnetization of weights ranging from 2 g to 50 kg with the highest accuracy. The susceptometer is a complete reference solution for specifying the magnetic characteristics even for weights of class E1.
- Intuitive Operation and Large Touch Screen 5.7" color touch screen enables intuitive operation and easy access to numerous applications and functions of the weighing instrument.
- Versatile Weighing Platform The device, due to its modular design, operates as a balance or a mass comparator, and upon assembling respective module it may also operate as a susceptometer
- Design and Functionality The device features three different heights, from the mass standard base to the centre of the magnet.
- Dedicated Software Specially designed RMCS computer software enables comprehensive realisation of calibration procedures in laboratory. The system manages the whole calibration process, starting from the moment the order is placed, through procedure performance, to the moment of issuing the calibration certificate
Functions
- Magnetization
- Mass comparator
- Parts counting
- Dosing
- Checkweighing
- Formulations
- Statistics
- Differential weighing
- Statistical quality control
- Autotest
- Density determination
- Percent weighing
- Automatic sliding door
- Cooperation with titrators
- GLP procedures
- Proximity sensors
- Ambient conditions measurement
- Proximity sensors
- Replaceable units
- Multilingual menu
Susceptometer - Device for analysis of magnetic characteristics of mass standards from RADWAG Balances and Scales on Vimeo.
| Model |
SM-MYA-5 |
SM-MYA-B-5 |
| Price |
|
|
| Capacity x Readability |
50 kg x 0.001 mg |
50 kg x 0.01 mg |
| Stabilization time |
10 s |
10 s |
| Adjustment |
Internal Calibration |
Internal Calibration |
| Dipole moment of magnets |
< 0.1 Am2 |
< 0.1 Am2 |
| Platform-magnet centre distance |
20; 27; 43 mm |
20; 27; 43 mm |
| Magnetic field |
2000, 800, 200 A/m |
2000, 800, 200 A/m |
| OIML calibration range E1 |
2 g ÷ 50 kg |
2 g ÷ 50 kg |
| OIML calibration range E2 |
2 g ÷ 50 kg |
2 g ÷ 50 kg |
| OIML calibration range F1 |
2 g ÷ 50 kg |
2 g ÷ 50 kg |
| OIML calibration range F2 |
2 g ÷ 50 kg |
2 g ÷ 50 kg |
| OIML calibration range M1 |
- |
- |
| OIML calibration range M2 |
- |
- |
| Display |
5.7" color resistive touch screen |
| Keypad |
8 keys |
| Ingress protection - indicator |
IP 43 |
| Touch-free operation |
2 programmable sensors |
| USB-A |
2 |
| Ethernet |
10 / 100 Mbit |
| RS-232 |
2 |
| Wi-Fi |
802.11 b/g/n |
| IN/OUT |
4 x IN, 4 x OUT |
| Power supply |
110 ÷ 230 V AC / 50 ÷ 60 Hz |
| Operating temperature |
+15 ÷ +30 oC |
| Operating temperature change rate |
+ 0.5 oC / 12 h (+ 0.3 oC / 4 h) |
| Relative humidity variations |
+ 2% / 4 h |
| Relative humidity*** |
40 ÷ 60% |
| Transport and storage temperature |
–20 ÷ +50 oC |
| Weighing pan dimensions |
ø 300 mm |
| Susceptometer dimensions* |
525 x 246 x 350 mm |
| Indicator dimensions** |
206 x 140 x 71 mm |
| Anti-draft chamber dimensions** |
560 x 250 x 350 mm |
| Net weight |
27 kg |
| Gross weight |
53 kg |
| Packaging dimensions |
950 x 750 x 760 mm |
* dimensions: length x width x height
** non-condensing conditions
Accessories - Call for more info
Weighing Tables
granite anti-vibration table
anti-vibration table for laboratory balances
professional weighing table |
Ambient Conditions
THB-S or THB-P sensor |
Peripheral Devices
Epson dot matrix printer
barcode scanner
WD-5/3Y LCD display (backlit) |
Cables, Converters
RS-232 – P0108 computer cable
RS-232 – P0167 computer cable
RS-232 – P0151 Epson printer cable |
Electrical Accessories
power supply with ZR–02 battery |
Dedicated Software (not included) - Call for more info
RMCS System
- performance of calibration procedures in a laboratory from the moment the order is placed, to the moment of issuing a calibration certificate
- compatible with THB sensors enabling recording ambient conditions
- export of report results to various files
- archiving calibration protocols, orders, certificates and ambient conditions
R-LAB
- collecting measurements
- carrying out statistical analysis of measurements
- customized graphs and reports
E2R Weighing Records
- complete, automated databases synchronization
- fully supported processes of labelling and parts counting
- record of weighings, weighings archiving
- basic and advanced (with graphs) reports
Label Editor R02
- designing label templates
- sending graphics and fonts to label printers
- printing label templates using connected printers
Pipettes
- determining measurement errors of pipettes volume
- accordance with ISO 8655
- calibration of single and multi-channel pipettes
- calibration of pipettes of fixed and adjustable volume
Audit Trail Reader
- support of Audit Trail function available for 3Y, 4Y, HY10, WLY, WPY series weighing instruments
- record of operator’s activity from the moment of logging in
Parameters Editor
- remote change of parameters
- remote on-line preview of the display
- displaying current mass indication
- software update
- file loading, editing and saving parameters to a file
- import and export of parameters
- interfaces: RS232, Ethernet and Wireless Connection
- quick and easy edition of balance parameters using computer ways of initializing the process of acquiring data from the weighing instrument and sending it to a computer
- readout of characters transmitted via RS 232 to a computer
R. Barcode
- The basic function software is presentation of the data sent by barcode scanners connected to PC via USB or RS232
Radwag Development Studio
- presentation of functions (and subfunctions) of communication protocol (Common Communication Protocol)
- possibility of connection with weighing equipment on which each function is carried out,
- library with mass control, contained within the development environment
- complete documentation of the communication protocol
- set of user manuals for different solutions addressed for programmers employed in companies using RADWAG-manufactured weighing equipment
LabView Driver
- support of RADWAG-manufactured weighing instruments operating in LabView environment
RADWAG Connect
- establishing communication with all balances, scales and weighing modules using Common Communication Protocol
- communication via local network,
- support of basic functions
- auto searching for devices
- connecting with few devices simultaneously, swapping between them
- clear list of connected platforms
- record of measurements in the program,
- export of carried out measurements to CSV file,
- work performed using freely selected device with Windows 10 operating system
RADWAG Remote Desktop
- remote control of the mass comparator using computer, telephone or tablet
- sending text messages
- version for Windows 10 and Android systems
|
