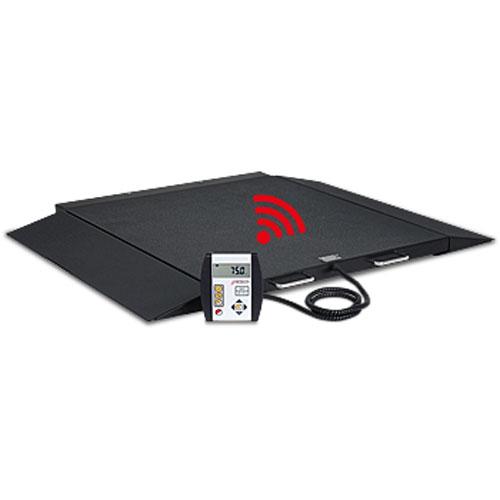

Detecto 6400-C Portable Wheelchair Scale 32 in x 36 in with BT / WiFi - 1000 lb x 0.2 lb |
|
| DETECTO low-profile portable wheelchair scale line offers you four different models to choose from based on whether you need to weigh patients in regular size or bariatric wheelchairs and whether you need basic weighing functions or more complex patient measurement operations. more ... |
|
Medical Equipment >
Medical Scales >
Wheelchair Scales
|
|
|
|
|
|
Features
DETECTO low-profile portable wheelchair scale line offers you four different models to choose from based on whether you need to weigh patients in regular size or bariatric wheelchairs and whether you need basic weighing functions or more complex patient measurement operations.
The platform is only 2.2 in / 5.6 cm high for easy patient accessibility and comfort while weighing either standing or in a wheelchair. With a high 1,000 lb / 450 kg capacity, the scales are capable of measuring patients of virtually any weight possible.
For single-pass weighing to save time, choose the models 6500 or BRW1000 which utilize the MedVue indicator. You can enjoy the time saving benefits of these scales by using the convenient pushbutton or keypad tare which allows you to remove the wheelchair weight all in one pass.
- Two-way ramps for accessibility from both sides
- Flexible cable remote display extends up to 14 ft / 4.2 m from scale to indicator
- Quick and easy mobility for transport or vertical storage
- Optional Wi-Fi connectivity for EMR/EHR (models 6500 and BRW1000)
- Battery power for easy mobility (or use with optional AC adapter)
- Black rubber mat included on the scale platform and ramp for superior traction
FLEXIBLE WIRED WEIGHT DISPLAY
Since the display is connected to the scale by a long coiled cable that extends up to 14 ft / 4.2 m, it can be positioned where the healthcare professional can most easily read the results.
By using the versatile mounting bracket that comes with each scale, you may permanently mount the indicator on a wall for long-term static use or set it on a tabletop or desk for more mobile type weighing.
YOUR CHOICE OF DIGITAL KEYPAD WEIGHING FUNCTIONS
- Models 6500/BRW1000 - The MedVue® multifunctional indicator with alphanumeric keypad and RS232 and USB ports (optional Wi-Fi and Welch Allyn connectivity) displays Height, Weight, and Body Mass Index onscreen simultaneously. Capable of 14-digital alphanumeric patient ID entries and 99 stored wheelchair tare weights. Displays in four languages (English, Spanish, French, and German).
- Models 6400/6600 - Model 750 indicator with easy to-use, basic weighing functions. BMI calculation, RS232 serial port, and big bold LCD digits
INCLUDES VERSATILE INDICATOR MOUNTING BRACKETS
- The MedVues® ballmount swivel bracket for the back of the indicator allows wall-mount or mobile tabletop weighing with adjustable viewing.
- The 750 mounting bracket snaps onto the back of the indicator for wall-mount or mobile tabletop weighing.
Dimensions
X:
46.00
Y:
38.00
Z:
8.00
|
|
Other Detecto 6400 Portable Wheelchair Scale
|
Specifications
| Model |
6400 |
6400-AC |
6400-C |
6400-C-AC |
| Capacity x Readability |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
| 450 kg x 0.1 kg |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
| Platform Size |
32 in x 36 in x 2.2 in |
| 81 cm x 91 cm x 5.6 cm |
| Ramp Size |
36 in W x 7.9 in L each |
| 91 cm W x 20.2 cm L each |
| Cable Length |
6 ft / 1.8 m coiled cable, 14 ft / 4.2 m fully extended (from scale to indicator) |
| Power |
Optional model 6800-1045 AC adapter or 6 AA batteries (not included |
AC adapter(included) or 6 AA batteries (not included |
Optional model 6800-1045 AC adapter or 6 AA batteries (not included |
AC adapter(included) or 6 AA batteries (not included |
| Indicator |
Model 750 |
| Indicator Dimensions |
6.1 in W x 6.8 in H x 1.8 in D
15.5 cm W x 17.2 cm H x 4.6 cm D |
| LCD Digits |
0.7 in / 19 mm high LCD, 6 digit, 7 segment |
| Keypad Buttons |
ON/OFF, ZERO, UNITS, LOCK/RELEASE, BMI/ENTER, PRINT, arrow keys |
| Connectivity |
RS232 |
RS232 |
Wi-Fi/Bluetooth |
Wi-Fi/Bluetooth |
| Operating Temperature |
14 to 104 ºF / -10 to +40 ºC |
| Net Weight |
92 lb / 42 kg |
| Shipping Weight |
102 lb / 46 kg |
| Guide Handles |
2 included |
| Transport Wheels |
2 included |
| Country of Origin |
USA |
| UPC Code |
809161302400 |
809161318302 |
809161321005 |
809161324907 |
| Model |
6400 |
6500 |
6600 |
BRW1000 |
| Capacity x Readability |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
1000 lb x 0.2 lb |
| 450 kg x 0.1 kg |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
450 kg x 0.1 kg |
| Platform Size |
32 in x 36 in x 2.2 in |
32 in x 40 in x 2.2 in |
| 81 cm x 91 cm x 5.6 cm |
81 cm x 101 cm x 5.6 cm |
| Ramp Size |
36 in W x 7.9 in L each |
40 in W x 7.9 in L each |
| 91 cm W x 20.2 cm L each |
101 cm W x 20.2 cm L each |
| Cable Length |
6 ft / 1.8 m coiled cable, 14 ft / 4.2 m fully extended (from scale to indicator) |
| Power |
Optional model 6800-1045 AC adapter or 6 AA batteries (not included |
Optional model MV1PWR AC adapter or 6 C batteries (not included) |
Optional model 6800-1045 AC adapter or 6 AA batteries (not included) |
Optional model MV1PWR AC adapter or 6 C batteries (not included) |
| Indicator |
Model 750 |
MedVue® Model MV1 |
Model 750 |
MedVue® Model MV1 |
| Indicator Dimensions |
6.1 in W x 6.8 in H x 1.8 in D
15.5 cm W x 17.2 cm H x 4.6 cm D |
9.8 in W x 6.8 in H x 1.8 in D
24.9 cm W x 17.2 cm H x 4.6 cm D |
6.1 in W x 6.8 in H x 1.8 in D
15.5 cm W x 17.2 cm H x 4.6 cm D |
9.8 in W x 6.8 in H x 1.8 in D
24.9 cm W x 17.2 cm H x 4.6 cm D |
| LCD Digits |
0.7 in / 19 mm high LCD, 6 digit, 7 segment |
0.9 in / 22 mm high LCD, 5 digit, 7 segment |
0.7 in / 19 mm high LCD, 6 digit, 7 segment |
0.9 in / 22 mm high LCD, 5 digit, 7 segment |
| Keypad Buttons |
ON/OFF, ZERO, UNITS, LOCK/RELEASE, BMI/ENTER, PRINT, arrow keys |
ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/ GROSS, TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys |
ON/OFF, ZERO, UNITS, LOCK/RELEASE, BMI/ENTER, PRINT, arrow keys |
ON/OFF, ZERO, UNITS, LOCK/RELEASE, NET/ GROSS, TARE, ID/HEIGHT, BMI, PRINT/ENTER, alphanumeric keys |
| Connectivity |
RS232 serial |
RS232 serial, USB and optional wired and Wi-Fi Ethernet |
RS232 serial |
RS232 serial, USB and optional wired and Wi-Fi Ethernet |
| Operating Temperature |
14 to 104 ºF / -10 to +40 ºC |
| Net Weight |
92 lb / 42 kg |
117 lb / 53 kg |
| Shipping Weight |
102 lb / 46 kg |
127 lb / 58 kg |
| Guide Handles |
2 included |
| Transport Wheels |
2 included |
| Country of Origin |
USA |
| UPC Code |
809161302400 |
809161139204 |
809161302509 |
809161139303 |
|
|
|
|
|
|
|
Optional Accessories
more info
|
Detecto P220 Direct Thermal Label Printer
Detecto's P220 desktop printer boasts a surprisingly compact footprint without compromising performance or value. The P220 can connect via serial port with any Detecto digital scale that has serial output capabilities, including any medical scale featuring the 758C weight indicator.
This 2-inch print width printer offers a multitude of user-friendly and innovative features, all packed in a small, but sturdy double-walled casing. With its electronic platform, the P220 delivers high-quality bar code label printing at 3.5 inches per second and is ideal for Point of Sale or product marking in Food Service use or patient tracking or medical record keeping in Health Care use.
| Model | Printing Method | Print Width | Print Speed | Scale Interface | Dimension | Power |
| P150 | Line Thermal Printing | 1.89"/48MM | 1.97'/50 mm per sec | RS-232 | 4.57"Wx3.54"Dx2.01"H | Rechargeable battery
(Lithium-Ion) |
| P220 | Direct Thermal Printing | 2.2"/56MM | 3.5'/89 mm per sec | RS-232 | 3.6"Wx7.5"Dx6.8"H | 20VDC,2.5A |
| P185 | Direct Thermal Printing | 2.8"/72MM | 3.9'/100 mm per sec | RS-232 | 5.6"Wx7.8"Dx5.2"H | 20VDC |
|
|
more info
|
Detecto 6800-1045 AC Adapter For Detecto Health Care Scales
Detecto 6800-1045 AC Adapter For Detecto Health Care Scales including
- 6400
- 6475/6475K
- 6600
- 6800
- 684P
- 6855
- 6855MHR
- 6856
- 6856MHR
- 6868
- 6880
- 7045G
- 7550
- AP Series
- AP-4KD
- all APEX
- DR Series - BMI
- EB-185 Series
- EB-204 Series
- Echelon EH Series Economical Floor Scales
- Retail POS/Logistics > Enterprise APS Series
- GP-400
- IB800
- IBFL500
- icon Digital Scales with Sonar Height Rods
- RuggedWeigh Economical Floor Scales
- Run-A-Weigh
- VET-70
- APEX-AT NTEP Athletic Scales
- 6100 Series
- 750
- 8432-CH
- 8435
- 6800-1045
- IBFL500
- 6400
- 6600
- C Series
- D Series
- DM15
- SONARIS
- 6100
|
|
more info
|
Detecto P-150 Mobile Tape Printer With Serial Interface
Detecto's P150 printer is a battery-operated ticket printer that can be mounted to any 758C with the new serial port. The bracket conveniently mounts to the back of the 758C using 2 existing screws. Printing at 50 mm/sec, the P150 utilizes a long-life lithium-ion battery that supplies up to 40,000 lines of 8 dots/mm (203 dpi) thermal printing on a single charge.
PRINT WEIGHT, BODY MASS INDEX, TIME, DATE, AND HEIGHT
Features
Portability
Lithium Ion battery with up to 20,000 printed weighments before recharging. The batteries recharge to full capacity in only 3 hours
RS-232 serial connectivity - includes compact cable ready to plug into Detecto's 758C
Battery low status lamp
The bracket conveniently mounts to the back of the 758C using 2 existing screws
Easy to change paper roll
| Model | Printing Method | Print Width | Print Speed | Scale Interface | Dimension | Power |
| P150 | Line Thermal Printing | 1.89"/48MM | 1.97'/50 mm per sec | RS-232 | 4.57"Wx3.54"Dx2.01"H | Rechargeable battery
(Lithium-Ion) |
| P220 | Direct Thermal Printing | 2.2"/56MM | 3.5'/89 mm per sec | RS-232 | 3.6"Wx7.5"Dx6.8"H | 20VDC,2.5A |
| P185 | Direct Thermal Printing | 2.8"/72MM | 3.9'/100 mm per sec | RS-232 | 5.6"Wx7.8"Dx5.2"H | 20VDC |
|
|
|
|
|
|
|
|
|
