Chatillon K4230DD-X-H Mechanical Hanging 9 inch Scale with Hook, Double Dial, 30 kg x 50 g |
|
| Chatillon 4200 mechanical hanging scales with 9 inch glass covered dial head and below hook or AS pan and single or double dial options. Available in Class III legal for trade versions. Capacities 15 to 60 lbs or 15 to 30 kg. Removable AS pan is USDA appr more ... |
|
Scales >
Hanging Scales >
Mechanical Hanging Scales
|
|
|
|
|
|
Features

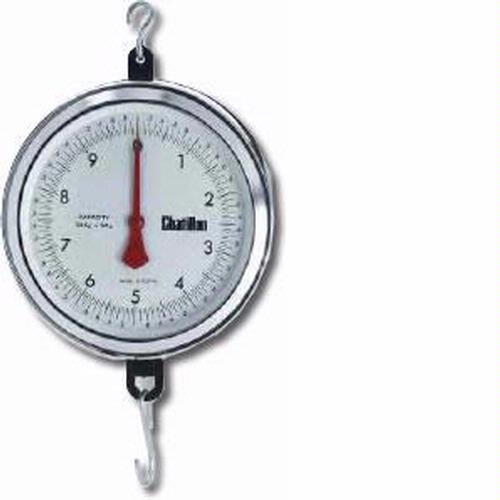

The Chatillon 4200 Series hanging scales are world-reknown for their accuracy, dependability and reliability. The 4200 Series feature a glass-covered 9-inch double dial featuring bold black numers and graduations. Pointers are a contrasting red. Chatillon 4200 hanging scales feature a fully supported stainless steel pinion in oilless bearings and a precisely mated bronze rack for rugged dependability. Scale capacity is achieved in three pointer revolutions.
The Chatillon 4200 mechanical hanging scales may be specified as a Class III “Legal for Trade” scale. Available in avoirdupois and metric models, the Chatillon 4200 Series can be supplied with either
a bottom hook (nickel plated steel) or the popular AS circular pan. The AS Pan is constructed of stainless steel. The supporting ring and bow are of nickel plated steel. The removable 5-inch deep round pan has drain holes and is USDA approved for use in general food handling.
- H44 Classifications
- Class III Legal for Trade (-T)
- Class IIII (-X)
- 9-inch Glass-covered Dial
- Capacity Reached in 3 Pointer Revolutions
- Single and Double Dial Heads (DD)
- Adjustable Tare up to 10%
- Optional Attachments
- -AS Pan, Deep Round, Stainless Steel (14-1/2 x 5-inch) 4 lbs
- -H Hook
- One year Chatillon warranty
4200 Series - Class III
| Model No. |
Capacity |
Double Dial |
Attachment |
| 4230DD-T-AS |
30 lb x 1/2 oz |
Yes |
AS Pan |
| 4230DD-T-H |
30 lb x 1/2 oz |
Yes |
Hook |
4200 Series - Class IIII
| Model No. |
Capacity |
Double Dial |
Attachment |
| 4215-X-AS |
15 lb x 1/2 oz |
No |
AS Pan |
| 4215DD-X-AS |
15 lb x 1/2 oz |
Yes |
AS Pan |
| 4215-X-H |
15 lb x 1/2 oz |
No |
Hook |
| 4215DD-X-H |
15 lb x 1/2 oz |
Yes |
Hook |
| 4230-X-AS |
30 lb x 1 oz |
No |
AS Pan |
| 4230DD-X-AS |
30 lb x 1 oz |
Yes |
AS Pan |
| 4230DD-X-H |
30 lb x 1 oz |
Yes |
Hook |
| 4230-X-H |
30 lb x 1 oz |
No |
Hook |
| 4260-X-AS |
60 lb x 1 oz |
No |
AS Pan |
| 4260-DD-X-AS |
60 lb x 1 oz |
Yes |
AS Pan |
| 4260-X-H |
60 lb x 1 oz |
No |
Hook |
| 4260-DD-X-H |
60 lb x 2 oz |
Yes |
Hook |
| K4215-X-AS |
15 kg x 20 g |
No |
AS Pan |
| K4215-DD-X-AS |
15 kg x 20 g |
Yes |
AS Pan |
| K4215-X-H |
15 kg x 20 g |
No |
Hook |
| K4215-DD-X-H |
15 kg x 20 g |
Yes |
Hook |
| K4230-X-AS |
30 kg x 50 g |
No |
AS Pan |
| K4230-DD-X-AS |
30 kg x 50 G |
Yes |
AS Pan |
| K4230-X-H |
30 kg x 50 g |
No |
Hook |
| K4230-DD-X-H |
30 kg x 50 g |
Yes |
Hook |
Weight:
18.00 lb
|
1 Year Manufacture Warranty
|
