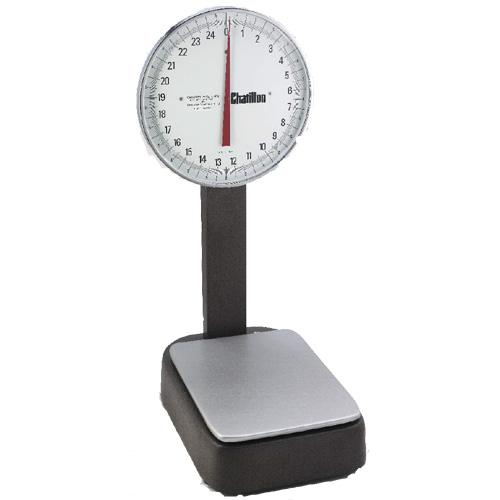

Chatillon BP15-100-T Mechanical Bench Scale, 15in Dial 130 lb x 4 oz

The CHATILLON® BP15 Series bench platform scale features a large, easy-to-read 15-inch (380 mm) dial with knife-edge pointer for accurate measurements. Scales are supplied for H44 Class III “Legal for Trade” applications. Designed for platform use, the BP15 features a rugged cast-iron base with heavy-gauge steel platform for excellent stability. The scale’s mounting feet are adjustable. Options include a stainless steel platform, 7-inch (178 mm) deep provisional pan and quick tare knob. Tare adjustments may be made up to 10% of rated capacity. The scale’s head cover and column back are removable for easy access to the dial mechanism and the dashpot. Units are shipped assembled.

• H44 Class III "Legal for Trade" and No Class Models
• Pound or Kilogram Dials- Capacities up to 400 lbs & 200 kg
• Rugged Cast Iron Base and Heavy-Gauge Steel Construction
• Large, 15-inch (380 mm) Easy-to-Read Dial with Knife-edge Pointer
• 1 Year Warranty

Model BP15

• Chatillons finest quality bench platform scale with large 15" dial
• 13-1/2" x 19" platform

• The same rugged construction features as BP15, but with a 13" dial. Excellent for industrial weighing

These quality crafted bench platform scales feature a 15-inch glass-covered dial with knife-edge pointer. Designed for platform use, the BP Series features a rugged cast-iron base and heavy gauge steel platform. Adjustable leveling feet and spirit level indicator are standard. Tare is adjustable to 10% capacity. Class III "Legal For Trade" models are subject to on-site verification by local Weights and Measures jurisdictions. Available with avoirdupois or metric graduations. BP15 Series have temperature compensated springs.
