Cambridge 680UL60605 Model S680 Ultra-Lo Series 60 x 60 x 2.5 Base Only 5000 lb (3875-1012-00) |
|
| Cambridge Scale Works Model 680 Series Ultra-Lo Profile Floor Scale shown with optional easy incline ramp. more ... |
|
Scales >
Industrial Scales >
Floor Scales
|
Note: This product can only be shipped Ground Delivery.
|
|
|
|
|
|
|
|
Features
MODEL 680 SERIES
ULTRA-LO PROFILE FLOOR SCALE

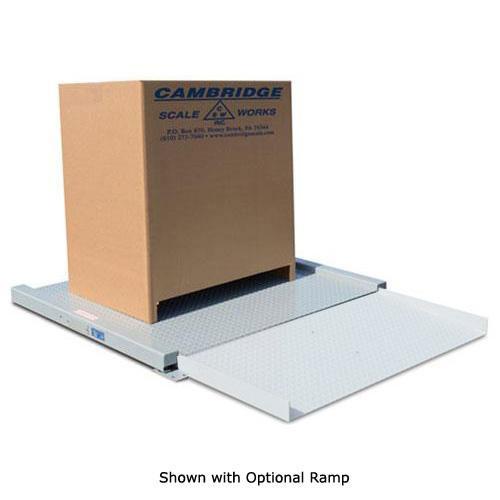

Cambridge Scale Works Model 680 Series Ultra-Lo Profile Floor Scale shown with optional easy incline ramp.
MODEL 680 STANDARD FEATURES
Live safety side rails for oversized loads and roll
off protection
Structural tubular steel design
Anti-skid diamond deck plate
Anti-skid leveling feet
100% end loading capacity
200% overload protection
20’ indicator cable
Four internally mounted NTEP certified 5000 division class III/IIIL water resistant environmentally protected load cells
Easy access leveling feet
Easy access junction board for corner adjusting
Shielded signal and load cell cables
Ultra-lo profile design for jack truck & cart weighing
Powder coated finish
One part in 5000 accuracy
OPTIONS
Easy incline ramps
Bumper rail assembly
Harsh environment package
Remote stainless steel junction box
Smooth plate
Stainless steel load cells
"FM" load cells
Dimensions
X:
60.00
Y:
60.00
Z:
2.50
|
1 Year Manufacture Warranty
|
Other Cambridge Scale Model 680 Series
|
Specifications
| Model |
Pan Size (Inch) |
Capacity x Readability |
Legal For Trade |
Overall Size (Inch) |
| 680UL30301 |
30 x 30 x 1.5 |
1,000 x 0.1 lb |
NO |
- |
36 x 30 |
| 680UL30302 |
30 x 30 x 1.5 |
2,500 x 0.5 lb |
NO |
- |
36 x 30 |
| 680UL36361 |
36 x 36 x 1.5 |
1,000 x 0.1 lb |
NO |
- |
42 x 36 |
| 680UL36362 |
36 x 36 x 1.5 |
2,500 x 0.5 lb |
NO |
- |
42 x 36 |
| 680UL36481 |
36 x 48 x 1.5 |
1,000 x 0.1 lb |
NO |
- |
42 x 48 |
| 680UL36482 |
36 x 48 x 1.5 |
2,500 x 0.5 lb |
NO |
- |
42 x 48 |
| 680UL48485 |
48 x 48 x 2 |
5,000 x 0.5 lb |
NO |
- |
54 x 48 |
| 680UL48481 |
48 x 48 x 2 |
10,000 x 1 lb |
NO |
- |
54 x 48 |
| 680UL48605 |
48 x 60 x 2 |
5,000 x 0.5 lb |
NO |
- |
54 x 60 |
| 3860-1013-00 |
48 x 60 x 2 |
10,000 x 1 lb |
NO |
- |
54 x 60 |
| 680UL48725 |
48 x 72 x 2 |
5,000 x 0.5 lb |
NO |
- |
54 x 72 |
| 680UL48721 |
48 x 72 x 2 |
10,000 x 1 lb |
NO |
- |
54 x 72 |
| 680UL60605 |
60 x 60 x 2.5 |
5,000 x 0.5 lb |
NO |
- |
66 x 60 |
| 680UL60601 |
60 x 60 x 2.5 |
10,000 x 1 lb |
NO |
- |
66 x 60 |
| 680UL60725 |
60 x 72 x 2.5 |
5,000 x 0.5 lb |
NO |
- |
66 x 72 |
| 680UL60601 |
60 x 72 x 2.5 |
10,000 x 1 lb |
NO |
- |
66 x 72 |
| 680UL60845 |
60 x 84 x 2.5 |
5,000 x 0.5 lb |
NO |
- |
66 x 84 |
| 680UL60841 |
60 x 84 x 2.5 |
10,000 x 1 lb |
NO |
- |
66 x 84 |
|
|
|
|
|
|
|
|
|
|
|
|
