Cambridge 670230301K Model 670-2 Series Weigher Scale Built In Single Ramp 30 x 30 x 1.5 / 1000 x 0.2 With Indicator |
|
| Constructed of structural tubular steel and heavy gauge anti-skid diamond plate decking these scales are designed to handle the toughest applications. Incorporating all of the accuracy, reliability and strength you have come to expect from Cambridge Scale Works and backed by our one year warranty. This kit comes with the Cambridge CSW-10AT Digital Weight Indicator Legal for Trade. more ... |
|
Industrial Scales >
Floor Scales >
Drum Scale
|
Note: This product can only be shipped Ground Delivery.
|
|
This Item Contains the following items
|
|
|
|
|
Features

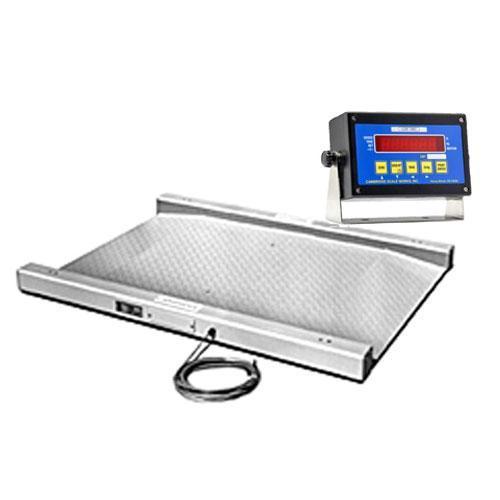

Cambridge Model 670-2 Series Barrel Weigher Scale
Constructed of structural tubular steel and heavy gauge anti-skid diamond plate decking these scales are designed to handle the toughest applications. Incorporating all of the accuracy, reliability and strength you have come to expect from Cambridge Scale Works and backed by our one year warranty.
STANDARD FEATURES
- Structural tubular steel construction.
- Anti-skid diamond plate deck.
- 100% End loading capacity.
- 150% Overload protection.
- 20 Foot indicator cable.
- Eye bolt holes allow easy set-up.
- Shielded load cell and indicator cables.
- Ultra-low profile (1.5” above the floor).
- Live side rails to weigh oversized loads.
- 1 Part in 5000 accuracy.
- Live built-in easy incline ramps.
- Shock load protection.
- (4) Internally mounted, Environmentally protected, NTEP certified-5000 Division, Class III/IIIL, IP 67 water resistant rated shear beam load cells.
- Easy access leveling.
OPTIONS
- Smooth carbon steel deck plate.
- Remote NEMA 4x junction box with 10 Sealtite flexible conduit (available in stainless steel, plastic and “FM” approved).
Load cell options:
- Stainless steel , Hermetically sealed S.S., Teflon cables,“FM” approved.
High Resolution Package Includes:
- Captive ball leveling feet for unmatched stability.
H.E.P. Package Includes:
- Stainless steel NEMA 4x J -box
- Capped and sealed tubes
- Stainless steel load cells, leveling feet and hardware, Sandblasted surface
- Cold zinc epoxy coating with urethane enamel finish coat
Cambridge CSW-10AT Digital Weight Indicator Legal for Trade, Selectable: NTEP 5,000 Division - Non-NTEP 20,000 Division. Keypad Calibration with Audit Trail. ABS Plastic Dust-Tight Enclosure with Stainless Steel Swivel Stand. Adjustable Motion Detection.
Dimensions
X:
30.00
Y:
30.00
Z:
1.50
|
|
Other Cambridge Scale Model 670-2 Series Legal For Trade Weigher Scale Built In Double Ramp
Cambridge 670230301 Model 670-2 Series Weigher Scale Built In Double Ramps (3883-1001-00
) 30 x 30 x 1.5 / 1000 x 0.2
$1,530.00
|
Cambridge 670230302 Model 670-2 Series Weigher Scale Built In Double Ramps (3883-1002-00
) 30 x 30 x 1.5 / 2500 x 0.5
$1,759.50
|
Cambridge 670230305 Model 670-2 Series Weigher Scale Built In Double Ramps (3883-1003-00
) 30 x 30 x 1.5 / 5000 x 1
$1,822.50
|
Cambridge 670230301K
Model 670-2 Series Weigher Scale Built In Single Ramp 30 x 30 x 1.5 / 1000 x 0.2 With Indicator
$1,854.00
You are viewing this product
|
Cambridge 670236361 Model 670-2 Series Weigher Scale Built In Double Ramps (3883-1004-00
) 36 x 36 x 1.5 / 1000 x 0.2
$1,863.00
|
Cambridge 670236365 Model 670-2 Series Weigher Scale Built In Double Ramps (3883-1005-00
) 36 x 36 x 1.5 / 5000 x 1
$1,863.00
|
Cambridge 670236362 Model 670-2 Series Weigher Scale Built In Double Ramps (3883-1006-00
) 36 x 36 x 1.5 / 2500 x 0.5
$1,957.50
|
Cambridge 670230302K
Model 670-2 Series Weigher Scale Built In Single Ramp 30 x 30 x 1.5 / 2500 x 0.5 With Indicator
$2,083.50
|
Cambridge 670230305K
Model 670-2 Series Weigher Scale Built In Single Ramp 30 x 30 x 1.5 / 5000 x 1 With Indicator
$2,146.50
|
Cambridge 670236361K
Model 670-2 Series Weigher Scale Built In Single Ramp 36 x 36 x 1.5 / 1000 x 0.2 With Indicator
$2,187.00
|
Cambridge 670236362K
Model 670-2 Series Weigher Scale Built In Single Ramp 36 x 36 x 1.5 / 2500 x 0.5 With Indicator
$2,281.50
|
|
Specifications
| Cambridge Model 670-2 Series Barrel Weigher Scale |
| Model |
670230301 |
670230302 |
670230305 |
670236361 |
670236362 |
670236365 |
| Platform Size |
30” x 30” x 1.5” |
30” x 30” x 1.5” |
30” x 30” x 1.5” |
36” x 36” x 1.5” |
36” x 36” x 1.5” |
36” x 36” x 1.5” |
| Capacity |
1,000 Lb. x 0.2 |
2,500 Lb. x 0.5 |
5,000 Lb. x 1 |
1,000 Lb. x 0.2 |
2,500 Lb. x 0.5 |
5,000 Lb. x 1 |
| High Resolution Package |
Captive ball leveling feet for unmatched stability. |
| Load Cells Options |
Stainless steel, Hermetically sealed S.S., Teflon cables,“FM” approved |
| Protection |
Remote NEMA 4x junction box with 10 Sealtite flexible conduit |
| H.E.P. Package Includes |
Stainless steel NEMA 4x J -box, Capped and sealed tubes, Stainless steel load cells leveling feet and hardware Sandblasted surface, old zinc epoxy coating with urethane enamel finish coat |
|
|
|
|
|
|
|
|
|
|
|
|
)
)
