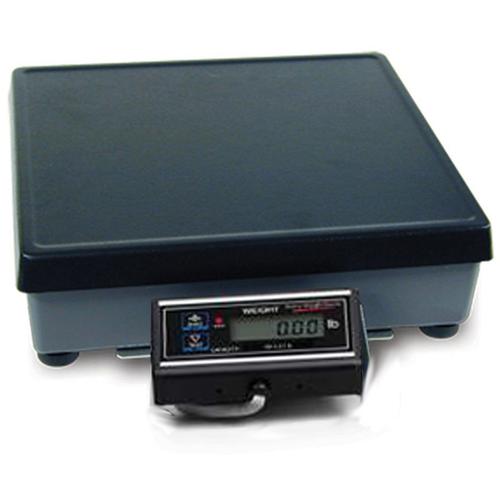

| Model |
7815
AWT05-508634 |
7815
AWT05-508635 |
7815R
AWT05-508636 |
7815R
AWT05-508637 |
| Capacity x Readability |
150 lb x 0.05 lb |
150 lb x 0.05 lb |
150 lb x 0.05 lb |
150 lb x 0.05 lb |
| 75 kg x 0.02 kg |
75 kg x 0.02 kg |
75 kg x 0.02 kg |
75 kg x 0.02 kg |
Capacity x Readability
Legal For Trade |
150 lb x 0.1 lb |
150 lb x 0.1 lb |
150 lb x 0.1 lb |
150 lb x 0.1 lb |
| 75 kg x 0.05 kg |
75 kg x 0.05 kg |
75 kg x 0.05 kg |
75 kg x 0.05 kg |
| Legal For Trade |
Class III |
| NTEP CC# 00-96 |
| Computer Interface |
RS232 |
RS232 |
RS232 |
RS232 |
| Platter Type |
Flat ABS Plastic |
Stainless Steel Ball Top (9 balls) |
Flat ABS Plastic |
Stainless Steel Ball Top (9 balls) |
| Display Type |
Flush fitting six digit, ½” high LCD display |
Remote six digit, ½” high digit LCD display housed in an extruded enclosure with a 7 foot cable Optional 2nd remote (for the 7815 only ) Six digit ½” high LCD display housed in an extruded enclosure with a 7 foot cable, connected via RJ 45 connector on the rear of the scales base |
| Number of Displays Allowed |
2 (1 standard, 1 remote display optional) |
1 remote display |
| Platter Size |
12" x 14" |
12" x 14" |
12" x 14" |
12" x 14" |
| Base Construction |
Rugged with powder coated die cast aluminum housing and load bridge, housing a aluminum NTEP approved analog load cell |
| Power |
120 VAC (+10% -15%), 60 Hz, standard 3-wire ground |
| Operating Environment |
Temperature: 42° F to 104° F (5° C to 40° C) Relative Humidity: 10 to 95% (non-condensing) |
| Input/Output |
1x RS232 (9 way female D Type connector )
1x 2nd Remote display connection (RJ 45) All are positioned on the rear of the base |
| Supported Protocols |
Standard NCI default with field configurable settings of 8213, 3835, SMA, with Auto Weight Send (2400 – 19.2K baud range) Transmits weight and scale status whenever ASCII “W” is sent by a remote device. |
| Display Bracket Options |
Optional 12” high pole mounted display bracket |
| Remote Display Housing Sizes |
8” x 3” x 1.5” |
| Operational Keyss |
ZERO: Includes Auto Zero Tracking or Manual push button to re-establish zero reference. TEST: Runs a diagnostic test to ensure scale is fully functional, and allows a real-time view of internal settings |
| Units of Measure |
lb or kg (lb default)” |
| Incremental Selections |
Multiples and sub-multiples of 1, 2, 5 |
| Configurable Selections |
Capacity, resolution, lb or kg, filters, baud rates, protocols, auto printout, scale or post classifier Default configuration is as postal weight classifier |
| Incremental Selections |
Multiples and sub-multiples of 1, 2, 5 |
| Calibration |
2 point calibration process (zero and span capacity) Field calibration can be carried out by using less than full capacity weights Gravity compensation to allow the local gravity to be entered for where the scale is to be used |
| Internal Resolution |
1 part in 120,000 |
| Self-Diagnostics |
2 level diagnostics: front panel display test or full service diagnostics. (Display, RAM, ROM, input/output & high
resolution x10 division test) |
