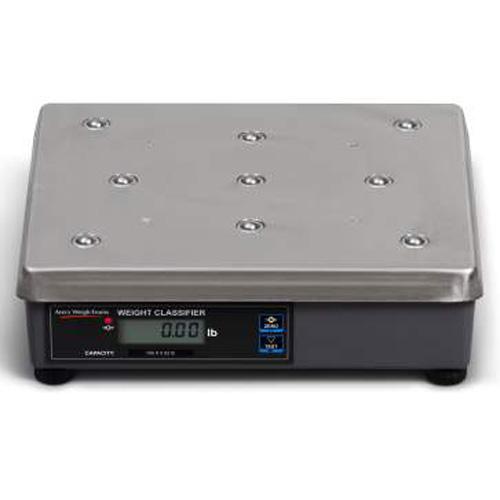

Avery Weigh-Tronix 7815 AWT05-508635 Legal for Trade 12 x 14 Shipping scale with Ball Top 150 lb x 0.1 lb

Avery Weigh-Tronix Shipping Scales
The 7815 shipping scale with Ball Top is suitable for parcels and large packages up to 75kg/150lb. This postal scale is highly accurate and legal for trade in the US, allowing you to charge by weight directly from it. It is also switchable between lb/kg for added flexibility. more ...
Shipping and Receiving > Shipping Scales > UPS and FedEx up to 150 lb
Avery Weigh-Tronix 7815 AWT05-508635 Legal for Trade 12  x 14 Shipping scale with Ball Top 150 lb x 0.1 lb

Specifications Chart View Full Detail Page


Have Questions?
Call USoremail Us
Our Staff will be glad to help

Avery Weigh-Tronix 7815 AWT05-508635 Legal for Trade 12 x 14 Shipping scale with Ball Top 150 lb x 0.1 lb
FREE Ground Shipping
(48 US States Only)

Price: $929.00


Available to Ship


View Features

Avery Weigh Tronix
SKU: AWT05-508635

Features

The 7815 shipping scale is suitable for parcels and large packages up to 75kg/150lb. This postal scale is highly accurate and legal for trade in the US, allowing you to charge by weight directly from it. It is also switchable between lb/kg for added flexibility.

Compatible With UPS, DHL, and FedEx

Suitable postal scale for daily use - The 7815 parcel scale’s robust construction and reliability, with a die cast aluminium base and ABS plastic weight platter, ensure accurate parcel weighing day in, day out.

Integrates easily with 3rd party systems and software - The 7815/7815R shipping scale can be integrated into existing network systems via RS232 and supports multiple protocols for use with 3rd party postal software.

Multi-display for customer convenience - It has an optional front mounted remote display for improved customer service.
Other options include a stainless steel top pan and a ball top shroud, for conveyor integration.


Weight: 23.00 lb
Other Avery Weigh Tronix 7815 Shipping Scales 12 x 14
Avery Weigh-Tronix 7815R AWT05-508636 Legal for Trade 12  x 14 Shipping scale 150 lb x 0.1 lb
Avery Weigh-Tronix 7815R AWT05-508636
Legal for Trade 12 x 14 Shipping scale 150 lb x 0.1 lb

$795.00
Avery Weigh-Tronix 7815 AWT05-508635 Legal for Trade 12  x 14 Shipping scale with Ball Top 150 lb x 0.1 lb
Avery Weigh-Tronix 7815 AWT05-508635
Legal for Trade 12 x 14 Shipping scale with Ball Top 150 lb x 0.1 lb

$929.00

You are viewing this product
Avery Weigh-Tronix 7815R AWT05-508637 Legal for Trade 12  x 14 Shipping scale with Ball Top 150 lb x 0.1 lb
Avery Weigh-Tronix 7815R AWT05-508637
Legal for Trade 12 x 14 Shipping scale with Ball Top 150 lb x 0.1 lb

$939.00

Specifications

Model 7815
AWT05-508634
7815
AWT05-508635
7815R
AWT05-508636
7815R
AWT05-508637
Capacity x Readability 150 lb x 0.05 lb 150 lb x 0.05 lb 150 lb x 0.05 lb 150 lb x 0.05 lb
75 kg x 0.02 kg 75 kg x 0.02 kg 75 kg x 0.02 kg 75 kg x 0.02 kg
Capacity x Readability
Legal For Trade
150 lb x 0.1 lb 150 lb x 0.1 lb 150 lb x 0.1 lb 150 lb x 0.1 lb
75 kg x 0.05 kg 75 kg x 0.05 kg 75 kg x 0.05 kg 75 kg x 0.05 kg
Legal For Trade Class III
NTEP CC# 00-96
Computer Interface RS232 RS232 RS232 RS232
Platter Type Flat ABS Plastic Stainless Steel Ball Top (9 balls) Flat ABS Plastic Stainless Steel Ball Top (9 balls)
Display Type Flush fitting six digit, ½” high LCD display Remote six digit, ½” high digit LCD display housed in an extruded enclosure with a 7 foot cable Optional 2nd remote (for the 7815 only ) Six digit ½” high LCD display housed in an extruded enclosure with a 7 foot cable, connected via RJ 45 connector on the rear of the scales base
Number of Displays Allowed 2 (1 standard, 1 remote display optional) 1 remote display
Platter Size 12" x 14" 12" x 14" 12" x 14" 12" x 14"
Base Construction Rugged with powder coated die cast aluminum housing and load bridge, housing a aluminum NTEP approved analog load cell
Power 120 VAC (+10% -15%), 60 Hz, standard 3-wire ground
Operating Environment Temperature: 42° F to 104° F (5° C to 40° C) Relative Humidity: 10 to 95% (non-condensing)
Input/Output 1x RS232 (9 way female D Type connector )
1x 2nd Remote display connection (RJ 45) All are positioned on the rear of the base
Supported Protocols Standard NCI default with field configurable settings of 8213, 3835, SMA, with Auto Weight Send (2400 – 19.2K baud range) Transmits weight and scale status whenever ASCII “W” is sent by a remote device.
Display Bracket Options Optional 12” high pole mounted display bracket
Remote Display Housing Sizes 8” x 3” x 1.5”
Operational Keyss ZERO: Includes Auto Zero Tracking or Manual push button to re-establish zero reference. TEST: Runs a diagnostic test to ensure scale is fully functional, and allows a real-time view of internal settings
Units of Measure lb or kg (lb default)”
Incremental Selections Multiples and sub-multiples of 1, 2, 5
Configurable Selections Capacity, resolution, lb or kg, filters, baud rates, protocols, auto printout, scale or post classifier Default configuration is as postal weight classifier
Incremental Selections Multiples and sub-multiples of 1, 2, 5
Calibration 2 point calibration process (zero and span capacity) Field calibration can be carried out by using less than full capacity weights Gravity compensation to allow the local gravity to be entered for where the scale is to be used
Internal Resolution 1 part in 120,000
Self-Diagnostics 2 level diagnostics: front panel display test or full service diagnostics. (Display, RAM, ROM, input/output & high resolution x10 division test)
