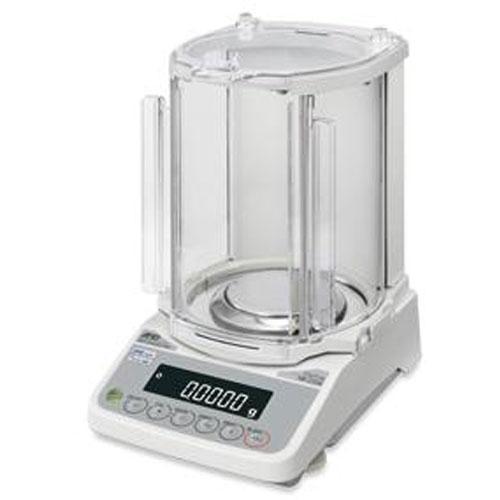

AND Weighing HR-100AZ - Compact Analytical Balance, 102g x 0.1 mg |
|
| The HR-A Series of Compact Analytical Balances are fast, accurate and reliable. They feature solid construction based on the A&D Super Hybrid Sensor (SHS) technology which has delivered consistent weighing results day-in and day-out in thousands of laboratories and production facilities worldwide. The HR-AZ models add highly reliable internal calibration. One-touch automatic calibration ensures consistent balance accuracy. more ... |
|
Laboratory Equipment >
Analytical Balances >
Analytical - 0.1 mg
|
|
|
|
|
|
Features
The HR-A & HR-AZ Series – Saving you space, effort and your budget.
The HR-A Series of Compact Analytical Balances are fast, accurate and reliable. They feature solid construction based on the A&D Super Hybrid Sensor (SHS) technology which has delivered consistent weighing results day-in and day-out in thousands of laboratories and production facilities worldwide.
The HR-AZ models add highly reliable internal calibration. One-touch automatic calibration ensures consistent balance accuracy.
The HR-A and HR-AZ meet today’s demanding needs in: Laboratory, Quality Control / QA, Production, environments and deliver performance with convenience in a compact footprint
Product Features:
- Removable, shatterproof breeze break with antistatic coating
- Compact footprint: 20x30cm / 8x12in.
- GLP/GCP/LIMS/ISO Compliant
- 14 weighing units and functions: g, mg, oz, ozt, ct, dwt, GN, mom, tael, tola, %, pieces,density, statstical function and user-defined units.
- Automatic internal calibration (HR-AZ)
- Underhook weighing
- Clear, reverse-backlit LCD
- Five Year Warranty
Save Space:
Rotary doors mean that the balance takes up no extra space when the doors are open. The HR-A Series is perfectly at home in the tight con? nes of glove boxes and fume hoods. Crowded academic lab benches are no problem: set-up 2 balances back-to-back.
The top of the breeze break also pivots open, so access to beakers and ? asks is easy.
Safe for Sensitive Environments:
The rugged, shatterproof breeze break with anti-static coating makes the HR-A/AZ safe for challenging applications where contamination is a potential concern: Pharmaceutical / FDA
Food / HACCP
Save Effort:
The breeze break detaches in seconds even with heavy gloves. This makes cleaning easier and enables top-loading operation.
The 2-second stabilization time increses productivity by delivering fast results. The HR-A/AZ lets you perform frustration-free weighing down to a resolution of 0.1 mg
Save Cost:
Developed with the value-conscious user who does not want to compromise on performance, the HR-A offers capability and simplicity. When your product goes from lab to production, the HR-A/AZ is cost-effective enough to go with it.
Accessories:
- FXi-02*Quick USB interface with cable
- FXi-08*Ethernet interface with WinCT-Plus software
- FXi-09*Built-in rechargeable battery
- AD-1654Density Determination Kit
- AD-1683Static Eliminator
* The FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
Weight:
7.80 lb
|
|
Other AND Weighing HR-A / HR-AZ Series Compact Analytical Balances
|
Specifications
See Low Price in Cart
|
| Model |
HR-100A |
HR-150A |
HR-250A |
HR-100AZ |
HR-150AZ |
HR-250AZ |
| Capacity x Readability |
102g x 0.1 mg |
152g x 0.1 mg |
250g x 0.1 mg
252g x 0.2 mg |
102g x 0.1 mg |
152g x 0.1 mg |
250g x 0.1 mg
252g x 0.2 mg |
| Minimum weighing value |
0.1 mg |
0.1 mg |
0.1 mg |
0.1 mg |
0.1 mg |
0.1 mg |
| Linearity |
±0.2 mg |
±0.2 mg |
±0.3 mg |
±0.2 mg |
±0.2 mg |
±0.3 mg |
| Internal calibration |
NO |
YES |
| Clock and calendar function |
NO |
YES |
| Stabilization time (when set to FAST under a good environment |
Approx. 2 seconds |
| Sensitivity drift |
±2 ppm/°C (10 to 30 °C/50 to 86 °F) |
| Operating environment |
5 to 40 °C (41 to 104 °F), 85% RH or less (no condensation) |
| Display mode |
gram, milligram, ounce, troy ounce, metric carat, momme, pennyweight, grain, counting mode, percent mode, density mode, and a user-programmable unit |
| Display refresh rate |
5 times/second (10 times/second can be selected) |
| Counting mode |
Minimum unit mass 0.1 mg |
| Number of samples 10, 25, 50 or 100 pieces |
| Percent mode |
Minimum 100% reference mass - 10.0 mg |
| Minimum 100% display - 0.01%, 0.1%, or 1% (depends on the reference mass stored) |
| Interface |
RS-232C |
| Weighing pan (diameter) |
190 mm |
| Applicable calibration weight value |
100 g, 50 g |
150 g, 100 g, 50 g |
250 g, 200 g, 100 g, 50 g |
100 g, 50 g |
150 g, 100 g, 50 g |
250 g, 200 g, 100 g, 50 g |
| External dimensions |
198 (W) × 294 (D) × 315 (H) mm |
| Net weight |
Approx. 3.5 kg |
Approx. 3.9 kg |
| Power supply |
AC adapter |
| Power consumption |
Approx. 11 VA (supplied to the AC adapter) |
|
|
|
|
* within the 48 continental US States
|
|
