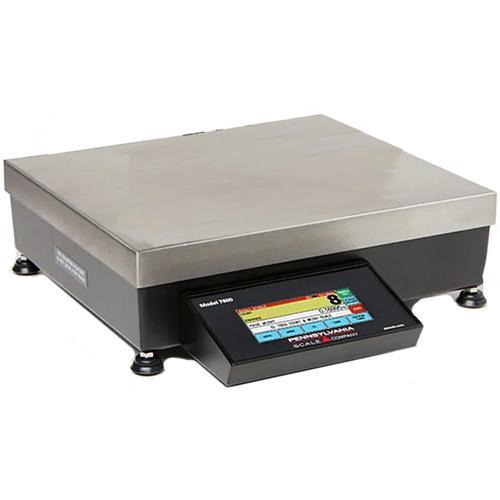

Featuring a Windows-type operating display, the 7800 touch screen count & weigh scale offers superior flexibility to simplify even the most sophisticated weighing application. For even greater operator ease and productivity, the screen displays only the data and input buttons of the function being used, so there’s no confusing on-screen clutter or data.
Featuring a Windows-type operating display, the 7800 touch screen count & weigh scale offers superior flexibility to simplify even the most sophisticated weighing application. For even greater operator ease and productivity, the screen displays only the data and input buttons of the function being used, so there’s no confusing on-screen clutter or data. The 7800’s super heavy-duty industrial design is reliable in the toughest environments for years of trouble-free performance.
High Performance. High Functionality.
The 7800 also lets you select multiple operating modes, so you can increase productivity in a range of applications, including weighing, counting, check weighing and set point relays. Dedicated screens and function buttons simplify operations.
The 7800, which features one of the most powerful platforms in the industry for data collection, interfaces with third-party software and components (barcode scanners and printers) for seamless integration with your production system. You can also record data for reliable inventory tracking and greater efficiency. If you ever have a question, simply call one of our experts for answers.
Available With Multiple Communication Options And Can Be Integrated With Many Third Party’s Software
The standard 750 SKU lookup database lets you store and recall important count or weight information. Upgrade your capabilities with the optional 1500 or 3000 database.
Standard Features
High Resolution Counting and Weighing 20,000 Divisions
Heavy-duty powder coated steel and SS construction
Clean, convenient design with bright, stable full-color display and touchscreen
Full alpha-numeric QWERTY keyboard for easy entry of scale data points
Check weighing and Setpoint relay operation
SKU/Product ID Database to store and recall by alphanumeric Part#, Description, Piece Weight, Tare Weight, 3 user-defined Fields, Over/Under Check weigh Settings, Setpoint/Relay Target settings
Adaptive changes to show units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Single or optional dual base-counting and weighing
Multiple count modes and Auto Sample Update and percent-of error/accuracy display
Fast one-step or two-step counting
Two powerful and flexible standard serial ports, optional wired ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth
Four-year limited warranty
Specifications
Power AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
Power Consumption 0.25A at 115 VAC, 0.13A at 230 VAC
Display: 800 X 320 dot resolution, and 4.6 h full-color LCD display with resistive touch panel
Indications for Gross, Net, Tare, Count, Piece Weight, % Accuracy, Check Weigh Over/Under/Accept, Setpoint Status, Active ID and Base 2
Operating Temperature 14º F to 104ºF , -10ºC to 40ºC
Internal Resolution 1/8,000,000
Displayed Resolution. Standard 1/20,000. Up to 1/50,000
5 VDC excitation to power up to 12, 350 ohm load cells
Dimensions 12 h X 14 h Platter Size
Four Year Limited Warranty
Shipping Information: 23 h X 21 h X 7 h Carton 19 lbs. Battery Option 23 lbs.
Options
Ethernet IP
Second base input
Battery AC operation, built-in re-chargeable system, 30+ hours of operation
Printers for label, barcode label or receipt printing
Barcode scanner
Upgraded Internal Product DB, 1500 and 3000 entries
External power input 12 or 24 VDC.
1 alarm buzzer mounted inside scale or indicator
Ball-top transfer plate and roller conveyor
Setpoint/relays DC or AC
Alarm stack lights and buzzer
Communications Wired Ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth
Analog output, 4-20ma or 0-10vdc
Custom engineering for unique applications
Warranty
The parts and components of these Pennsylvania Scale Company products are warranted for four years from the date of retail delivery against defects in materials and workmanship, subject to the terms and conditions of our standard warranty.
High Resolution Model
7800-2HR
7800-5HR
7800-10HR
7800-20HR
7800-50HR
7800-100HR
7800-150HR
7800-200HR
$1,151.15
$1,151.15
$1,151.15
$1,151.15
$1,151.15
$1,151.15
$1,151.15
$1,151.15
Capacity x Readability
2 x 0.0002 lb
5 x 0.0005 lb
10 x 0.0005 lb
20 x 0.001 lb
50 x 0.002 lb
100 x 0.005 lb
150 x 0.01 lb
200 x 0.02 lb
907.2 x 0.1 g
2268 x 0.5 g
4536 x 0.2 g
9.072 x 0.005 kg
22.68 x 0.001 kg
100 x 0.002 kg
150 x 0.005 kg
200 x 0.005 kg
Pan Size (inch)
12" X 14"
12" X 14"
12" X 14"
12" X 14"
12" X 14"
12" X 14"
12" X 14"
12" X 14"
Power
AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
Power Consumption
0.25A at 115 VAC, 0.13A at 230 VAC
Communications
Two RS-232 serial ports (optional wired ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth)
SKU Lookup
750 (optional upto 3000)
units of measurement
kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Circuit Protection
RFI, EMI, ESD Protection ADC shielded
Display
800 X 320 dot resolution, and 4.6” full-color LCD display with resistive touch panel
Indications
Gross, Net, Tare, Count, Piece Weight, % Accuracy, Check Weigh Over/Under/Accept, Setpoint Status, Active ID and Base 2
Operating Temperature
14º F to 104ºF , -10ºC to 40ºC
Internal Resolution
1/8,000,000
Displayed Resolution
Standard 1/10,000. Up to 1/50,000
load cells
5 VDC excitation to power up to 12, 350 ohm load cells
Warranty
Four Year Limited Warranty
units
lb, kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. -oz
Made in USA
Contact us –for many standard and custom features can be added. Accumulator, Peak Hold, UPS online/FedEx, Dual/Triple ranging
Full list of Options Please Call us (800)832-0055
Part Number
Description
Price
7800-XXXHR AB
1 Alarm Buzzer Mounted inside scale or indicator
Call
7800-XXXHR AO
Analog output option. Jumper select for 0 -10 VDC or 4 -20ma (Specify when ordering) output via two conductor cable.
Call
7800-XXXHR BC
Heavy duty industrial barcode scanner. Power supplied from scale with convenient bulkhead quick disconnect
Call
7800-XXXHR BT
Ball top transfer plate option for scale with 12" X 14" ball top transfer plate. 18, 1.5" balls with 3.5" center to center spacing. Available in 50 lbs. capacity and higher only.
$315.00
7800-XXXHR BTH
Blue tooth option. Internal blue tooth transmitter/receiver for com port communication
$225.00
7800-XXXHR DB
2nd Base Input –for dual base or sample/bulk counting applications
Call
7800-XXXHR DC
Built in rechargeable battery option. 30+ hours of continuous operation with integrated battery charger and heavy-duty power cord.
$189.00
7800-XXXHR DCR
4 VDC, 2-amp Setpoint/Relays and I/O that may be programed for use with Count or Weight values.
Call
7800-XXXHR EO
Wired ethernet option. Wired ethernet communication port, fully networked configurable with bulkhead RJ45 connector. Includes software utility for setup and configuration
$265.50
7800-XXXHR HID
Human interface device USB Option. Provides keyboard emulation USB port with USB "A" bulkhead connector
Call
7800-XXXHR RT
Roller conveyor option for scale with 12" X 14" roller conveyor option. High strength lightweight roller conveyors, 1.25" diameter rollers, 1.5" center to center spacing Available in 50 lbs. capacity and higher only.
$315.00
7800-XXXHR SLA1
Alarm Stack light 1 Lights, Red and Buzzer Alarm. 2" Diameter, 16" High
$414.00
7800-XXXHR SLA2
Alarm Stack light 2 Lights, Red, Green and Buzzer Alarm. 2" Diameter, 18.75" High.
120 VAC, 2-amp Setpoint/Relays and I/O that may be programed for use with Count or Weight values.
Call
7800-XXXHR USB
USB option. Provides USB comport communications with USB "A" bulkhead connector
$225.00
7800-XXXHR WIFI
Wi-Fi option. Wireless ethernet communication with bulkhead mounted antenna, fully networked configurable. Includes software utility for setup and configuration
$225.00
CUSTLABEL
Custom Label Programming. Design and set up of custom label for a plug and play system, Call us about this Option (worksheet on page 53)
Call
DT2PRINTER-1
2" Direct thermal barcode label printer. Includes 6' scale to printer cable. For custom label program see part# CUSTLABEL above
$445.50
DT4PRINTER-1
4" Direct thermal barcode label printer. Includes 6' scale to printer cable. For custom label program see part# CUSTLABEL above
$472.50
DTR2PRINTER-1
2" Direct thermal receipt printer. Includes 6' scale to printer cable.
$265.50
57513-1
Replacement battery pack
Call
61510
10" Plastic Scoop. 10 in x 2-3/4 infooted round plastic scoop ideal for parts counting or weighing ingredients or components. It is made of food grade polypropylene and is manufactured in the USA.
Call
CALCERT1
Statement of Accuracy Certificate
Call
CALCERT2
NIST Traceable Calibration Certificate
Call
PAWT-25
25 lb. Cast Iron Test Weight. OIML standard M1 accuracy. Ideal equivalent to Class F sealable.
Call
PAWT-25C
25 lb. Cast Iron Test Weight. OIML standard M1 accuracy. Ideal equivalent to Class F sealable. With NIST Traceable calibration certificate
Call
PAWT-50
50 lb. Cast Iron Test Weight. OIML standard M1 accuracy. Ideal equivalent to Class F sealable
Call
Specials
Special Applications are available for this model. Contact us to discuss your unique application requirements so we can develop a great solution for you
Call
older models
Model
7800-2
7800-5
7800-10
7800-20
7800-50
7800-100
7800-150
7800-200
$1,058.75
$1,058.75
$1,058.75
$1,058.75
$1,058.75
$1,058.75
$1,058.75
$1,058.75
Capacity x Readability
2 x 0.0002 lb
5 x 0.0005 lb
10 x 0.002 lb
20 x 0.005 lb
50 x 0.01 lb
100 x 0.02 lb
150 x 0.05 lb
200 x 0.05 lb
907.2 x 0.2 g
2268 x 0.5 g
4536 x 1 g
9.072 x 0.002 kg
22.68 x 0.01 kg
100 x 0.02 kg
150 x 0.05 kg
200 x 0.05 kg
Pan Size (inch)
8" X 8"
8" X 8"
12" X 14"
12" X 14"
12" X 14"
12" X 14"
12" X 14"
12" X 14"
Power
AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
Power Consumption
0.25A at 115 VAC, 0.13A at 230 VAC
Communications
Two RS-232 serial ports (optional wired ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth)
SKU Lookup
750 (optional upto 3000)
Circuit Protection
RFI, EMI, ESD Protection ADC shielded
Display
800 X 320 dot resolution, and 4.6” full-color LCD display with resistive touch panel
Indications
Gross, Net, Tare, Count, Piece Weight, % Accuracy, Check Weigh Over/Under/Accept, Setpoint Status, Active ID and Base 2
Operating Temperature
14º F to 104ºF , -10ºC to 40ºC
Internal Resolution
1/8,000,000
Displayed Resolution
Standard 1/10,000. Up to 1/50,000
load cells
5 VDC excitation to power up to 12, 350 ohm load cells
Warranty
Four Year Limited Warranty
units
lb, kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. -oz
