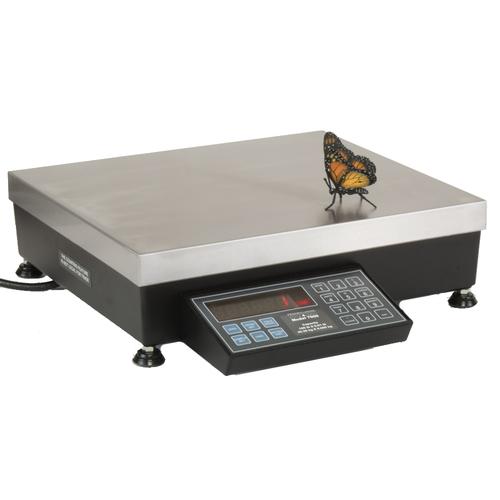

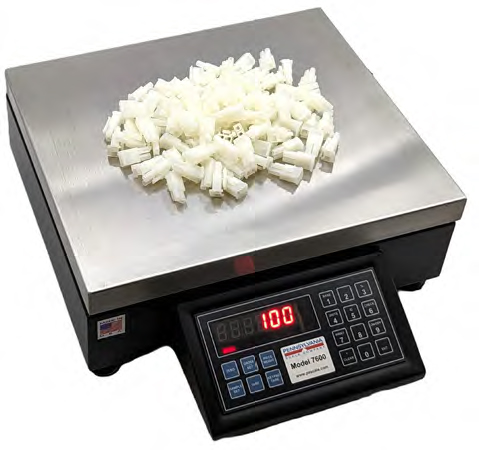

Pennsylvania Scale 7600HR Legal for Trade Count Bench Scales
Authorized Dealer
From simple one-button counting to sophisticated inventory control systems, the 7600 Series bench counting scales have a long list of features designed to adapt to your changing needs. Single or dual base counting. Percent of Error or Accuracy. Sample Update.
From simple one-button counting to sophisticated inventory control systems, the 7600 Series bench counting scales have a long list of features designed to adapt to your changing needs. Single or dual base counting. Percent of Error or Accuracy. Sample Update.™ Powerful RS-232. Rugged cast construction. Clean, efficient design means impressive accuracy and stable counting and weighing in a wide range of requirements
Features
High Resolution Counting and Weighing 20,000 Divisions
Heavy-duty powder coated steel and SS construction
Clean, convenient design with bright, Red LED display
Full functions with Sample, Zero, Tare, Keypad Tare, Gross/Net, Piece Weight, Print, Base and Units
Two units of measurement, including lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Single or optional dual base-counting and weighing
Multiple count modes and Auto Sample Update and percent-of error/accuracy display
Fast one-step or two-step counting
One powerful and flexible standard serial ports, optional wired ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth
Four-year limited warranty
Applications
Shipping or receiving verifications
Checking quantities for production or inventory
Rental Scales for short term use: single or dual platform
Bench or portable weighing and counting
Shipping manifest systems or SPC/SQC
Quality control
Remote Base/Load Cell Compatibility (optional)
Suitable for a wide range of bases and load cells
Excitation: 10 V
Impedance: 87 to 2,000 ohms
Sensitivity: 1, 2, or 3 mv/V
Count Features
Auto Sample Update™ for accuracy enhancement
(4) Pre-set sample sizes plus keyboard entry
Display of Percent of Error or Accuracy when sampling
Display/Key entry of Piece Weight (or Piece Weight per thousand)
Sample and Sample-to-bulk counting with 2nd optional platform
Weighing Functions
Pushbutton or keyboard Tare entry
Display of Gross/Net /Tare weights
(2) standard metrological weight units
Data Communications
Bi-directional RS-232 data output or USB
Time and Date with nonvolatile memory
OPTIONAL Ethernet communications
OPTIONAL Analog output – jumper select 4–20 mA or 0–10 VDC
OPTIONAL Relay outputs
Physical Dimensions
14" (L) x 15.5" (W) x 5.25" (H); 15.25 lb
356 mm (L) x 394 mm (W) x 133 mm (H); 6.92 kg
Specifications
Power AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering)
.Power Consumption 0.25A at 115 VAC, 0.13A at 230 VAC
.Display: .56 LED Red, bright, stable and easy to read
.Indications for Gross, Net, Tare, Count, Piece Weight, % Accuracy, and Base 2
Operating Temperature 14º F to 104ºF , -10ºC to 40ºC
.Internal Resolution 1/8,000,000
.Displayed Resolution. Standard 1/20,000. Up to 1/50,000
.5 VDC excitation to power up to 12, 350-ohm load cells
.Dimensions 12"h X 14"h Platter
.Warranty 4 Year Limited Warranty
.Legal for trade NTWP COC 91-149A7
.Measurement Canada COC AM-4869 Rev. 3
.Shipping Information: 23"h X 21"h X 7"h Carton 19 lbs. Battery Option 23 lbs.
Options - Please call us for more info
Second base input
Battery AC operation, built-in re-chargeable system, 30+ hours of operation
Printers for label, barcode label or receipt printing
External power input 12 or 24 VDC.
•220/230 VAC operation
1 alarm buzzer mounted inside scale or indicator
Ball-top transfer plate and roller conveyor
Setpoint/relays DC or AC
Alarm stack lights and buzzer
Communications Wired Ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard Emulation and Bluetooth®
Analog output, 4-20ma or 0-10vdc
Custom engineering for unique applications
Warranty
The parts and components of these Pennsylvania Scale Company products are warranted for four years from the date of retail delivery against defects in materials and workmanship, subject to the terms and conditions of our standard warranty.
Price with RS-232
7600-2HR
7600-5HR
7600-10HR
7600-20HR
7600-50HR
7600-100HR
7600-150HR
7600-200HR
$943.25
$943.25
$943.25
$943.25
$943.25
$943.25
$943.25
$943.25
Price with USB
7600-2HR-USB
7600-5HR-USB
7600-10HR-USB
7600-20HR-USB
7600-50HR-USB
7600-100HR-USB
7600-150HR-USB
7600-200HR-USB
$1,135.75
$1,135.75
$1,135.75
$1,135.75
$1,135.75
$1,135.75
$1,135.75
$1,135.75
Capacity x Readability
2 X 0.0002 lb 907.2 x 0.1 g
5 X 0.0005 lb 2268 x 0.5 g
10 x 0.0005 lb 4536 x 0.2 g
20 x 0.001 lb 9.072 x 0.005 kg
50 x 0.002 lb 22.68 x 0.001 kg
100 x 0.005 lb 45.36 x 0.002 kg
150 x 0.01 lb 68.04 x 0.005 kg
200 x 0.02 lb 90.72 x 0.005 kg
Pan Size
12 x 14 in
Finish
Stainless Steel
Legal For Trade
NTEP #91-149A7 certified-5000 Division, Class III/IIIL Canadian Weights & Measures AM-4869 Rev. 3
Outputs
RS-232 or USB (optional wired ethernet, WiFi, USB Virtual Com Port, USB HID/Keyboard)
Display
0.56" high intensity red LED Full numeric keyboard for entry of Tare Weights, 6-digit I.D., Sample Quantity, and Average Piece Weight
units
lb., kg, g, oz t, lb. t, gr, dwt, oz, c, oz f, l, ml, tons and lb. - oz
Operating Temperature
14º F to 104ºF , -10ºC to 40ºC
Warranty
4 Year Limited
Made in USA
Contact us –for many standard and custom features can be added. Accumulator, Peak Hold, UPS online/FedEx, Dual/Triple ranging
Full list of Options Please Call us (800)832-0055
Part Number
Description
Price
7600-XXXHR 12DC
External power input 12 or 24 VDC. Specify at time of order, requires external power supply of 12 or 24 VDC
Call
7600-XXXHR 220VAC
220/230 VAC Operation
Call
7600-XXXHR AB
1 Alarm Buzzer Mounted inside scale or indicator
Call
7600-XXXHR BT
Ball top transfer plate option for scale with 12" X 14" ball top transfer plate. 18, 1.5" balls with 3.5" center to center spacing. Available in 50 lbs. capacity and higher only.
$315.00
7600-XXXHR AO
Analog output option. Jumper select for 0 - 10 VDC or 4 - 20ma (Specify when ordering) output via two conductor cable.
Call
7600-XXXHR BTH
Blue tooth option. Internal blue tooth transmitter/receiver for com port communication.
Call
7600-XXXHR DB
2nd Base Input – for dual base or sample/bulk counting applications
$175.50
7600-XXXHR DC
Built in rechargeable battery option. 30+ hours of continuous operation with integrated battery charger and heavy-duty power cord.
$189.00
7600-XXXHR DCR
4 VDC, 2-amp Setpoint/Relays and I/O that may be programed for use with Count or Weight values
Call
7600-XXXHR EO
Wired ethernet option. Wired ethernet communication port, fully networked configurable with bulkhead RJ45 connector. Includes software utility for setup and configuration
Call
7600-XXXHR HID
Human interface device USB Option. Provides keyboard emulation USB port with USB "A" bulkhead connector
Call
7600-XXXHR RT
Roller conveyor option for scale with 12" X 14" roller conveyor option. High strength lightweight roller conveyors, 1.25" diameter rollers, 1.5" center to center spacing Available in 50 lbs. capacity and higher only.
$315.00
7600-XXXHR RS
Remote switch input option. Provides remote switch function for Gross/Net, Tare, Zero and Print. Includes 18" color coded cable
120 VAC, 2-amp Setpoint/Relays and I/O that may be programed for use with Count or Weight values.
$225.00
7600-XXXHR USB
USB option. Provides USB comport communications with USB "A" bulkhead connector
Call
7600-XXXHR WIFI
Wi-Fi option. Wireless ethernet communication with bulkhead mounted antenna, fully networked configurable. Includes software utility for setup and configuration
Call
CUSTLABEL
Custom Label Programming. Design & Setup of custom label for a plug and play.
Call
DT2PRINTER-1
2" Direct thermal barcode label printer. Includes 6' scale to printer cable. For custom label program see part# CUSTLABEL above
$445.50
DT4PRINTER-1
4" Direct thermal barcode label printer. Includes 6' scale to printer cable. For custom label program see part# CUSTLABEL above
$472.50
DTR2PRINTER-1
2" Direct thermal receipt printer. Includes 6' scale to printer cable
$265.50
57513-1
Replacement battery pack
$85.50
57540-1
Second display for 2 total with function buttons, 6' of cable tower mount
Call
57540-3
Second display for 2 total with function buttons, 6' of cable "U" bracket wall mount
Call
61510
10" Plastic Scoop. 10 x 2-3/4 footed round plastic scoop ideal for parts counting or weighing ingredients or components. It is made of food grade polypropylene and is manufactured in the USA.
Call
CALCERT1
Statement of Accuracy Certificate
$20.00
CALCERT2
NIST Traceable Calibration Certificate
$80.75
PAWT-25
25 lb. Cast Iron Test Weight. OIML standard M1 accuracy. Ideal equivalent to Class F sealable.
Call
PAWT-25C
25 lb. Cast Iron Test Weight. OIML standard M1 accuracy. Ideal equivalent to Class F sealable. With NIST Traceable calibration certificate.
Call
PAWT-50
50 lb. Cast Iron Test Weight. OIML standard M1 accuracy. Ideal equivalent to Class F sealable.
Call
Specials
Special Applications are available for this model. Contact us to discuss your unique application requirements so we can develop a great solution for you
Call
older models
Price with RS-232
PA-7600-2
PA-7600-5
PA-7600-10
PA-7600-20
PA-7600-50
PA-7600-100
PA-7600-150
PA-7600-200
$827.75
$827.75
$827.75
$827.75
$827.75
$827.75
$827.75
$827.75
Price with USB
PA-7600-2-USB
PA-7600-5-USB
PA-7600-10-USB
PA-7600-20-USB
PA-7600-50-USB
PA-7600-100-USB
PA-7600-150-USB
PA-7600-200-USB
$1,020.25
$1,020.25
$1,020.25
$1,020.25
$1,020.25
$1,020.25
$1,020.25
$1,325.00
Capacity x Readability
2 x 0.0002 lb 907.2 x 0.1 g
5 x 0.0005 lb 2268 x 0.2 g
10 x 0.001 lb 4536 x 0.5 g
20 x 0.002 lb 9.072 x 0.001 kg
50 x 0.005 lb 22.68 x 0.005 kg
100 x 0.01 lb 45.36 x 0.005 kg
150 x 0.02 lb 68.04 x 0.01 kg
200 x 0.02 lb 90.72 x 0.01 kg
Pan Size
8 x 8 in
12 x 14 in
Finish
Aluminum
Stainless Steel
Legal For Trade
NTEP certified-5000 Division, Class III/IIIL Canadian Weights & Measures
Outputs
RS-232 or USB (Option Analog, Ethernet, Relays)
Display
0.56" high intensity red LED Full numeric keyboard for entry of Tare Weights, 6-digit I.D., Sample Quantity, and Average Piece Weight
Optional 2nd Base
Programmable to other capacities/resolutions. Internal resolution: 1 part in 1 million. Weight displayed at 10,000 graduations; programmable to any (2) weight
units up to 1 part in 20,000 stable. Fast response of less than 2 seconds full scale.
Warranty
4 Year Limited
Made in USA
Contact us –for many standard and custom features can be added. Accumulator, Peak Hold, UPS online/FedEx, Dual/Triple ranging
