OHAUS Scout Pro Portable Balances for Education

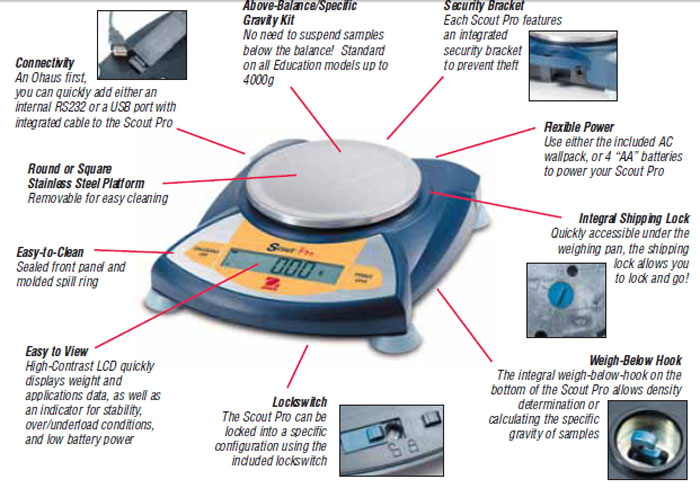

Milligram Model with Round Platform (draftshield included) Round Platform Square Platform Specifications Chart *Volume Discounts Available We Accept Educational Institutions Purchase Orders Email Us or Call 800-832-0055 The OHAUS Scout® Pro Education Balance – Hands Down The Classroom’s Best Portable Balance! Designed for use in education applications, the OHAUS Scout® Pro features easy-to-use two-button operation, a high-contrast LCD display, multiple weighing units, five application modes, and the option of either RS232 or USB connectivity, the Scout Pro is the portable balance for your needs! Maximum Protection – Scout Pro is designed with mechanical and software protection against shock and overloading which can cause damage to the weighing cell. An integrated shipping lock protects the weighing cell during transportation or storage RS232 or USB Connectivity – Scout Pro interface accessories are easy to install at anytime, even after purchase. The data cable is integrated in the kit, eliminating the need for additional cables Specific Gravity Software and Kit – The Scout Pro Education Balance is designed with specify gravity software and an above balance kit which allows for specific gravity determination. The integral weigh below hook is a secondary setup method for specific gravity determination

OHAUS Scout Pro Portable Balances for Education FREE UPS Ground Shipping (within the 48 continental US States) Model: Select SPE123 - 120 x 0.001 g $494.44 SPE202 - 200 x 0.01 g $372.22 SPE402 - 400 x 0.01 g $528.89 SPE602 - 600 x 0.01 g $550.00 SPE401 - 400 x 0.1 g $189.00 SPE601 - 600 x 0.1 g $298.89 SPE4001 - 4000 x 0.1 g $611.11 SPE6001 - 6000 x 0.1 g $555.00 SPE6001 - 6000 x 1 g $299.00 Ohaus 80850028 Scout Carrying Case(77256-01 ), add $151.20 Ohaus 80850000 Security Device (76288-01), add $106.20 Specifications Chart

Built-In Application Modes

• Specific Gravity
  • Specific gravity calculation is automatic in weighing mode
  • A Density/Specific Gravity kit is included with all Scout Pro Education Balances up to 4000g. It allows placement of sample and solution on top of balance when suspension of samples below the balance isn’t practical.
  • An integral weigh-below hook is part of the balance, so it can’t be misplaced!
• Percent Weighing – Use the Percent Weighing mode to compare samples for compounding, formulation, or quick weight checking. Place your reference weight on the platform, enter the weight into memory, and the display will show the percentage of the sample weight on the platform compared to the reference weight.
• Totalization – Use Scout Pro’s memory function to repeatedly sum the weight on the platform. Unlike other balances, the Scout Pro allows totalization up to the limit of the display!
• Display Hold – The Display Hold mode allows you to retain the weight of an over-sized sample on Scout Pro’s display
• Parts Counting – The Scout Pro is designed for flexibility when counting parts
  • Select from a sample size of 5, 10, 20 or 50 pieces while in counting mode with a quick button press
  • Scout Pro features user-enabled automatic recalculation of the average piece weight – instead of counting 100 parts for a sample, count 10 and let the Scout Pro count the rest of the sample! For applications where automatic recalculation is not desired, the easy-to-use menu system allows this feature to be disabled
  • The Scout Pro can also be configured for situations where only the counting feature is required
• User-Configurable – Scout Pro allows you to select active weighing units and modes using the two-button keypad. Scout Pro can be quickly configured using an on-display menu system – there are no cryptic codes to input! A built-in lockswitch prevents reconfiguration during use.

Standard Features/Equipment Removable stainless steel weighing platform, high contrast LCD display, lockswitch, integral security bracket, integral shipping lock, integral weigh below hook, sealed front panel and molded spill ring, stability indicator, overload and underload indicators, low battery indicator, auto shut-off, AC adapter, span calibration mass included on 200g, 400g and 600g models.

Model	SPE123*	SPE202	SPE402	SPE602	SPE401	SPE601		SPE4001	SPE6001	SPE6000
Price	$494.44 Add to Cart	$372.22 Add to Cart	$528.89 Add to Cart	$550.00 Add to Cart	$189.00 Add to Cart	$298.89 Add to Cart		$611.11 Add to Cart	$555.00 Add to Cart	$299.00 Add to Cart
Capacity X Readability (g)	120 x 0.001	200 x 0.01	400 x 0.01	600 x 0.01	400 x 0.1	600 x 0.1		4000 x 0.1	6000 x 0.1	6000 x 1
Capacity X Readability (kg)	-	-	-	-	-	-		4.0000 x 0.0001	6.0000 x 0.0001	6.000 x 0.001
Capacity X Readability (oz)	4.23290 x 0.00005	7.0550 x 0.0005	14.1095 x 0.0005	21.645 x 0.0005	14.110 x 0.005	21.165 x 0.005		141.095 x 0.005	211.65 x 0.005	211.65 x 0.05
Capacity X Readability (lb)	-	-	-	1.32280 x 0.00005	-	1.3230 x 0.0005		8.8185 x 0.0005	13.2280 x 0.0005	13.230 x 0.005
Capacity X Readability (N)	1.1768 x 0.00001	1.9613 x 0.0001	3.9227 x 0.0001	5.8840 x 0.0001	3.923 x 0.001	5.884 x 0.001		39.227 x 0.001	58.840 x 0.001	58.84 x 0.01
Repeatability (Std. Dev.) (g)	0.003	0.01			0.1					1
Linearity (g)	+/-0.003	+0.01		+0.02	+0.1				+0.2	+1
Application Modes	Specific Gravity, Parts Counting, Percentage Weighing, Totalization, Display Hold
Tare Range	To Capacity By Subtraction
Over Range Capacity	Capacity +90d
Stabilization Time	3 seconds
Operating Temp. Range	50o to 104oF / 10o to 40oC/td>
Power Requirements	AC Adapter (included) or 4 AA Batteries (not included)
Calibration Type	Specific Gravity, Parts Counting, Percentage Weighing, Totalization, Display Hold
Application Modes	Specific Gravity, Parts Counting, Percentage Weighing, Totalization, Display Hold
Application Modes	Digital Calibration from Keypad
Calibration Mass (Full Span)	100 g	200 g	400 g	600 g	400 g	600 g		4000 g	6000 g	6000 g
Calibration Mass (Linear)	50 g	100 g	200 g	300 g	200 g	300 g		2000 g	3000 g	3000 g
Display	High Contrast LCD with 6 digits 0.6in / 15mm high
Pan Size (in/cm)	3.6 / 9	4.7 / 12 diameter				6.5 x 5.6 / 16.5 x 14
Warranty	5 YRS	5 YRS	5 YRS	5 YRS	5 YRS	5 YRS		5 YRS	5 YRS	5 YRS
Dimensions WxHxD (in/cm)	7.5 x 4.4 x 8.3 19.2 x 10.8 x 21	7.56 x 2.13 x 8.27 / 19.2 x 5.4 x 21.0
Net Weight (lb/kg)	1.5 / 0.7		1.8 / 0.8
Shipping Dimensions WxHxD	10 x 4 x 12 in / 25.4 x 10.2 x 30.5 cm
Shipping Weight (lb/kg)	4 / 1.8
