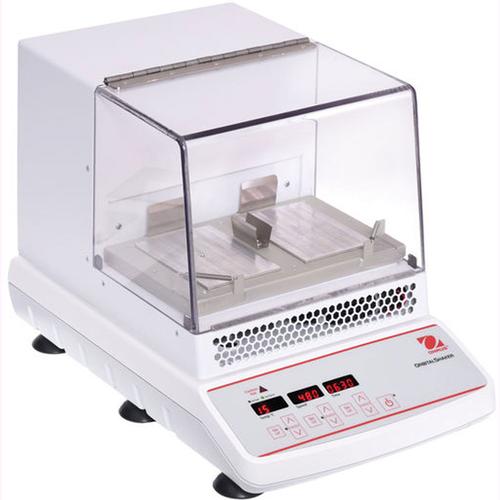

Ohaus ISICM Incubating Cooling Orbital Shakers |
Authorized Dealer |
| OHAUS Incubating Cooling Orbital Shakers are designed to incubate samples from 10oC below ambient to 65oC. Incubating Cooling Shaker is designed to hold two microplates or two optional modular tube blocks in a variety of configurations. All models feature touchpad controls with easy-to-read, independent LED displays for temperature, speed and time. Microprocessor control provides consistent uniform shaking action.
|
| Ohaus Scales |
OHAUS Incubating Cooling Orbital Shakers are designed to incubate samples from 10o below ambient to 65oC. Incubating Cooling Mini Shaker is designed to hold two microplates or two optional modular tube blocks in a variety of configurations. All models feature touchpad controls with easy-to-read, independent LED displays for temperature, speed and time. Microprocessor control provides consistent uniform shaking action.
Applications
Immunoassays, Hybridizations, Cell Cultures, Bacterial & Yeast Cultures and Suspensions, ELISA Assays, PCR, Enzyme Reactions
Display
Easy-to-read, independent LED displays for temperature, speed and time allow the operator to view all settings simultaneously
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cast aluminum housing with polycarbonate lid, brushless DC motor
Design Features
Spill-resistant design, overload protection, caution hot indicator
Operating Features
- Microprocessor Control: The variable speed microprocessor control provides
consistent uniform shaking action. Microprocessor will display last set-point and
will restart if power is interrupted.
- PID Temperature Controller: Maintains precise temperature control from
ambient +5oC to 65oC. Easy-to-use controls allow users to adjust temperature in
1oC increments.
- Triple Eccentric Drive: Permanently lubricated ball bearings and maintenance
free, brushless DC motor provide reliable service and continuous duty operation.
- LED Display: Touch pad controls with easy-to-read, independent LED displays
for temperature, speed and time allow operator to view all settings at once.
Provides repeatable and accurate results every time and is easily visible across
lab benches. Timer will display elapsed time or, when programmed to user
defined limit, will shut off unit when time reaches zero. Display will show last
used settings, even after power has been turned off.
- Temperature Calibration Mode: Allows user to calibrate unit to an external
temperature device.
Safety Features
- Overload Protection: Audible and visual signals will activate when system
detects an obstruction or overload of the tray.
- Speed Ramping Feature: Slowly increases speed to desired set-point to avoid
splashing.
- Audible Alarm: In timed mode, alarm will sound when the time reaches zero.
Caution Hot Indicator: Symbol illuminates when the temperature of the air in the
chamber reaches 40oC and remains lit until temperature cools down.
- Spill-Resistant Design: Channels fluids away from internal components.
- Polycarbonate Lid: Opaque lid prohibits light exposure to light sensitive
samples.
|
ISICMBCDG
30391945 |
| Price |
$4,331.25
|
| Control |
Digital |
| Motion |
Orbital, 0.1 in. / 3 mm |
| Speed Range |
100 – 1200 rpm |
| Speed Accuracy |
+ 2% |
| Temperature Range |
10 oC below ambient – 65 oC |
| Temperature Uniformity |
+ 0.5 oC at 37 oC |
| Timer |
1 second – 160 hours |
| Capacity |
2 Microplates or 2 Modular Blocks |
| Working Environment |
41 oF – 104 oF, 80% RH*, non-condensing / 5 oC – 40 oC, 80% RH, non-condensing |
| Drive System |
Brushless DC Motor; Triple Eccentric |

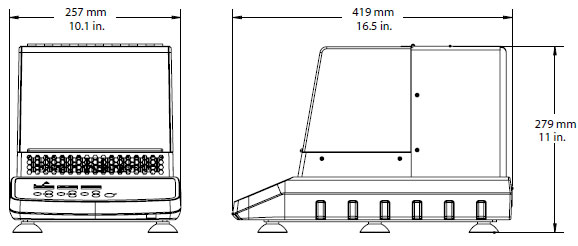

| Overall Dimensions (L x W x H) |
16.5 x 10.1 x 11 in. / 419 x 257 x 279 mm |
| Net Weight |
29.5 lb / 13.4 kg |
| Power |
120V, 2A, 50/60Hz |
| Power Consumption |
160 W |
Accessories
| Item No. |
Description |
Max. per Shaker |
No. of Wells |
Well Diameter (mm) |
Well Depth (mm) |
Image |
Price |
| 30400151 |
Module Block for 10 mm Ø Test Tubes |
2 |
24 |
10.7 |
48.4 |
|
$158.53
|
| 30400152 |
Module Block for 12/13 mm Ø Tubes |
2 |
20 |
13.9 |
48.4 |
|
$158.53
|
| 30400156 |
Module Block Combination |
2 |
14 |
26.2, 13.8, 8.3 |
48.4 |
|
$158.53
|
| 30400157 |
Module Block for 10 mm Ø Test Tubes |
2 |
30 |
7.9 |
27.6 |
|
$158.53
|
| 30400158 |
Module Block for 6 mm Ø Test Tubes |
2 |
30 |
8.3 |
48.4 |
|
$158.53
|
| 30400159 |
Module Block for 1.5 mL Microtaper |
2 |
20 |
11.1 |
39.1 |
|
$158.53
|
| 30400168 |
Module Block for 50 mL Conical Centrifuge Tubes |
2 |
5 |
29 |
47.6 |
|
$158.53
|
| 30400172 |
Module Block for 15 mL Conical Centrifuge Tubes |
2 |
12 |
17.1 |
44.5 |
|
$156.04
|
| 30400182 |
Module Block For Vials 12 mm Ø |
2 |
20 |
12.7 |
30 |
|
$158.53
|
| 30400183 |
Module Block For Vials 15 mm Ø |
2 |
20 |
15.8 |
35 |
|
$158.53
|
| 30400184 |
Module Block For Vials 17 mm Ø |
2 |
12 |
17.8 |
45 |
|
$158.53
|
| 30400185 |
Module Block For Vials 19 mm Ø |
2 |
12 |
19.7 |
45 |
|
$158.53
|
| 30400186 |
Module Block For Vials 21 mm Ø |
2 |
9 |
21.7 |
45 |
|
$158.53
|
| 30400187 |
Module Block For Vials 23 mm Ø |
2 |
8 |
23.8 |
45 |
|
$158.53
|
| 30400188 |
Module Block For Vials 25 mm Ø |
2 |
8 |
25.8 |
45 |
|
$158.53
|
| 30400189 |
Module Block For Vials 28 mm Ø |
2 |
6 |
28.8 |
45 |
|
$158.53
|
| 30400190 |
Module Block For Vials 16 mm Ø |
2 |
15 |
16.4 |
45 |
|
$158.53
|
| 30400191 |
Module Block for 2.0 mL Tubes |
2 |
20 |
11.5 |
38.1 |
|
$158.53
|
| 30400193 |
Module Block Combo, 50 mL, 15 mL, 1.5 mL |
2 |
9 |
29, 17.1, 11.1 |
47.6, 44.5, 39.1 |
|
$158.53
|
| 30400194 |
Module Block Combo—Micro Tube |
2 |
21 |
11.5, 11.1, 7.9 |
38.1, 39.1, 27.6 |
|
$158.53
|
|
