Ohaus Frontier 5000 Multi-Function Centrifuges |
Authorized Dealer |

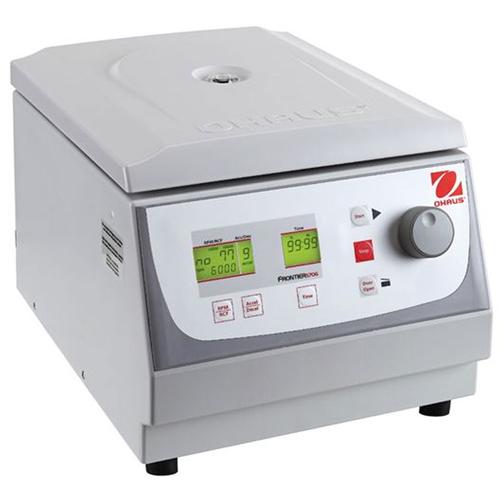

| Frontier 5706 is a small benchtop multi-function centrifuge ideal for a multitude of spin-down applications. Characterized by reliability, various safety features, the ability to accommodate test tubes of various sizes and intuitive operation, Frontier™ 5706 was built to meet the basic need for liquid separation in the life sciences.
|
| Ohaus Scales >> Ohaus Centrifuges |
|
Have Questions?
Our Staff will be glad to help |
|

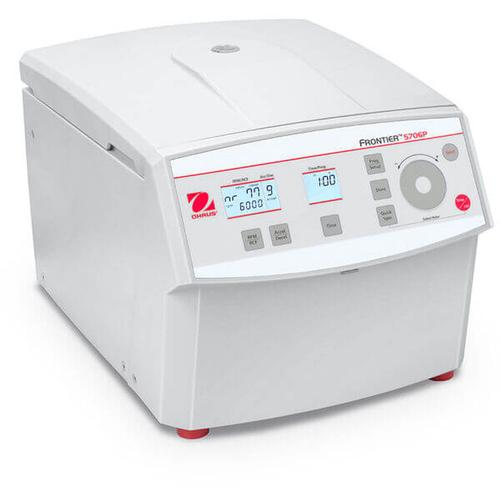

Frontier™ Multi Centrifuges are reliable compact low-speed general purpose centrifuges. The standard rotor options can process both round and conical bottom tubes (including common blood tubes), and can also be adapted easily with accessories to process smaller tubes. Designed with convenient operation in mind, the Multi Centrifuges feature an intuitive interface. The compact profile helps to save valuable bench space in labs.
Features
- Designed for ease of operation, Frontier 5706 Multi Centrifuge features convenient control on an intuitive interface, which allows for responsive operation – even when wearing gloves.
- Enhanced adaptability to satisfy different customers’ requirements in general laboratory applications. The FC5706P can hold up a variety of different tubes, starting from 50 ml to smaller volume 1.5 ml tubes.The Frontier 5706P offers 5 rotors options including a fixed angle rotor suitable for 18×1.5/2.0 ml tubes and a swing-out rotor that can hold 4×10 ml blood and urine tubes, boosting its versatility for various laboratory needs.
- Enclosing all its functionalities within a small footprint, the FC5706P saves valuable space on the lab bench.
Designed for a User-Friendly Experience
- Easy-to-use touch-wheel interface for parameter adjustments
- Convenient interface shows both set and actual parameters
- One-touch toggling between RPM/RCF and Acc/Dec
- Double-line LCD display with light blue back light
- Audible signal at the end of each run with a melody
- 10 acceleration/deceleration settings
- 99 memory sets to quickly store and recall commonly used parameters
Safety Features Enclosed Within Small Footprint
- Microprocessors control to help prevent accidents and protect both the user and the equipment
- Rotor imbalance sensor system stops the unit when it detects an imbalanced load
- Sturdy mechanical lid with locking system
- LED status to indicate the operational condition of the centrifuge like run completed (green), standby (yellow) or centrifugation (red)
Flexible Rotor Selections and Kits to Cover a Wide Range of General Laboratory and Diagnostic Applications
- Maintenance-free DC motor produces a maximum G-force of 4427×g
- Speeds up to 6000 rpm and quick spin for short runs
- Additional fixed angle rotor (18×1.5/2.0 ml microtubes) and swing out rotor (4×10 ml blood tubes) for enhanced flexibility
|
|
|
|
|
| Model |
FC5706
30130876 |
FC5706P
31060778 |
FC5706P+R77
31060779 |
FC5706P+R97
31060780 |
FC5706P+R78
31060781 |
| Price 120V |
$3,048.44
|
$1,626.56
|
$1,909.44
|
$1,768.00
|
$2,121.60
|
| Speed Range |
|
200 rpm – 6,000 rpm |
200 rpm – 6,000 rpm |
200 rpm – 6,000 rpm |
200 rpm – 6,000 rpm |
| Speed Range |
|
6 x 50 ml |
6 x 50 ml |
6 x 50 ml |
6 x 50 ml |
| Maximum Relative Centrifuge Force (x g) |
4,427 g |
| Maximum Capacity (Rotor) |
6 x 50 ml |
| Program memories |
99 |
| Acceleration Gear |
10 |
| Deceleration Gear |
10 |
| Dimensions (HxLxW) |
18.3 in x 10.7 in x 12.7 in (427 mm x 271 mm x 370 mm) (LxHxW) |
| Display |
LCD with backlight |
| Lid lock |
|
Mechanical |
| Net Weight |
31.3 lb (14.2 kg) |
| Noise Level |
=56+2 dB(A) |
| Power |
AC Power (Included) |
| Rotor In Package |
N/A |
30130877 - Angle rotor 12 x 15 ml |
31013397 - Rotor Swing out 4x10ml |
30130878 - Rotor Angle 6x50ml RB/FA |
| Power Consumption |
70 W |
| Pre-cool time |
Not applicable |
| Rotor Compatibility |
Angle 12 x 15 ml RB/FA ID
Swing out 6 x 5 ml RB
Angle 6 x 50 ml RB/FA
Swing out 4 x 10 ml
Angle 18 x 1.5/2.0 ml |
| Rotor Recognition Method |
Manual |
| Running Time |
Continous; 10 sec to 99 h 59 min 59 sec; Quickspin |
| Safety Certification |
CE;FCC |
| Working Environment |
41oF – 95oF, 80%RH, non-condensing (5oC – 35oC, 80%RH, non-condensing) |
|
